54LS75/BFA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS75/BFA

54LS75/BFA: DescriptionD Latch, 1-Func, 4-Bit, TTL, CDFP16; Categorylogic logic; File Size234KB，4 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54LS75/BFA Overview

D Latch, 1-Func, 4-Bit, TTL, CDFP16

54LS75/BFA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Logic integrated circuit type	D LATCH
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

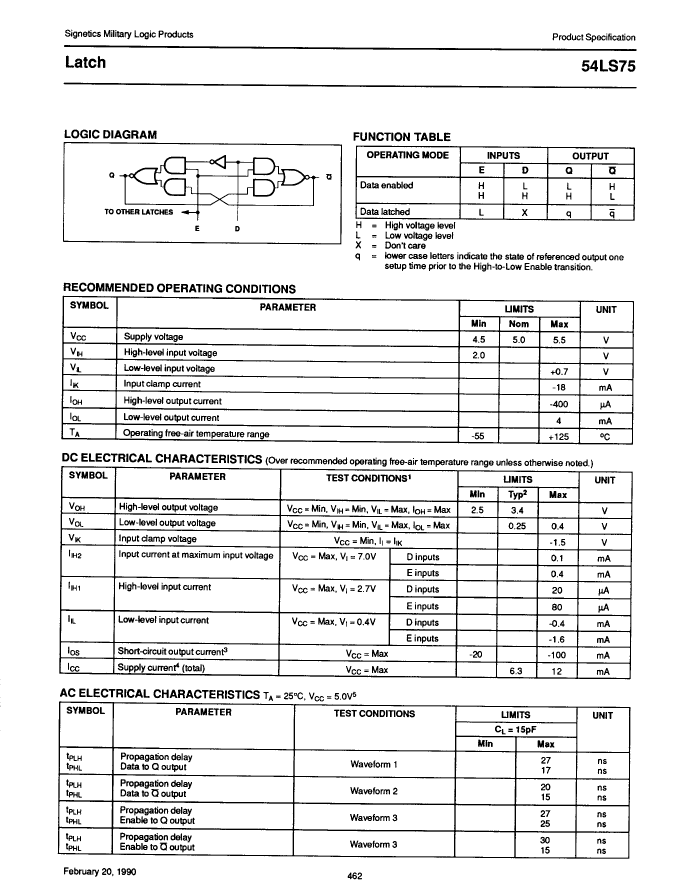

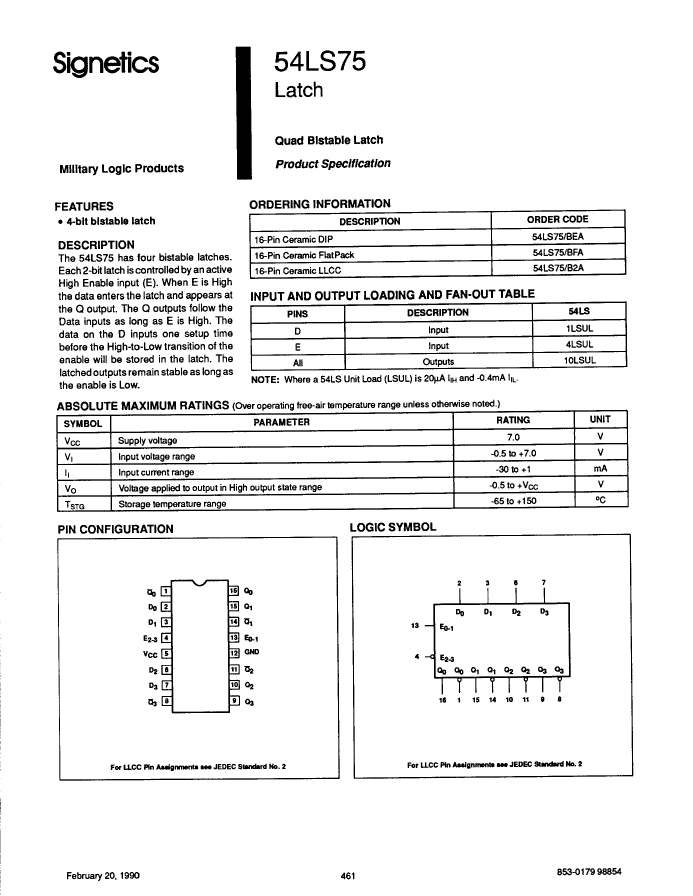

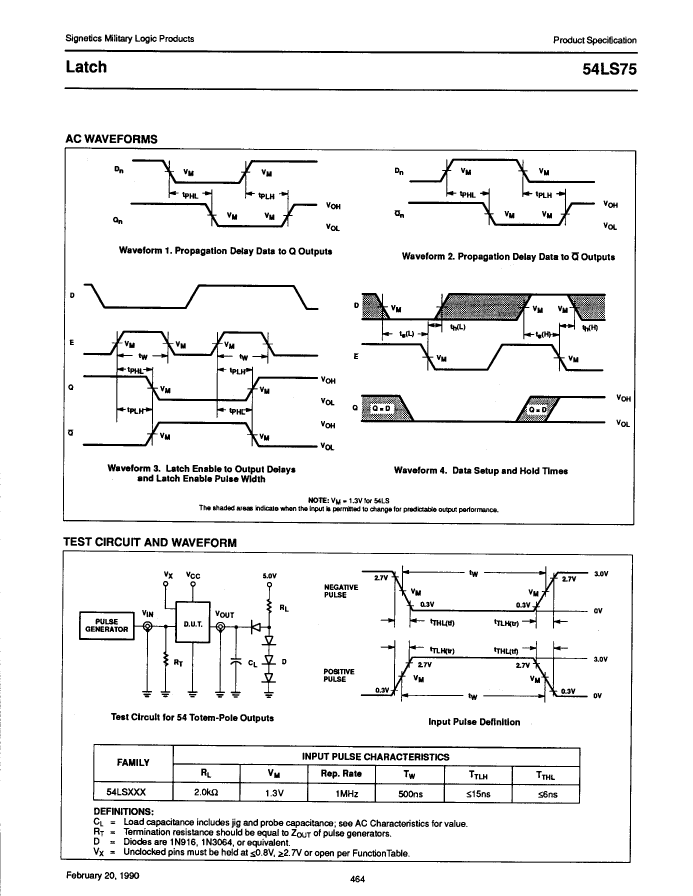

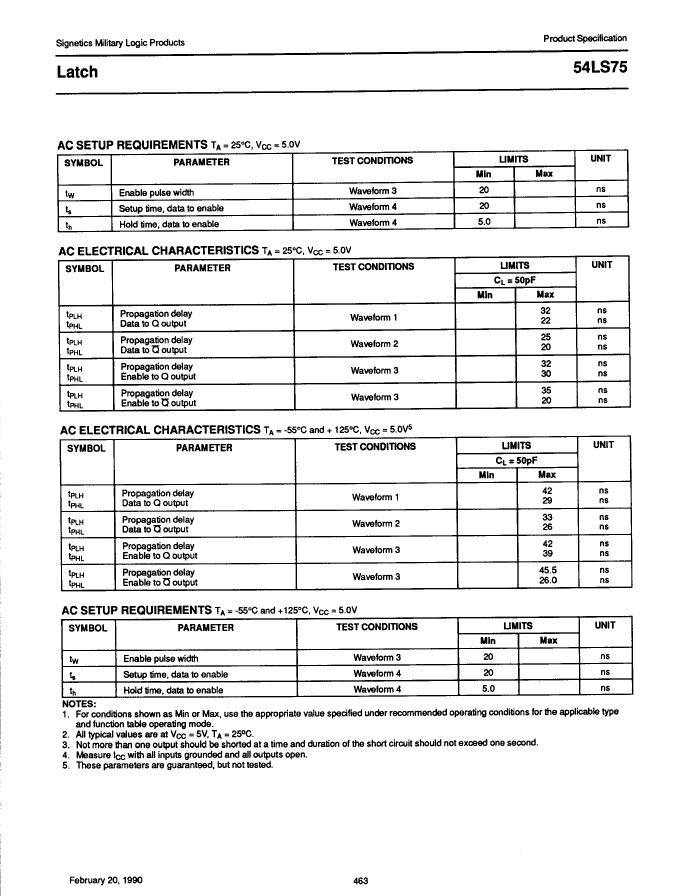

Preview

Download Datasheet

View All

54LS75/BFA Related Products

	54LS75/BFA	54LS75/BEA	N74LS75D-T	N74LS75D	N74LS75A	S54LS75W/883B	S54LS75F
Description	D Latch, 1-Func, 4-Bit, TTL, CDFP16	D Latch, 1-Func, 4-Bit, TTL, CDIP16	D Latch, 1-Func, 4-Bit, TTL, PDSO16	D Latch, 1-Func, 4-Bit, TTL, PDSO16	D Latch, 1-Func, 4-Bit, TTL, PDIP16	D Latch, 1-Func, 4-Bit, TTL, CDFP16	D Latch, 1-Func, 4-Bit, TTL, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DFP, FL16,.3	DIP, DIP16,.3	SOP, SOP16,.25	SOP, SOP16,.25	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDFP-F16	R-XDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-XDFP-F16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH
Number of digits	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DFP	DIP	SOP	SOP	DIP	DFP	DIP
Encapsulate equivalent code	FL16,.3	DIP16,.3	SOP16,.25	SOP16,.25	DIP16,.3	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	-	-
MaximumI(ol)	-	-	0.008 A	0.008 A	0.008 A	0.004 A	0.004 A
Maximum supply current (ICC)	-	-	12 mA	12 mA	12 mA	12 mA	12 mA
Prop。Delay @ Nom-Sup	-	-	30 ns	30 ns	30 ns	30 ns	30 ns
