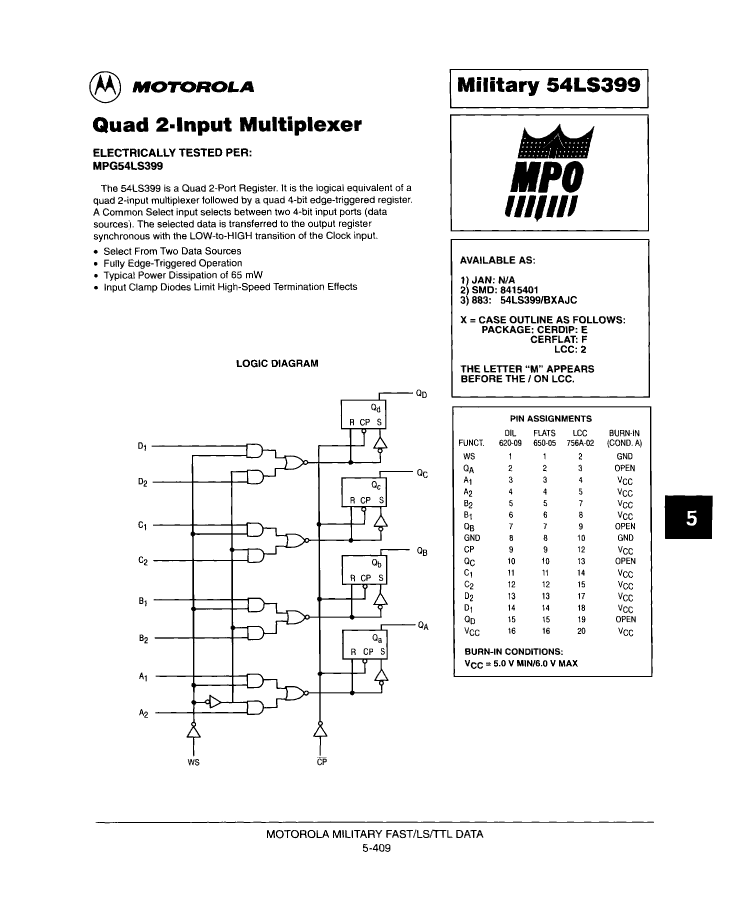

54LS399/BEAJC: DescriptionLS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERDIP-16; Categorylogic logic; File Size95KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS399/BEAJC Overview

LS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERDIP-16

54LS399/BEAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
Other features	FOUR 2:1 MUX FOLLOWED BY REGISTER
series	LS
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.3 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	13 mA
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Maximum seat height	4.19 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
Base Number Matches	1

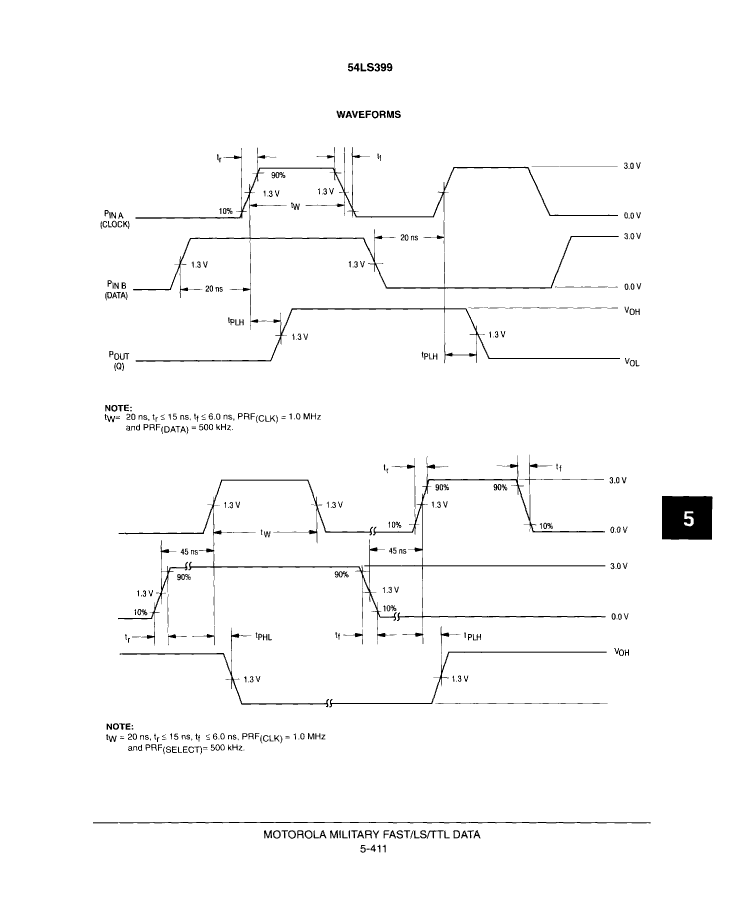

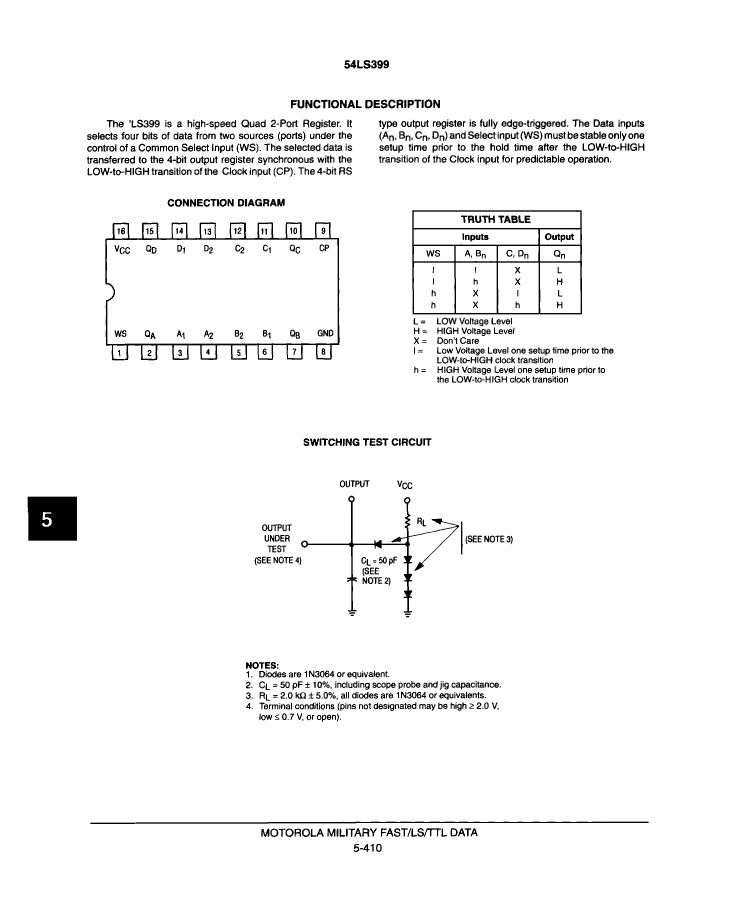

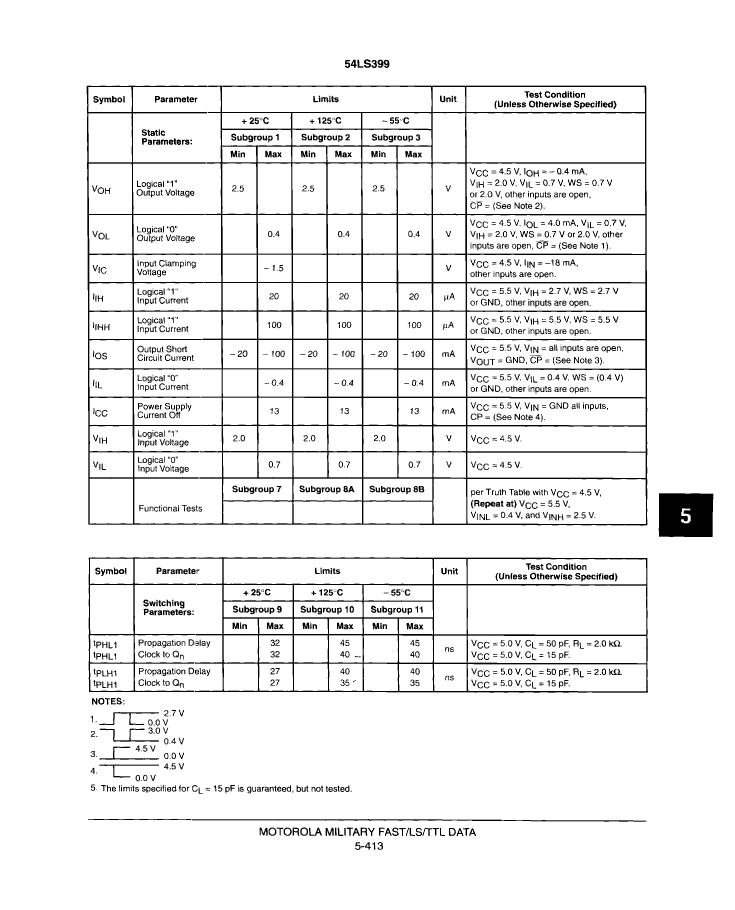

Preview

Download Datasheet

View All

54LS399/BEAJC Related Products

	54LS399/BEAJC	54LS399/BFAJC	54LS399M/B2AJC
Description	LS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERDIP-16	LS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDFP16, CERAMIC, FP-16	LS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	DIP	DFP	QLCC
package instruction	DIP,	DFP, FL16,.3	QCCN, LCC20,.35SQ
Contacts	16	16	20
Reach Compliance Code	unknown	unknown	unknown
Other features	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER
series	LS	LS	LS
JESD-30 code	R-GDIP-T16	R-GDFP-F16	S-CQCC-N20
JESD-609 code	e0	e0	e0
length	19.3 mm	9.65 mm	8.885 mm
Load capacitance (CL)	15 pF	15 pF	15 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	4	4	4
Number of functions	1	1	1
Number of terminals	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	13 mA	13 mA	13 mA
propagation delay (tpd)	40 ns	40 ns	40 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.19 mm	2.15 mm	1.9 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	6.415 mm	8.885 mm
Base Number Matches	1	1	1
Number of entries	-	2	2
Encapsulate equivalent code	-	FL16,.3	LCC20,.35SQ
power supply	-	5 V	5 V
Filter level	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B
