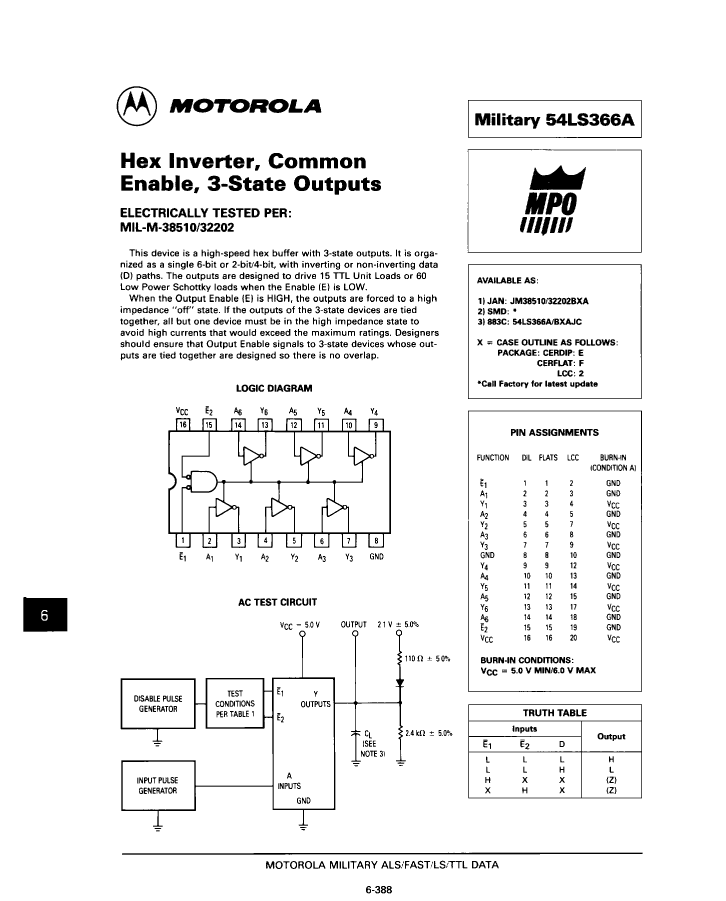

LS SERIES, 6-BIT DRIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20

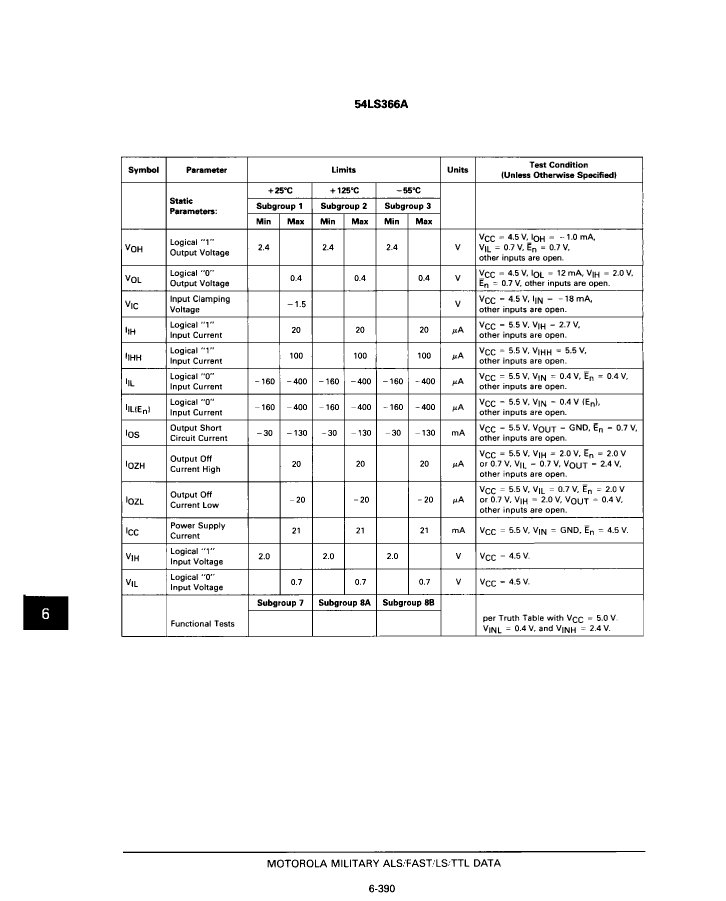

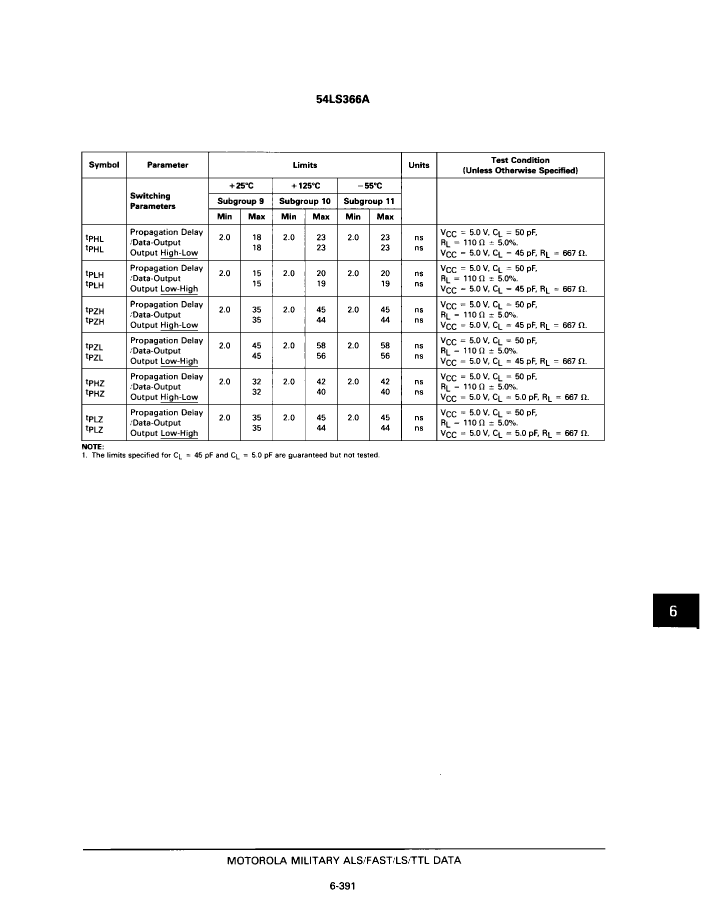

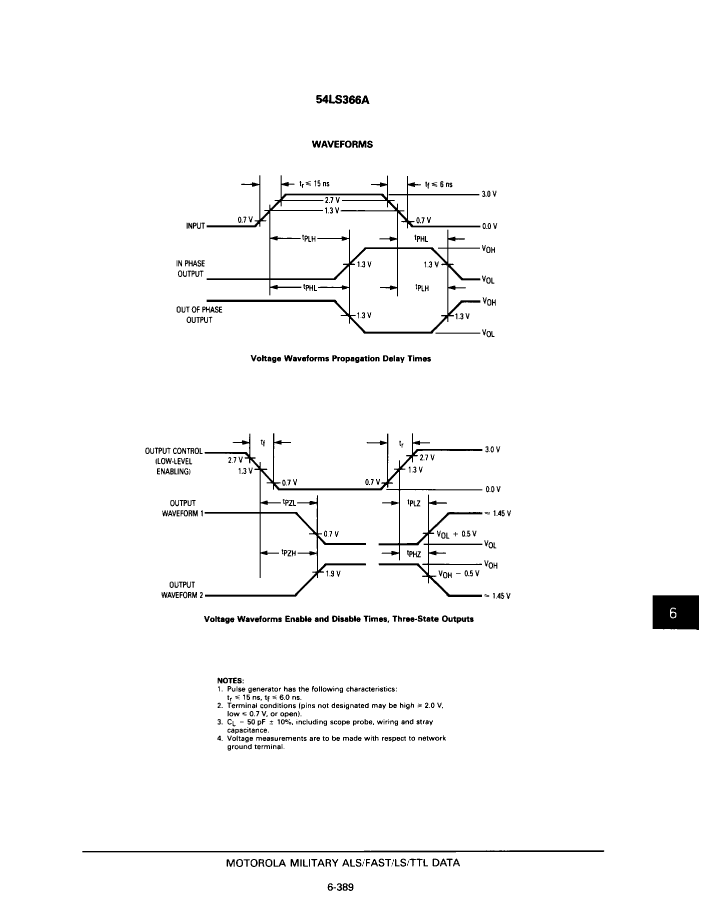

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| Parts packaging code | QLCC |
| package instruction | QCCN, LCC20,.35SQ |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Other features | WITH DUAL OUTPUT ENABLE |
| Control type | ENABLE LOW |
| series | LS |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.89 mm |
| Logic integrated circuit type | BUS DRIVER |
| MaximumI(ol) | 0.012 A |
| Number of digits | 6 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 21 mA |
| Prop。Delay @ Nom-Sup | 23 ns |
| propagation delay (tpd) | 23 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 8.89 mm |
| Base Number Matches | 1 |
| 54LS366A/B2AJC | 54LS366A/BEAJC | JM38510/32202B2A | JM38510/32202BEA | JM38510/32202BFA | |
|---|---|---|---|---|---|
| Description | LS SERIES, 6-BIT DRIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20 | LS SERIES, 6-BIT DRIVER, INVERTED OUTPUT, CDIP16, CERDIP-16 | Bus Driver, LS Series, 1-Func, 6-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20 | Bus Driver, LS Series, 1-Func, 6-Bit, Inverted Output, TTL, CDIP16, CERDIP-16 | LS SERIES, 6-BIT DRIVER, INVERTED OUTPUT, CDFP16, CERAMIC, FP-16 |
| package instruction | QCCN, LCC20,.35SQ | DIP, DIP16,.3 | QCCN, | DIP, | DFP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Other features | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE |
| series | LS | LS | LS | LS | LS |
| JESD-30 code | S-CQCC-N20 | R-GDIP-T16 | S-CQCC-N20 | R-GDIP-T16 | R-GDFP-F16 |
| length | 8.89 mm | 19.3 mm | 8.89 mm | 19.3 mm | 9.65 mm |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 6 | 6 | 6 | 6 | 6 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 16 | 20 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED | INVERTED | INVERTED |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | DIP | QCCN | DIP | DFP |
| Package shape | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | IN-LINE | CHIP CARRIER | IN-LINE | FLATPACK |
| propagation delay (tpd) | 23 ns | 23 ns | 23 ns | 23 ns | 23 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.9 mm | 4.19 mm | 1.9 mm | 4.19 mm | 2.15 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | NO | YES |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | THROUGH-HOLE | NO LEAD | THROUGH-HOLE | FLAT |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | DUAL | QUAD | DUAL | DUAL |
| width | 8.89 mm | 7.62 mm | 8.89 mm | 7.62 mm | 6.415 mm |
| Maker | Motorola ( NXP ) | - | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Parts packaging code | QLCC | DIP | - | - | DFP |
| Contacts | 20 | 16 | - | - | 16 |
