54F27C datasheet, PDF - EEWORLD Datasheet

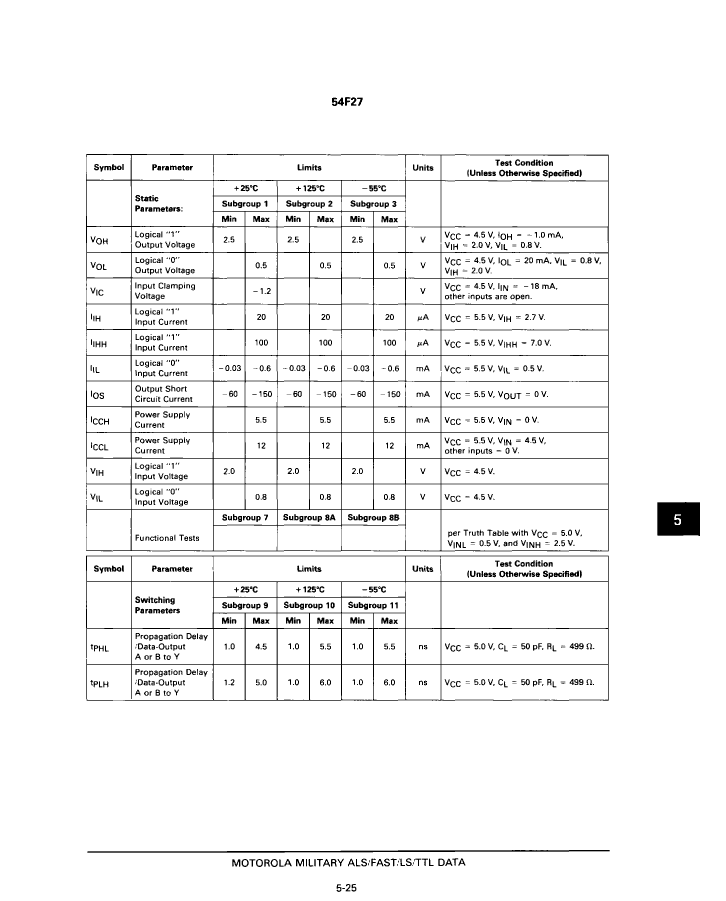

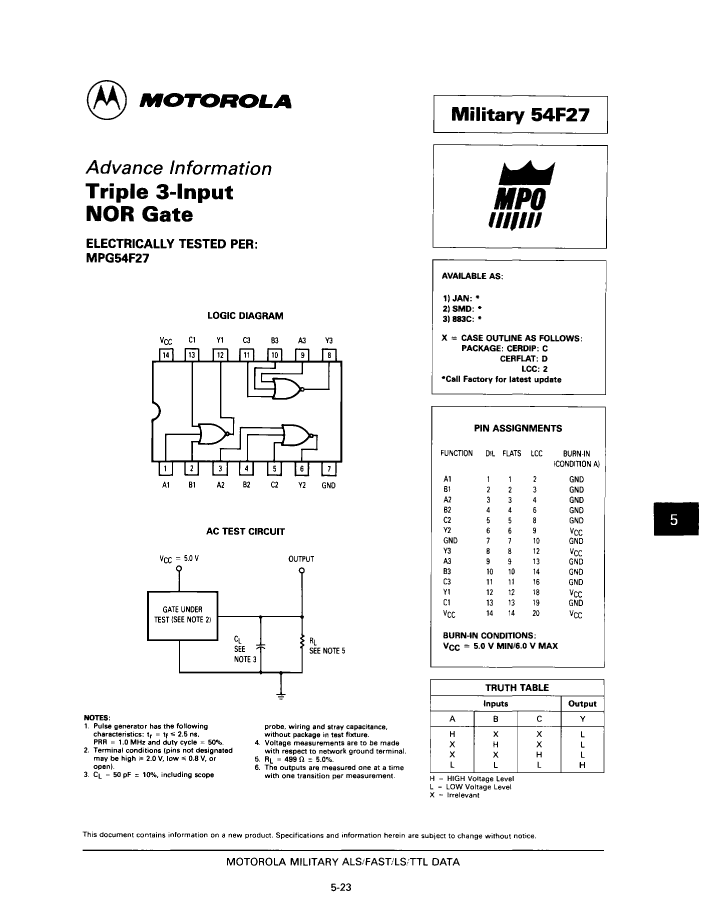

54F27C: DescriptionNOR Gate, F/FAST Series, 3-Func, 3-Input, TTL, CDIP14, CERDIP-14; Categorylogic logic; File Size50KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F27C Overview

NOR Gate, F/FAST Series, 3-Func, 3-Input, TTL, CDIP14, CERDIP-14

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	DIP,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-GDIP-T14
length	19.495 mm
Logic integrated circuit type	NOR GATE
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	5.5 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	54F27C	54F27D	54F272
Description	NOR Gate, F/FAST Series, 3-Func, 3-Input, TTL, CDIP14, CERDIP-14	NOR Gate, F/FAST Series, 3-Func, 3-Input, TTL, CDFP14, CERAMIC, FP-14	NOR Gate, F/FAST Series, 3-Func, 3-Input, TTL, CQCC20, CERAMIC, LCC-20
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP,	DFP,	QCCN,
Reach Compliance Code	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDIP-T14	R-GDFP-F14	S-CQCC-N20
length	19.495 mm	9.65 mm	8.885 mm
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE
Number of functions	3	3	3
Number of entries	3	3	3
Number of terminals	14	14	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
propagation delay (tpd)	5.5 ns	5.5 ns	5.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	2.15 mm	1.9 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
width	7.62 mm	6.415 mm	8.885 mm
