74AC841SDC datasheet, PDF - EEWORLD Datasheet

74AC841SDC: DescriptionBus Driver, AC Series, 1-Func, 10-Bit, True Output, CMOS, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24; Categorylogic logic; File Size138KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

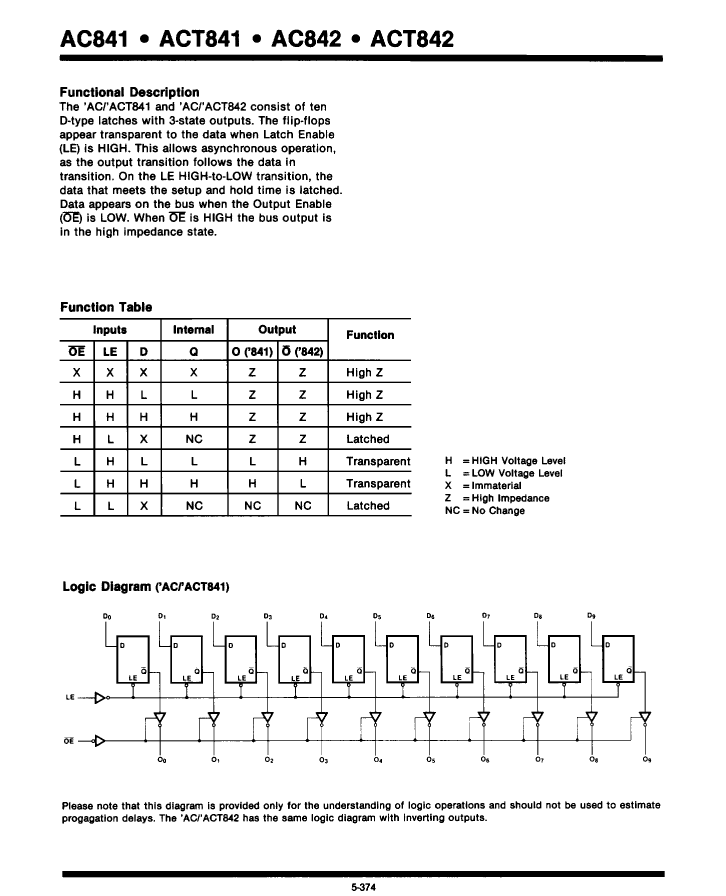

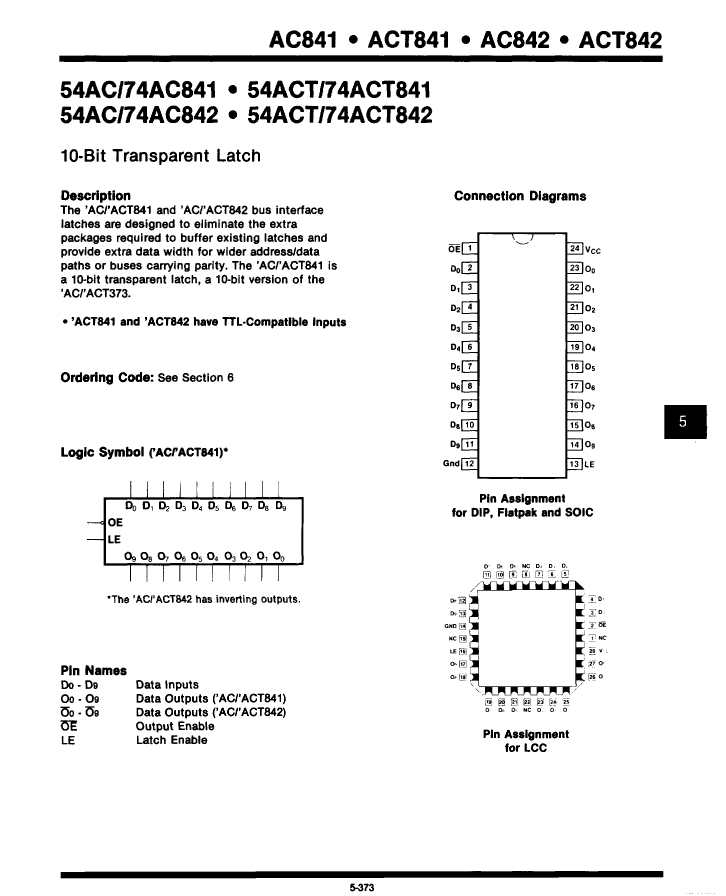

74AC841SDC Overview

Bus Driver, AC Series, 1-Func, 10-Bit, True Output, CMOS, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24

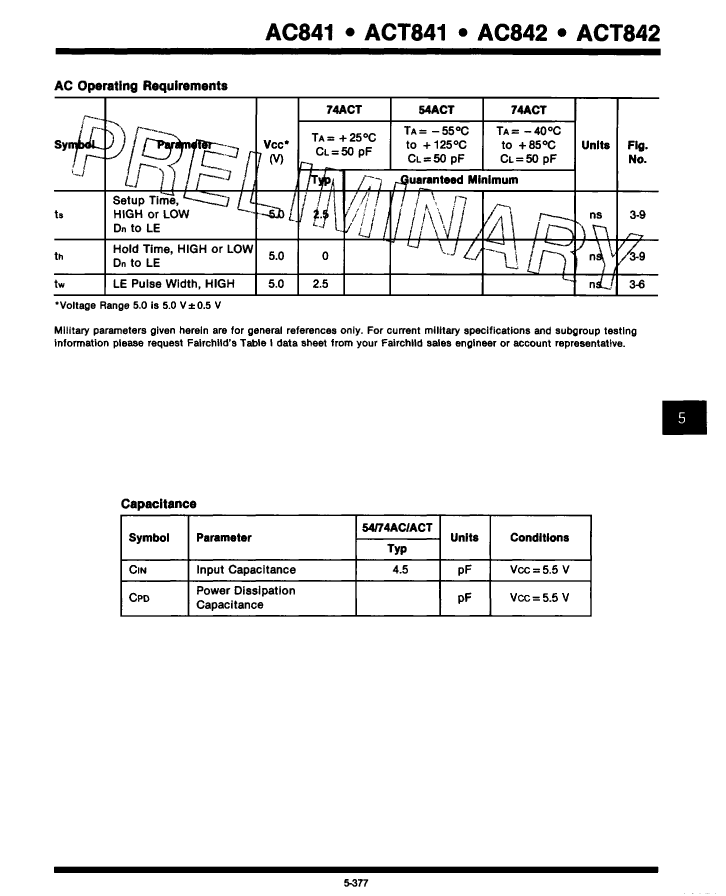

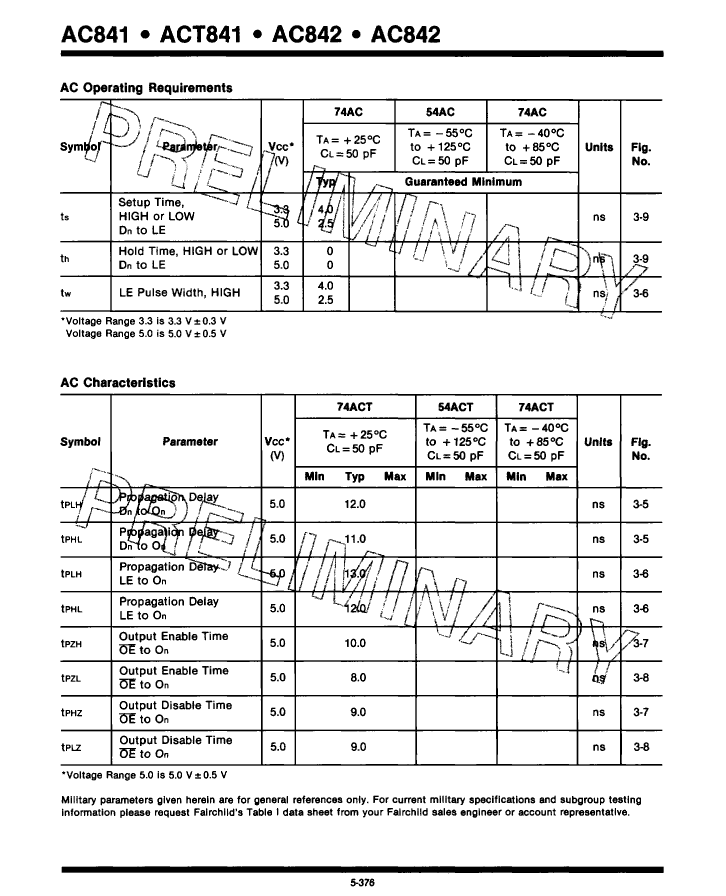

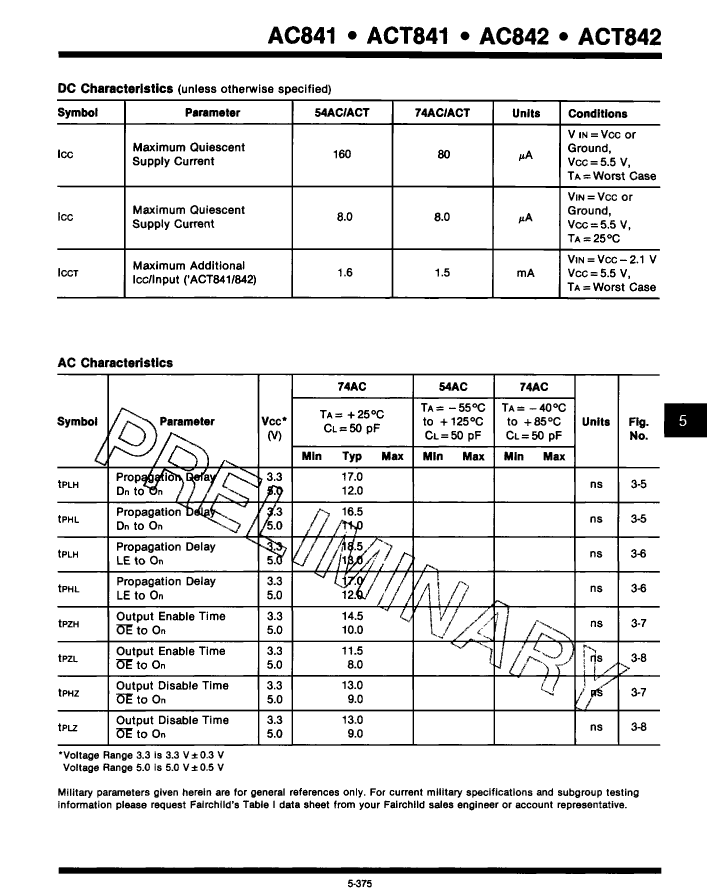

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-GDIP-T24
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
