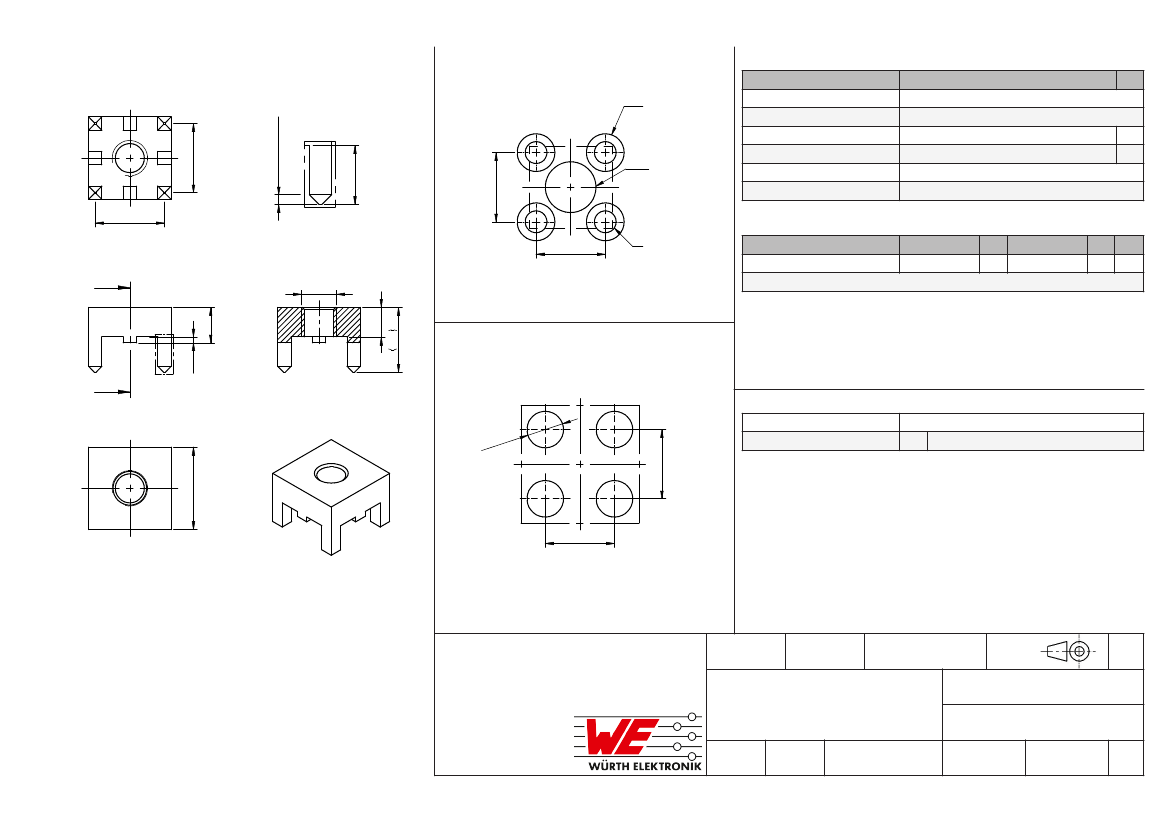

Operating current depends on PCB, cable lug and cross section of the cable
Scale - 3:1
5,5
Stencil Suggestion:
A
B
,1
O
3
0,5
Packaging Properties:
Packaging
Packaging Unit (Qty.)
5,87
Tape and Reel
Qty.
750
q
7,0
5,87
Scale - 3:1
Scale - 3:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaMa
DESCRIPTION
WlW
DIN ISO 2768-1m
REDCUBE THR with internal
through-hole thread WP-THRBU
REVISION
STATUS
ORDER CODE
74650073R
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2017-11-07
eiCan
1/5
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

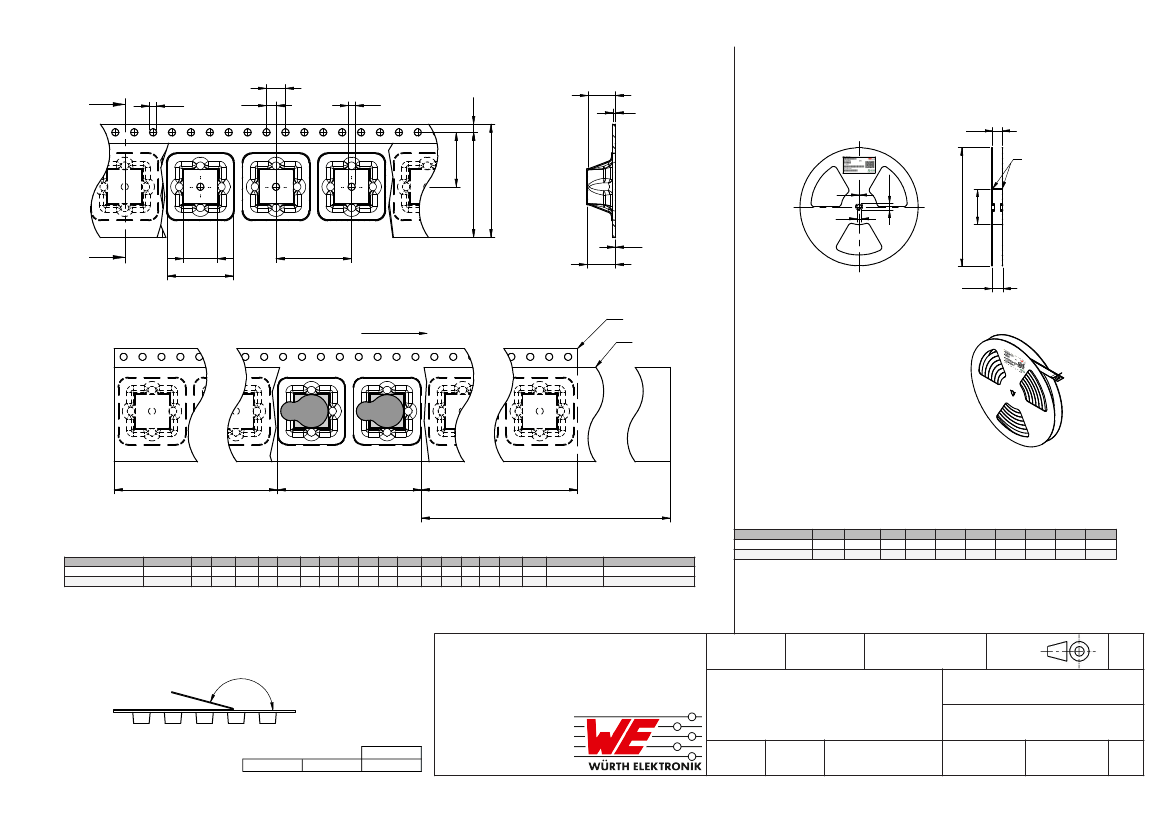

Packaging Specification - Tape and Reel: [mm]
P0
A
E1
D0
P2
D1
K0
T
W3
W1
close to center
F
E2
W
B
C
D
A
q
B0
q
A0
T1
P1
T2
W2
Carriertape
End
Feeding direction
Start
Cover Tape
NO COMPONENT
min. 160mm
COMPONENTS
NO COMPONENT
min. 100mm
COVER TAPE
min. 400mm
Tolerance
Tape width
24mm
A
± 2,0
330,00
B
min.
1,50
C
min.
12,80
D
min.
20,20
N
± 2,0
60,00
W1
+2
24,40
W2
max.
30,40
W3
min.
23,90
W3
max.
27,40
Packaging is reffered to the international standard
IEC 60286-3:2013
Tolerance
Part Number
74650073R
A0 B0
B1
G
W
T
T1 T2 K0 P0 P1
P2 D0 D1 E1 E2
F
Tape Type 2a
+0,2 +0,3 typ.
min. ±0,3 max. max. +0,2 +0,2 ±0,1 ±0,1 ±0,1 +0,1 typ. ±0,1 min. typ.
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Classification Reflow Profile for SMT components:
Classification Reflow Soldering Profile:
Profile Feature
Preheat Temperature
Min
1)
Preheat Temperature Max
Value
T
s min
150 °C
T
s max
200 °C
t
s
T
L
t
L
T
p
t
p
60 - 120 seconds
3 °C/ second max.
217 °C
60 - 150 seconds
see table
20 - 30 seconds
6 °C/ second max.
8 minutes max.
T
p
Max. Ramp Up Rate
Max. Ramp Down Rate
T
L
T
s max
t
L
t
p
T
C
–5°C
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate (T
L
to T
P
)
Liquidous Temperature
Time t
L
maintained above T
L
Peak package body temperature
Time within 5°C of actual peak temperaure
Ramp-down Rate (T
L
to T
P
)
Time 25°C to peak temperature
1)
refer
Temperature
Preheat Area
T
s min
t
S
to IPC/JEDEC J-STD-020D
refer to IPC/ JEDEC J-STD-020E
Package Classification Reflow Temperature:
Properties
Volume mm³
<350
260 °C
250 °C
Volume mm³
350-2000
260 °C
250 °C
245 °C
Volume mm³
>2000
260 °C
245 °C
245 °C
25
Time 25°C to Peak
PB-Free Assembly | Package Thickness < 1.6 mm
1)
PB-Free Assembly | Package Thickness 1.6 mm - 2.5 mm
260 °C
Time
PB-Free Assembly | Package Thickness ≥ 2.5 mm
1)
refer
to IPC/JEDEC J-STD-020D
refer to IPC/ JEDEC J-STD-020E
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaMa
DESCRIPTION
WlW
DIN ISO 2768-1m
REDCUBE THR with internal
through-hole thread WP-THRBU
REVISION
STATUS
ORDER CODE
74650073R
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2017-11-07
eiCan
3/5
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Cautions and Warnings:
The following conditions apply to all goods within the product series of WP-THRBU of
Würth Elektronik eiSos GmbH & Co. KG:
General:
• This electronic component is designed and developed with the intention for use in general electronics equipment.
• Before incorporating the components into any equipment in the field such as aerospace, aviation, nuclear control, submarine,
transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information
network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body,
Würth Elektronik must be asked for a written approval.
• In addition, even electronic component in general electronic equipment, when used in electrical circuits that require high safety,
reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed by the user before usage.
• The electronic component is designed and manufactured to be used within the datasheet specified values.
• Do not use the electronic component outside the datasheet specifications.
• Prevent any damage or scratches on the electronic component.
• Direct mechanical impact to the electronic component shall be prevented.
• The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the
authority of the customer. All technical specification for standard products do also apply to customer specific products.
We recommended a solution without organic acid (preserve the plating against corrosion) volatile, without residues and compatible with the
plastic.
We recommend to perform tests and to let a part in immersion in the solution 8 to 12 hours and see if there is a degradation.
Storage Conditions:
REDCUBE WP-THRBU are considered MSL1 into closed original packaging and are not subject to storage time limits regarding the moisture
sensitivity but all products shall be used before the end of the period of 24 months based on the product date-code, if not a 100%
solderability can´t be warranted.
Handling:
Do not repeatedly operate the REDCUBE WP-THRBU with excessive force. It may damage or deforms the component, body, screw thread or
pins which results in malfunction. Violation of the technical product specifications such as exceeding the nominal rated current will result in
loss of warranty. The maximum permissible torques must be complied with to prevent mechanical destruction of the electronic component
and PCB.
In the case a product requires particular handling precautions, in addition to the general recommendations mentioned here before, these will
appear on the product datasheet.
Product specific:
Soldering:
The solder profile must comply with the WE technical soldering specification, otherwise this will void the warranty. The via has to be filled
completely with solder paste before reflow soldering. Wave soldering is not applicable. Hot-air reflow is recommended. Other soldering
methods are not verified and have to be validated by the customer at his own risk.
Cleaning and washing:
REDCUBE WP-THRBU parts are not constructed for washing, so washing can cause malfunction afterwards.
Cleaning agent that are used to clean the customer applications might damage or change the characteristics of the component, body, screw
thread and pins.
Please do not submerse our washable products into water or cleaning agents or put them in locations exposed to water completely.
When cleaning by hand (brushing), please do not use excessive force on the electronic component to avoid malfunction afterwards, because
customer could deform function relevant areas.
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaMa
DESCRIPTION
WlW
DIN ISO 2768-1m
REDCUBE THR with internal
through-hole thread WP-THRBU
REVISION
STATUS
ORDER CODE
74650073R
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2017-11-07
eiCan
4/5
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Important Notes
The following conditions apply to all goods within the product range of Würth Elektronik
eiSos GmbH & Co. KG:
1. General Customer Responsibility
Some goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain
application areas. These statements about suitability are based on our knowledge and experience of typical requirements concerning the
areas, serve as general guidance and cannot be estimated as binding statements about the suitability for a customer application. The
responsibility for the applicability and use in a particular customer design is always solely within the authority of the customer. Due to this
fact it is up to the customer to evaluate, where appropriate to investigate and decide whether the device with the specific product
characteristics described in the product specification is valid and suitable for the respective customer application or not.
6. Product Life Cycle
Due to technical progress and economical evaluation we also reserve the right to discontinue production and delivery of products. As a
standard reporting procedure of the Product Termination Notification (PTN) according to the JEDEC-Standard we will inform at an early stage
about inevitable product discontinuance. According to this we cannot guarantee that all products within our product range will always be
available. Therefore it needs to be verified with the field sales engineer or the internal sales person in charge about the current product
availability expectancy before or when the product for application design-in disposal is considered. The approach named above does not
apply in the case of individual agreements deviating from the foregoing for customer-specific products.
7. Property Rights
All the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas, development contracts as
well as models or templates that are subject to copyright, patent or commercial protection supplied to the customer will remain with Würth
Elektronik eiSos GmbH & Co. KG. Würth Elektronik eiSos GmbH & Co. KG does not warrant or represent that any license, either expressed or
implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination,
application, or process in which Würth Elektronik eiSos GmbH & Co. KG components or services are used.
2. Customer Responsibility related to Specific, in particular Safety-Relevant Applications
It has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the usual lifetime
cannot be completely eliminated in the current state of the art, even if the products are operated within the range of the specifications.
In certain customer applications requiring a very high level of safety and especially in customer applications in which the malfunction or
failure of an electronic component could endanger human life or health it must be ensured by most advanced technological aid of suitable
design of the customer application that no injury or damage is caused to third parties in the event of malfunction or failure of an electronic
component. Therefore, customer is cautioned to verify that data sheets are current before placing orders. The current data sheets can be
downloaded at www.we-online.com.
8. General Terms and Conditions
Unless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and Conditions of Würth
Elektronik eiSos Group”, last version available at www.we-online.com.
3. Best Care and Attention
Any product-specific notes, cautions and warnings must be strictly observed. Any disregard will result in the loss of warranty.
4. Customer Support for Product Specifications
Some products within the product range may contain substances which are subject to restrictions in certain jurisdictions in order to serve
specific technical requirements. Necessary information is available on request. In this case the field sales engineer or the internal sales
person in charge should be contacted who will be happy to support in this matter.
5. Product R&D
Due to constant product improvement product specifications may change from time to time. As a standard reporting procedure of the
Product Change Notification (PCN) according to the JEDEC-Standard inform about minor and major changes. In case of further queries
regarding the PCN, the field sales engineer or the internal sales person in charge should be contacted. The basic responsibility of the
customer as per Section 1 and 2 remains unaffected.
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaMa
DESCRIPTION
WlW
DIN ISO 2768-1m
REDCUBE THR with internal
through-hole thread WP-THRBU
REVISION
STATUS
ORDER CODE
74650073R
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2017-11-07
eiCan
5/5
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
There are some pins on the ARM chip that do not have registers to control them. In the WinCE driver, how should such pins be operated? For example, nROE and nRWE for read and write control of the expa...
My board is CC2530 from Tianyun Technology. The example is sesor demo. When I used this example on my original board, the computer could receive data. But when I downloaded this example to Tianyun's b...
In the early 1990s, portable phones were all the rage. With the rapid development of electronic technology, today's mobile phones can not only send emails and text messages, but also take photos, ch...[Details]
Introduction
The market for wireless telemetry products is developing rapidly. Recently, the industry has also set off a revolution in wireless applications. Wireless telemetry technol...[Details]
Maximize instrument utilization and reduce
test times
Increasing the throughput of automated test systems can improve efficiency. Using off-the-shelf tools (COTS) such as multicore proc...[Details]
Signal sources have developed to a very wide range today. We can classify them according to the frequency range: ultra-low frequency (0.1m～1kHz), audio (20Hz～20kHz), video (20kHz～10MHz), radio fre...[Details]
Abstract: Based on the research of the communication process between the reader and the RFID tag, combined with the EPC C1G2 protocol and ISO/IEC18000.6 protocol, a digital circuit of RFID tag appl...[Details]
To help improve DC/DC conversion efficiency at lighter loads and higher frequencies, Schottky diodes can be integrated into MOSFET chips to form a single package to reduce power dissipation in the ...[Details]
Among the many candidate standards for China's mobile TV, the CMMB standard proposed by the Broadcasting Science Research Institute of the State Administration of Radio, Film and Television is aime...[Details]
1. Introduction
The intelligent detector discussed in this paper is an integrated semiconductor photodetector. Compared with traditional semiconductor photosensitive devices, its most ...[Details]
Power Integrations (PI) has introduced three charger/adapter reference designs using its new LinkSwitch-II series of AC-DC switching power conversion ICs. The new LinkSwitch-II devices use high-pre...[Details]
1. What is fading?
In terms of scope, fading can be roughly divided into three types: large area fading, small area fading and indoor fading. As shown in Figure 1, large area fading refers t...[Details]
According to In-Stat/MDR, the number of mobile phones with Bluetooth capabilities will reach at least 300 million by 2005. One of the clear evidences of the increasing adoption of Bluetooth is that...[Details]
Abstract:
An amplifier solution for ceramic speaker systems is presented.
Keywords:
audio; ceramic speaker; amplifier; Class G
Today's portable devices require smaller, thinne...[Details]
Anyone who has owned a laptop computer will have noticed that when running on battery power, their portable device behaves differently than when running on AC mains power—the display dims, the proc...[Details]
The difference between CCD and CMOS sensors Mr.OH! briefly introduced CCD and CMOS in the second lecture, but for most students, what they see is a combination of integrated chips! The detailed int...[Details]
For mobile phone products, using low-cost components in design is only the first step to make the price competitive. The cost of the production process, especially the cost incurred during the fina...[Details]
Electronics Design Contest
京公网安备 11010802033920号
EEWORLD
