57-06-34

Description
Fixed Attenuator, 0MHz Min, 5000MHz Max
CategoryWireless rf/communication    Radio frequency and microwave
File Size69KB,1 Pages
ManufacturerCobham PLC
Download Datasheet Parametric View All

57-06-34 Overview

Fixed Attenuator, 0MHz Min, 5000MHz Max

57-06-34 Parametric

Parameter NameAttribute value
MakerCobham PLC
Reach Compliance Codeunknown
Nominal attenuation6 dB
Characteristic impedance50 Ω
structureCOAXIAL
Maximum input power (CW)51.76 dBm
JESD-609 codee4
Maximum operating frequency5000 MHz
Minimum operating frequency
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesFIXED ATTENUATOR
Terminal surfaceGOLD
Maximum voltage standing wave ratio1.2
Base Number Matches1

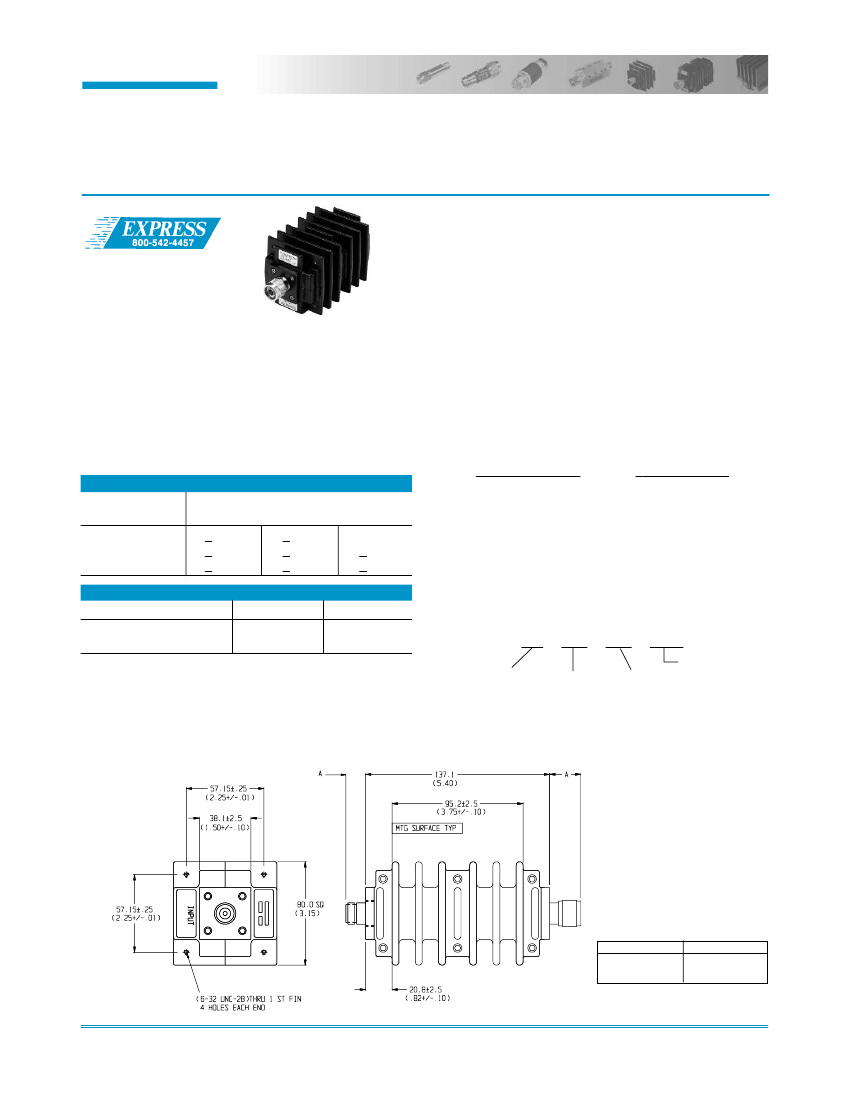

Weinschel
C O R P O R A T I O N
Model 40
Model 57
High Power Fixed Coaxial Attenuators
Type N Connectors
dc to 1.5 GHz
dc to 5.0 GHz
150 Watts
Features
o
o
Quality connectors with special high temperature
support beads.
Designed to meet environmental requirements of
MIL-A-3933.
POWER RATING (mounted horizontally with fins
vertical):
150 watts
average (unidirectional)
to 55°C
ambient temperature, derated linearly to 10% @ 125°C.
Note: 3 dB model can handle 300 Watts
average (unidi-
rectional).
10 kilowatt
peak
(5
µsec
pulse width; 0.75%
duty cycle). Maximum power rating into output port is 20
watts average.
POWER COEFFICIENT:
<0.0001 dB/dB/watt
TEMPERATURE COEFFICIENT:
<0.0004 dB/dB/°C
TEMPERATURE RANGE:
-55°C to 125°C
CALIBRATION:
Insertion loss test data supplied at 0.05, 1,
2, 3, 4, and 5 GHz (Model 40 at 0.05 and 1.5 GHz). Other
test data can be provided at additional cost.
CONNECTORS:
Type N connectors per MIL-STD-348
interface dimensions - mate nondestructively with MIL-C-
39012 connectors.
Connector Options
3
4
57-LIM
---
+ 1.75
+ 2.00
Type/Description
Type N, Female
Type N, Male
Specifications
NOMINAL IMPEDANCE:
50
FREQUENCY RANGE:
Model 40:
Model 57:
dc to 1.5 GHz
dc to 5.0 GHz
MAXIMUM DEVIATION OVER FREQUENCY:
Nominal
Deviation (dB)
ATTN (dB)
40
57
3*, 6
10, 20
30, 40
MAXIMUM SWR:
Frequency (GHz)
dc - 2 (1.5*)
2-5
* Model 40 only!
+ 0.50
+ 0.50
+ 0.50
+ 1.25
+ 1.25
+ 1.50
CONSTRUCTION:
Aluminum alloy body, stainless steel
connectors; gold plated beryllium female copper contacts
and stainless steel male contacts.
WEIGHT:
1,130 g (2 lbs, 8 oz.) maximum
MODEL NUMBER DESCRIPTION:
Input
1.10
1.15
Output
1.20 (1.10*)
1.20
Example:
57 - XX - XX
-
LIM
IM Option*
Basic
Model
Number
Attenuation
Value (dB)
Connector Options
1st digit is input side
2nd digit is output side
3rd ORDER INTERMODULATION (57-XX-XX-LIM ONLY):
Reflected Levels (IM3), -100 & Through Levels (IM3), -110
dBc with two input signals @ 869 MHz and 891 MHz with
average carrier power levels of +43 dBm each. Option only
available 10, 20, 30, 40 dB.
PHYSICAL DIMENSIONS:
* Add -LIM for Low Intermodulation option. Option only available 10,
20, 30, 40 dB.
Connector
N Male
N Female
NOTE:
DIM A
22.9 (0.90)
15.0 (0.59)
All dimensions are given in mm (inches) and
are maximum, unless otherwise specified.
54
12/30/00
5305 Spectrum Drive, Frederick, MD 21703-7362
!
TEL: 301-846-9222, 800-638-2048
!
Fax: 301-846-9116
web: www.weinschel.com
!
email: sales@weinschel.com
