554CC000130DG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 554CC000130DG

554CC000130DG: DescriptionCMOS Output Clock Oscillator, ROHS COMPLIANT PACKAGE-8; CategoryPassive components oscillator; File Size486KB，15 Pages; ManufacturerSilicon Laboratories Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

554CC000130DG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	554CC000130DG	-	-	View	Buy Now

554CC000130DG Overview

CMOS Output Clock Oscillator, ROHS COMPLIANT PACKAGE-8

554CC000130DG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Silicon Laboratories Inc
package instruction	ROHS COMPLIANT PACKAGE-8
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TRAY
Maximum control voltage	3.3 V
Minimum control voltage
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	50%
linearity	10%
Manufacturer's serial number	SI554
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.85mm
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

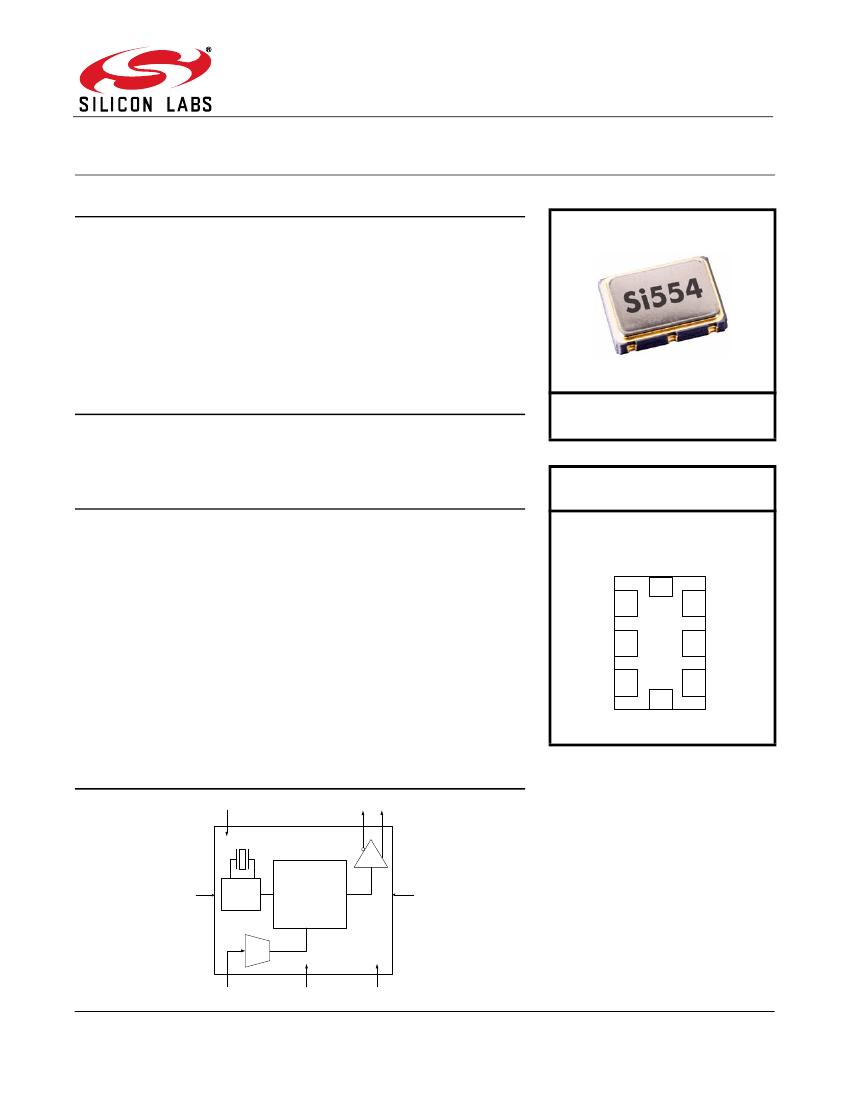

Si554

EVISION

UAD

R E Q U E N C Y

O L TAG E

- C

O N T R O L L E D

RYSTAL

SCILLATOR

(VCXO) 10 MH

Z TO

1 . 4 G H

Features

Available with any-rate output

frequencies from 10–945 MHz and

selected frequencies to 1.4 GHz



Four selectable output frequencies



3rd generation DSPLL

with superior



jitter performance



3x better frequency stability than

SAW-based oscillators



Internal fixed crystal frequency

ensures high reliability and low

aging

Available CMOS, LVPECL,

LVDS, and CML outputs

3.3, 2.5, and 1.8 V supply options

Industry-standard 5 x 7 mm

package and pinout

Pb-free/RoHS-compliant

Si5602

Applications

SONET/SDH



xDSL



10 GbE LAN / WAN



Ordering Information:

Low jitter clock generation



Optical modules



Clock and data recovery



See page 10.

Description

The Si554 quad-frequency VCXO utilizes Silicon Laboratories’ advanced

DSPLL

circuitry to provide a very low jitter clock for all output frequencies.

The Si554 is available with any-rate output frequency from 10 to 945 MHz

and selected frequencies to 1400 MHz. Unlike traditional VCXOs, where a

different crystal is required for each output frequency, the Si554 uses one

fixed crystal frequency to provide a wide range of output frequencies. This

IC-based approach allows the crystal resonator to provide exceptional

frequency stability and reliability. In addition, DSPLL clock synthesis

provides superior supply noise rejection, simplifying the task of generating

low jitter clocks in noisy environments typically found in communication

systems. The Si554 IC-based VCXO is factory-configurable for a wide

variety of user specifications including frequency, supply voltage, output

format, tuning slope, and temperature stability. Specific configurations are

factory-programmed at time of shipment, thereby eliminating the long lead

times associated with custom oscillators.

Pin Assignments:

See page 9.

(Top View)

FS[1]

FS[0]

GND

CLK–

CLK+

Functional Block Diagram

CLK- CLK+

FS1

Fixed

Frequency XO

Any-rate

10–1400 MHz

DSPLL

Clock Synthesis

FS0

ADC

GND

Rev. 1.2 6/18

Si554

554CC000130DG Related Products

	554CC000130DG	554AJ000398DG	554CD000130DG	554BM000591DG	554BF000483DG	554BF000483DGR	554CC000130DGR	554HC000249DGR	554HC000249DG
Description	CMOS Output Clock Oscillator, ROHS COMPLIANT PACKAGE-8	LVPECL Output Clock Oscillator, ROHS COMPLIANT PACKAGE-8	Oscillator	Oscillator	LVDS Output Clock Oscillator, ROHS COMPLIANT PACKAGE-8	Oscillator	Oscillator	ECL Output Clock Oscillator, ROHS COMPLIANT PACKAGE-8	ECL Output Clock Oscillator, ROHS COMPLIANT PACKAGE-8
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	unknown	compliant	compliant	compliant
Base Number Matches	1	1	1	1	1	1	1	1	1
Is it lead-free?	Lead free	Lead free	-	-	Lead free	-	-	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	conform to	conform to	conform to
Maker	Silicon Laboratories Inc	-	-	Silicon Laboratories Inc	-	-	Silicon Laboratories Inc	Silicon Laboratories Inc	Silicon Laboratories Inc
Other features	ENABLE/DISABLE FUNCTION; TRAY	ENABLE/DISABLE FUNCTION; TRAY	-	-	ENABLE/DISABLE FUNCTION; TRAY	-	-	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TRAY
Maximum control voltage	3.3 V	3.3 V	-	-	3.3 V	-	-	2.5 V	2.5 V
Frequency Adjustment - Mechanical	NO	NO	-	-	NO	-	-	NO	NO
Frequency offset/pull rate	150 ppm	130 ppm	-	-	100 ppm	-	-	125 ppm	125 ppm
frequency stability	50%	20%	-	-	50%	-	-	50%	50%
linearity	10%	10%	-	-	10%	-	-	10%	10%
Manufacturer's serial number	SI554	SI554	-	-	SI554	-	-	SI554	SI554
Installation features	SURFACE MOUNT	SURFACE MOUNT	-	-	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	-	-	85 °C	-	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-	-40 °C	-	-	-40 °C	-40 °C
Oscillator type	CMOS	LVPECL	-	-	LVDS	-	-	ECL	ECL
physical size	7.0mm x 5.0mm x 1.85mm	7.0mm x 5.0mm x 1.85mm	-	-	7.0mm x 5.0mm x 1.85mm	-	-	7.0mm x 5.0mm x 1.85mm	7.0mm x 5.0mm x 1.85mm
Maximum supply voltage	3.63 V	3.63 V	-	-	3.63 V	-	-	2.75 V	2.75 V
Minimum supply voltage	2.97 V	2.97 V	-	-	2.97 V	-	-	2.25 V	2.25 V
Nominal supply voltage	3.3 V	3.3 V	-	-	3.3 V	-	-	2.5 V	2.5 V
surface mount	YES	YES	-	-	YES	-	-	YES	YES
