552DE000295DGR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 552DE000295DGR

552DE000295DGR: DescriptionECL Output Clock Oscillator, 10MHz Min, 945MHz Max, 59.370079MHz Nom, ROHS COMPLIANT PACKAGE-6; CategoryPassive components oscillator; File Size482KB，15 Pages; ManufacturerSilicon Laboratories Inc; Environmental Compliance

Download Datasheet Parametric View All

552DE000295DGR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	552DE000295DGR	-	-	View	Buy Now

552DE000295DGR Overview

ECL Output Clock Oscillator, 10MHz Min, 945MHz Max, 59.370079MHz Nom, ROHS COMPLIANT PACKAGE-6

552DE000295DGR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Silicon Laboratories Inc
package instruction	ROHS COMPLIANT PACKAGE-6
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	0.35 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	25 ppm
frequency stability	20%
linearity	10%
Manufacturer's serial number	SI552
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	945 MHz
Minimum operating frequency	10 MHz
Nominal operating frequency	59.370079 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	ECL
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC6,.2
physical size	7.0mm x 5.0mm x 1.85mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	0.35 ns
Maximum slew rate	117 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

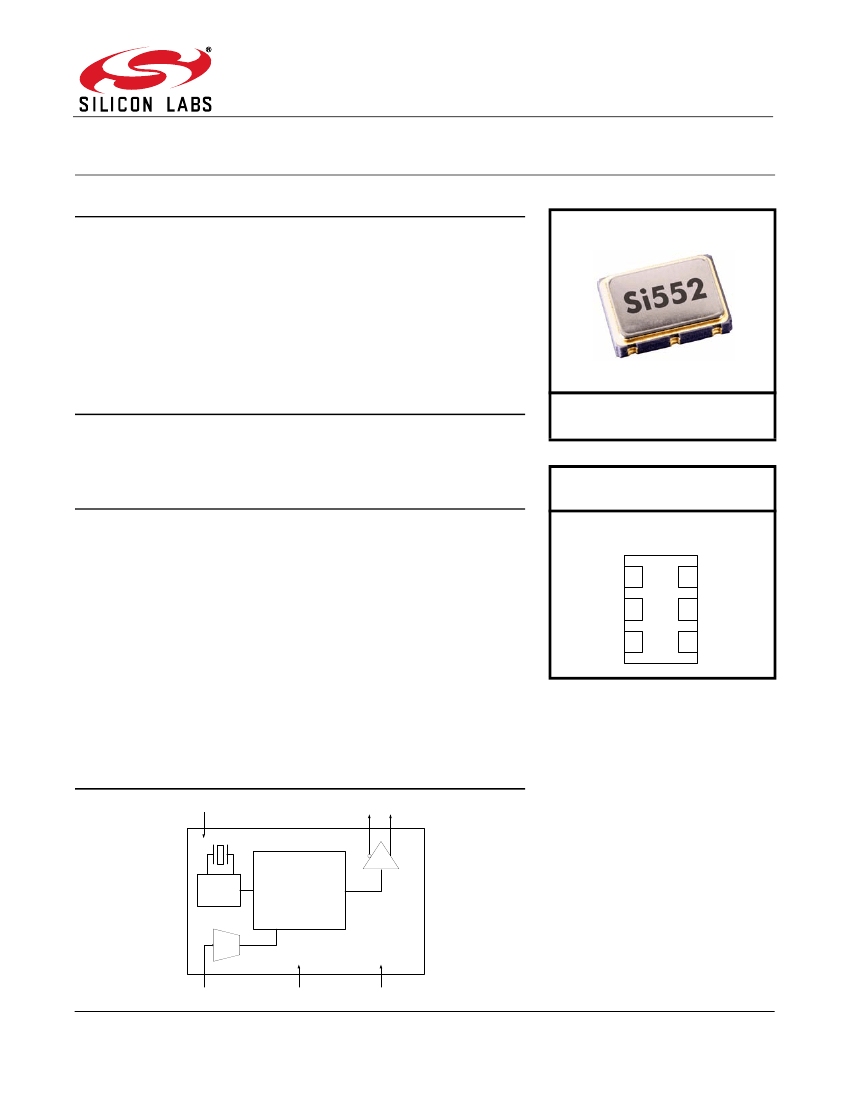

Si 5 5 2

EVISION

U A L

REQUENCY

OLTAGE

- C

ON TROLLED

R Y S TA L

SCILLATOR

(VCXO) 10 MH

Z TO

1 . 4 G H

Features

Available with any-rate output

frequencies from 10–945 MHz and

selected frequencies to 1.4 GHz



Two selectable output frequencies



3rd generation DSPLL

with superior



jitter performance



3x better frequency stability than

SAW-based oscillators



Internal fixed crystal frequency

ensures high reliability and low

aging

Available CMOS, LVPECL,

LVDS, and CML outputs

3.3, 2.5, and 1.8 V supply options

Industry-standard 5 x 7 mm

package and pinout

Pb-free/RoHS-compliant

Si5602

Applications

SONET/SDH



xDSL



10 GbE LAN/WAN



Ordering Information:

Low-jitter clock generation



Optical modules



Clock and data recovery



See page 10.

Description

The Si552 dual-frequency VCXO utilizes Silicon Laboratories’ advanced

DSPLL

circuitry to provide a very low jitter clock for all output frequencies.

The Si552 is available with any-rate output frequency from 10 to 945 MHz

and selected frequencies to 1400 MHz. Unlike traditional VCXOs, where a

different crystal is required for each output frequency, the Si552 uses one

fixed crystal frequency to provide a wide range of output frequencies. This

IC-based approach allows the crystal resonator to provide exceptional

frequency stability and reliability. In addition, DSPLL clock synthesis

provides superior supply noise rejection, simplifying the task of generating

low-jitter clocks in noisy environments typically found in communication

systems. The Si552 IC-based VCXO is factory-configurable for a wide

variety of user specifications including frequency, supply voltage, output

format, tuning slope, and temperature stability. Specific configurations are

factory programmed at time of shipment, thereby eliminating the long lead

times associated with custom oscillators.

Pin Assignments:

See page 9.

(Top View)

GND

CLK–

CLK+

Functional Block Diagram

CLK- CLK+

Fixed

Frequency XO

Any-rate

10–1400 MHz

DSPLL

Clock Synthesis

ADC

GND

Rev. 1.2 6/18

Si552
