51015M0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 51015M0

51015M0: DescriptionHCMOS Output Clock Oscillator, 15MHz Nom; CategoryPassive components oscillator; File Size922KB，1 Pages; ManufacturerCTS

Download Datasheet Parametric Compare View All

51015M0 Overview

HCMOS Output Clock Oscillator, 15MHz Nom

51015M0 Parametric

Parameter Name	Attribute value
Maker	CTS
Reach Compliance Code	unknown
Ageing	0.7 PPM/10 YEAR
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	0.3%
Manufacturer's serial number	510
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	15 MHz
Maximum operating temperature	60 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	50 pF
physical size	38.862mm x 38.862mm x 15.24mm
longest rise time	10 ns
Nominal supply voltage	12 V
surface mount	NO
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

CTS

Reeves

FREQUENCY PRODUCTS

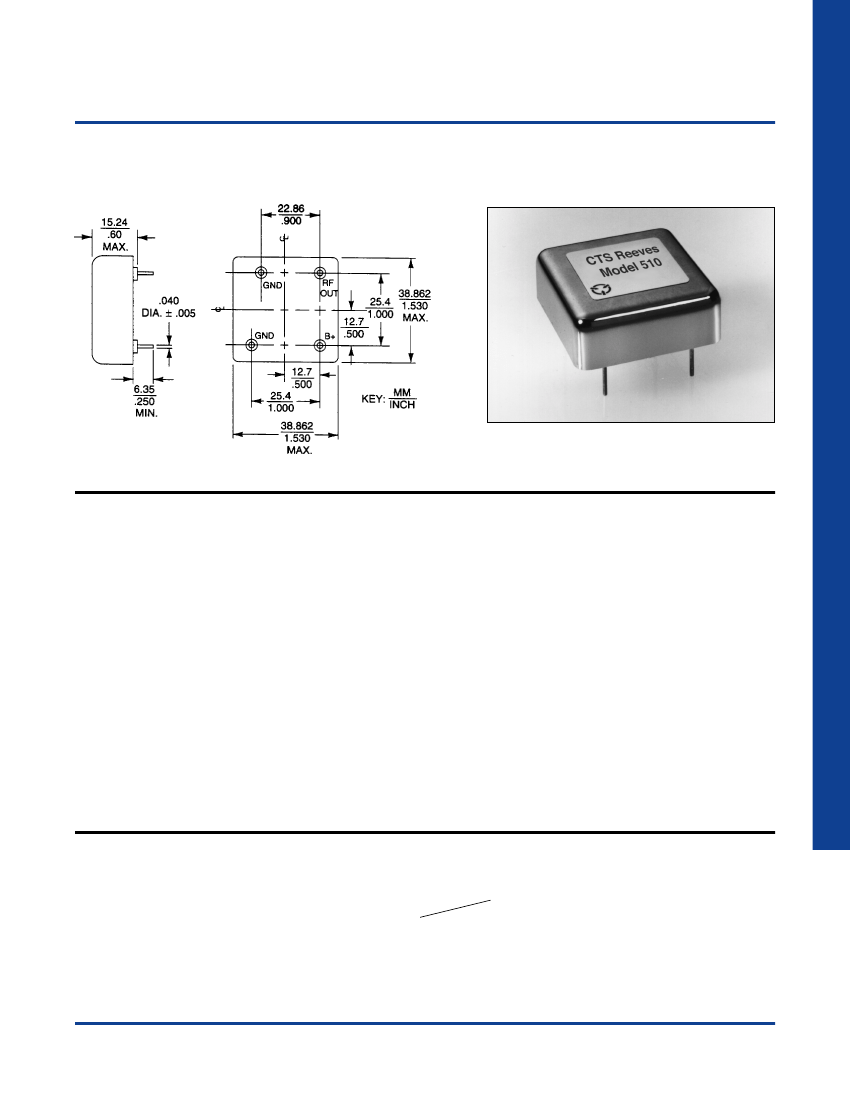

Model 510

Low Aging TCXO

CRYSTALS

Low Aging TCXO (

1.0 ppm, All Conditions for 10 years) CTS Reeves 510

CLOCKS

VCXOs

Specifications:

Frequency Range: ................................................. 2.5-20 MHz

Standard Frequencies ............................................... 10.0 MHz

15.0 MHz

20.0 MHz

Frequency Stability: ..................................................

±0.3

ppm

Aging: ..........................................................

±0.7

ppm/10 years

Absolute Accuracy ......................................

±1.0

ppm/10 years

Phase Noise: .................................. 10 Hz -105 dBc/Hz Typical

100 Hz -138dBc/Hz Typical

1 kHz -155dBc/Hz Typical

100 kHz -159dBc/Hz Typical

Operating Temperature; .................... 0°C to +60°C (Standard)

Nonoperating: ................................................... 40°C to +85°C

Input Voltage: .................................................+12 VDC

±5.0%

Waveform: ................................................................... HCMOS

Load: ............................................................... 50 pF maximum

Symmetry: .................................................................... 45/55%

Logic 1: ........................................................... +4.0V minimum

Logic 0: .......................................................... +0.4V maximum

Tr & Tf .......................................................... 10ns at 50pF load

Current: ........................................................... 25mA maximum

Frequency Adjust: ............................................ None Required

Package: ......................................... 1.53” Sq. x 0.6” maximum

TCXOs

Ordering Information:

Equals decimal point

OCXOs

Model Type 510 ___ ___ M ___ ___ ___

400 REIMANN AVE.

•

SANDWICH, IL 60548

Phone: 815-786-8411

•

Fax: 815-786-3600

•

E-Mail: www.ctsreeves.com

51015M0 Related Products

	51015M0	51020M0	510FREQ-OUT27	51010M0
Description	HCMOS Output Clock Oscillator, 15MHz Nom	HCMOS Output Clock Oscillator, 20MHz Nom	HCMOS Output Clock Oscillator, 2.5MHz Min, 20MHz Max	HCMOS Output Clock Oscillator, 10MHz Nom
Maker	CTS	CTS	CTS	CTS
Reach Compliance Code	unknown	unknown	unknown	unknown
Ageing	0.7 PPM/10 YEAR	0.7 PPM/10 YEAR	0.7 PPM/10 YEAR	0.7 PPM/10 YEAR
maximum descent time	10 ns	10 ns	10 ns	10 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO
frequency stability	0.3%	0.3%	0.3%	0.3%
Manufacturer's serial number	510	510	510	510
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C
Oscillator type	HCMOS	HCMOS	HCMOS	HCMOS
Output load	50 pF	50 pF	50 pF	50 pF
physical size	38.862mm x 38.862mm x 15.24mm	38.862mm x 38.862mm x 15.24mm	38.862mm x 38.862mm x 15.24mm	38.862mm x 38.862mm x 15.24mm
longest rise time	10 ns	10 ns	10 ns	10 ns
Nominal supply voltage	12 V	12 V	12 V	12 V
surface mount	NO	NO	NO	NO
maximum symmetry	45/55 %	45/55 %	45/55 %	45/55 %
Nominal operating frequency	15 MHz	20 MHz	-	10 MHz
