55603-25462 datasheet, PDF - EEWORLD Datasheet

55603-25462: DescriptionIC Socket, PGA462, 462 Contact(s), 2.54mm Term Pitch, 0.05inch Row Spacing, Solder; CategoryThe connector socket; File Size212KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

55603-25462 Overview

IC Socket, PGA462, 462 Contact(s), 2.54mm Term Pitch, 0.05inch Row Spacing, Solder

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
subject depth	0.312 inch
body length	2.708 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	CU ALLOY
Contact style	BELLOWED TYPE
current rating	1.5 A
Device slot type	IC SOCKET
Type of equipment used	PGA462
Dielectric withstand voltage	1000VDC V
Shell material	LIQUID CRYSTAL POLYMER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	55603
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	462
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	INTER
PCB contact row spacing	0.05 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

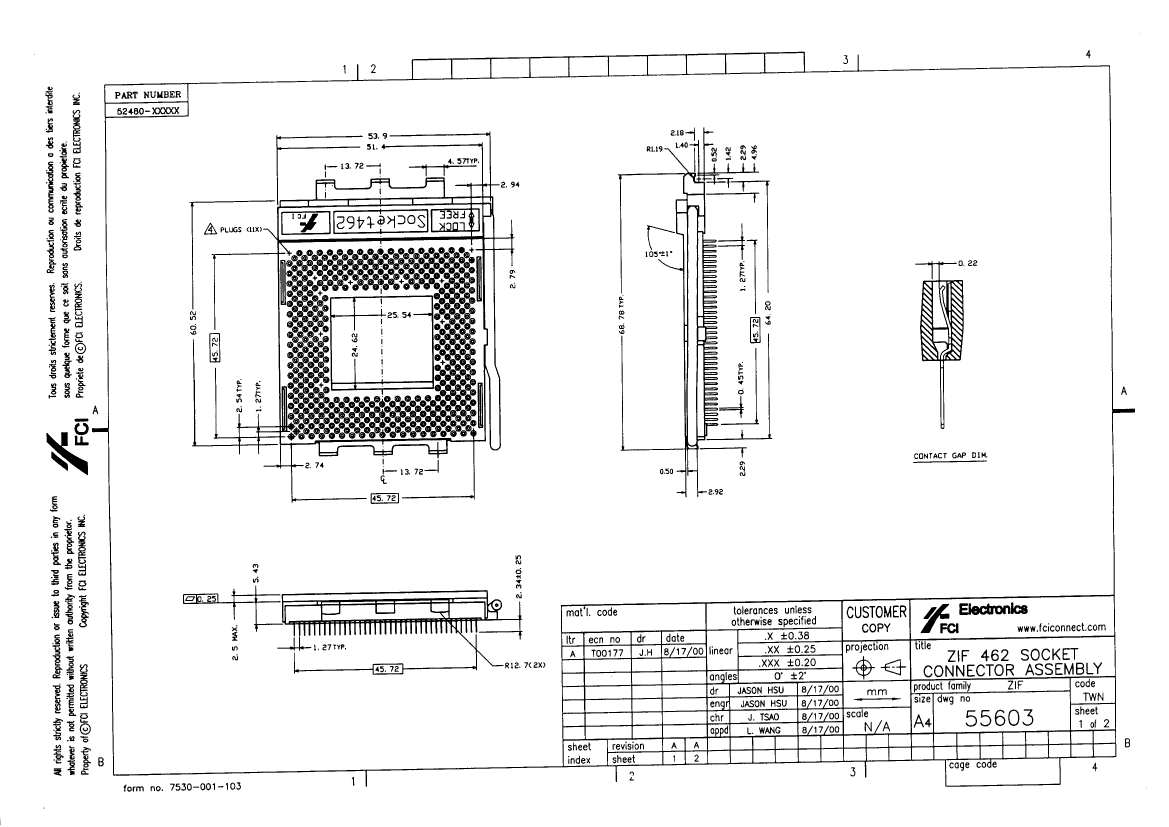

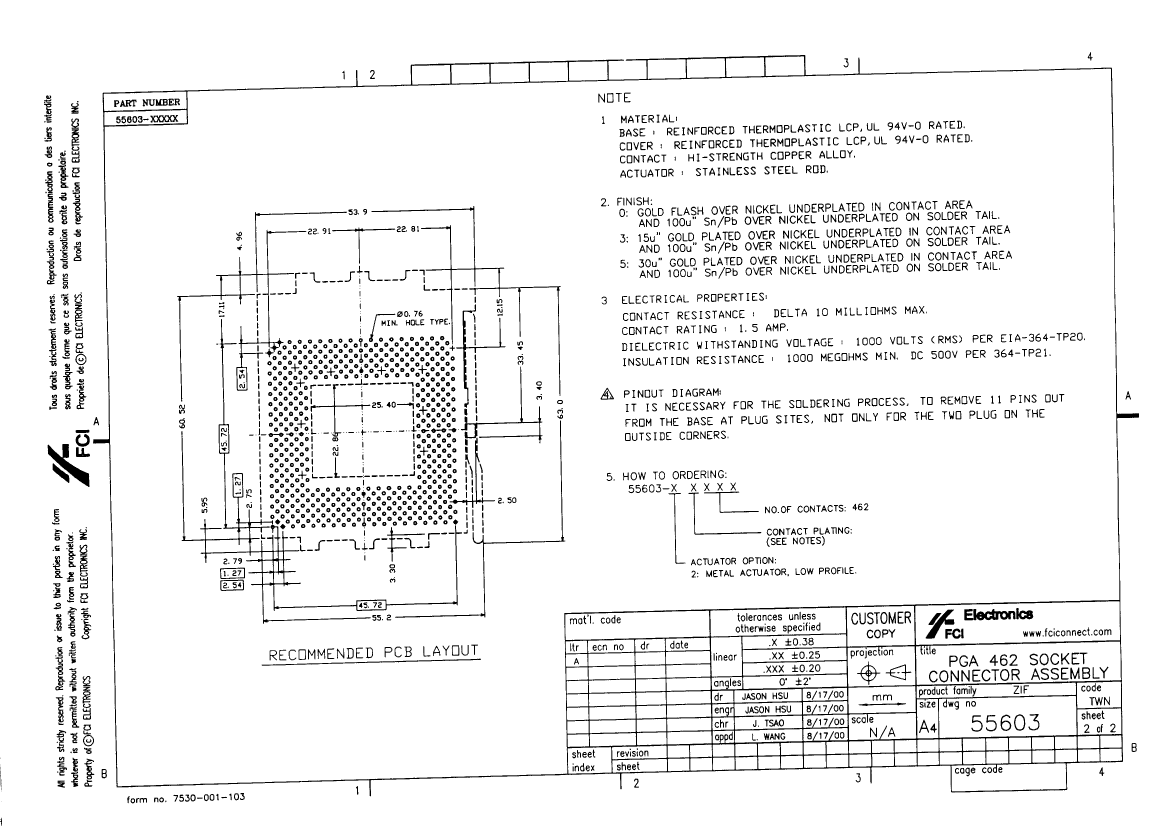

PDM: Rev:A

STATUS:

Released

Printed: Sep 17, 2002

	55603-25462	55603-23462	55603-20462
Description	IC Socket, PGA462, 462 Contact(s), 2.54mm Term Pitch, 0.05inch Row Spacing, Solder	IC Socket, PGA462, 462 Contact(s), 2.54mm Term Pitch, 0.05inch Row Spacing, Solder	IC Socket, PGA462, 462 Contact(s), 2.54mm Term Pitch, 0.05inch Row Spacing, Solder
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE
subject depth	0.312 inch	0.312 inch	0.312 inch
body length	2.708 inch	2.708 inch	2.708 inch
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact material	CU ALLOY	CU ALLOY	CU ALLOY
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
current rating	1.5 A	1.5 A	1.5 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PGA462	PGA462	PGA462
Dielectric withstand voltage	1000VDC V	1000VDC V	1000VDC V
Shell material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	55603	55603	55603
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	462	462	462
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	INTER	INTER	INTER
PCB contact row spacing	0.05 mm	0.05 mm	0.05 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	-
