5962R0724903QPC datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> 5962R0724903QPC

5962R0724903QPC: Description1A SWITCHING CONTROLLER, 1000kHz SWITCHING FREQ-MAX, CDIP8, ROHS COMPLIANT, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-8; CategoryPower/power management The power supply circuit; File Size868KB，14 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance

Download Datasheet Parametric View All

5962R0724903QPC Overview

1A SWITCHING CONTROLLER, 1000kHz SWITCHING FREQ-MAX, CDIP8, ROHS COMPLIANT, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-8

5962R0724903QPC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	13.2 V
Minimum input voltage	9 V
JESD-30 code	R-CDIP-T8
JESD-609 code	e4
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	5.08 mm
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	1000 kHz
Temperature level	MILITARY
Terminal surface	Gold (Au)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	100k Rad(Si) V
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

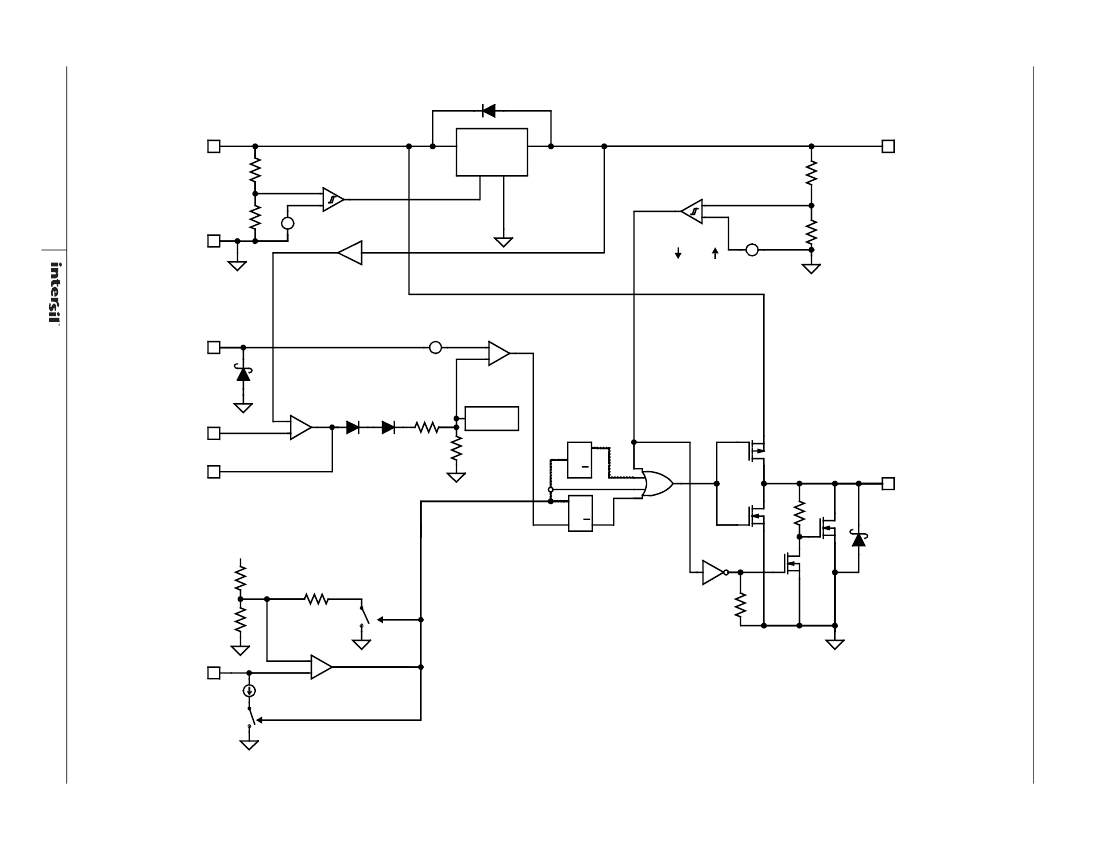

Radiation Hardened, High Performance Industry

Standard Single-Ended Current Mode PWM Controller

ISL78840ASRH, ISL78841ASRH, ISL78843ASRH, ISL78845ASRH

The ISL7884xASRH is a high performance, radiation hardened

Features

drop-in replacement for the popular 28C4x and 18C4x PWM

controllers suitable for a wide range of power conversion

applications including boost, flyback, and isolated output

configurations. Its fast signal propagation and output

switching characteristics make this an ideal product for

existing and new designs.

Features include up to 13.2V operation, low operating current,

90µA typical start-up current, adjustable operating frequency

to 1MHz, and high peak current drive capability with 50ns rise

and fall times.

PART NUMBER

ISL78840ASRH

ISL78841ASRH

ISL78843ASRH

ISL78845ASRH

RISING UVLO

7.0

8.4V

MAX. DUTY CYCLE

100%

50%

100%

50%

• Electrically Screened to DLA SMD # 5962-07249

• 1A MOSFET Gate Driver

• 90µA Typical Start-up Current, 125µA Max

• QML Qualified Per MIL-PRF-38535 Requirements

• 35ns Propagation Delay Current Sense to Output

• Fast Transient Response with Peak Current Mode Control

• 9V to 13.2V Operation

• Adjustable Switching Frequency to 1MHz

• 50ns Rise and Fall Times with 1nF Output Load

• Trimmed Timing Capacitor Discharge Current for Accurate

Deadtime/Maximum Duty Cycle Control

• 1.5MHz Bandwidth Error Amplifier

• Tight Tolerance Voltage Reference Over Line, Load and

Temperature

• ±3% Current Limit Threshold

• Pb-Free Available (RoHS Compliant)

Specifications for Rad Hard QML devices are controlled by the

Defense Logistics Agency Land and Maritime (DLA). The SMD

numbers listed in the ordering information must be used when

ordering.

Detailed Electrical Specifications for the ISL788xASRH are

contained in

SMD 5962-07249.

A “hot-link” is provided on our

website for downloading.

Applications

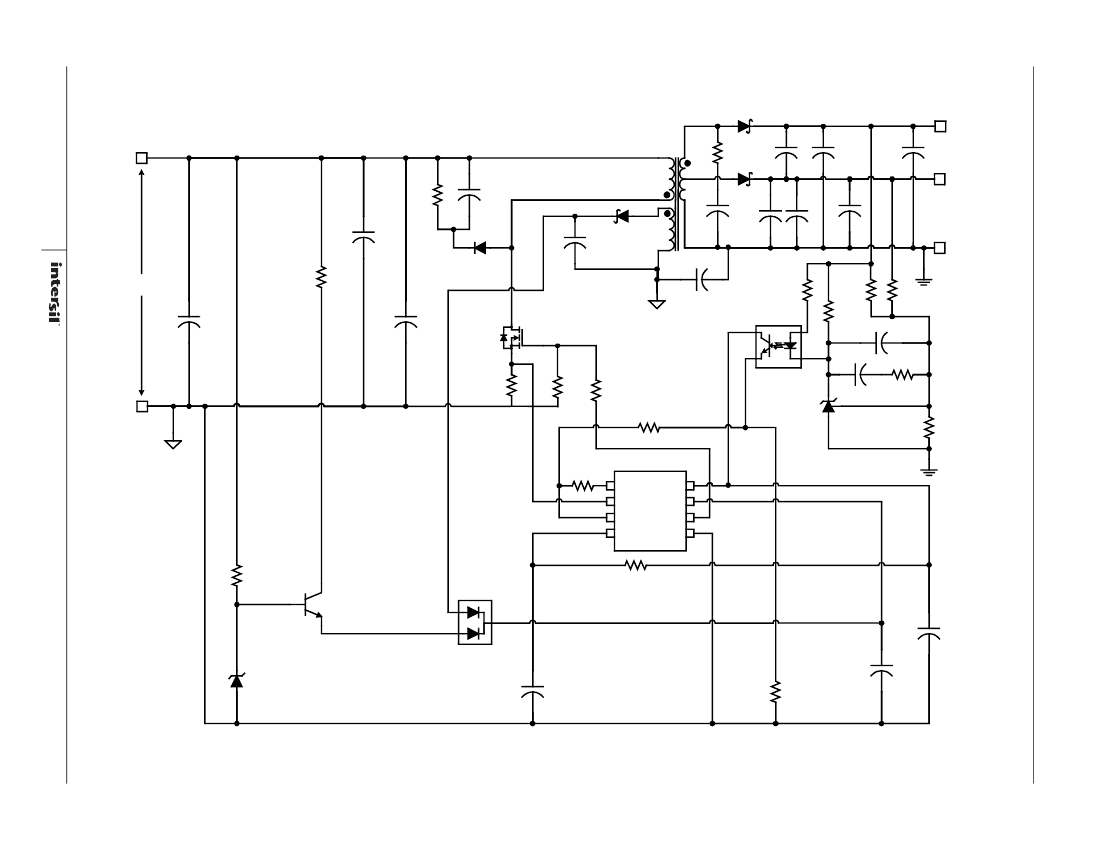

• Current Mode Switching Power Supplies

• Isolated Buck and Flyback Regulators

• Boost Regulators

• Direction and Speed Control in Motors

• Control of High Current FET Drivers

Pin Configurations

ISL78840ASRH, ISL78841ASRH,

ISL78843ASRH, ISL78845ASRH

(8 LD FLATPACK)

TOP VIEW

COMP

RTCT

REF

OUT

GND

RTCT

ISL78840ASRH, ISL78841ASRH,

ISL78843ASRH, ISL78845ASRH

(8 LD SBDIP)

TOP VIEW

COMP

REF

OUT

GND

April 5, 2012

FN6991.2

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.

All other trademarks mentioned are the property of their respective owners.
