587-10-240-08-005437 datasheet, PDF

Datasheet> All Categories > The connector> socket> 587-10-240-08-005437

587-10-240-08-005437: DescriptionIC Socket, BGA240, 240 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size216KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

587-10-240-08-005437 Overview

IC Socket, BGA240, 240 Contact(s), ROHS COMPLIANT

587-10-240-08-005437 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BGA ADAPTER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BRASS
Device slot type	IC SOCKET
Type of equipment used	BGA240
Shell material	GLASS FILLED EPOXY
JESD-609 code	e4
Number of contacts	240
Base Number Matches	1

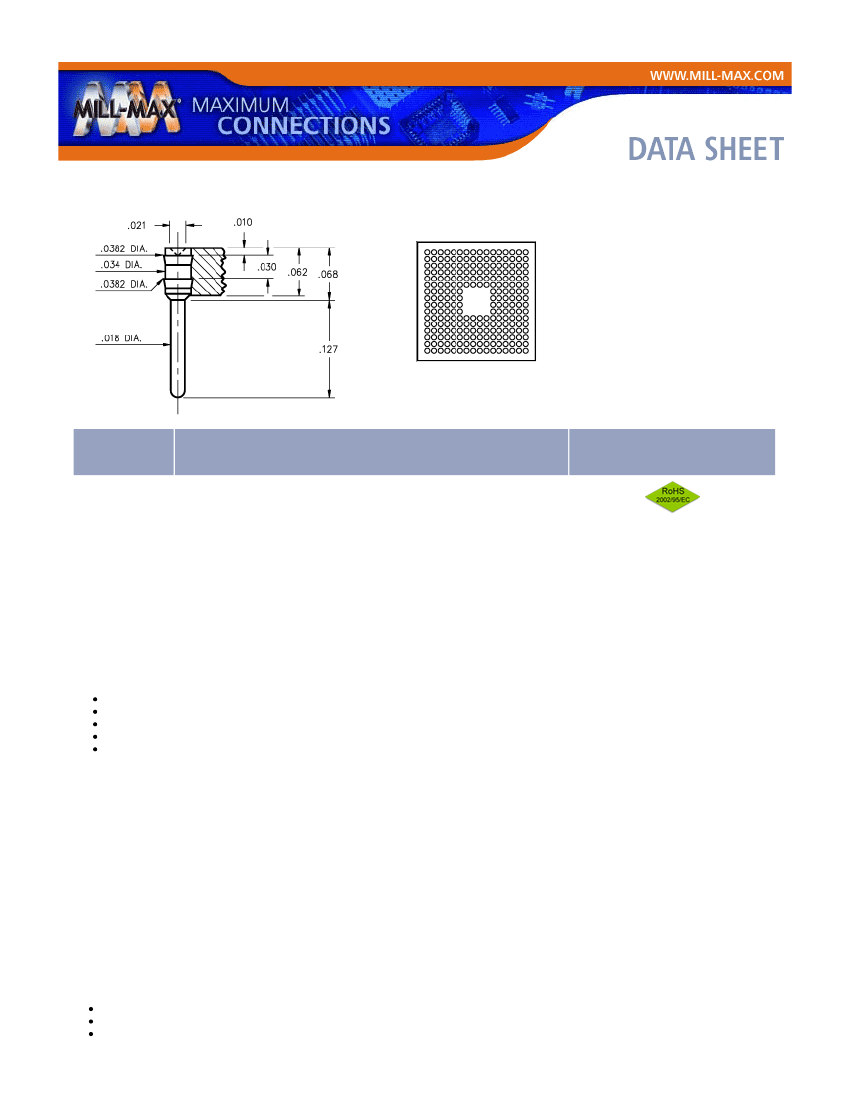

Preview

Download Datasheet

View All

Product Number: 587-10-240-08-005437

Description:

BGA Header

.050 Grid; BGA Header

Plating Code:

Shell Plating:

10 μ" Gold over 100 μ" Nickel

240-08-005

16 X 16

Pins

240

Mill-Max

Part

Number

587-10-240-08-005437

RoHS

Compliant

LOOSE PIN:

Pin Used: 8737 (Brass Alloy)

BRASS ALLOY

(UNS C36000) per ASTM B 16

Properties of BRASS ALLOY:

Chemical composition: Cu 61.5%, Zn 35.4%, Pb 3.1%†

Hardness as machined: 80-90 Rockwell B

Density: .307 lbs/in3

Electrical conductivity: 26% IACS*

Melting point: 900°C/885°C (liquidus/solidus)

†(3 to 4% lead is used to permit "free machining" and is permitted by EC Directive 2002/95Annex 6; so all pin

materials are RoHS compliant)

*International Annealed Copper Standard, i.e. as a % of pure copper.

INSULATOR INFORMATION:

FR-4

Laminate

High Temperature

Properties of FR-4 Laminate:

Epoxy/Glass Laminate. Thicknesses available: .010", .020", .031", .047", .062", .093", .125" (natural color, beige)

ENVIRONMENTAL DATA:

Operating temperature range: -55/+125 °C

Shock (No electrical discontinuity greater than 1μs):50 G

Solderability: 364-52

Resistance to soldering heat: 364-56A Test Cond. C

Mill-Max Mfg. Corp. Datasheet — Last Modified 6/6/2009

Page 1 of 2
