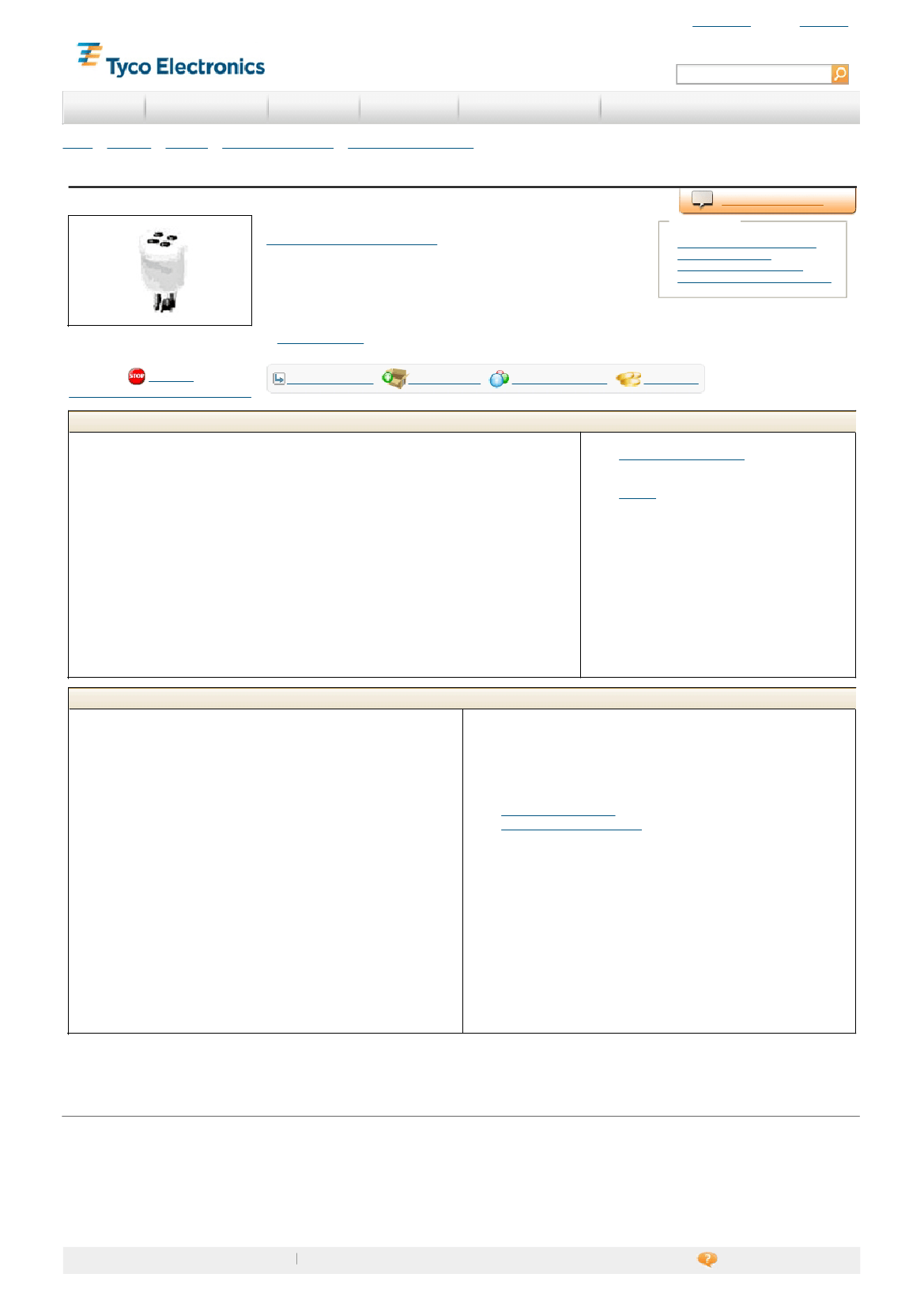

M8058-1G18 Product Details
Live Product Chat
Transistor Sockets and Adapters
Not re vie we d for R oHS C om plia nce
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
M8058-1G18
(5-1437508-3)
T E I nternal N umber: 5 - 1 4 3 7 5 0 8 - 3
Product Highlights:
l
Socket
l
Terminal Style = Solder Pocket
l
Terminal C onfiguration = C ontact
l
Lead Size Accepted = .41 mm
l
6 Terminals
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type = Socket
l
Terminal C onfiguration = C ontact
l
Product Series = 8058 Series
l
Package = TO-5
l
Sleeve Material = Brass
l
Profile = Low
l
C omment = C ontacts at 45?
Electrical Characteristics:
l
Lead Length Accepted (mm [in]) = 3.96 – 5.54 [0.156 – 0.218]
l
Pin C ircle Diameter (mm [in]) = 5.08 [0.200]
Termination Related Features:
l
Terminal Plating = Gold
Body Related Features:
l
Terminal Style = Solder Pocket
l
Number of Terminals = 6
l
Socket Type = Transistor
l
Terminal Material = Beryllium C opper
l
Insulator Material = Teflon
Contact Related Features:
l
Sleeve Plating = Gold
Configuration Related Features:
l
Lead Size Accepted (mm [in]) = 0.41 [0.016]
Industry Standards:
l
RoHS/ELV C ompliance
= Not reviewed for ELV/RoHS compliance
l
Lead Free Solder Processes
= Not reviewed for lead free solder
process
Conditions for Usage:
l
Operating Temperature (?C ) = -55 – +125
Other:
l
Brand = AMP
