5917-9103-000: DescriptionRF Connector Adapter, SMA-SMA, Female-Female, Jack; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric View All

5917-9103-000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5917-9103-000	-	-	View	Buy Now

5917-9103-000 Overview

RF Connector Adapter, SMA-SMA, Female-Female, Jack

5917-9103-000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Radiall
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks 1 day
Adapter type	SMA-SMA
Other features	INSERTION LOSS MAX AT 6 GHZ, CAPTIVE CONTACT
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.12 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.19
Base Number Matches	1

Preview

Download Datasheet

View All

REVISIONS

REV.

A

DESCRIPTION

INITIAL RELEASE

DATE

10/26/11

APPROVED

D.N.

.500

.13

.218 WRENCH FLAT

NOTES:

MATERIALS:

1. BODY = STAINLESS STEEL PER ASTM A582, ALLOY 303, CONDITION "A".

2. CONTACT = BERYLLIUM COPPER PER ASTM B196, ALLOY C17300, TEMPER TD04.

3. INSULATOR = VIRGIN WHITE TEFLON PER ASTM D1710, GRADE 1, TYPE I, CLASS "B".

FINISHES:

1. BODY = PASSIVATE PER QQ-P-35, TYPE VI.

2. CONTACT = GOLD PLATE PER MIL-G-45204, TYPE II, CLASS 1, GRADE C,

OVER .00010 TO .00020 STRESS FREE SULFAMATE NICKEL PER QQ-N-290.

5917-9103-000

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ON

DWN:

DATE

Property of Radiall

This document cannot be reproduced or

communicated to a third party without prior

a RADIALL company

written permission of RADIALL.

D.N.

CHKD:

10/26/11

DATE

DECIMAL

ANGLE

M.J.

APVD:

10/26/11

DATE

J.M.

REFERENCE:

10/26/11

SIZE

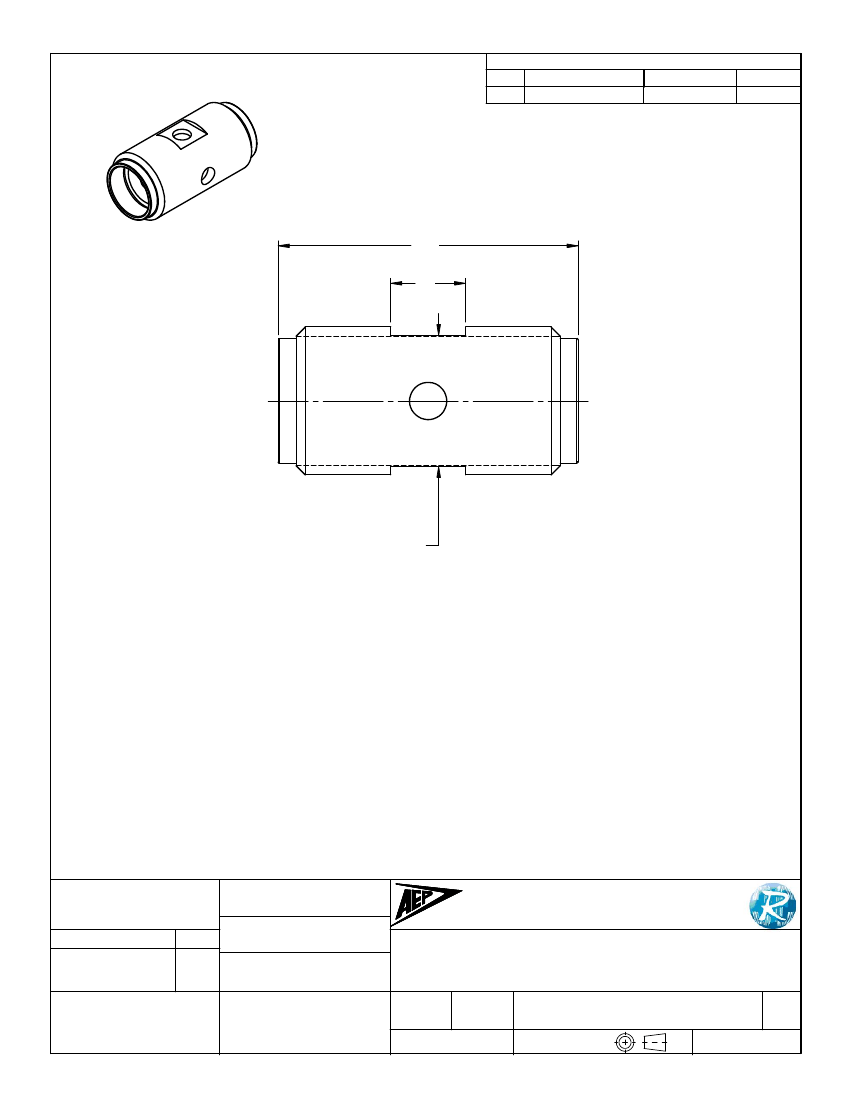

SMA STRAIGHT JACK TO JACK

ADAPTER

MATERIALS & FINISHES:

ORIGINATED: D.N.

DATE: 10/26/11

SEE NOTES

A

FSCM NO.

DWG NO.

19505

6:1

5917-9103-000

THIRD ANGLE

PROJECTION

REV

A

SCALE

SHEET 1 OF 1
