54101-T42-12 datasheet, PDF - EEWORLD Datasheet

54101-T42-12: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

54101-T42-12 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1620959843
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	POLY BAG PACKAGING
body width	0.095 inch
subject depth	0.1 inch
body length	1.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (150) OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	54101
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	130 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	150u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0

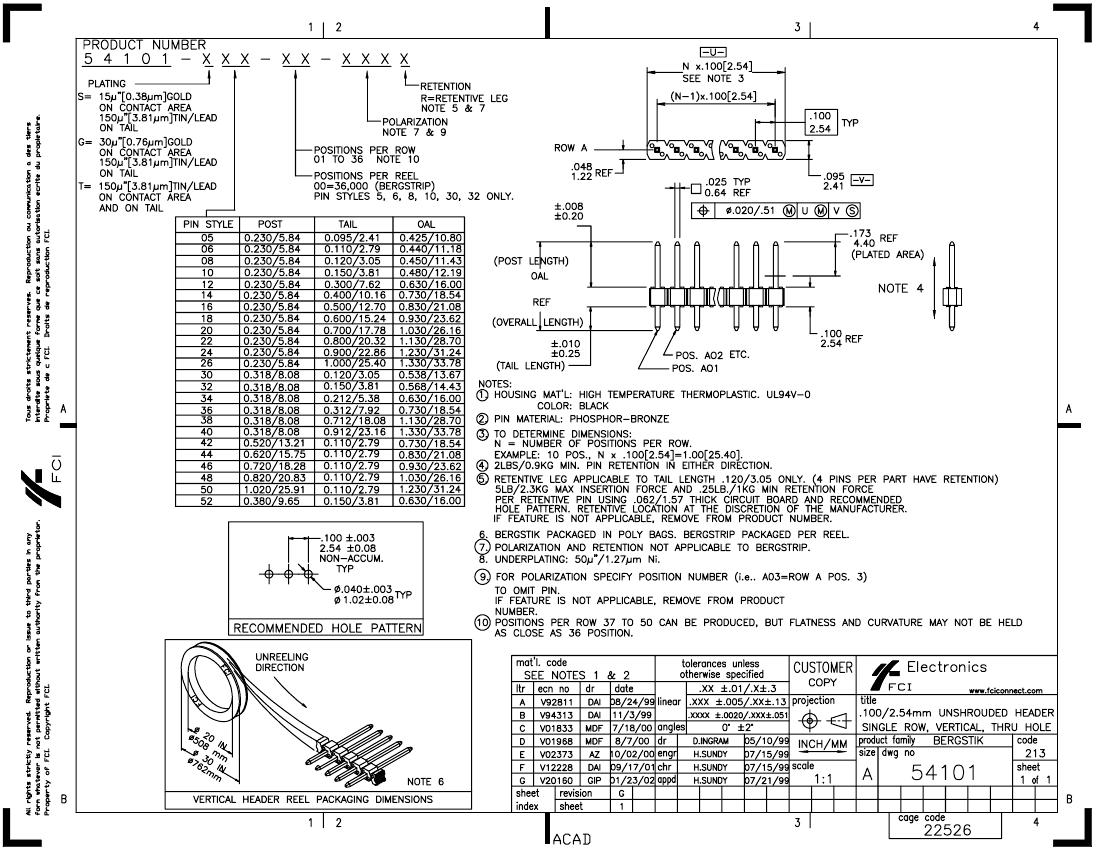

PDM: Rev:G

STATUS:

Released

Printed: Jul 18, 2002
