TECHNICAL DATA SHEET
ADAPTOR
UHF JACK - JACK
54K102-K00A1

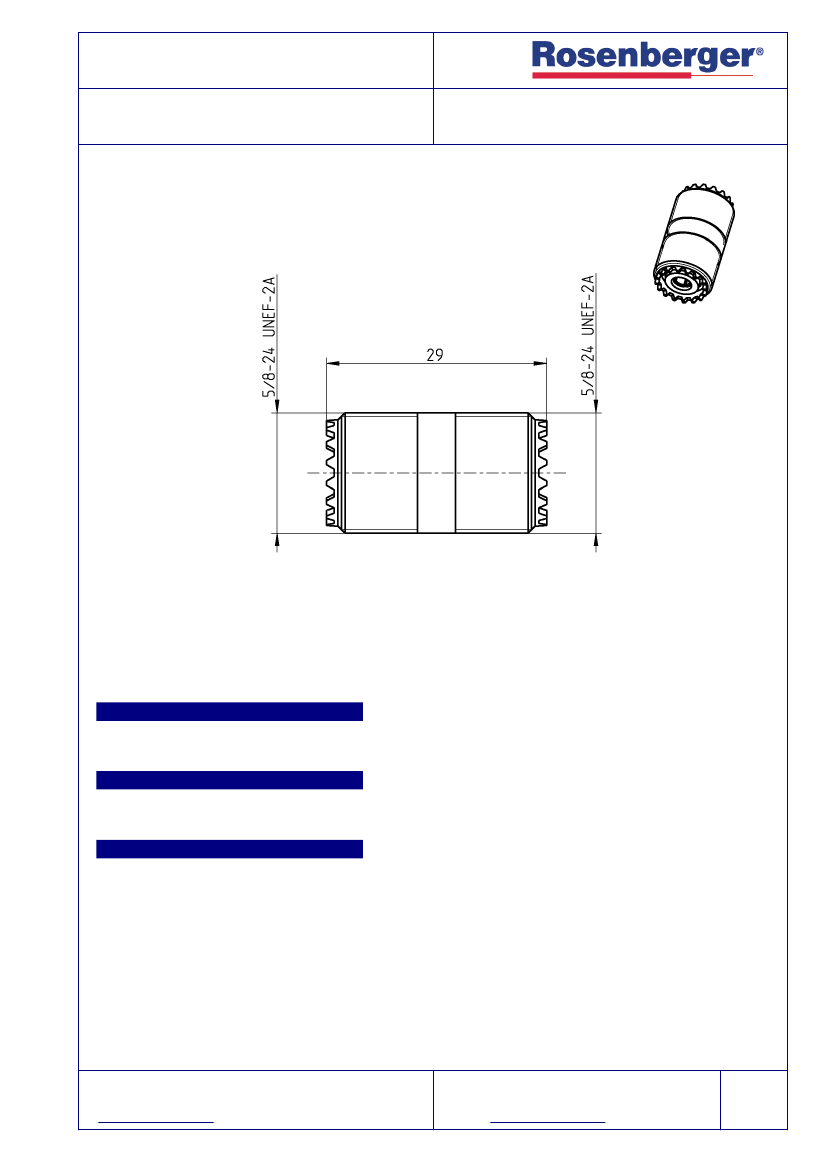

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-12
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Material
Brass
Brass
Brass
PTFE
Plating
Silver, 3-6 m
Nickel, 2.5-5 m
Nickel, 2.5-5 m
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
UHF JACK - JACK
Electrical data
Impedance
Frequency
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Contact current (DC)
Power handling
(at 20 °C, sea level, VSWR 1.0)
N/A
DC to 300 MHz
≥
5 x 10
3
MΩ
≤
5 mΩ
≤
5 mΩ
2000 V rms
750 V rms
≤
10 A typ.
400 W typ. @ 300 MHz
54K102-K00A1
Mechanical data
Mating cycles
Center contact captivation: axial
min. 500
≥
30 N
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
-25°C to +70°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
G
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in bag
21.8 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
08/03/05
Approved
Chr. Entsfellner
Date
17/04/05
Rev.
a00
Engineering change number
04-0130
Name
Rong Fang
Date
29/03/05
