TECHNICAL DATA SHEET
ADAPTOR
C 50
Ω
JACK - JACK
52K101-K00A3

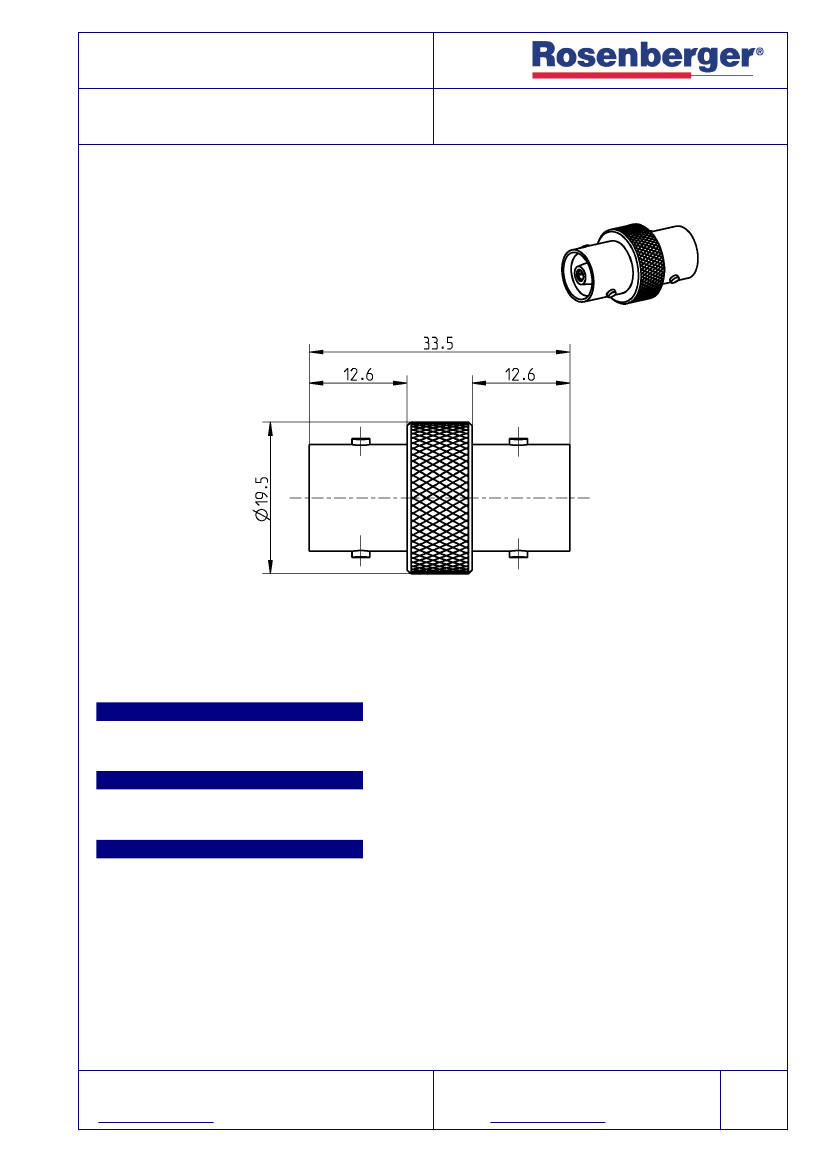

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-7, MIL-PRF-39012, VG 95240, DIN 47222
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Material
Beryllium copper
Brass
Brass
PTFE
Plating
Gold, min. 1.27 m, over nickel
Nickel, 2.5-5 m
Nickel, 2.5-5 m
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
C 50
Ω
JACK - JACK
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
50
Ω
DC to 11 GHz
≥
19 dB, DC to 4 GHz
≤
0.1 x
52K101-K00A3
f [GHz]
dB, DC to 4 GHz
≥
10
3
MΩ
≤
1 mΩ
≤
0.25 mΩ
3000 V rms
1000 V rms
≤
400 W @ 1 GHz
Mechanical data
Mating cycles
Center contact captivation: axial
min. 500
≥
20 N
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
-65°C to +165°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
G
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in bag
31.9 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
15/03/05
Approved
Chr. Entsfellner
Date
01/04/05
Rev.
a00
Engineering change number
04-0130
