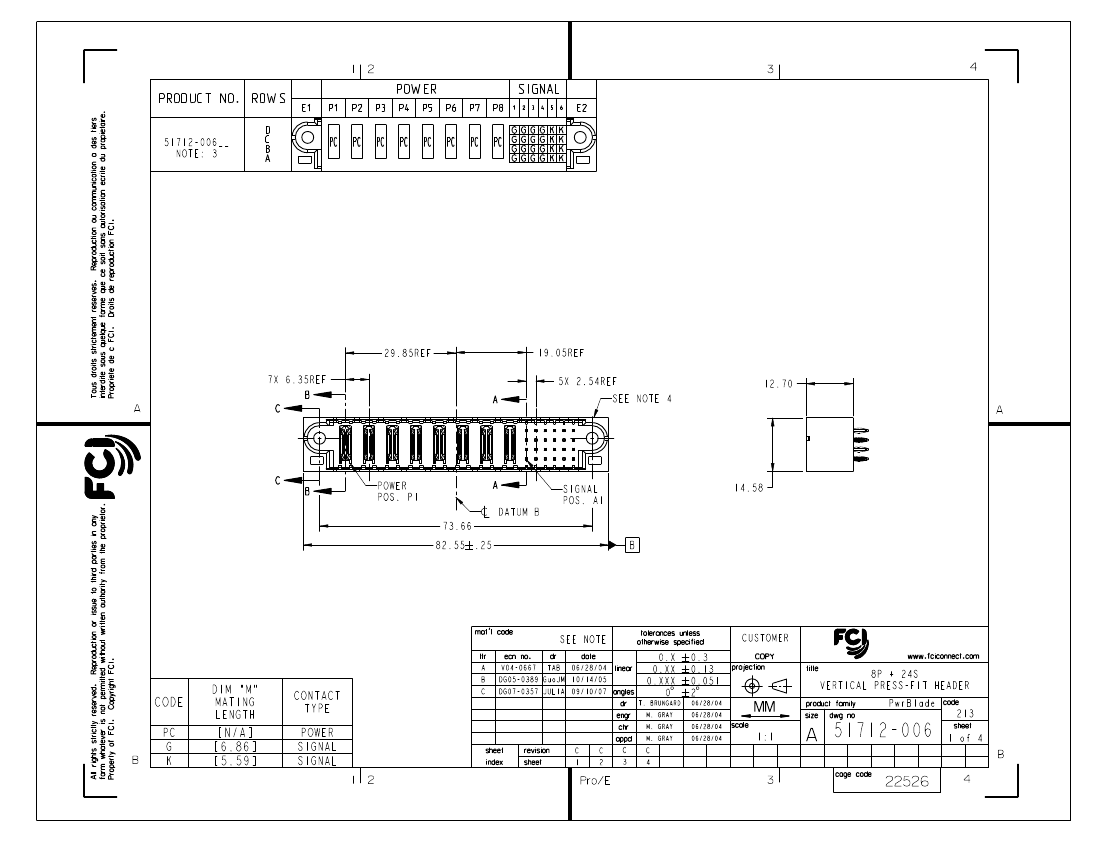

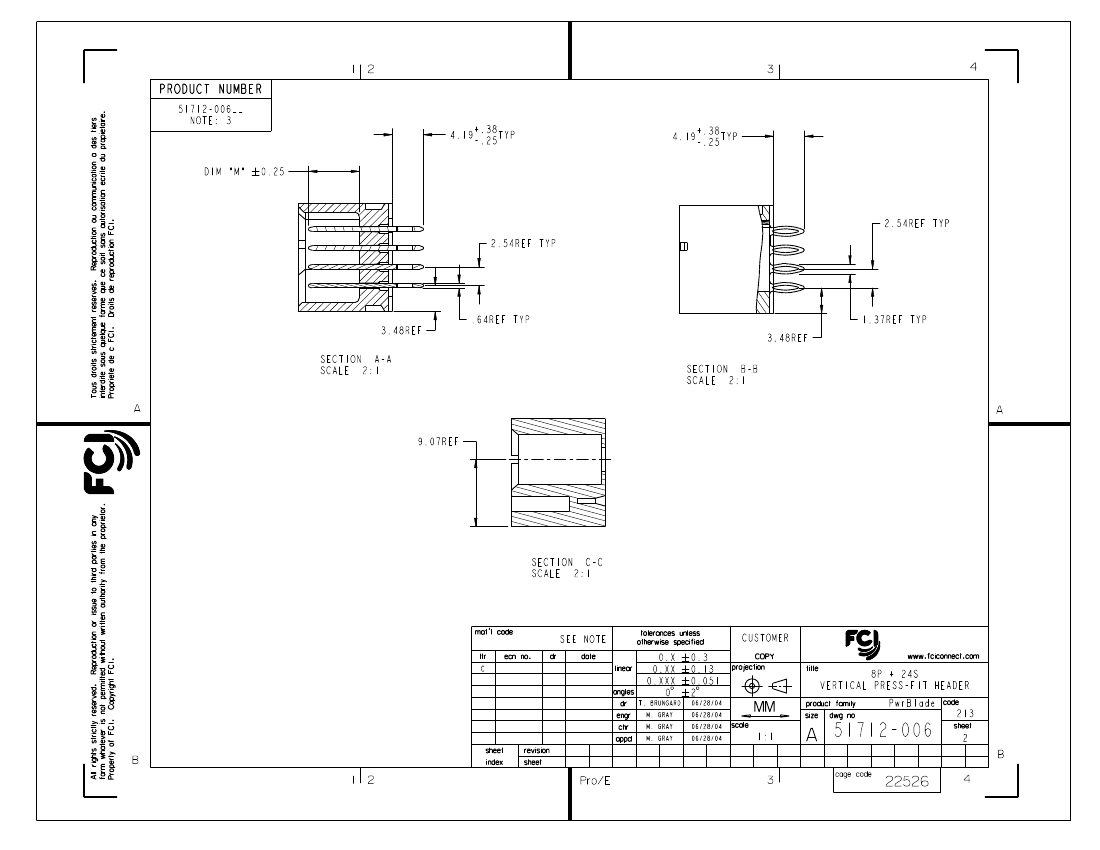

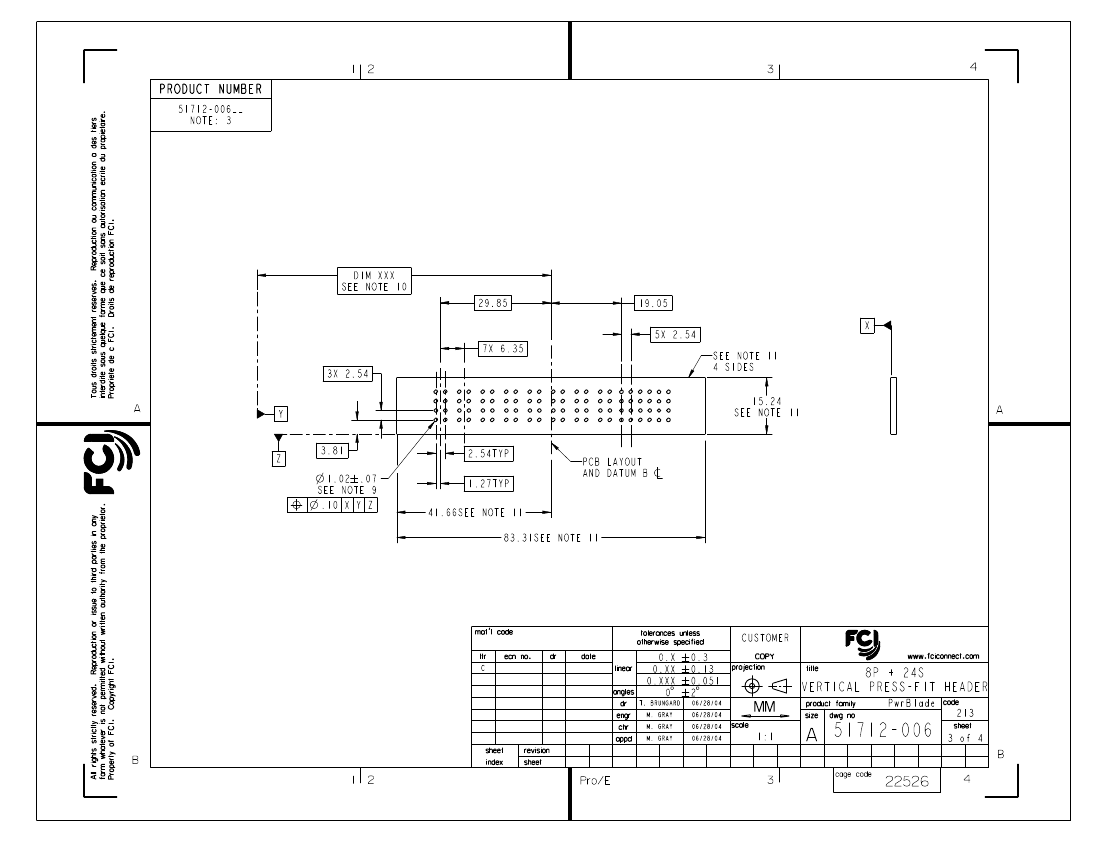

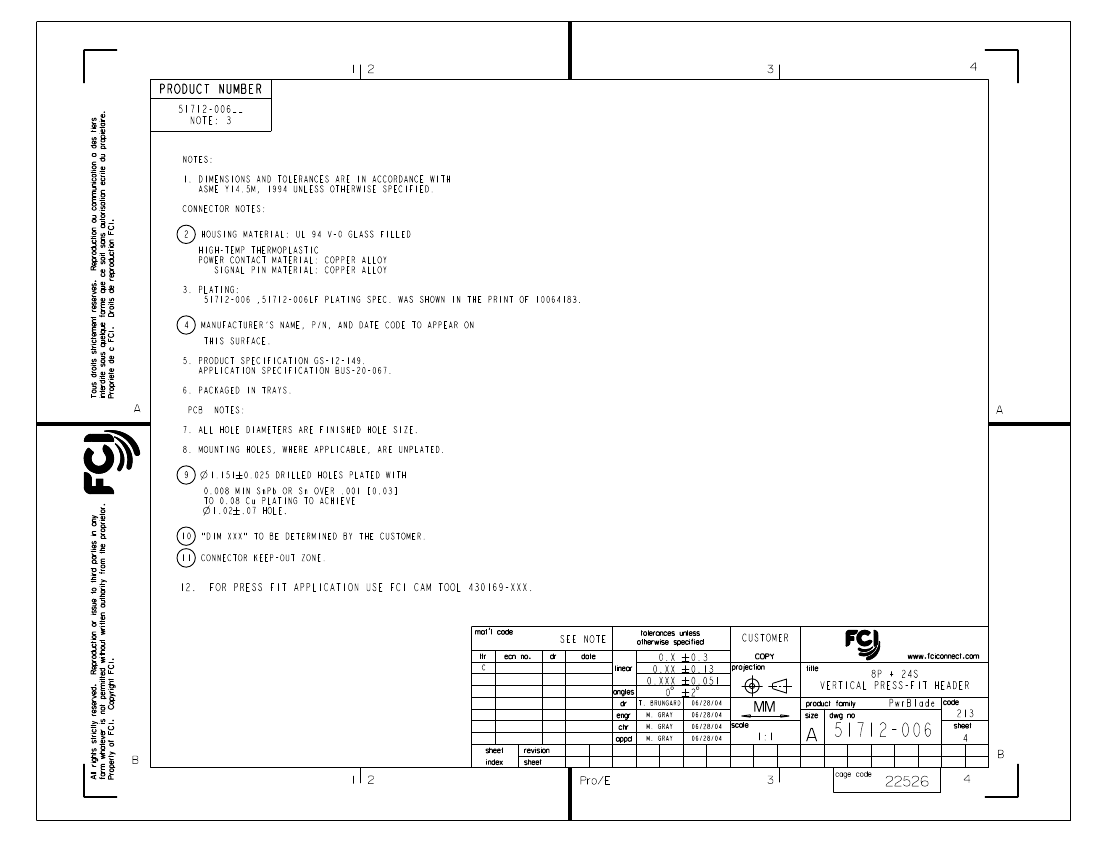

51712-006: DescriptionBoard Connector, 32 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size225KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51712-006 Overview

Board Connector, 32 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, Receptacle

51712-006 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.574 inch
subject depth	0.5 inch
body length	3.25 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P8
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51712
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.165 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	32
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
Base Number Matches	1
