50-30C-10-1 datasheet, PDF - EEWORLD Datasheet

50-30C-10-1: DescriptionCard Edge Connector, 30 Contact(s), 2 Row(s), 0.1 inch Pitch, Solder Lug Terminal, Hole .125-.137, Green Insulator; CategoryThe connector The connector; File Size85KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

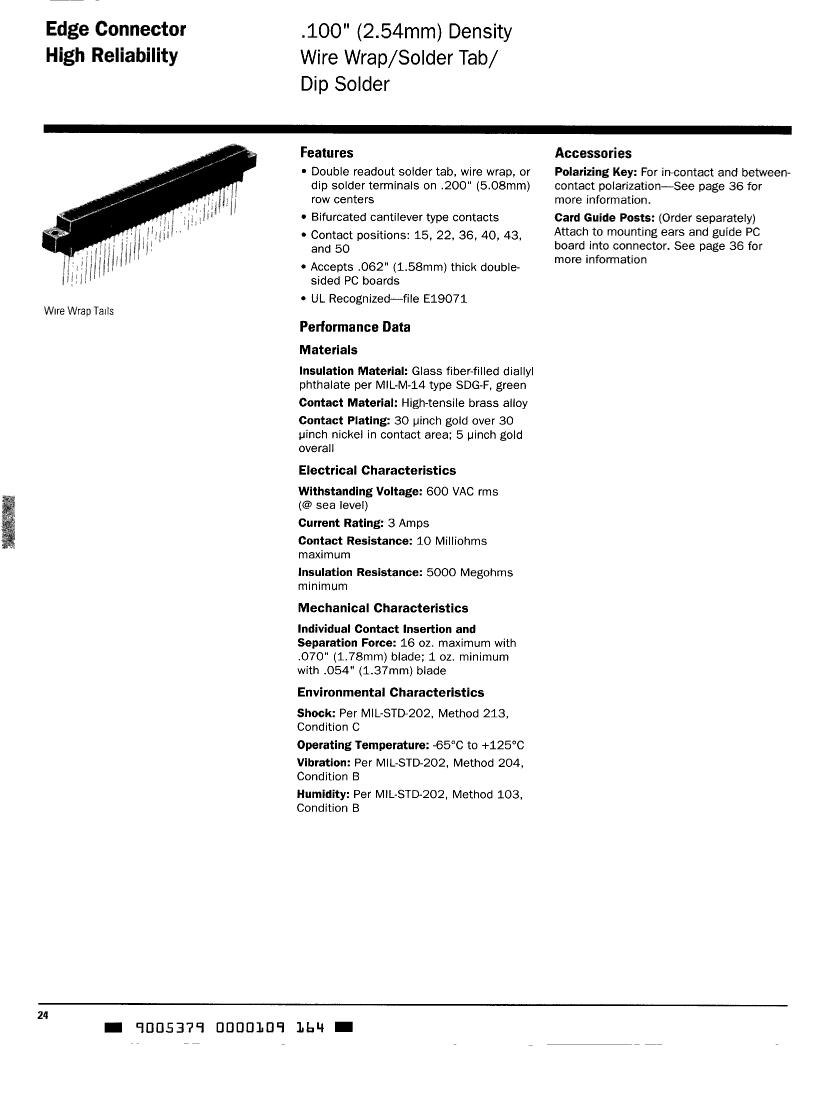

50-30C-10-1 Overview

Card Edge Connector, 30 Contact(s), 2 Row(s), 0.1 inch Pitch, Solder Lug Terminal, Hole .125-.137, Green Insulator

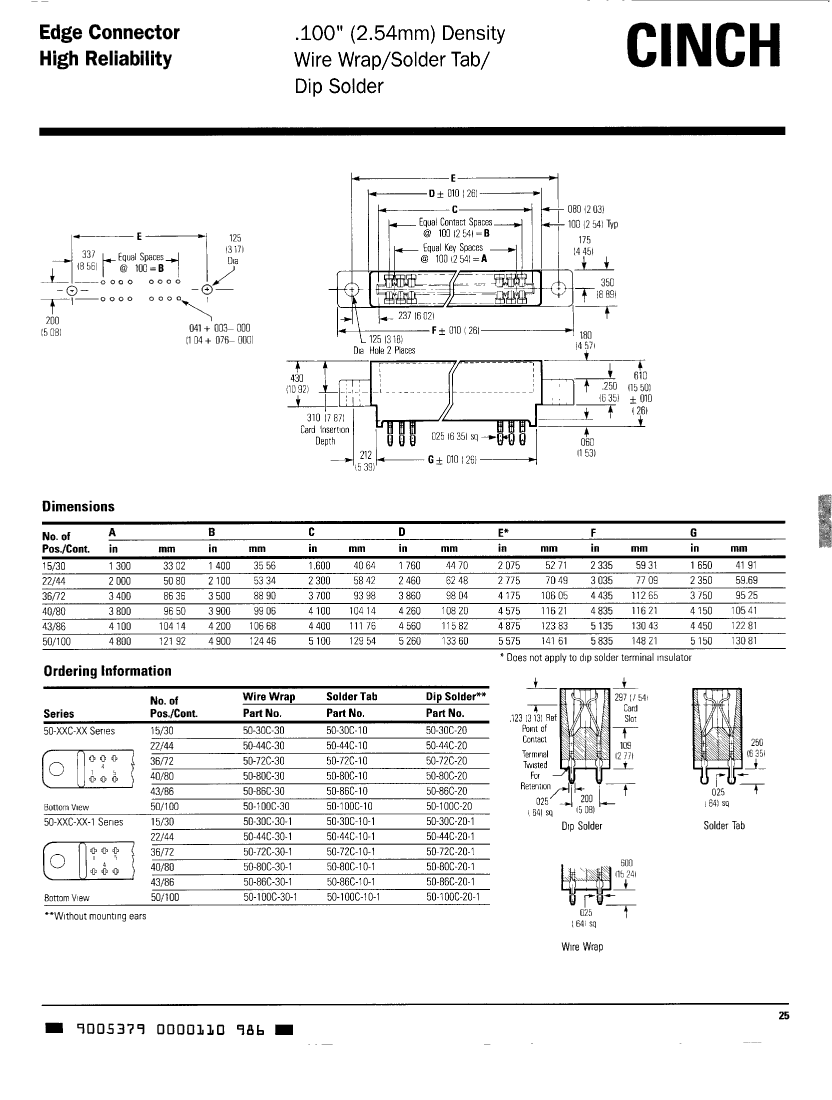

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	REVERSE PIN NUMBERING
body width	0.35 inch
subject depth	0.61 inch
body length	2.335 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	600VAC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED DIALLYL PHTHALATE
Manufacturer's serial number	50-XXC-XX
Plug contact pitch	0.1 inch
Installation option 1	HOLE .125-.137
Installation option 2	OFFSET
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.25 inch
Termination type	SOLDER LUG
Total number of contacts	30
Evacuation force-minimum value	.278 N
Base Number Matches	1
