2.8X1.0mm RIGHT ANGLE SMD CHIP LED LAMP
PRELIMINARY SPEC
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Part Number: AA2810RWS/Z
WHITE
Description
The source color devices are made with InGaN Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.
Features
2.8mmX1.0mm RIGHT ANGLE SMT LED, 1.2mm
THICKNESS.
LOW POWER CONSUMPTION.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
ELECTROSTATIC DISCHARGE THRESHOLD
(HBM):1000V.
TYP. COLOR TEMPERATURE:6500K
COLOR COORDINATES:X=0.31,Y=0.31 ACC. TO
CIE1931(WHITE).
OPTICAL EFFICIENCY:53.1 lm/W(TYP.)
COLOR REPRODUCTION INDEX:80
MOISTURE SENSITIVITY LEVEL : LEVEL 4.
RoHS COMPLIANT.
Applications
traffic signaling.
backlighting (illuminated advertising , general lighting).
interior and exterior automotive lighting.
substitution of micro incandescent lamps.
Reading camps.
signal and symbol luminaire for orientation.
marker lights (e.g. steps, exit ways, etc).
decorative and entertainment lighting.
indoor and outdoor commercial and residential
architectural lighting.

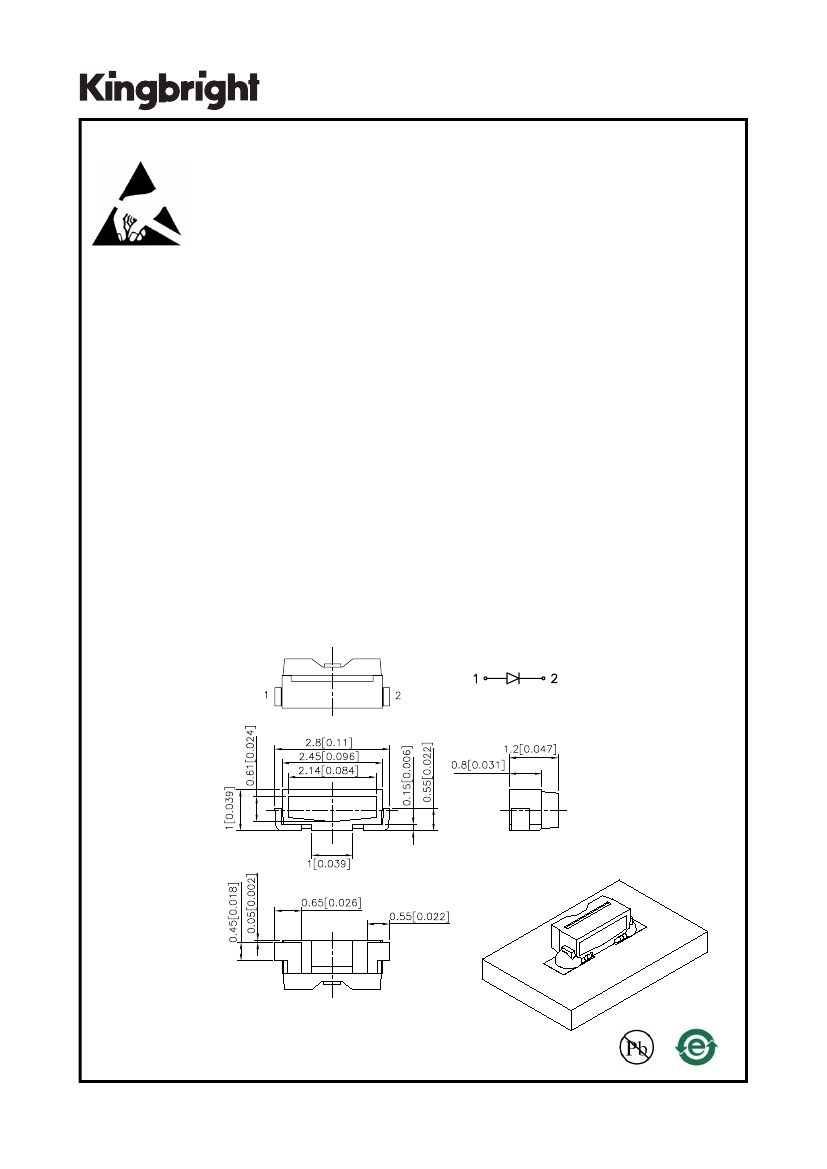

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.1(0.0039")
unless otherwise noted.
3. Specifications are subject to change without notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAH4500
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: MAY/21/2007
DRAWN: S.J.LIU
PAGE: 1 OF 8
ERP: 1201002975
Handling Precautions
Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic
significantly reduces thermal stress, it is more susceptible to damage by external mechanical force.
As a result, special handling precautions need to be observed during assembly using silicone encapsulated
LED products. Failure to comply might leads to damage and premature failure of the LED.
Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.
SPEC NO: DSAH4500
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: MAY/21/2007
DRAWN: S.J.LIU
PAGE: 2 OF 8
ERP: 1201002975
Selection Guide
Part No.
Dice
Lens Type
luminous Intensity
Iv(mcd) @ 20 mA
Min.
AA2810RWS/Z
WHITE (InGaN)
WATER CLEAR
650
Typ.
1200
Note2
Φv
(mlm)
@ 20 mA
Min.
1500
Note3
Viewing
Note1
Angle
2θ1/2
120°
Typ.
3400
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
Reverse Voltage
Junction temperature
Operating Temperature
Storage Temperature
DC Forward Current
Peak Forward Current
Thermal resistance
Note5
Junction/ambient
Junction/solder point
Note4
Symbol
P
t
V
R
T
J
Top
Tstg
I
F
I
FM
R
th JA
R
th JS
Value
111
5
110
-40 To +85
-40 To +100
30
100
300
140
Unit
mW
V
°C
°C
°C
mA
mA
°C/W
°C/W
Notes:
1.θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2.Luminous intensity is measured by a current pulse of 10ms at a tolerance of ±15%.
3.The typical data of Luminous Flux can only reflect statistical figures, actual parameters of individual product could differ from the typical data.
For the purpose of product enhancement, the typical data is subject to change without prior notice.
4.1/10 Duty Cycle, 0.1ms Pulse Width.
5.Rth(J-A) Results from mounting on PC board FR4 (pad size≥16 mm
2
per pad),
Electrical / Optical Characteristics at T
A
=25°C
Parameter
Chromaticity coordinate x acc.to CIE1931
I
F
=20mA [Typ.]
Chromaticity coordinate y acc.to CIE1931
I
F
=20mA [Typ.]
Forward Voltage I
F
=20mA [Min.]
Forward Voltage I
F
=20mA [Typ.]
Forward Voltage
I
F
=20mA [Max.]
[Typ.]
I
R
Reverse Current (V
R
=5V)
[Max.]
TC x
10
-0.1
10
-3
/
°
C
10
-3
/
°
C
mV/
°
C
Temperature coefficient of x
I
F
=20mA, -10
°
C≤ T≤100
°
C
[Typ.]
Temperature coefficient of y
I
F
=20mA, -10
°
C≤ T≤100
°
C
[Typ.]
Temperature coefficient of V
F
I
F
=20mA, -10
°
C≤ T≤100
°
C
[Typ.]
V
F
Note2
Symbol
X
Y
Note1
Value
0.31
0.31
2.7
3.2
3.7
0.01
Unit
-
-
Note1
V
Reverse Current (V
R
=5V)
μA
TCy
-0.2
TC
V
-2.5
Notes:
1.Chromaticity coordinates are measured by a current pulse of 20ms with a tolerance of ±0.01 in X and Y color coordinates.
2.Forward voltage is measured with a current pulse of 10ms at a tolerance of ±0.1V.
SPEC NO: DSAH4500
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: MAY/21/2007
DRAWN: S.J.LIU
PAGE: 3 OF 8
ERP: 1201002975

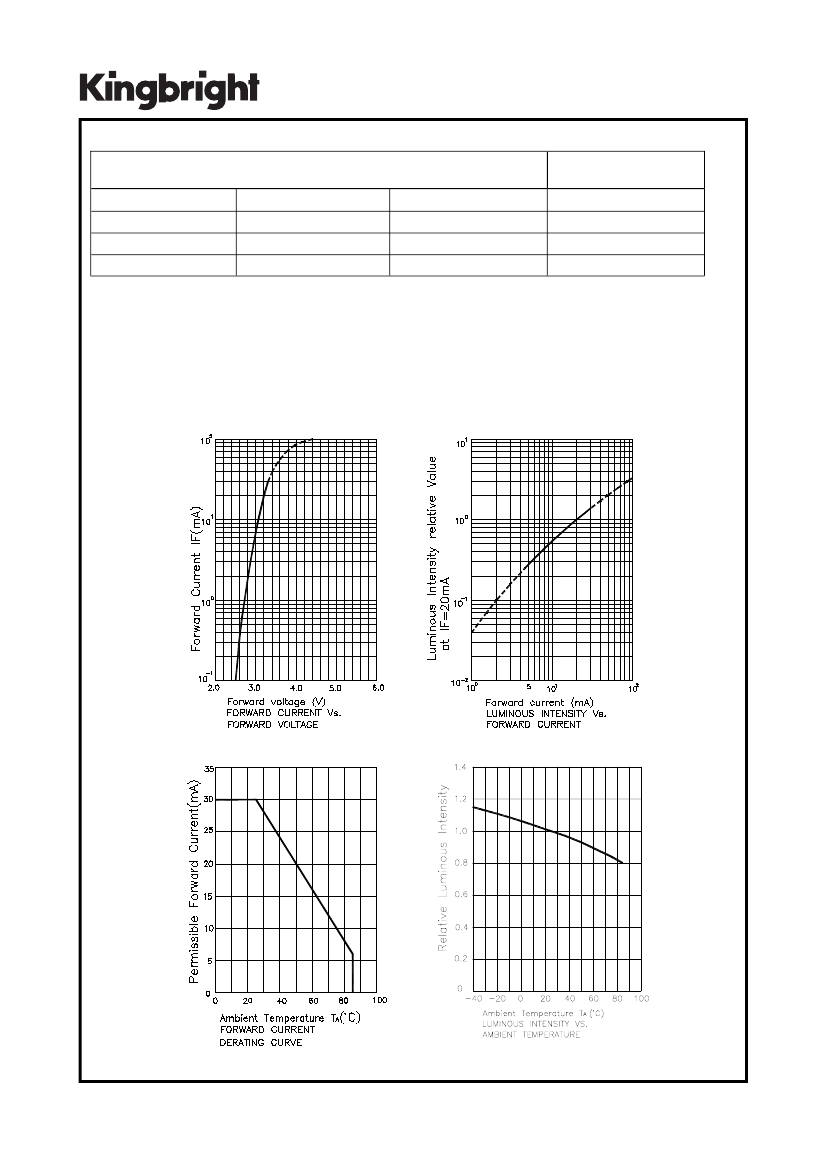

Brightness codes
luminous Intensity
Iv(mcd) @ 20 mA
Code.
T
U
V
Min.
650
900
1200
Note1
Φv
(mlm)
@ 20 mA
Max.
1200
1500
1800
Typ.
3300
3450
3600
Note2
Notes:
1.Luminous intensity is measured by a current pulse of 10ms at a tolerance of ±15%.
2.The typical data of Luminous Flux can only reflect statistical figures, actual parameters of individual product could differ from the typical data.
For the purpose of product enhancement, the typical data is subject to change without prior notice.
White
AA2810RWS/Z
SPEC NO: DSAH4500
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: MAY/21/2007
DRAWN: S.J.LIU
PAGE: 4 OF 8
ERP: 1201002975

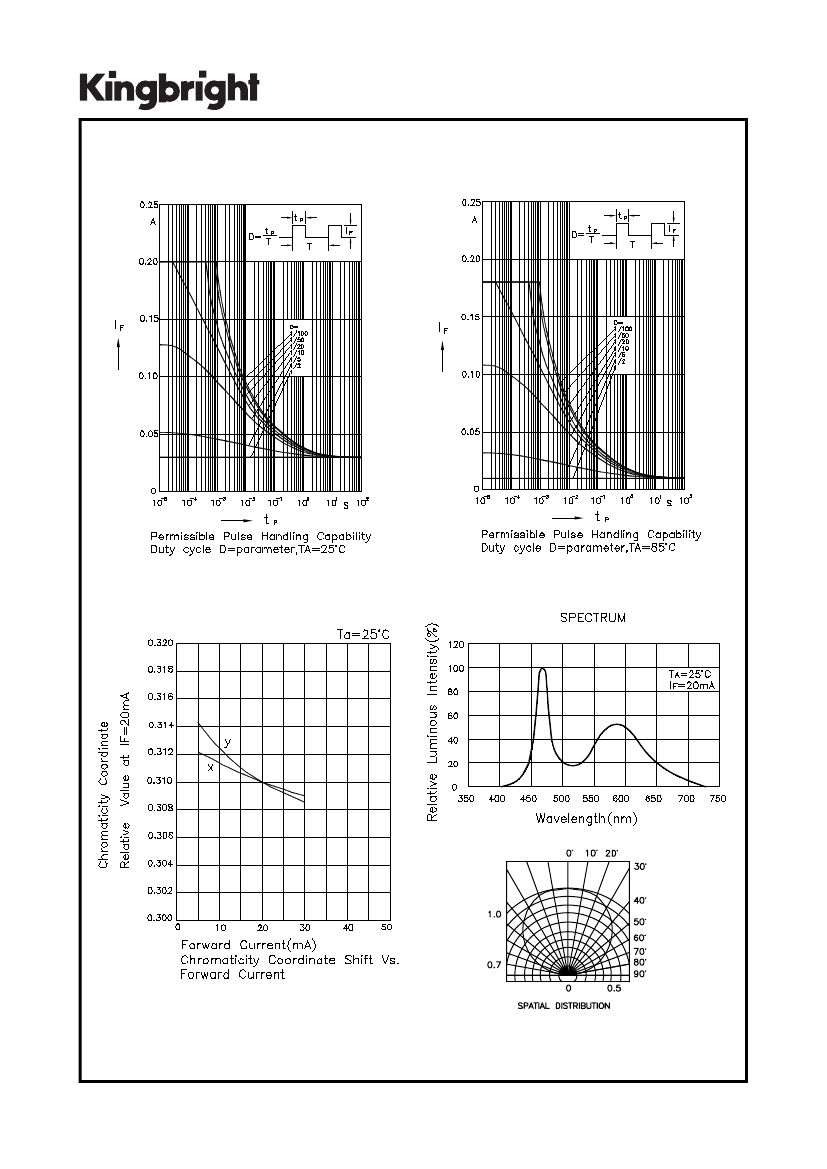

AA2810RWS/Z
SPEC NO: DSAH4500
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: MAY/21/2007
DRAWN: S.J.LIU
PAGE: 5 OF 8
ERP: 1201002975
