IDT79R2020A16JB datasheet, PDF

Datasheet> All Categories > storage> storage> IDT79R2020A16JB

IDT79R2020A16JB: DescriptionMemory Circuit, 8X8, CMOS, PQCC68, PLASTIC, LCC-68; Categorystorage storage; File Size136KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT79R2020A16JB Overview

Memory Circuit, 8X8, CMOS, PQCC68, PLASTIC, LCC-68

IDT79R2020A16JB Parametric

Parameter Name	Attribute value
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	68
Reach Compliance Code	unknown
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
length	24.2062 mm
memory density	64 bit
Memory IC Type	MEMORY CIRCUIT
memory width	8
Number of functions	1
Number of terminals	68
word count	8 words
character code	8
Operating mode	SYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8X8
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.2062 mm
Base Number Matches	1

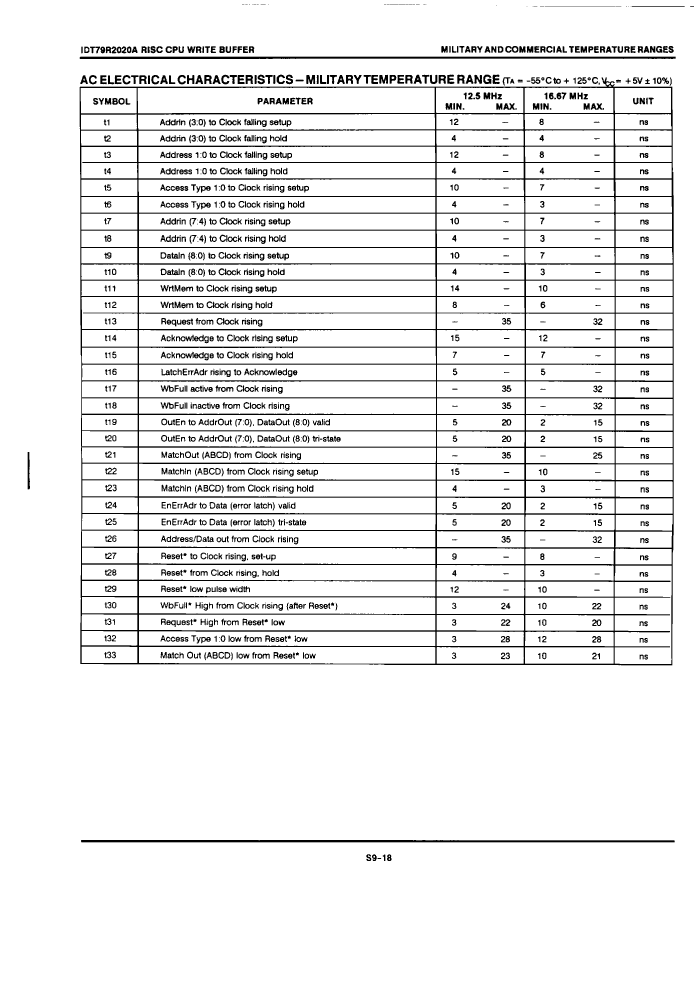

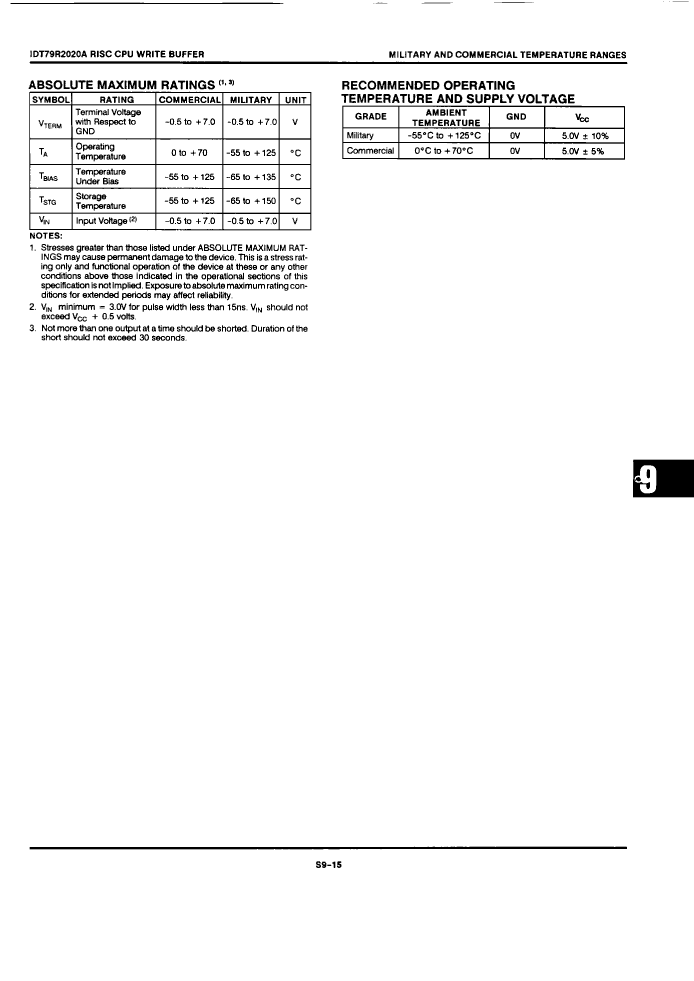

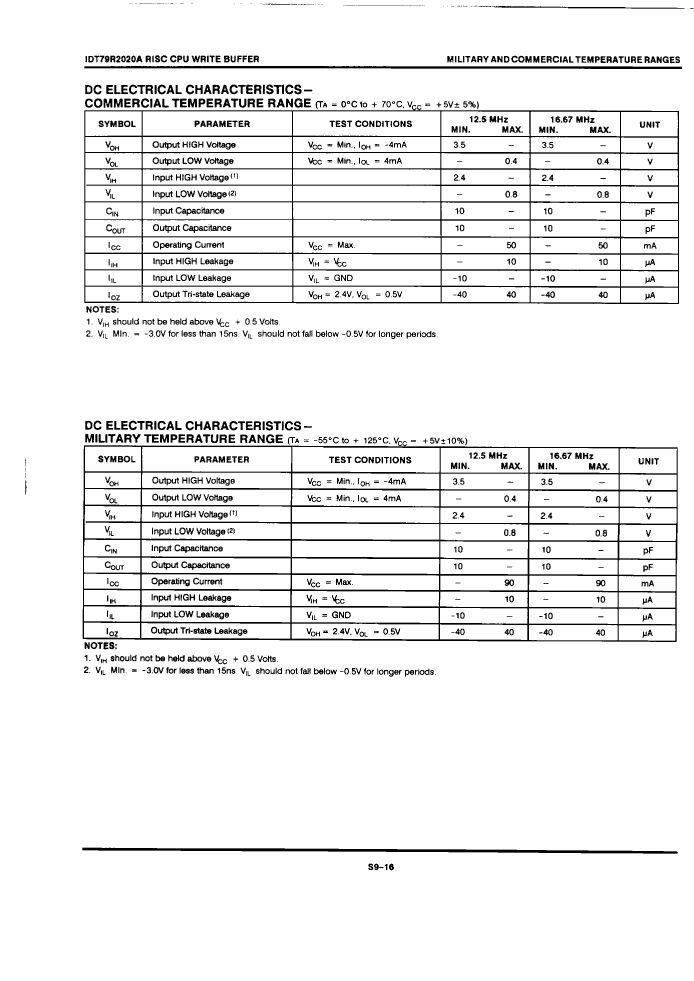

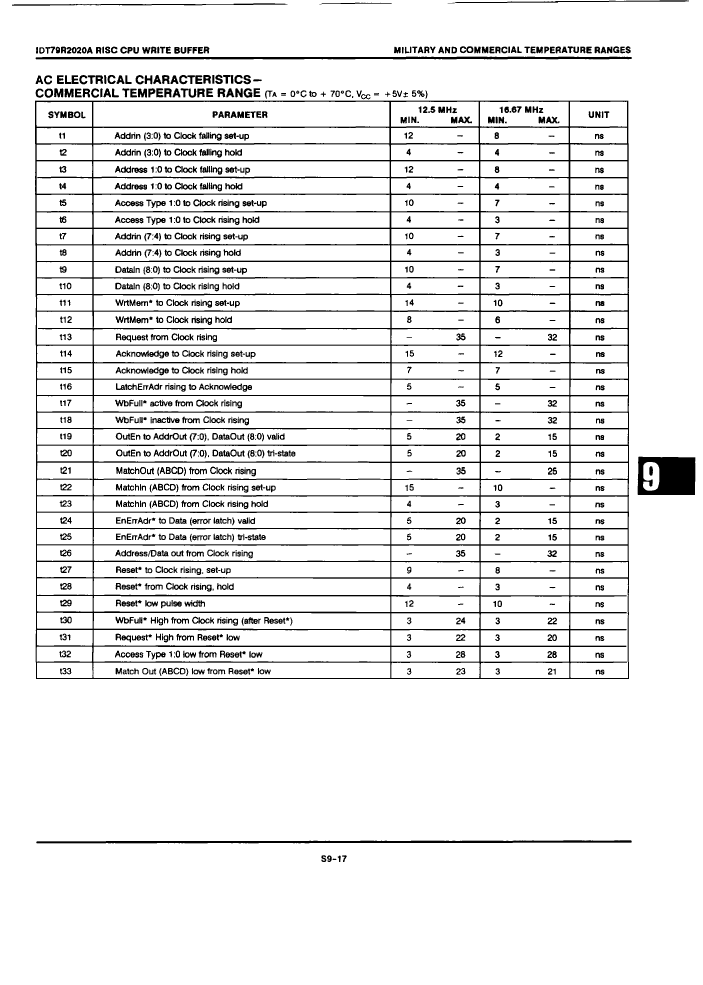

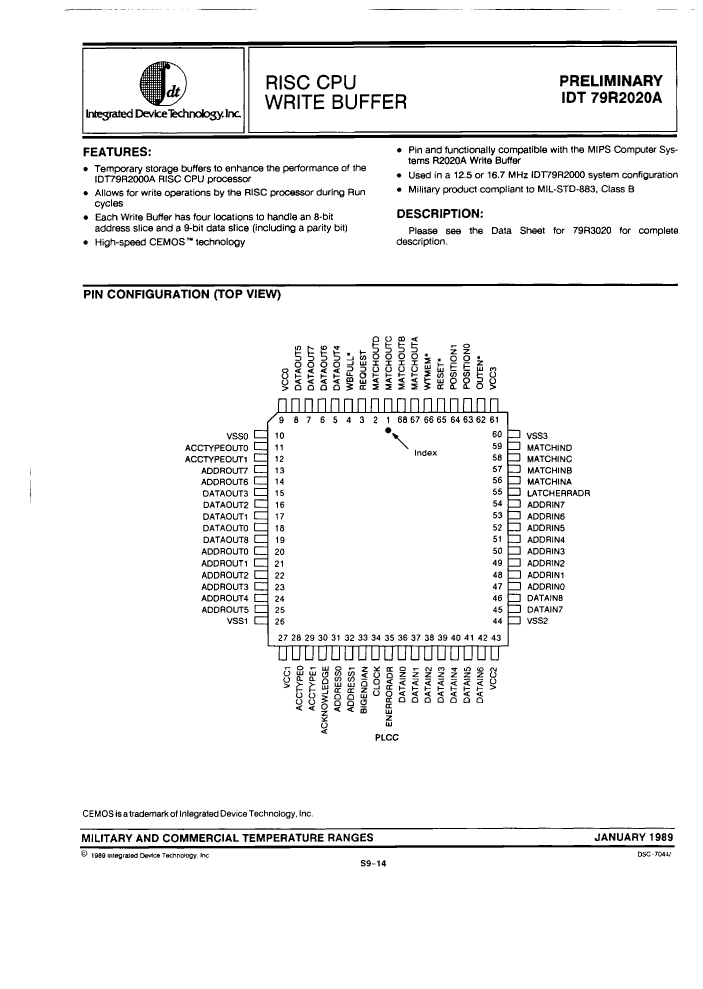

Preview

Download Datasheet

View All

IDT79R2020A16JB Related Products

	IDT79R2020A16JB	IDT79R2020A16G	IDT79R2020A16GB	IDT79R2020A12JB	IDT79R2020A12J	IDT79R2020A16J	IDT79R2020A12GB	IDT79R2020A12G
Description	Memory Circuit, 8X8, CMOS, PQCC68, PLASTIC, LCC-68	Memory Circuit, 8X8, CMOS, CPGA68, CAVITY UP, PGA-68	Memory Circuit, 8X8, CMOS, CPGA68, CAVITY UP, PGA-68	Memory Circuit, 8X8, CMOS, PQCC68, PLASTIC, LCC-68	Memory Circuit, 8X8, CMOS, PQCC68, PLASTIC, LCC-68	Memory Circuit, 8X8, CMOS, PQCC68, PLASTIC, LCC-68	Memory Circuit, 8X8, CMOS, CPGA68, CAVITY UP, PGA-68	Memory Circuit, 8X8, CMOS, CPGA68, CAVITY UP, PGA-68
Parts packaging code	LCC	PGA	PGA	LCC	LCC	LCC	PGA	PGA
package instruction	QCCJ,	CAVITY UP, PGA-68	CAVITY UP, PGA-68	QCCJ,	PLASTIC, LCC-68	PLASTIC, LCC-68	CAVITY UP, PGA-68	CAVITY UP, PGA-68
Contacts	68	68	68	68	68	68	68	68
Reach Compliance Code	unknown	not_compliant	not_compliant	unknown	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	S-PQCC-J68	S-CPGA-P68	S-CPGA-P68	S-PQCC-J68	S-PQCC-J68	S-PQCC-J68	S-CPGA-P68	S-CPGA-P68
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	24.2062 mm	29.464 mm	29.464 mm	24.2062 mm	24.2062 mm	24.2062 mm	29.464 mm	29.464 mm
memory density	64 bit	64 bit	64 bit	64 bit	64 bit	64 bit	64 bit	64 bit
Memory IC Type	MEMORY CIRCUIT	MEMORY CIRCUIT	MEMORY CIRCUIT	MEMORY CIRCUIT	MEMORY CIRCUIT	MEMORY CIRCUIT	MEMORY CIRCUIT	MEMORY CIRCUIT
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	68	68	68	68	68	68	68	68
word count	8 words	8 words	8 words	8 words	8 words	8 words	8 words	8 words
character code	8	8	8	8	8	8	8	8
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	70 °C	70 °C	125 °C	70 °C
organize	8X8	8X8	8X8	8X8	8X8	8X8	8X8	8X8
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCJ	PGA	PGA	QCCJ	QCCJ	QCCJ	PGA	PGA
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	GRID ARRAY	GRID ARRAY	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	5.207 mm	5.207 mm	4.57 mm	4.57 mm	4.57 mm	5.207 mm	5.207 mm
Maximum supply voltage (Vsup)	5.5 V	5.25 V	5.5 V	5.5 V	5.25 V	5.25 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.75 V	4.5 V	4.5 V	4.75 V	4.75 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	PIN/PEG	PIN/PEG	J BEND	J BEND	J BEND	PIN/PEG	PIN/PEG
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	PERPENDICULAR	PERPENDICULAR	QUAD	QUAD	QUAD	PERPENDICULAR	PERPENDICULAR
width	24.2062 mm	29.464 mm	29.464 mm	24.2062 mm	24.2062 mm	24.2062 mm	29.464 mm	29.464 mm
Base Number Matches	1	1	1	1	1	1	-	-
Is it Rohs certified?	-	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible
Encapsulate equivalent code	-	PGA68,11X11	PGA68,11X11	-	LDCC68,1.0SQ	LDCC68,1.0SQ	PGA68,11X11	PGA68,11X11
power supply	-	5 V	5 V	-	5 V	5 V	5 V	5 V
