336TLS025M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 336TLS025M

Preview

336TLS025M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, AXIAL LEADED, LEAD FREE; CategoryPassive components capacitor; File Size85KB，2 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336TLS025M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336TLS025M	-	-	View	Buy Now

336TLS025M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, AXIAL LEADED, LEAD FREE

336TLS025M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (WET)
ESR	7033 mΩ
JESD-609 code	e3
leakage current	0.0017 mA
length	13 mm
Manufacturer's serial number	TLS
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	90 mA
series	TLS
surface mount	NO
Delta tangent	0.14
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

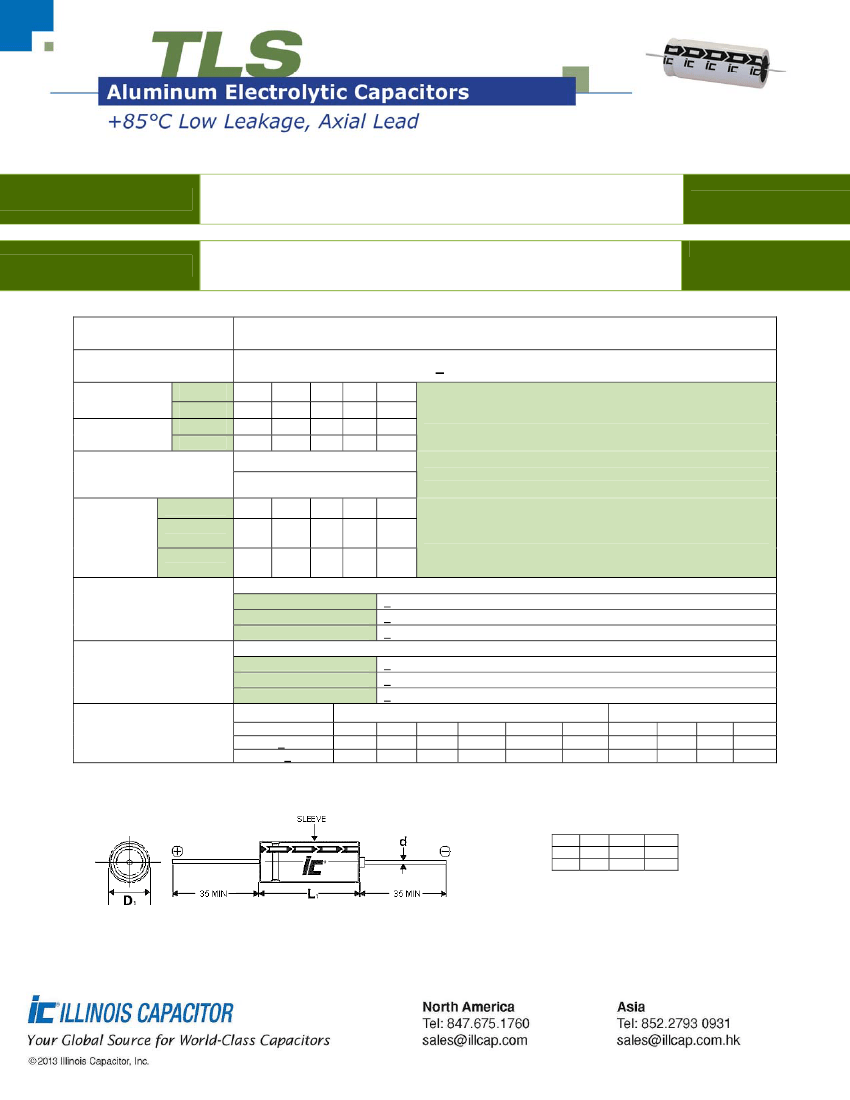

FEATURES

Small size

-

High voltage

-

General purpose

APPLICATIONS

Operating

Temperature Range

Capacitance

Tolerance

WVDC

Surge

Voltage

SVDC

Dissipation

WVDC

Tan

δ

Factor

Leakage Current

Low

Temperature

Stability

Impedance

Ratio

(120 Hz)

Inverters

–

DC link

–

AC/DC motor controls

–

Solar inverters

-40°C to +85°C

+20% at 120 Hz, 20°C

10

13

10

.2

16

20

16

.16

25

32

25

.14

2 Minutes

.002CV or 0.4uA,

Whichever is greater

10

3

8

16

2

6

25

2

4

35

2

3

50

2

3

35

44

35

.12

50

63

50

.1

WVDC

-25°C to

+20°C

-40°C to

+20°C

Load Life

Shelf Life

2000 hours at 105°C with rated WVDC and ripple current applied

Capacitance Change

<20% of initial measured value

Dissipation Factor

<150% of maximum specified value

Leakage Current

>100% of maximum specified value

1000 hours at 105°C with no voltage applied

Capacitance Change

<20% initial measured value

Dissipation Factor

<200% of maximum specified value

Leakage Current

>100% of maximum specified value

Capacitance

uF

C<10

10<C<100

50

.8

120

1.0

Frequency (Hz)

400

1k

1.3

1.45

1.23

1.36

10k

1.65

1.48

50k

1.7

1.53

Temperature (°C)

+85

+70

+60

+30

1.0

1.3

1.5

1.8

1.0

1.3

1.5

1.8

Ripple Current

Multipliers

D

d

B

5

0.5

6.3

0.5

8

0.6

0.5

L

1

=L+1.0mm Max.

D

1

=D+B Max.

mm

336TLS025M Related Products

	336TLS025M	156TLS025M
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, AXIAL LEADED, LEAD FREE	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 15uF, Through Hole Mount, AXIAL LEADED, LEAD FREE
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
capacitance	33 µF	15 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm	5 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)
ESR	7033 mΩ	15473 mΩ
JESD-609 code	e3	e3
leakage current	0.0017 mA	0.0008 mA
length	13 mm	13 mm
Manufacturer's serial number	TLS	TLS
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package shape	TUBULAR PACKAGE	TUBULAR PACKAGE
Package form	Axial	Axial
polarity	POLARIZED	POLARIZED
positive tolerance	20%	20%
Rated (DC) voltage (URdc)	25 V	25 V
ripple current	90 mA	55 mA
series	TLS	TLS
surface mount	NO	NO
Delta tangent	0.14	0.14
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	WIRE	WIRE
Base Number Matches	1	1
