Cannon 75 Ohm Connectors
1.6/5.6
The Cannon range of 1.6/5.6 connectors are suitable for use in 75 ohm
communication systems and have become the recognized standard in
telecommunications in many parts of the world.
Designed around the requirements of DIN 47295, CECC 22240 and
IEC 169-13, these connectors are designed for field installation and
feature threaded couplings to ensure mating integrity and a snap-on
interface for ease of connection.
The range of parts shown in this publication includes plug and jack
connectors for a variety of cables. Other cable types and connector
styles may be available on request.
Applications
• Switching Equipment • DSX Cross Connects • Base Stations • Routers • Wireless • Telecom • LAN Equipment
Features and Benefits
Threaded coupling mechanism to
ensure secure connection and
snap-on interface for ease of
engagement and separation
Most installations require no
special tooling
Three-part construction with crimp
inner contact and outer ferrule (no
soldering required)
Designed for field installation
Designed for the most commonly
used telecom cables in North
America and Europe
RoHS Compliant Part Numbers

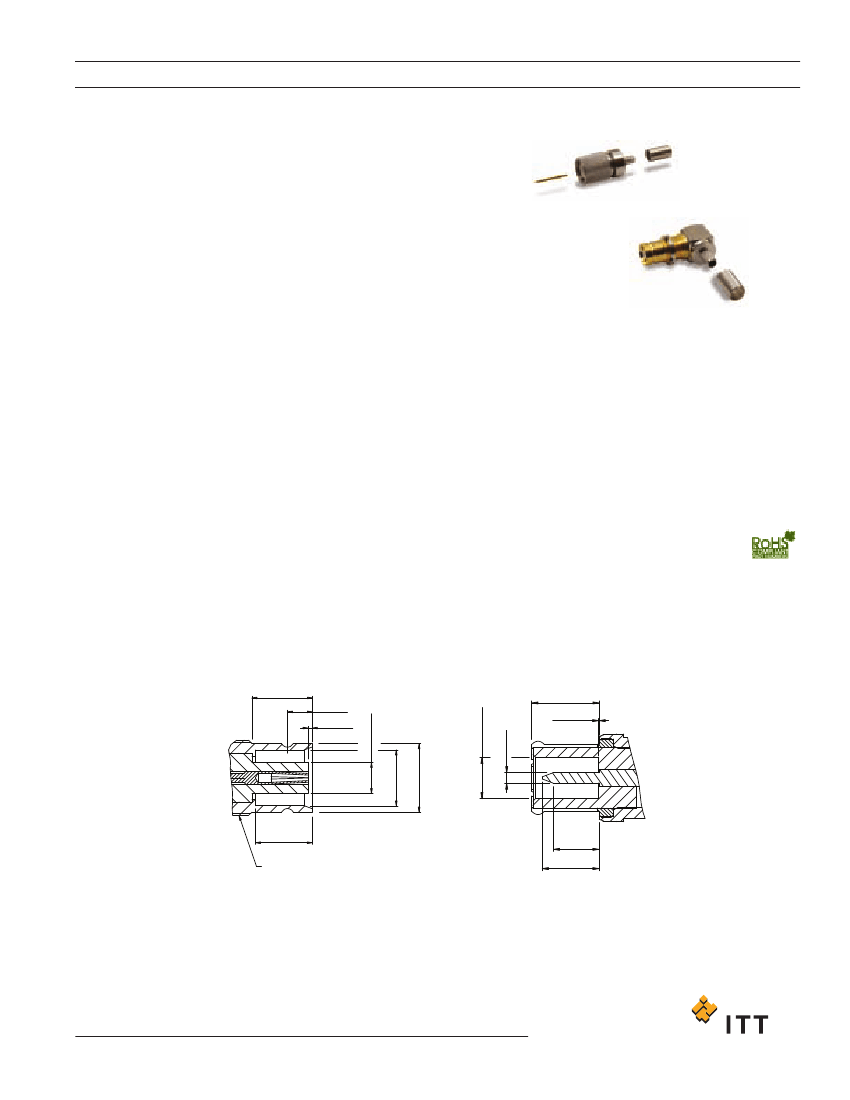

Mating Interfaces
7.00
+0.50
0
6.40
3.00 ± 0.10
0.25 MIN.
ø 3.80 MAX.
+0.20
0
ø 4.00 MIN.
0.15 MAX.
+0.06
0
ø 6.60
6.70 MIN.
ø 8.10
+0.15
0
ø 0.97
+0.09
0
3.90
+0.40
0
M9 x 0.5 THREAD.
5.50 MAX.
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
19
Cannon 75 Ohm Connectors
DIN1.6/5.6
ELECTRICAL
75 nominal
0-1 GHz
At sea level =330 Vrms
10G minimum
Inner contact = 4 m maximum
Outer contact: 2 m maximum
Reflection Coefficient* With f = 0.1 GHz
= 0.02 maximum
With f = 0.1-0.5 GHz
= 0.04 maximum
With f = 0.5-1.0 GHz
= 0.10 maximum
Impedance
Frequency Range
Voltage Rating*
Insulation Resistance
Contact Resistance
MECHANICAL
Withdrawal force inner female contact
Withdrawal force inner male contact
Insertion force between jacks and plugs
Withdrawal force between jacks and plugs
0.5N (0.11 lbs) minimum
1.7N (0.38 lbs) minimum
Screw types: 12N (2.7 lbs) maximum. Push-pull type: 20N (4.5 lbs) maximum
Screw types: 22N (4.9 lbs) minimum. Push-pull type: 20N (4.5 lbs) maximum
Materials
Body and nuts: Brass. Inner male contact: Brass
Inner ferrule contact and outer male contact: Beryllium copper. Insulators: PTFE
Crimp ferrules: Annealed copper alloy.
Contact surfaces: Gold over nickel. Female bodies: Gold over nickel.
Male bodies: Nickel or silver. Nuts and crimp ferrules: Nickel
-40˚C to 85˚C
500 matings minimum
CECC 22240, DIN 47295, IEC 169-13
*Guideline value only - will depend on cable and connector types
Finish/Plating
ENVIRONMENTAL
GENERAL
Temperature
Connector Durability
Standards
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
20
Cannon 75 Ohm Connectors
DIN1.6/5.6

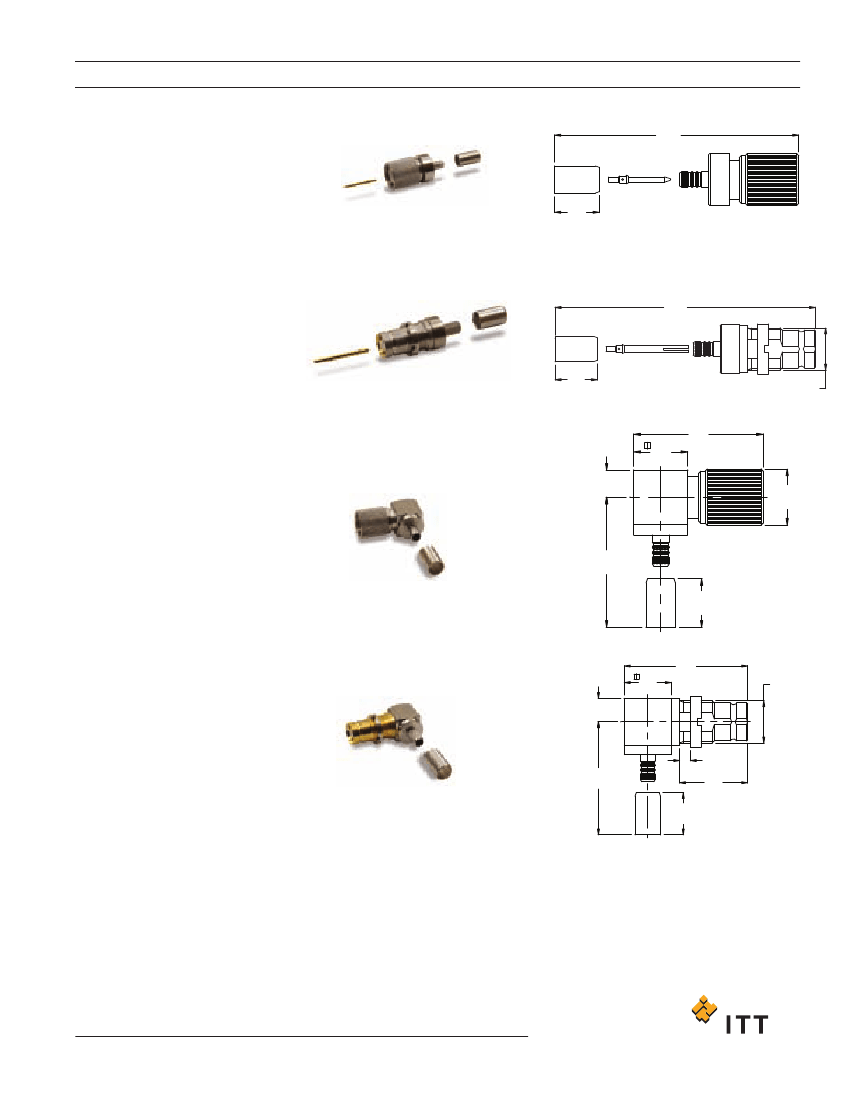

1.6/5.6 Straight Plug
~27.50
(1.082)
Part Number
D50-A24-3033GDA
D50-A24-3035GDA
D50-A24-3037GDA
Cable Type
BT2003
BT3002/TZC75024
RA7000
9.00
(.354)
Assembly Instructions: BBAI 1245
1.6/5.6 Straight Bulkhead Jack
D50-A27-3033GEA
D50-A27-3035GEA
D50-A27-3037GEA
BT2003
BT3002/TZC75024
RA7000
~29.50
(1.161)
9.00
(.354)
M9.00x0.50
Assembly Instructions: BBAI 1245
24.00
10.00
(.393)
5.00
(.196)
(.944)
1.6/5.6 Right Angle Plug
D50-A28-3133GKA
D50-A28-3135GKA
D50-A28-3137GKA
BT2003
BT3002/TZC75024
RA7000
ø 10.40
(.409)
16.00
(.629)
Assembly Instructions: BBAI 1247
9.00
(.354)
1.6/5.6 Right Angle Bulkhead Jack
D50-A30-3233GBA
D50-A30-3235GBA
D50-A30-3237GBA
BT2003
BT3002/TZC75024
RA7000
5.00
(.196)
10.00
(.393)
26.30
(1.035)
M 9.00 x 0.50
PANEL 2.00
.
(.078) MAX
16.00
(.629)
9.00
(.354)
14.50
(.570)
Assembly Instructions: BBAI 1247
Contact Customer Service for other cable types
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
21
