CTVLS100805F-6R8M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> CTVLS100805F-6R8M

Preview

CTVLS100805F-6R8M: DescriptionGeneral Purpose Inductor, 6.8uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size361KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric Compare View All

CTVLS100805F-6R8M Overview

General Purpose Inductor, 6.8uH, 20%, 1 Element, SMD, ROHS COMPLIANT

CTVLS100805F-6R8M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.76 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 30% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

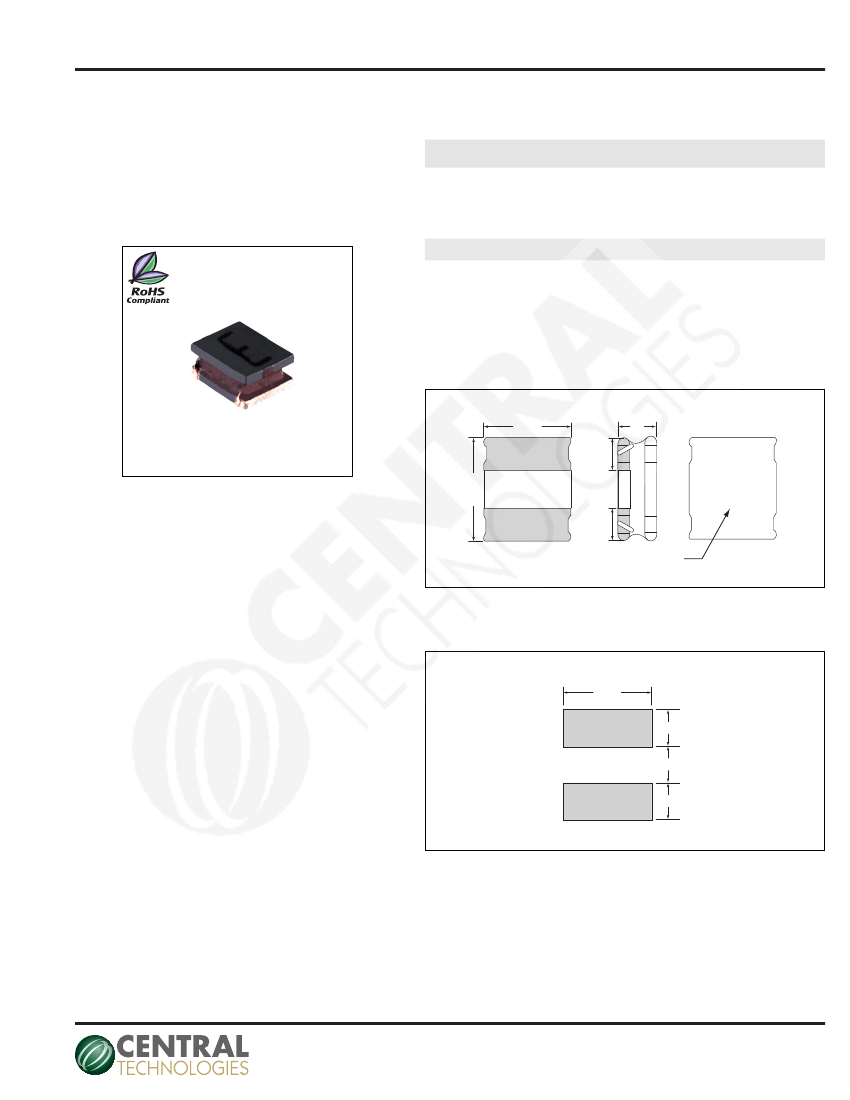

Power Inductors - Shielded

www.ctparts.com

CTVLS100805F

Series

From 1.0 µH to 22 µH

Part numbers indicate available inductance tolerance:

M = ±20%, N = ±30%

Part

Number

CTVLS100805F-1R0N

CTVLS100805F-1R5N

CTVLS100805F-2R2M

CTVLS100805F-3R3M

CTVLS100805F-4R7M

CTVLS100805F-5R6M

CTVLS100805F-6R8M

CTVLS100805F-100M

CTVLS100805F-220M

Inductance

(µH)

1.0

1.5

2.2

3.3

4.7

5.6

6.8

10

22

L Test

Freq.

(MHz)

1.0

DCR

±30%

(Ω)

0.105

0.153

0.219

0.349

0.507

0.525

0.760

0.915

2.110

IDC

Typ.

(mA)

2800

2200

1800

1300

1100

940

820

550

Irms

Typ.

(mA)

2200

1860

1700

1200

1040

1000

940

840

540

SPECIFICATIONS

Marking

A

B

C

D

E

F

G

H

I

PHYSICAL DIMENSIONS

Size

mm

inches

A

2.5±0.2

0.1±0.008

B

2.0±0.2

0.08±0.008

C

1.2±0.05

0.05±0.002

D

0.8

0.03

B

D

Not Shown at Actual Size

C

A

CHARACTERISTICS

Description:

SMD Shielded Power Inductor.

Applications:

DVCs, DSCs, PDAs, LCD displays, cellular

phones, HDDs, etc.

Operating Temperature:

-25°C to +105°C

IDC:

For inductance drop 30% from its value without current.

Irms:

For a 40°C rise above 25°C ambient.

Inductance Tolerance:

±20%, ±30%

Testing:

Inductance is tested on an HP4286A at 1MHz, 200mV.

Packaging:

Tape & Reel.

Marking:

Parts are marked with letter identifier.

Miscellaneous:

RoHS Compliant.

Additional Information:

Additional electrical & physical

information available upon request.

Samples available. See website for ordering information.

D

Marking: Letter Identi er

X

PAD LAYOUT

Unit: mm

2.0

0.85

0.8

0.85

CT Magnetics reserves the right to make improvements or change specifications without notice

Manufacturer of Passive Components

800-684-5322 Inside US

949-453-1811 Outside US

REV 02.01.11

CTVLS100805F-6R8M Related Products

	CTVLS100805F-6R8M	CTVLS100805F-4R7M	CTVLS100805F-3R3M	CTVLS100805F-2R2M	CTVLS100805F-1R5N	CTVLS100805F-5R6M	CTVLS100805F-1R0N	CTVLS100805F-220M	CTVLS100805F-100M
Description	General Purpose Inductor, 6.8uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 4.7uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 3.3uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 2.2uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 1.5uH, 30%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 5.6uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 1uH, 30%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 22uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 10uH, 20%, 1 Element, SMD, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.76 Ω	0.507 Ω	0.349 Ω	0.219 Ω	0.153 Ω	0.525 Ω	0.105 Ω	2.11 Ω	0.915 Ω
Nominal inductance(L)	6.8 µH	4.7 µH	3.3 µH	2.2 µH	1.5 µH	5.6 µH	1 µH	22 µH	10 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES
special characteristics	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Tolerance	20%	20%	20%	20%	30%	20%	30%	20%	20%
Base Number Matches	1	1	1	1	1	1	-	-	-
