DFP15S: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric View All

DFP15S Overview

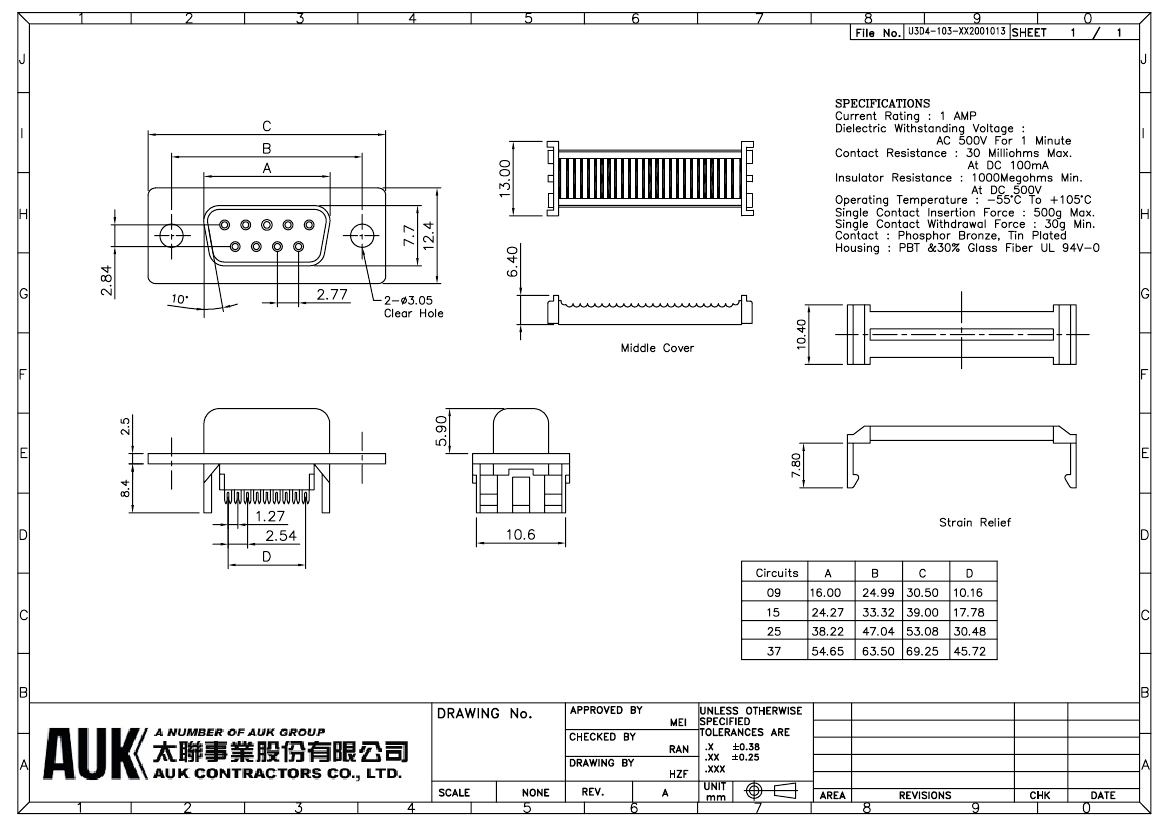

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	WITH PLASTIC STRAIN RELIEF
body width	0.488 inch
subject depth	0.429 inch
body length	1.535 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DFP
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	15
Evacuation force-minimum value	.3058 N
Base Number Matches	1
