DE09-SF-M2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DE09-SF-M2

DE09-SF-M2: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40; CategoryThe connector The connector; File Size301KB，2 Pages; ManufacturerAdam Tech; Environmental Compliance

Download Datasheet Parametric View All

DE09-SF-M2 Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40

DE09-SF-M2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.492 inch
body length	1.213 inch
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	STEEL
Termination type	IDC
Total number of contacts	9
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

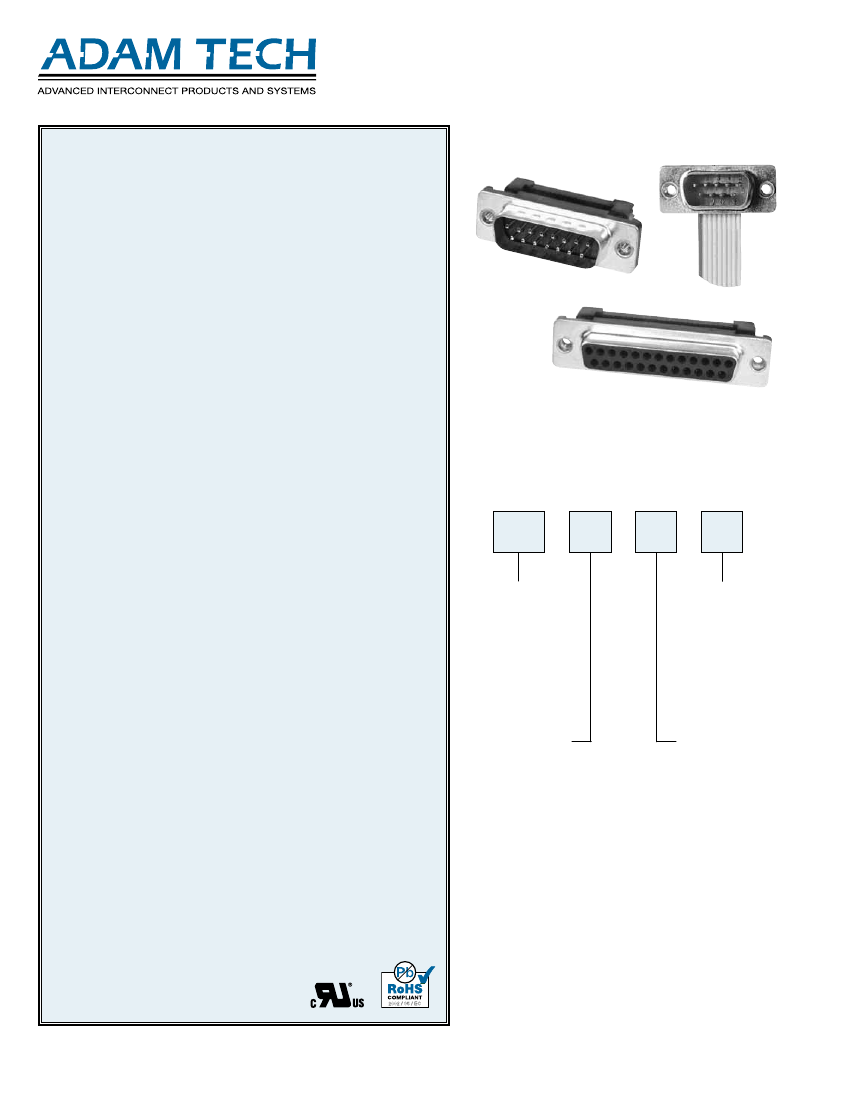

IDC FlAt CABle teRMINAtION

DPF & DSF SeRIeS

iNTROduCTiON:

Adam tech Flat Cable IDC D-Sub connectors are a popular interface

for many I/O and cable assembly applications. Offered in 9, 15,

25, 37 and 50 positions they are an excellent choice for a low

cost industry standard connection that terminates .050" flat cable

quickly, easily and compactly. these connectors are manufactured

with precision stamped contacts offering a choice of contact plating

and a wide selection of mating and mounting options.

FEaTuRES:

Quickly terminates to flat cable

Industry standard compatibility

Durable metal shell design

Integral strain relief available

Precision formed contacts

Variety of Mating and mounting options

MaTiNg CONNECTORS:

Adam tech D-Subminiatures and all industry standard

D-Subminiature connectors.

SpECiFiCaTiONS:

Material:

Insulator: PBt, 30% glass reinforced, rated Ul94V-0

Insulator Colors: Black (Blue optional)

Contacts: Phosphor Bronze

Shell: Steel, tin or Zinc plated

Hardware: Brass, Nickel plated

Contact plating:

Gold over Nickel underplate on contact area.

Electrical:

Operating voltage: 250V AC / DC max.

Current rating: 5 Amps max.

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Insertion force: 0.75 lbs max

extraction force: 0.44 lbs min

Recommended cable size: 28 to 30 Awg.

Temperature Rating:

Operating temperature: -55°C to +105°C

paCkagiNg:

Anti-eSD plastic trays

appROValS aNd CERTiFiCaTiONS:

Ul Recognized & CSA Certified, File no. e224053

SHEll SiZE/

pOSiTiONS

dE09

= 9 Position

da15

= 15 Position

dB25

= 25 Position

dC37

= 37 Position

dd50

= 50 Position

MOuNTiNg OpTiONS

= .130" mounting holes

= #4-40 threaded

flush inserts

(Metal Shell only)

d-SuBMiNiaTuRE

ORdERiNg iNFORMaTiON

dB25

CONTaCT TypE

= Plug, IDC

= Socket, IDC

STRaiN REliEF

paRT NO.:

DSR-09 = 9 Position

DSR-15 = 15 Position

DSR-25 = 25 Position

DSR-37 = 37 Position

DSR-50 = 50 Position

BOdy

CONSTRuCTiON

= Metal shell

= All plastic body

OpTiONS:

Add designator(s) to end of part number

= 15

µin.

gold in contact area

= 30

µin.

gold in contact area

= Blue color insulator

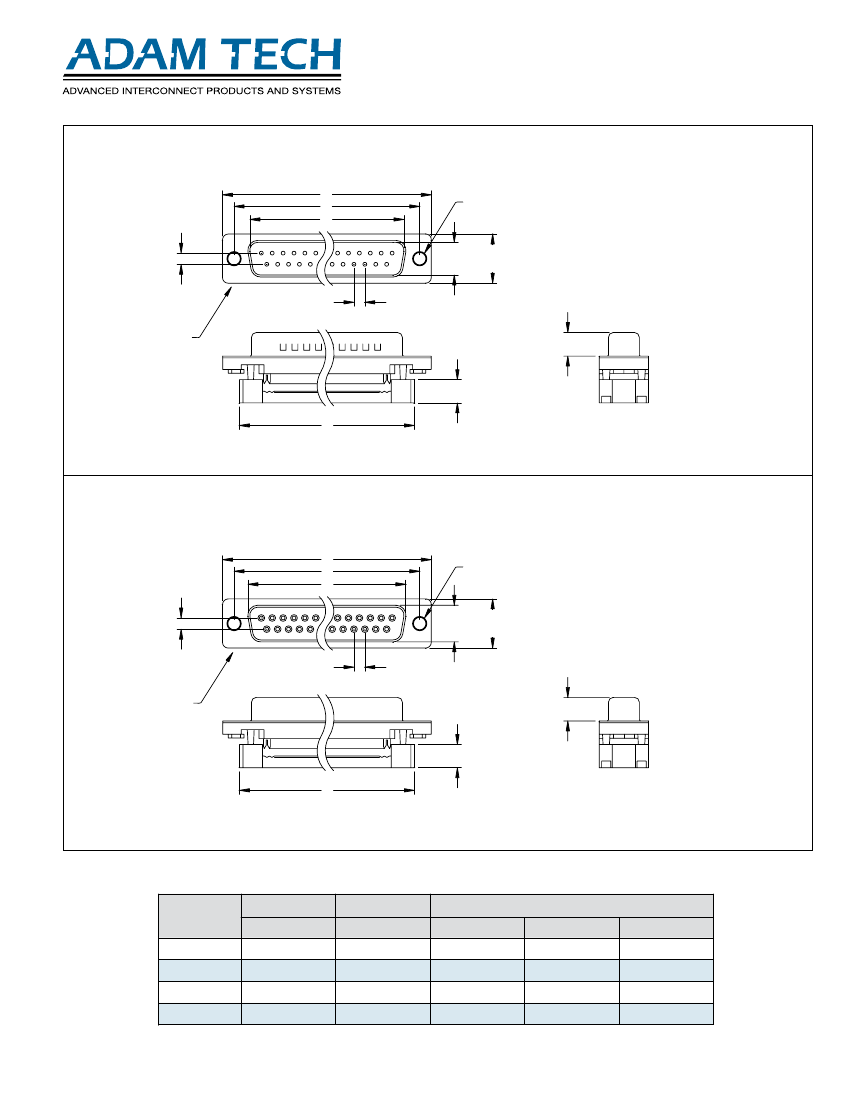

www.adam-tech.com
