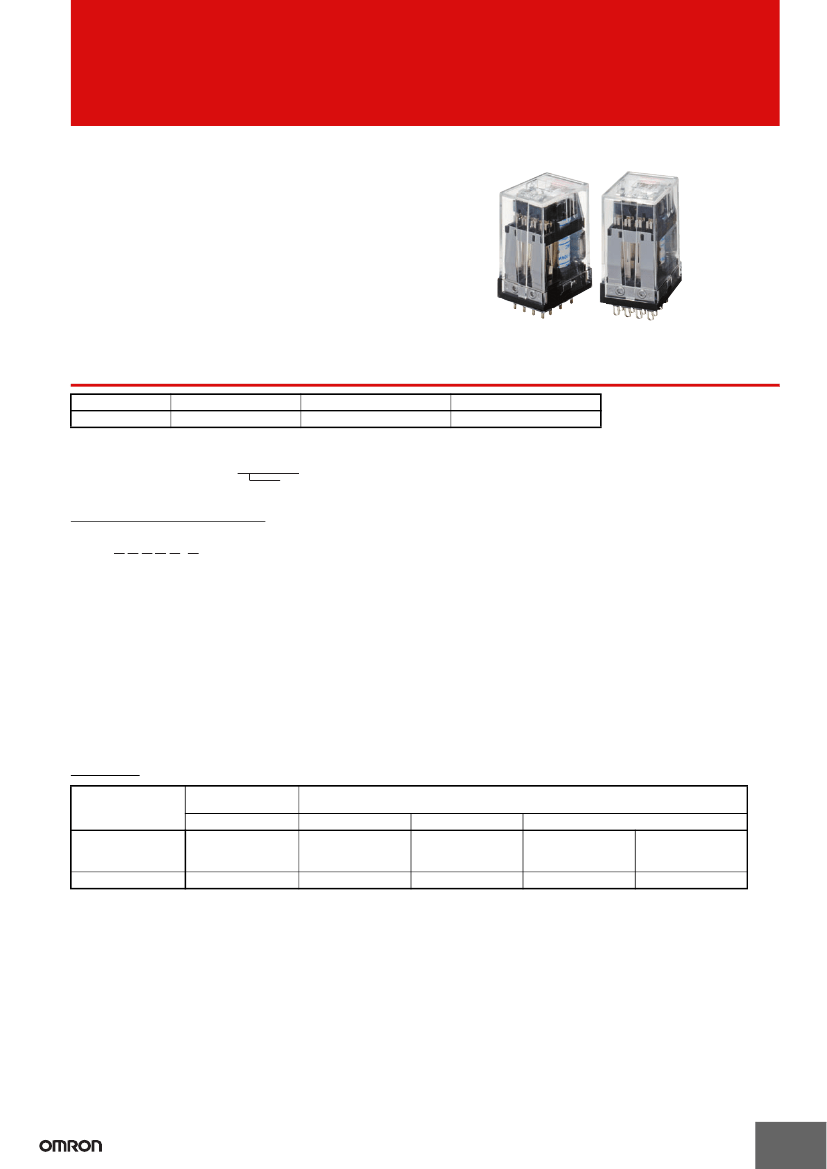

Power Relay
G2A-434
CSM_G2A-434_DS_E_4_1
Fully Sealed Version of G2A that Displays Its
Power in Adverse Environments
• Exhibits stable performance in an adverse atmosphere of
harmful gas, moisture, or powdery dust due to its hermetically
sealed construction.
• All the mechanical components of the Relay have been
annealed to prevent gas generation inside the Relay.
• Economical as compared with a hermetically sealed relay in a
metallic enclosure.
Ordering Information
Contact form
4PDT
Classification
Standard model
Plug-in terminals
G2A-434A(-D)(-N)(-N1)
PCB terminals
G2A-4341P
Note:
When placing your order, add the coil
voltage
rating to the model number as shown
below.
Example: G2A-434A-VS 200/220 VAC
Rated coil
voltage
Model Number Legend
G2A-@@@@@-@
1
2
3 4
5
6
1. Number of Poles and Contact Form
4:
4PDT
2. Contact Type
3:
Crossbar bifurcated
3. Enclosure Construction
4:
Fully sealed
4. Terminal Shape
A:
Plug-in
1P:
PCB
5. Safety Breaking Mechanism
None: No
Y:
Arc barrier
6. Special Elements
None: Standard
D:
Built-in diode
N:
Built-in operation indicator
N1:
Built-in operation indicator and diode
■
Accessories (Order Separately)
Sockets
Classification
DIN Track-mounting
Socket
Screw terminals
Without Hold-down
Clip
PYF14A(-E)
PYF14A-TU
PYF14T
Solder terminals
PY14
PY14-3
PY14-Y2
Back-connecting Socket
Wire-wrap terminals
PY14QN(2)
PY14-0
PCB terminals
PY14-02
With Hold-down Clip
---
PY14QN(2)-Y2
---
---
Note:
See the G2A datasheet for detailed information on Relay Hold-down Clips and Socket Mounting Plates.
1
G2A-434
Specifications
■
Coil Ratings
Rated
voltage
50 Hz
6 VAC
24 VAC
100/
110 VAC
200/
220 VAC
12 VDC
24 VDC
48 VDC
100 VDC
295 mA
73 mA
17.7/
21.4 mA
8.9/
10.8 mA
88 mA
45 mA
22 mA
11.4 mA
Current
60 Hz
233 mA
58 mA
14/
16.8 mA
7/8.4 mA
8.9
Ω
136
Ω
2,200
Ω
8,800
Ω
136
Ω
530
Ω
2,200
Ω
8,800
Ω
Coil
resistance
Coil inductance (ref.
value)
Armature
OFF
0.048 H
0.691 H
12.42/
12.38 H
42.2/
41.8 H
0.6 H
2.7 H
11 H
43 H
Armature
ON
0.065 H
1.04 H
18/16.4 H
72/65.5 H
1.0 H
4.6 H
19 H
73 H
10 % min.
Approx.
1.1 W
Must
operate
Must
release
Max.
voltage
Power
consumption
% of rated voltage
80 % max.
30 % min.
110 %
Approx.
1.4 VA
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of +15%/–20% for AC rated current and
±15%
for DC coil resistance.
2.
The AC coil resistance and coil inductance values are for reference only.
3.
Performance characteristic data is measured at a coil temperature of 23°C.
4.
The maximum voltage is one that is applicable instantaneously to the Relay coil at 23°C and not continuously.
5.
For built-in operation indicator models rated at 6, 12, and 24 VDC, add an LED current of approx. 5 mA to the rated currents.
■
Contact Ratings
Load
Contact mechanism
Contact material
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Resistive load (cosφ = 1)
Crossbar bifurcated
Movable:AgAu-clad AgPd
Fixed:AgPd
0.3 A at 110 VAC
0.5 A at 24 VDC
2A
250 VAC, 125 VDC
AC: 0.7 A
DC: 2 A
AC: 0.5 A
DC: 1 A
0.2 A at 110 VAC
0.3 A at 24 VDC
Inductive load (cosφ = 0.4) (L/R = 7 ms)
2
G2A-434
■

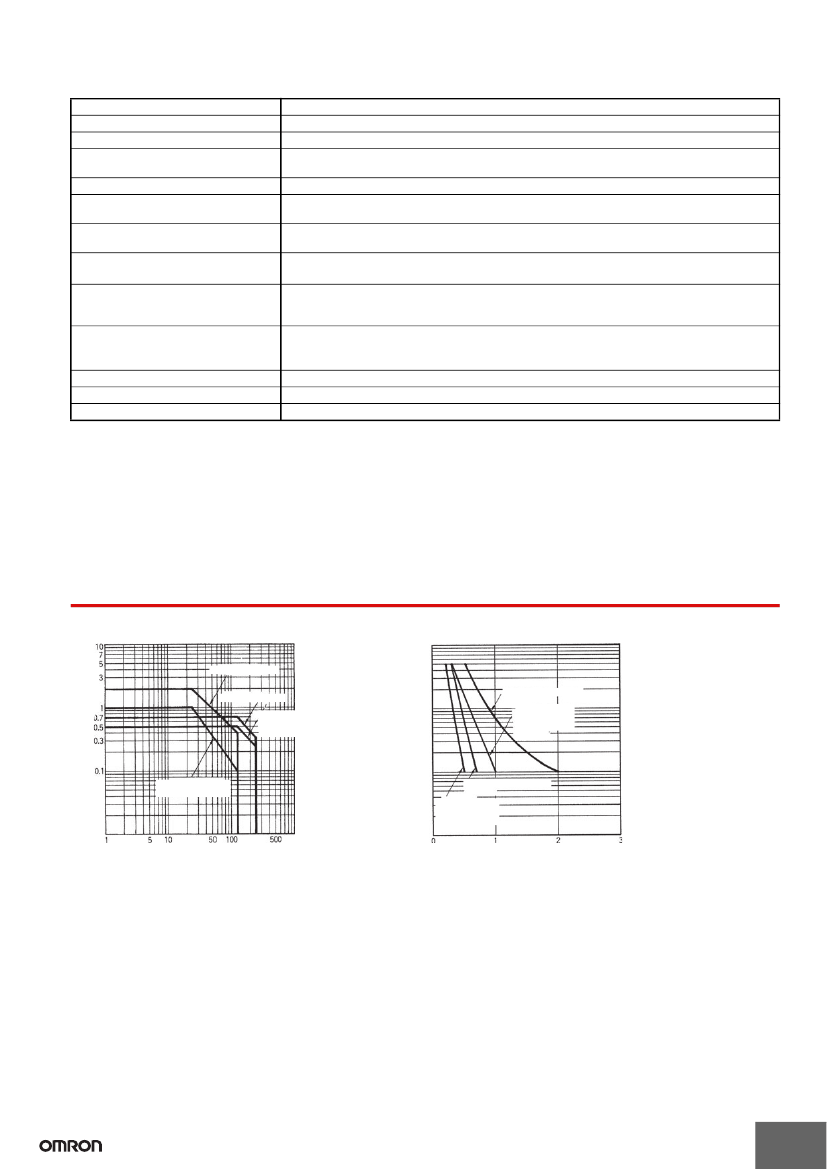

Characteristics
Contact resistance (see note 2)
Operate time (see note 3)
Release time (see note 3)
Max. operating frequency
Insulation resistance (see note 4)
Dielectric strength
Vibration resistance
Shock resistance
Error rate (level P)
(Reference value)
(see note 5)
Endurance
100 mΩ max.
15 ms max.
15 ms max.
Mechanical: 18,000 operations/hour
Electrical: 1,800 operations/hour (under rated load)
100 MΩ min. (at 500 VDC)
1,500 VAC, 50/60 Hz for 1 minute between coil and contact and between contacts of different polarities
(700 VAC between contacts of same polarities)
Destruction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double amplitude)
Destruction: 1,000 m/s
2
Malfunction: 100 m/s
2
1 mA at 100 mVDC
Mechanical:
Electrical:
100,000,000 operations min. (at operating frequency of 18,000 operations/hour)
5,000,000 operations min. (under rated load and at operating frequency of
1,800 operations/hour) (see note 6)
Ambient temperature
Ambient humidity
Weight
Operating:–10°C to 40°C (with no icing or condensation)
Operating:5% to 85%
Approx. 39 g
Note: 1.
The data shown above are initial values.
2.
The contact resistance was measured with 0.1 A at 5 VDC using the voltage drop method.
3.
The operate and release times were measured with the rated voltage imposed with any contact bounce ignored at an ambient tempera-
ture of 23°C.
4.
The insulation resistance was measured with a 500-VDC megger applied to the same places as those used for checking the dielectric
strength.
5.
This value was measured at a switching frequency of 60 operations per minute.
6.
The electrical endurance was measured at an ambient temperature of 23°C.
Engineering Data
Maximum Switching Power
DC resistive load
Endurance
Endurance (x10
3
operations)
10,000
7,000
5,000
3,000
24-VDC resistive load
1,000
700
500
300
24-VDC
inductive load
L/R = 7 ms
Switching current (A)
AC resistive load
AC inductive
load (cosφ
= 0.4)
DC inductive load
L/R = 7 ms
100
70
50
30
110-VAC resistive load
110-VAC
inductive load
(cosφ = 0.4)
Switching
voltage
(V)
Switching current (A)
3
G2A-434

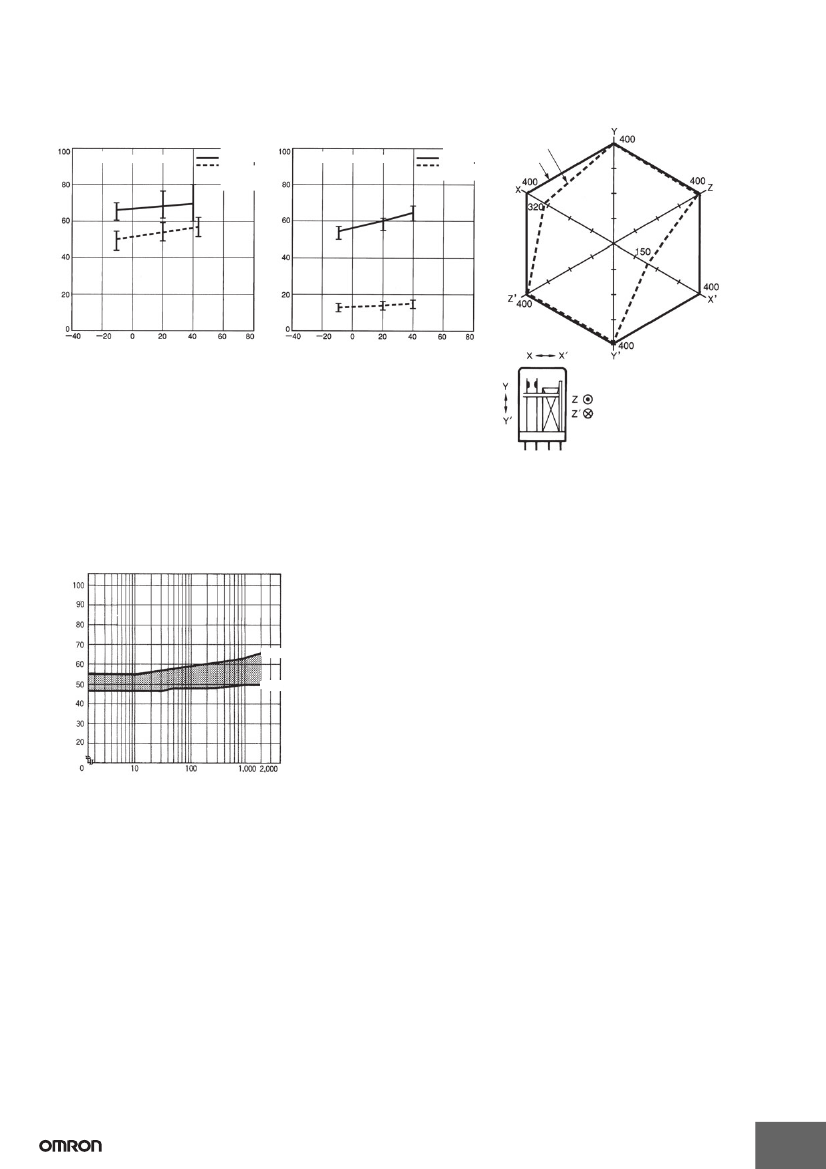

Ambient Temperature vs.
Must-operate and Must-release
Voltage
G2A-434A AC (60 Hz)
Must-operate and reset voltage (%)
Must-operate and reset voltage (%)
Number of Relays: 5
Must-operate
voltage
Must-
release
voltage
Malfunctioning Shock
G2A-434A 100/110 VAC
G2A-434A DC
Number of Relays: 5
Not energized
Must-operate
Energized
voltage
Must-release
voltage
Shock direction
Ambient temperature (°C)
Ambient temperature (°C)
Unit: m/s
2
Number of samples: 5
Measurement conditions: Impose a shock of
100 m/s
2
in the
±X, ±Y,
and
±Z
directions three
times each with the Relay energized and not
energized to check the shock values that cause
the Relay to malfunction.
H
2
S Gas Data (Reference)
G2A-434A 24 VDC
(mΩ)
Contact resistance
Max.
Min.
Hours
Measurement:
Sample is left in an atmosphere of H
2
S gas with concentration of 2 to
5 ppm at 40°+5°/–0°C and at 75% to 80%, then taken out from the
gas atmosphere at fixed time intervals, and left for 30 minutes or
more at room temperature and humidity. The contact resistance val-
ues before and after the test are measured.
4
G2A-434

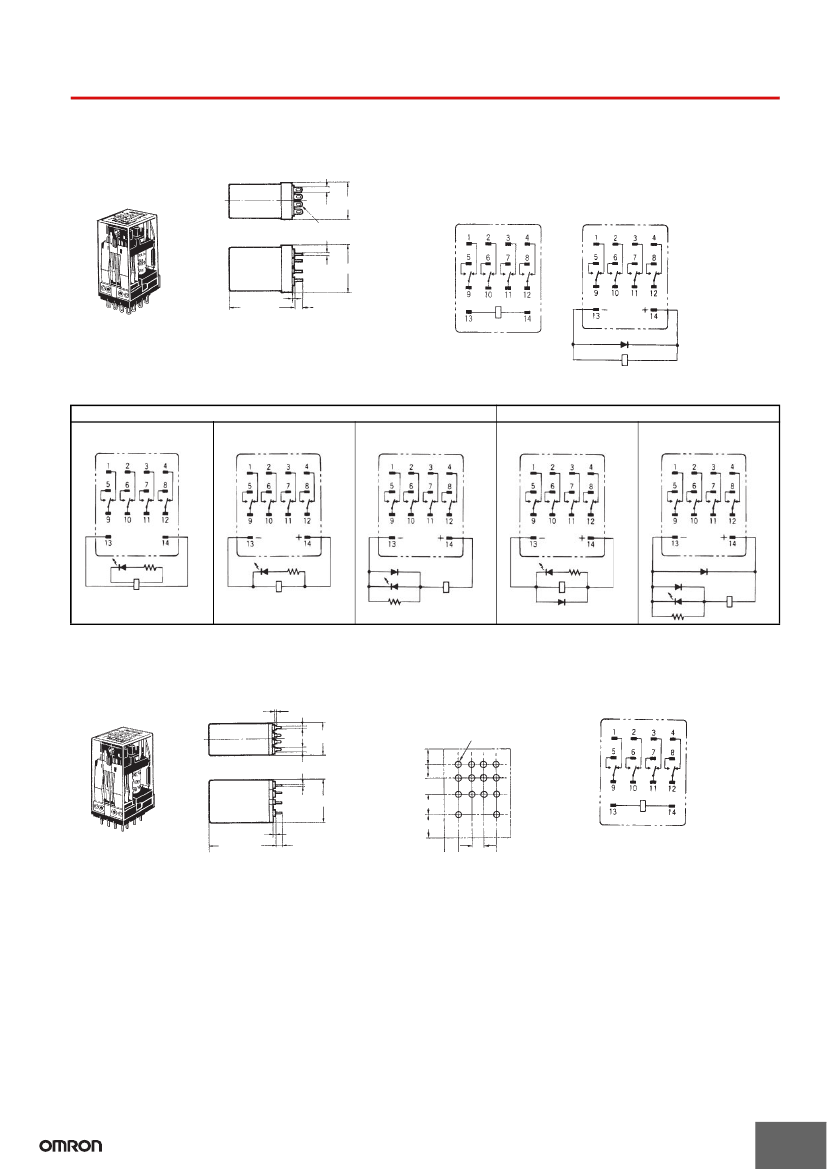

Dimensions
Note: 1.
All units are in millimeters unless otherwise indicated.
2.
Dimensional tolerances are
±0.1
mm.
Plug-in Terminal/Solder Terminal Model
s
G2A-434A
G2A-434A-D
G2A-434A-N (1)
2.6
22.5 max.
Fourteen, 1.2-dia. holes x 3 elliptic holes
0.5
29.5 max.
1.8
42.5 max.
Terminal Arrangement/Internal
Connections
(Bottom View)
G2A-434A
G2A-434A-D
5.4
(No coil polarity)
Be sure to
wire
the terminals
with
the correct polarity.
G2A-434A-N
G2A-434A-N1
6, 12, 24, 50, 100/110,
200/220 VAC
6, 12, 24 VDC
48, 100 VDC
6, 12, 24 VDC
48, 100 VDC
Operation indicator color
AC model: Red
DC model: Green
Note:
DC models have coil polarity. Be sure to wire the terminals with
the correct polarity.
PC Terminal Model
G2A-4341P
0.5
1
Mounting Holes on PCB
(Bottom View)
22.5 max.
2.6
Fourteen, 1.5-dia. holes
5
4.1
0.5
29.5 max.
6.35
7.3
Terminal Arrangement
(Bottom View)
1.8
42.5 max.
4
4.4
4.4
13.2
The coil has no polarity.
5
