Preview

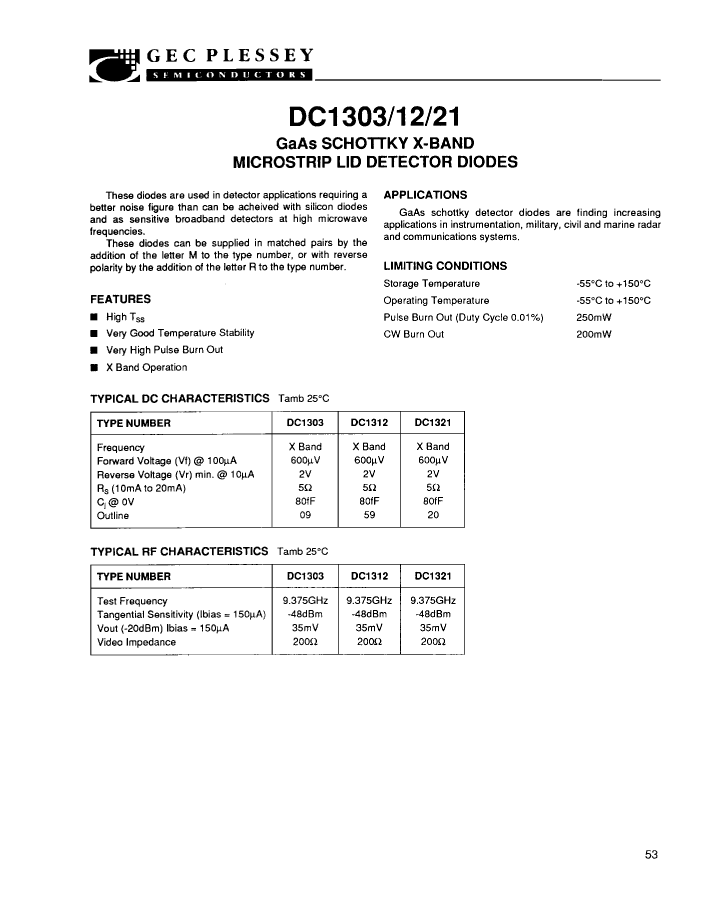

DC1312R: DescriptionMixer Diode, X Band, 200ohm Z(V) Max, Gallium Arsenide; CategoryDiscrete semiconductor diode; File Size25KB，1 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric Compare View All

DC1312R Overview

Mixer Diode, X Band, 200ohm Z(V) Max, Gallium Arsenide

DC1312R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	R-CDMW-F2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Maximum diode capacitance	0.08 pF
Diode component materials	GALLIUM ARSENIDE
Diode type	MIXER DIODE
frequency band	X BAND
maximum impedance	200 Ω
JESD-30 code	R-CDMW-F2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	MICROWAVE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Pulse input maximum power	0.2 W
Minimum pulse input power	0.25 W
Certification status	Not Qualified
surface mount	YES
Minimum tangent signal sensitivity	-48 dBm
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

DC1312R Related Products

	DC1312R	DC1312M	DC1312	DC1303	DC1321R	DC1321M	DC1303M	DC1303R
Description	Mixer Diode, X Band, 200ohm Z(V) Max, Gallium Arsenide	Mixer Diode, X Band, 200ohm Z(V) Max, Gallium Arsenide	Mixer Diode, X Band, 200ohm Z(V) Max, Gallium Arsenide	Mixer Diode, X Band, 200ohm Z(V) Max, Gallium Arsenide	Mixer Diode, X Band, 200ohm Z(V) Max, Gallium Arsenide	Mixer Diode, X Band, 200ohm Z(V) Max, Gallium Arsenide	Mixer Diode, X Band, 200ohm Z(V) Max, Gallium Arsenide	Mixer Diode, X Band, 200ohm Z(V) Max, Gallium Arsenide
package instruction	R-CDMW-F2	R-CDMW-F2	R-CDMW-F2	O-CRDB-F2	R-CDMW-N2	R-CDMW-N2	O-CRDB-F2	O-CRDB-F2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SEPARATE, 2 ELEMENTS	SINGLE	SINGLE	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SINGLE
Maximum diode capacitance	0.08 pF	0.08 pF	0.08 pF	0.08 pF	0.08 pF	0.08 pF	0.08 pF	0.08 pF
Diode component materials	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE
frequency band	X BAND	X BAND	X BAND	X BAND	X BAND	X BAND	X BAND	X BAND
maximum impedance	200 Ω	200 Ω	200 Ω	200 Ω	200 Ω	200 Ω	200 Ω	200 Ω
JESD-30 code	R-CDMW-F2	R-CDMW-F2	R-CDMW-F2	O-CRDB-F2	R-CDMW-N2	R-CDMW-N2	O-CRDB-F2	O-CRDB-F2
Number of components	1	2	1	1	1	2	2	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	ROUND	ROUND
Package form	MICROWAVE	MICROWAVE	MICROWAVE	DISK BUTTON	MICROWAVE	MICROWAVE	DISK BUTTON	DISK BUTTON
Pulse input maximum power	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
Minimum pulse input power	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Minimum tangent signal sensitivity	-48 dBm	-48 dBm	48 dBm	48 dBm	-48 dBm	-48 dBm	-48 dBm	-48 dBm
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	FLAT	FLAT	FLAT	FLAT	NO LEAD	NO LEAD	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	RADIAL	DUAL	DUAL	RADIAL	RADIAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	-	incompatible	incompatible
JESD-609 code	e0	e0	e0	e0	-	-	e0	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	1	-	-
