BWR-15/100-D48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BWR-15/100-D48

BWR-15/100-D48: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,; CategoryPower/power management The power supply circuit; File Size332KB，2 Pages; ManufacturerC&D

Download Datasheet Parametric Compare View All

BWR-15/100-D48 Overview

DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,

BWR-15/100-D48 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	18 V
Nominal input voltage	48 V
JESD-30 code	R-PDMA-P8
JESD-609 code	e3
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Maximum output voltage	15.15 V
Minimum output voltage	14.85 V
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	3 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

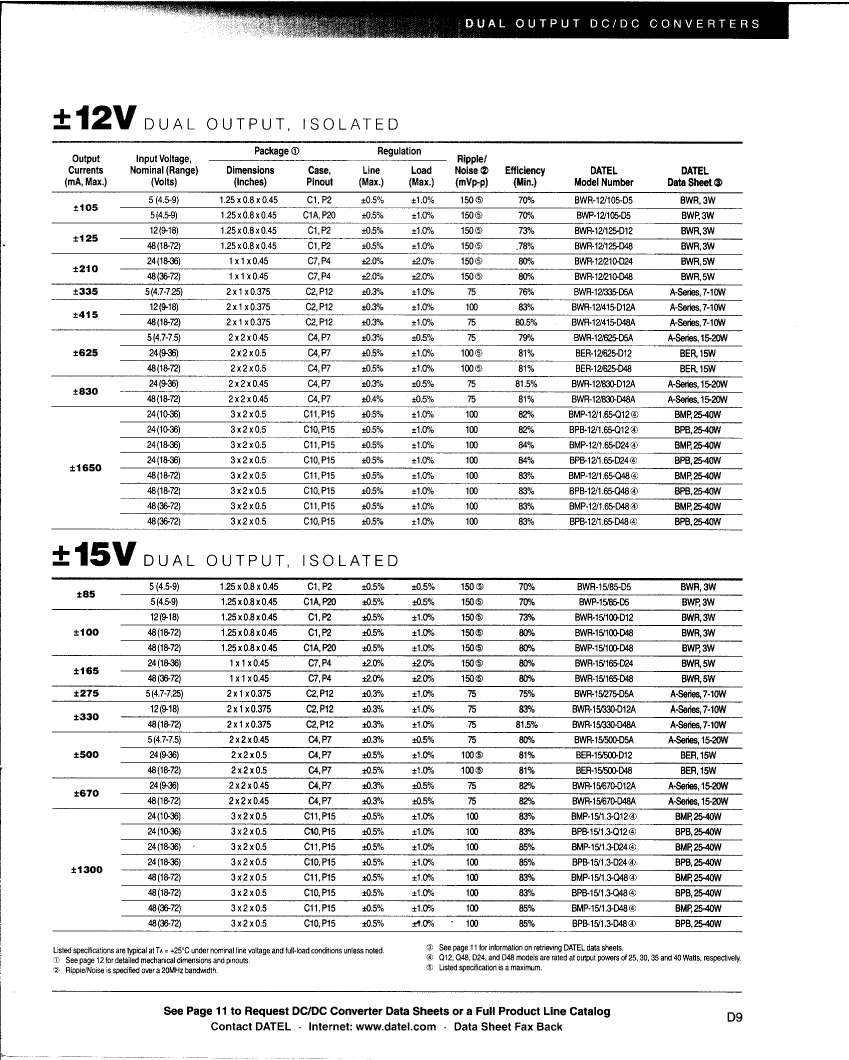

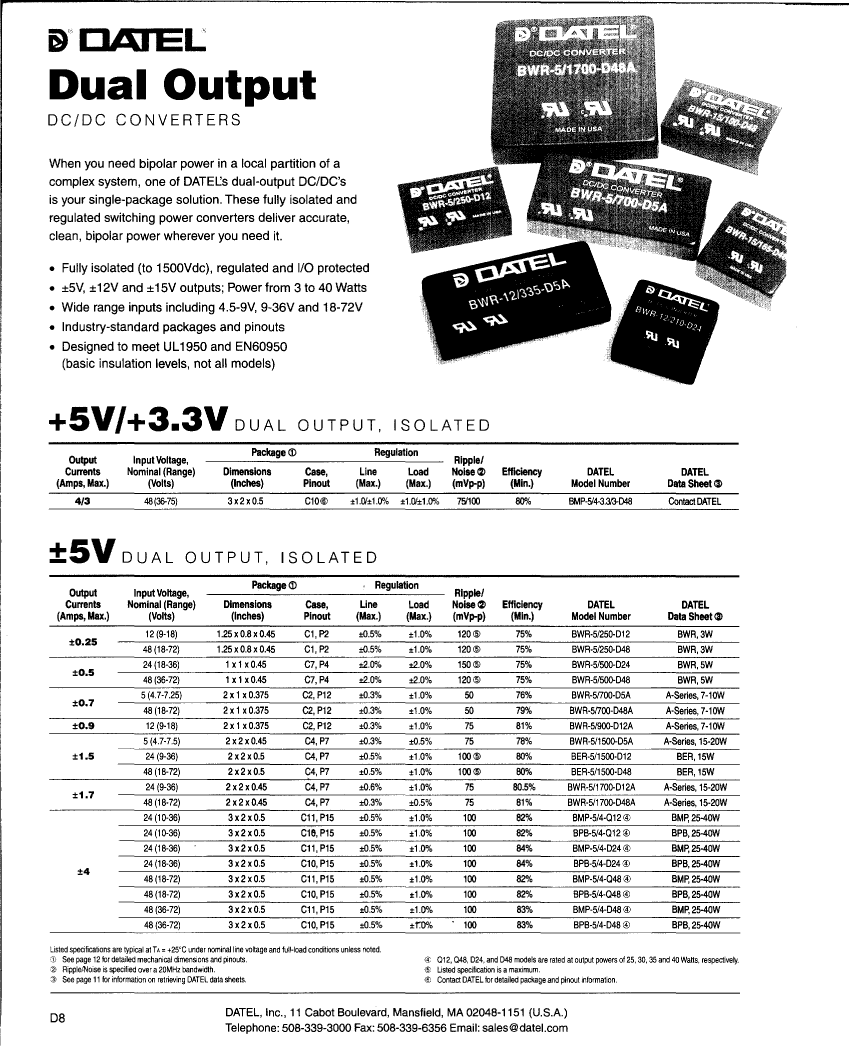

Preview

Download Datasheet

View All

BWR-15/100-D48 Related Products

	BWR-15/100-D48	BMP-5/4-3.3/3-D48	BWR-5/250-D48	BWR-12/125-D48	BWR-12/125-D12	BWR-5/250-D12
Description	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V	75 V	72 V	72 V	18 V	18 V
Minimum input voltage	18 V	36 V	18 V	18 V	9 V	9 V
Nominal input voltage	48 V	48 V	48 V	48 V	12 V	12 V
JESD-30 code	R-PDMA-P8	R-MDMA-P10	R-PDMA-P8	R-PDMA-P8	R-PDMA-P8	R-PDMA-P8
Maximum load regulation	1%	1%	1%	1%	1%	1%
Number of functions	1	1	1	1	1	1
Output times	2	2	2	2	2	2
Number of terminals	8	10	8	8	8	8
Nominal output voltage	15 V	5 V	5 V	12 V	12 V	5 V
Package body material	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
JESD-609 code	e3	-	e3	e3	e3	e3
Maximum operating temperature	75 °C	-	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-25 °C	-	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	15.15 V	-	5.05 V	12.12 V	12.12 V	5.05 V
Minimum output voltage	14.85 V	-	4.95 V	11.88 V	11.88 V	4.95 V
Temperature level	COMMERCIAL EXTENDED	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN	-	TIN	TIN	TIN	TIN
Maximum total power output	3 W	-	3 W	3 W	3 W	3 W
Fine-tuning/adjustable output	NO	-	NO	NO	NO	NO
Maker	-	C&D	-	C&D	C&D	C&D
