LFXTAL075103CUTT

Description
Parallel - Fundamental Quartz Crystal
CategoryPassive components    Crystal/resonator
File Size265KB,1 Pages
ManufacturerIQD Frequency Products
Download Datasheet Parametric View All

LFXTAL075103CUTT Overview

Parallel - Fundamental Quartz Crystal

LFXTAL075103CUTT Parametric

Parameter NameAttribute value
package instructionSMD, 4 PIN
Reach Compliance Codecompliant
Other featuresTAPE
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
frequency stability0.003%
frequency tolerance30 ppm
load capacitance20 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency11.0592 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical sizeL3.4XB2.7XH0.8 (mm)/L0.134XB0.106XH0.031 (inch)
Series resistance200 Ω
surface mountYES
Base Number Matches1

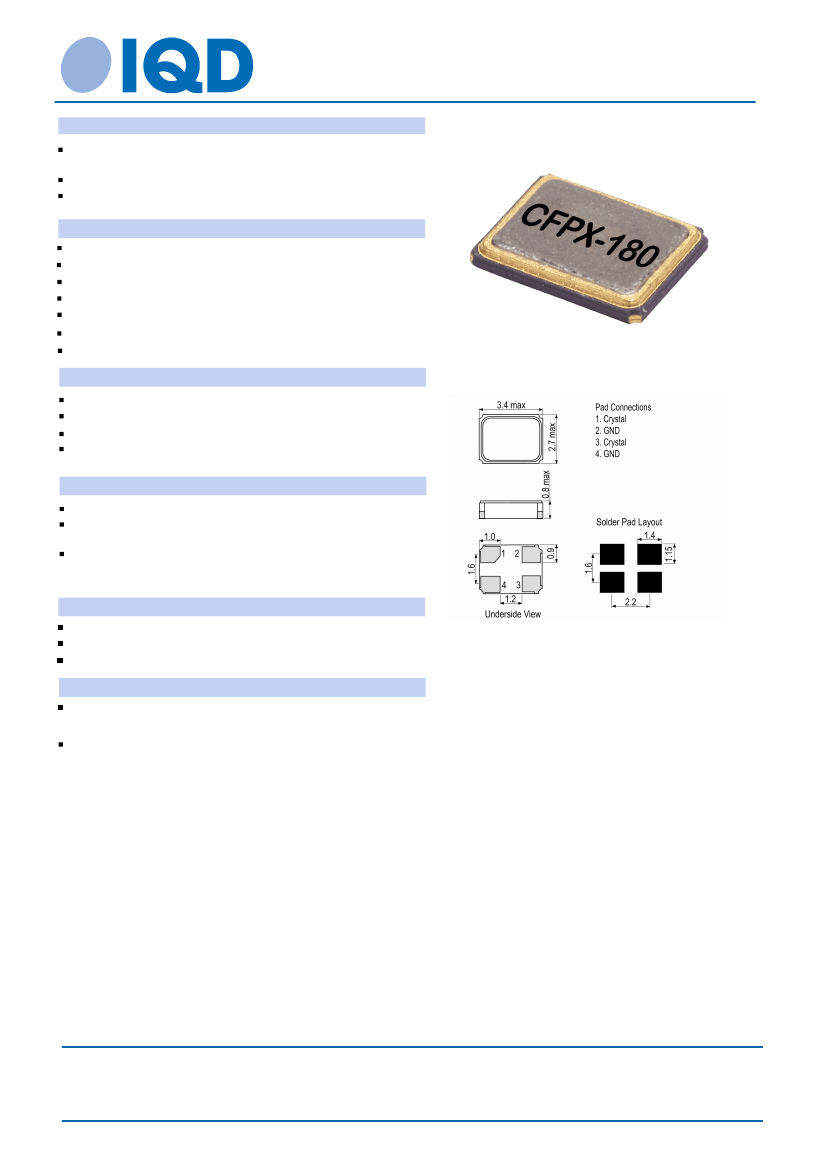

LFXTAL075103CUTT Preview

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL075103Cutt
Description
Standard 3.2 x 2.5mm SMD crystal in a ceramic package with a
seam sealed metal lid, hermetically sealed.
Model
CFPX-180
Model Issue number
9
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
11.05920MHz
±30.00ppm
@ 25°C
±
30.00ppm
-40.00 to 85.00°C
Fundamental
±5ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
20.00pF
7pF max
100µW max
200.00Ω max
Storage Temperature Range: -55 to 125°C
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine
wave
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes
(total 12hrs)
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Cutt
Pack Size: 1
In tape, cut from a reel
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 20 Oct 16 9:34 using Part Data Sheet V1.00014
