COTCO LUMINANT DEVICE (HUIZHOU) LTD.
SPECIFICATION FOR COTCO LED LAMP
Document No:
Model No :
Rev. No:
Date:
SPE/LO566TPG4-60G-A-MT
LO566TPG4-60G-A-MT
02
2006-04-18
Description:
60 Degree 5mm Oval LED Lamp in Pure
Green Color with Tinted Diffused Lens and
Stopper
*This specification is only for MT
Dice Material:
InGaN
Confirmed
by Customer:
Date:
ATTENTION
OBSERVE PRECAUTIONS
ELECTROSTATIC
SENSITIVE DEVICES
For part availability and ordering information please call Toll Free: 800.984.5337
Website: www.marktechopto.com | Email: info@marktechopto.com
Document No. SPE/LO566TPG4-60G-A-MT
Rev. No.
02
Applications:

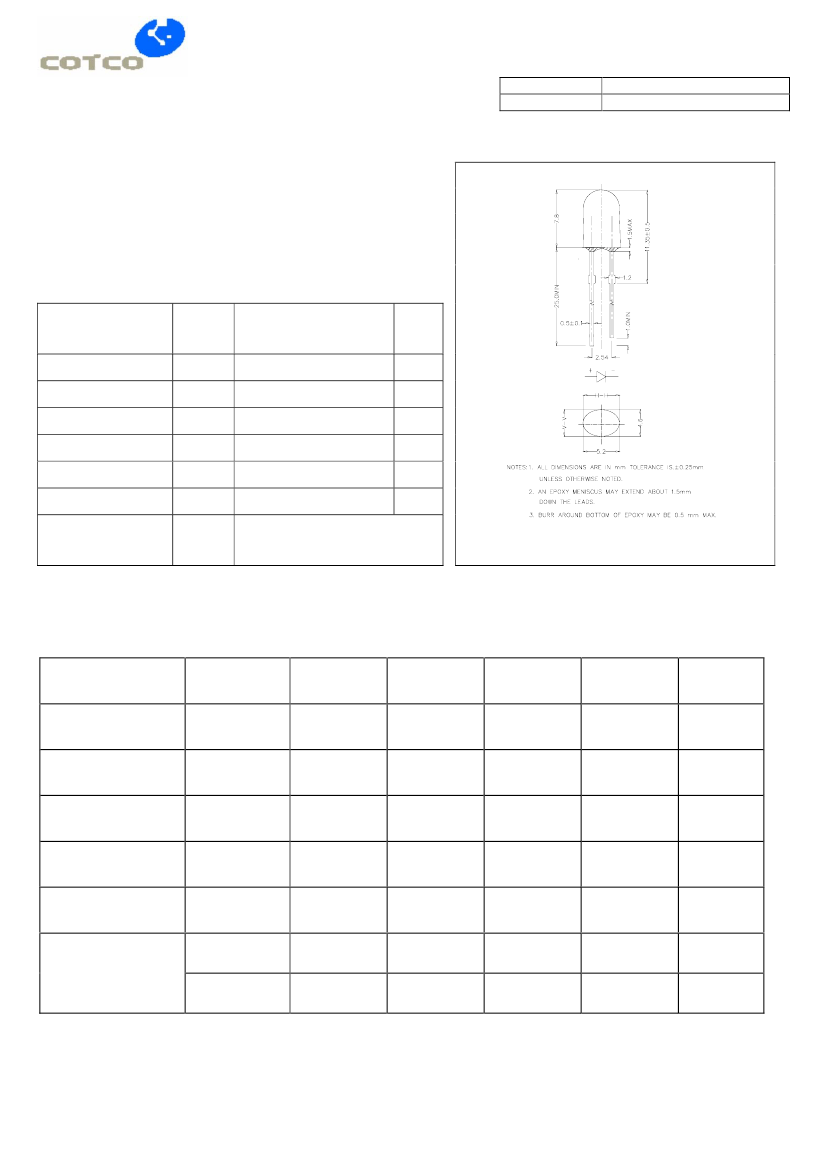

Dimension Drawing
-
-
Variable Message Signs
Message Board
Absolute Maximum Ratings at Ta = 25
°C
Items
Forward Current
Peak Forward Current*
Reverse Voltage
Power Dissipation
Operation Temperature
Storage Temperature
Lead Soldering
Temperature
Symbol
I
F
I
FP
V
R
P
D
T
opr
T
stg
T
sol
Absolute maximum
Rating
25
100
5
100
-40 ~ +95
-40 ~ +100
Unit
mA
mA
V
mW
°C
°C
Max.260
°C
for 3 sec Max.
(3mm from the base of the epoxy bulb)
*pulse width <=0.1msec duty <=1/10
Typical Electrical & Optical Characteristics ( Ta = 25
°C
)
Items
Forward Voltage
Forward Voltage
Reverse Current
Dominant Wavelength
Luminous Intensity
Symbol
V
F
V
F
I
R
λ
D
I
V
2θ½H-H
Condition
I
F
= 20mA
I
F
= 1.0µA
V
R
= 5V
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
Min.
---
1.7
---
520
1520
---
---
Typ.
3.4
---
---
527
2800
60
35
Max.
4.0
2.5
100
535
---
---
---
Unit
V
V
µA
nm
mcd
deg
deg
50% Power Angle
2θ½V-V
2/4
Format #: COTCO-D-074
REV.4
Document No. SPE/LO566TPG4-60G-A-MT
Rev. No.
02
Standard bins for LO566TPG4-60G-A-MT (I
F
= 20mA):
Lamps are sorted to Luminous Intensity –I
V
,
V
F
& Dominant Wavelength –λ
D
bins shown.
Orders for LO566TPG4-60G-A-MT may be filled with any or all bins contained as below.
All Luminous Intensity –I
V
, V
F
& Dominant Wavelength –λ
D
values shown and specified are at
I
F
=20mA.
* U+
X7
X8
X9
4180mcd
W
Luminous Intensity (I
V
)
3000mcd
V
2130mcd
U
1520mcd
520nm
525nm
530nm
535nm
Dominant Wavelength (λ
D
)
* U+ indicates Luminous Intensity is at U bin or above.
Forward Voltage (V
F
)
Rank
Voltage
V6
2.6-2.8V
V7
2.8-3.0V
V8
3.0-3.2V
V9
3.2-3.4V
V10
3.4-3.6V
V11
3.6-3.8V
V12
3.8-4.0V
*Majority VF bins are highlighted in Yellow.
Important Notes:
1) All ranks will be included per delivery, rank ratio will be based on the Dices distribution.
2) Pb content <1000PPM.
3) Tolerance of measurement of luminous intensity is ±15%.
4) Tolerance of measurement of dominant wavelength is ±1nm.
5) Tolerance of measurement of Vf is ±0.05 V.
6) Packaging methods are available for selection, Please refer to PACKAGING STANDARD.
7) Please refer to LED LAMP RELIABILITY TEST STANDARD for reliability test conditions.
8) Please refer to APPLICATION NOTES for Application.
3/4
Format #: COTCO-D-074
REV.4
Document No. SPE/LO566TPG4-60G-A-MT
Rev. No.
02

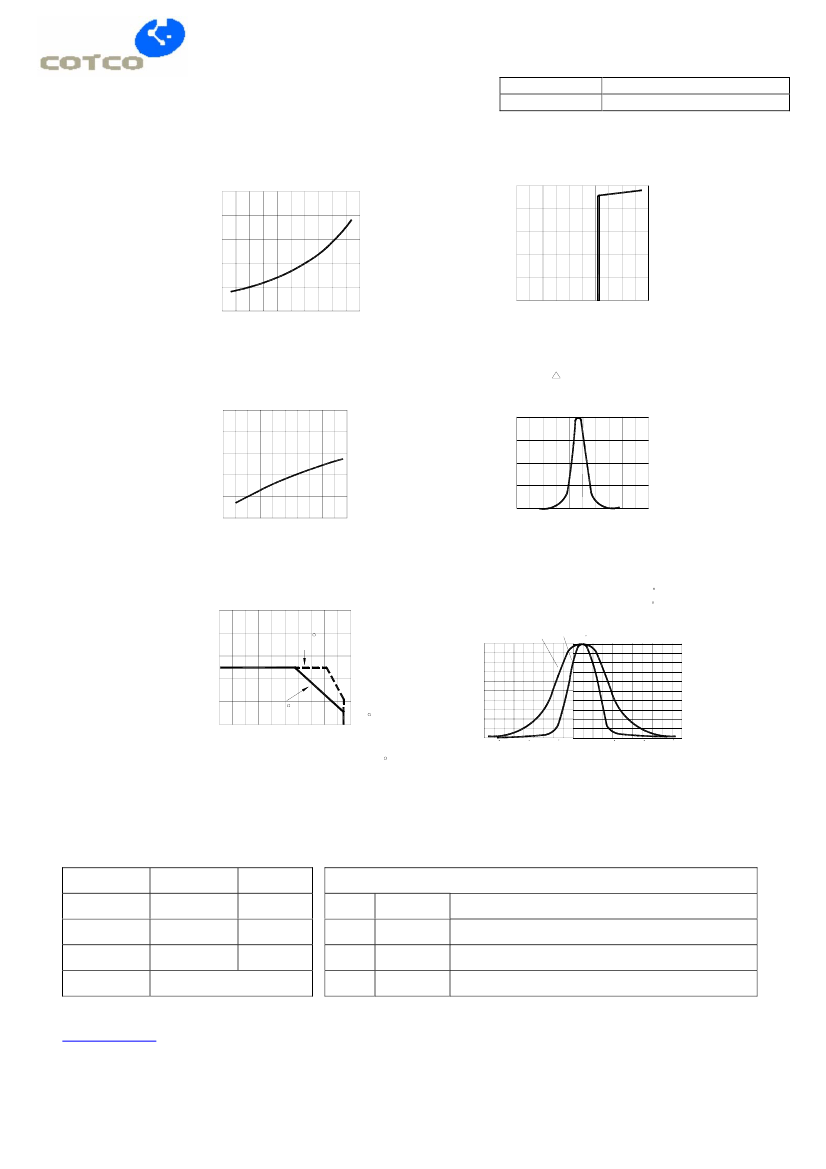

Graphs
If (mA)
100.0
80.0
60.0
40.0
-40.0
-50
Vr(V)
-40
-30
-20
-10
0
0.0
-10.0
-20.0
-30.0
20.0
0.0
3.0
3.4 3.8
4.2 4.6 5.0
FIG.1 FORWARD CURRENT VS.
FORWARD VOLTAGE.
Vf(V)
-50.0
Ir(uA)
FIG.2 REVERSE CURRENT VS.
REVERSE VOLTAGE.
Half Power
WL=38nm
Domi WL= 525nm
I (RELATIVE LUMINOUS INTENSITY)
5.0
4.0
3.0
2.0
1.0
0.0
0.0
If(mA)
20.0 40.0 60.0
80.0 100.0
100%
75%
50%
25%
0%
300
WL(nm)
800
400
500
600
700
FIG.3 RELATIVE LUMINOUS INTENSITY VS.
FORWARD CURRENT.
FIG.4 RELATIVE LUMINOUS INTENSITY VS.
WAVELENGTH.
IF(mA)
50
40
30
R
θ
j-pin=240 C/W
50% Power Angle :
H-H : 60
V-V : 35
Ie(%)
H-H
V-V
0
100%
80%
20
10
R
θ
j-a=470 C/W
60%
40%
0
0.0
20.0 40.0 60.0
T ( C)
80.0 100.0
-90
-60
-30
0
30
60
90
20%
0%
FIG.5 MAXIMUM FORWARD DC CURRENT VS
AMBIENT TEMPERATURE (Tjmax=105 C)
FIG.6 FAR FIELD PATTERN
1. Cathode PAD Area (0.18
x
0.18inch
2
)
2. Height above nominal seating plane in inches(0.3inch)
Items
Prepared by
Checked by
Approved by
FCN#
Signatures
LiuZM
MaJF
David
Date
2006-04-18
2006-04-18
2006-04-18
Rev. No
02
Date
Revision History
Change Description
2006-04-18
Cancel X rank. Highlight V7~V10.
FCN20060060
Data is subject to change without prior notice.
Copyright@2002
Cotco International Ltd.
4/4
