Surface Mount
Monolithic Amplifiers
50Ω, Broadband,
Features
•
•
•
•
frequency range, DC to 8 GHz, useable to 10 GHz
up to 17.3 dBm typ. output power
excellent package for heat dissipation, exposed metal bottom
flat output power to 10 GHz (LEE-19+,-29+,-39+)
LEE+ SERIES
DC to 8 GHz
CASE STYLE : FG873
Applications
•
•
•
•
cellular
PCS
communication receivers & transmitters
satellite communication, military
GAIN, dB Typical
MAXIMUM
DYNAMIC
POWER, dBm RANGE
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +suffix has been added in order to identify RoHS
Compliance. There has been no change to the model's
material, form, fit, or function. See our web site for RoHS
Compliance methodologies and qualifications.
Electrical Specifications @ 25°C
MODEL FREQ.
s
(GHz)
NO.
VSWR
(:1)
Typ.
Out
DC-3 3-f
U
GHz GHz
1.4
1.3
1.3
1.4
1.5
1.8
1.6
1.6
1.4
1.6
f
L
- f
U
LEE-19+
LEE-29+
LEE-39+
LEE-49+
LEE-59+
s
0.1
12.1
15.5
21.9
DC-8
DC-8
DC-8
DC-5
DC-5
over frequency, GHz
1
2
4
5
8
10
Low Power
12.0 12.1 12.0 11.6 10.6 9.0
15.4 15.4 14.9 14.1 12.5 10.6
21.4 20.8 18.3 16.6 13.5 10.5
Min. @
2GHz
9.6
13.3
18.5
12.0
17.8
Output
Input NF IP3
In
(1dB Comp.) (no
dB dBm DC-3 3-f
U
2 GHz f
U
dmg.) Typ. Typ. GHz GHz
10.2 11.3
10.9 11.3
10.4 11.3
16.4 10.8
17.3 11.7
15
15
13
15
13
6.5
5.5
4.5
5.5
4.5
24.5
25.5
23.4
33
33
1.5
1.4
1.3
1.6
1.5
1.2
1.3
1.4
1.2
1.5
MAXIMUM DC OPERATING THERMAL PRICE
RESIS-
CURRENT
POWER
$
TANCE
@Pin 3
RATING
3
(note 4)
θjc,
I
mA
55
55
55
85
85
Cur-
Device
rent
Volt
(mA) Typ Min Max
40
40
35
65
65
3.6 3.2 4.0
3.6 3.2 4.0
3.5 3.1 3.9
4.9 4.5 5.3
4.8 4.3 5.2
typ.
°C/W
322
334
321
229
244
Qty.
(25)
1.19
1.19
1.19
1.79
1.79
Medium Power
14.0 13.9 14.3 14.0 13.1 7.8 —
20.6 20.3 19.7 15.8 13.8 7.6 —
Low frequency cutoff determined by external coupling capacitors.
f
U
is the upper frequency limit for each model as shown in the table.
3 Permanent damage may occur if any of these limits are exceeded.
These ratings are not intended for continuous normal operation.
4. Supply voltage must be connected to pin 3 through a bias resistor in order to
prevent damage. See "Biasing MMIC Amplifiers" in minicircuits.com/
application.html. Reliability predictions are applicable at specified current &
normal operating conditions.
Maximum Ratings
Operating Temperature
Storage Temperature
-45°C to 85°C
-65°C to 150°C
MTTF vs. Junction Temp.
(LEE+ SERIES)
1,000
MTTF (Years)
100
Pin Configuration
RF IN
RF OUT
DC
GND EXT.
DEMO BOARD
1
3
3
2,4
LEE-TB
10
1
140
160
180
Junction Temp (˚C)
( C)
200
220
Model Identification
Model
LEE-19+
LEE-29+
LEE-39+
LEE-49+
LEE-59+
‡
Marking
‡
19
29
39
49
59
designers kits available
KIT
No.
K1-LEE
No. of
Units in KIT
50
Description
Price $
per KIT
Kit includes 1 test board plus
99.95
10 of each: LEE-19+,-29+,-39+,-49+,-59+
Prefix letter (optional) designates assembly location.
Suffix letters (optional) are for wafer identification.
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
REV. E
M98898
LEE-19+ ED-10757/1
LEE-29+ ED-10757/2
LEE-39+ ED-10757/3
LEE-49+ ED-10757/4
LEE-59+ ED-10757/5
RS/YB/LC
031210
Page 1 of 2
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
ISO 9001 & ISO 14001
Certified
LEE+ SERIES

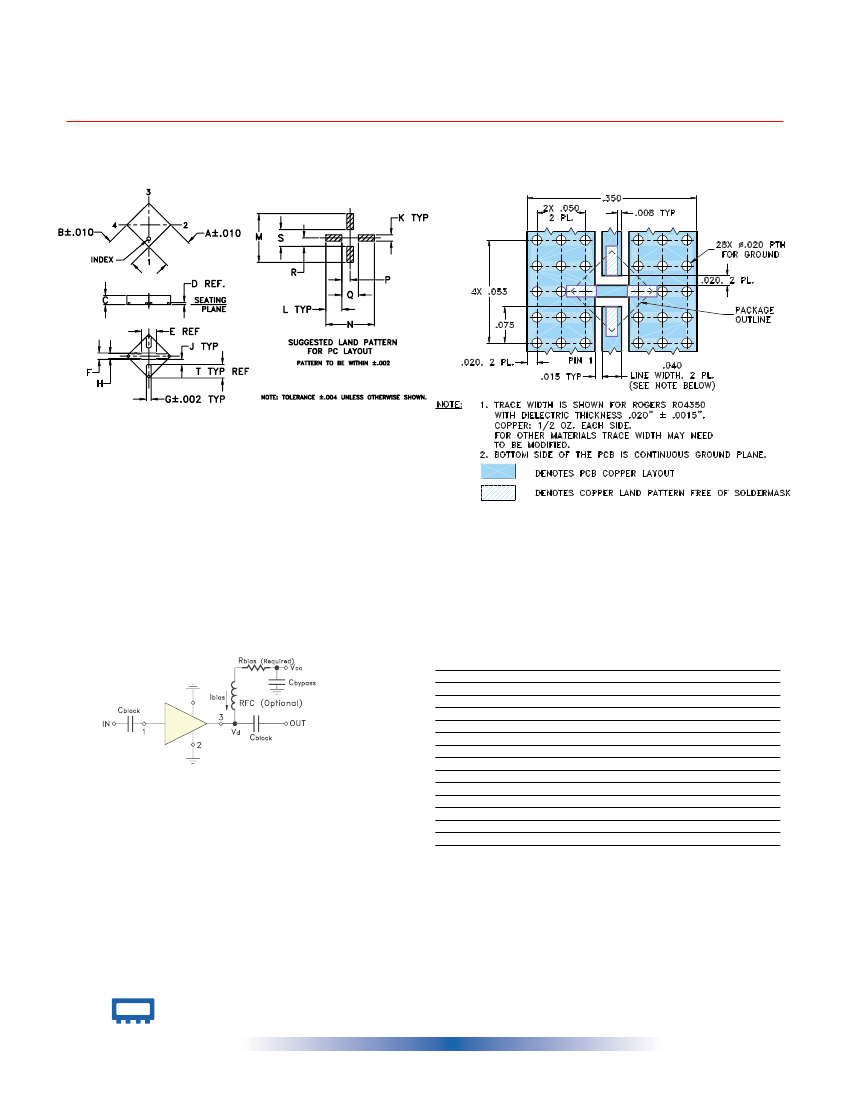

Outline Drawing
Suggested PCB Layout (PL-126)
inch
Outline Dimensions (
mm
)
A
0.118
3.00
K
0.024
0.61
B
0.118
3.00
L
0.061
1.55
C
0.035
0.89
M
0.186
4.72
D
0.008
0.20
N
0.186
4.72
E
0.07
1.78
P
0.032
0.81
F
0.024
0.61
Q
0.064
1.63
G
0.017
0.43
R
0.032
0.81
H
0.018
0.46
S
0.064
1.63
J
0.018
0.46
T
wt
0.05 grams
1.27
20.0
Typical Biasing Configuration
R BIAS
"1%" Resistor Values (ohms) for Optimum Biasing of LEE Models
Vcc
7
8
9
10
11
12
13
14
15
16
17
18
19
20
LEE-19+
88.7
113
137
162
187
215
237
261
287
309
332
357
383
412
LEE-29+
88.7
113
137
162
187
215
237
261
287
316
340
365
392
412
LEE-39+
107
133
162
191
221
249
280
309
340
365
392
422
453
475
LEE-49+
34.8
48.7
63.4
78.7
95.3
110
127
140
158
174
191
205
221
232
LEE-59+
35.7
49.9
64.9
80.6
95.3
110
127
143
158
174
191
205
221
237
4
Test Board includes case, connectors, and components (in bold) soldered to
PCB
