LFCN-2500D+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> LFCN-2500D+

LFCN-2500D+: DescriptionCeramic LPF, 7 Section(s) Min, 7 Section(s) Max, 2950MHz, ROHS COMPLIANT, CERAMIC, CASE FV1206, 4 PIN; CategoryAnalog mixed-signal IC filter; File Size140KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LFCN-2500D+ Overview

Ceramic LPF, 7 Section(s) Min, 7 Section(s) Max, 2950MHz, ROHS COMPLIANT, CERAMIC, CASE FV1206, 4 PIN

LFCN-2500D+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE AND REEL
Maximum attenuation frequency (+/- delta f)	850000 kHz
Attenuation frequency (+/-Δf) - minimum value	725000 kHz
Attenuation at maximum frequency	30 dB
Attenuation@frequency min	20 dB
average input power	10 W
Center frequency or cutoff frequency (fo/fc)	2950 MHz
filter type	CERAMIC LPF
high	0.94 mm
Input/output impedance	50 OHM
Maximum insertion loss	3 dB
JESD-609 code	e3
length	3.2 mm
Installation type	SURFACE MOUNT
Number of partitions-max	7
Number of partitions - minimum	7
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
physical size	L3.2XB1.6XH0.94 (mm)/L0.126XB0.063XH0.037 (inch)
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
voltage standing wave ratio	1.2
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Ceramic

Low Pass Filter

DC to 2500 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power Input*

-55°C to 100°C

10W max. at 25°C

LFCN-2500+

LFCN-2500

Features

•

DC Current Input to Output 0.5A max. at 25°C

*Passband rating, derate linearly to 3.5W at 100°C ambient.

excellent power handling, 10W

small size

7 sections

temperature stable

protected by US Patent 6,943,646

CASE STYLE: FV1206

Model

LFCN-2500+

LFCN-2500

LFCN-2500D+

LFCN-2500D

Price

$1.99

$2.49

Qty.

(10-49)

Applications

• harmonic rejection

• VHF/UHF transmitters/receivers

• lab use

Pin Connections

RF IN

RF OUT

GROUND

**RF IN & RF OUT can be interchanged

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The + suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications.

1**

3**

2,4

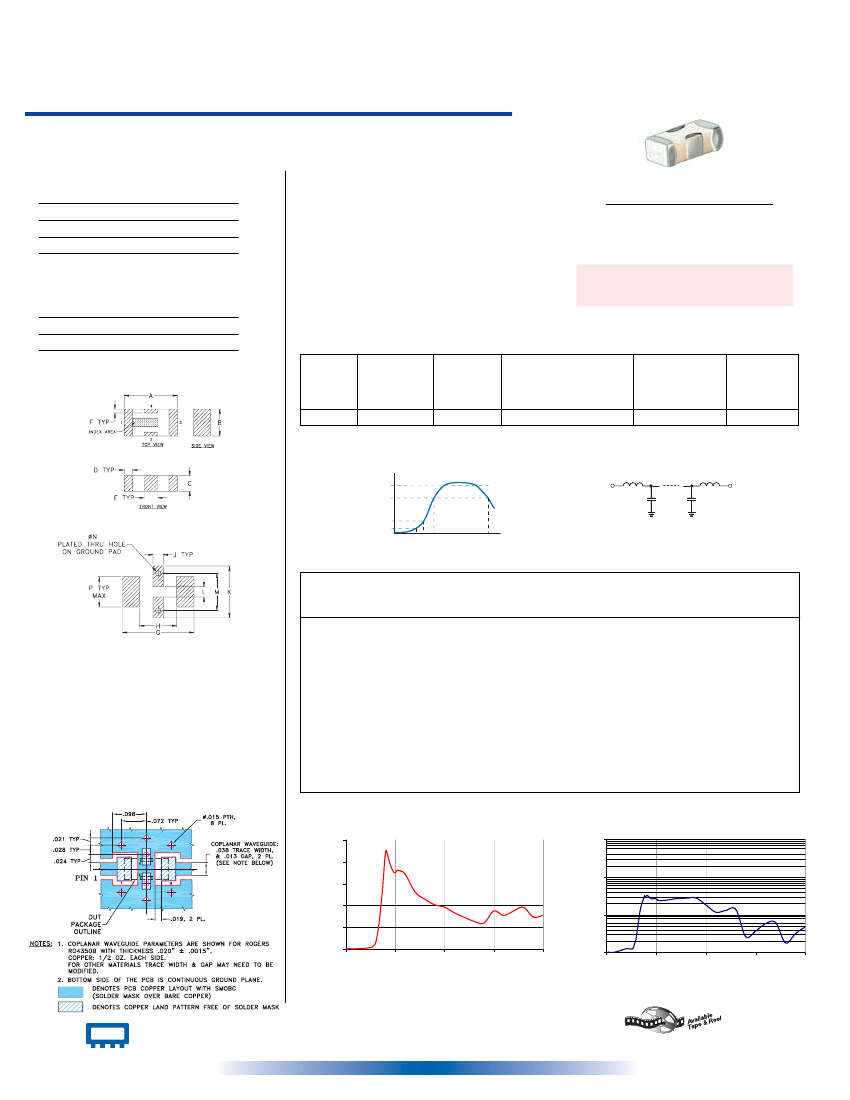

Low Pass Filter Electrical Specifications

AMB

=25°C)

MODEL

NO.

PASSBAND

(MHz)

(loss < 1 dB)

Max.

LFCN-2500

(+)

DC-2500

Outline Drawing

fco, MHz

Nom.

(loss 3 dB)

Typ.

3075

STOP BAND (MHz)

(loss, dB)

F 20

Min.

3675

Typ.

3800-6100

FR 20

Typ.

8000

VSWR (:1)

Stopband

Typ.

Passband

Typ.

1.2

NO. OF

SECTIONS

1. For Applications requiring DC voltage to be applied to the Input or output, use LFCN-2500D (DC Resistance to

ground is 100 Mohms min.)

typical frequency response

RF IN

ATTENUATION (dB)

40dB

20dB

schematic

RF OUT

3dB

1dB

PCB Land Pattern

Fco F20

FREQUENCY

FR 20dB

Typical Performance Data at 25°C

Frequency

(MHz)

2000

2530

3000

3660

3760

4000

5000

6000

7000

8000

10000

12000

15000

20000

Insertion Loss

(dB)

0.05

0.50

0.80

2.72

24.30

29.63

43.19

34.98

34.38

26.29

22.85

19.22

14.60

17.48

15.48

VSWR

(:1)

1.02

1.26

1.24

2.58

23.81

28.03

31.03

26.33

24.48

26.74

27.59

18.30

13.09

3.73

4.84

Suggested Layout,

Tolerance to be within

±.002

Outline Dimensions (

inch

)

.126

3.20

.087

2.21

.063

1.60

.024

0.61

.037

0.94

.122

3.10

.020

0.51

.024

0.61

.032

0.81

.087

2.21

.009

0.23

.012

0.30

.169

4.29

.071 grams

.020

1.80

Demo Board MCL P/N: TB-270

Suggested PCB Layout (PL-137)

50.0

INSERTION LOSS (-dB)

40.0

LFCN-2500

INSERTION LOSS

1000

LFCN-2500

VSWR

20.0

10.0

0.0

5000

10000

15000

20000

FREQUENCY (MHz)

VSWR

5000

10000

15000

20000

FREQUENCY (MHz)

30.0

100

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. C

M98898

LFCN-2500

EDR-6783/2

RVN/AD/CP/AM

060725
