LFCN-3000D+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> LFCN-3000D+

LFCN-3000D+: DescriptionCeramic LPF, 7 Section(s) Min, 7 Section(s) Max, 3500MHz, ROHS COMPLIANT, CERAMIC, CASE FV1206, 4 PIN; CategoryAnalog mixed-signal IC filter; File Size211KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LFCN-3000D+ Overview

Ceramic LPF, 7 Section(s) Min, 7 Section(s) Max, 3500MHz, ROHS COMPLIANT, CERAMIC, CASE FV1206, 4 PIN

LFCN-3000D+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE AND REEL
Maximum attenuation frequency (+/- delta f)	1280000 kHz
Attenuation frequency (+/-Δf) - minimum value	1050000 kHz
Attenuation at maximum frequency	30 dB
Attenuation@frequency min	20 dB
average input power	10 W
Center frequency or cutoff frequency (fo/fc)	3500 MHz
filter type	CERAMIC LPF
high	0.94 mm
Input/output impedance	50 OHM
Maximum insertion loss	3 dB
JESD-609 code	e3
length	3.2 mm
Installation type	SURFACE MOUNT
Number of partitions-max	7
Number of partitions - minimum	7
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
physical size	L3.2XB1.6XH0.94 (mm)/L0.126XB0.063XH0.037 (inch)
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
voltage standing wave ratio	1.2
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Low Pass Filter

50Ω

Operating Temperature

Storage Temperature

RF Power Input*

DC Current Input to Output

Ceramic

LFCN-3000+

LFCN-3000

DC to 3000 MHz

Features

-55°C to 100°C

10W max. at 25°C

0.5A max. at 25°C

Maximum Ratings

• excellent power handling, 10W

• small size

• 7 sections

• temperature stable

• protected by U.S. Patent 6,943,646

CASE STYLE: FV1206

Model

LFCN-3000+

LFCN-3000

LFCN-3000D+

LFCN-3000D

Price

$1.99

$2.49

Qty.

(10-49)

* Passband rating, derate linearly to 3.5W at 100°C ambient.

Applications

Pin Connections

RF IN

RF OUT

GROUND

** RF IN & RF OUT can be interchanged

1**

3**

2,4

• harmonic rejection

• VHF/UHF transmitters/receivers

• lab use

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

AMB

=25°C)

PASSBAND

(MHz)

(loss < 1 dB)

Max.

DC-3000

fco, MHz

Nom.

(loss 3 dB)

Typ.

3600

STOP BAND (MHz)

(loss, dB)

F 20

Min.

4550

VSWR

(:1)

Stopband

Typ.

NO. OF

SECTIONS

Typ.

1.2

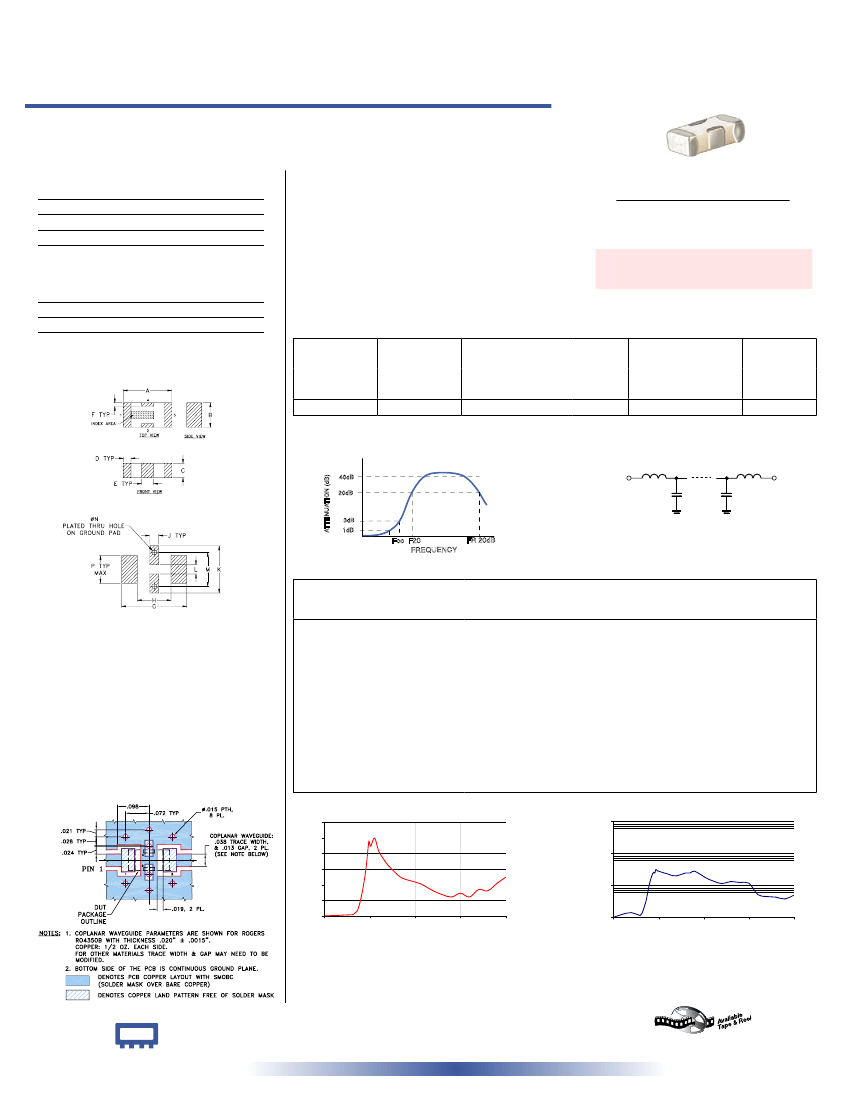

Outline Drawing

Typ.

4780-7500

FR 20

Typ.

10000

Passband

1. For applications requiring DC voltage to be applied to the Input or output, use LFCN-3000D (DC Resistance to ground is 100 Mohms min.)

typical frequency response

ATTENUATION (dB)

40dB

20dB

electrical schematic

RF IN

RF OUT

PCB Land Pattern

3dB

1dB

Fco F20

FREQUENCY

FR 20dB

Typical Performance Data at 25°C

Frequency

(MHz)

Suggested Layout,

Tolerance to be within

±.002

Insertion Loss

(dB)

0.03

0.29

0.40

0.77

2.96

25.24

40.44

46.26

36.73

21.68

19.41

13.67

14.56

16.94

24.85

LFCN-3000

VSWR

(:1)

1.01

1.23

1.34

1.15

3.08

25.19

29.96

27.59

19.98

18.70

13.70

12.99

11.61

4.41

4.88

Outline Dimensions (

inch

)

.126

3.20

.087

2.21

.063

1.60

.024

0.61

.037

0.94

.122

3.10

.020

0.51

.024

0.61

.032

0.81

.087

2.21

.009

0.23

.012

0.30

.169

4.29

.071 grams

1.80

.020

1000

1500

3000

3600

4480

4780

5000

6500

10000

11000

13000

15000

17000

20000

LFCN-3000

INSERTION LOSS

Demo Board MCL P/N: TB-270

Suggested PCB Layout (PL-137)

60.0

INSERTION LOSS (-dB)

50.0

40.0

30.0

20.0

10.0

0.0

1000

100

VSWR

5000

10000

FREQUENCY (MHz)

15000

20000

5000

10000

FREQUENCY (MHz)

15000

20000

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. C

M98898

LFCN-3000

EDR-6783/6

RVN/AD/CP/AM

060912
