XC1900A-30P

Description
3300 MHz - 3800 MHz RF/MICROWAVE DIRECTIONAL COUPLER, 0.2 dB INSERTION LOSS-MAX
CategoryTopical application    Wireless rf/communication
File Size516KB,22 Pages
ManufacturerAnaren
Websitehttp://www.anaren.com/
Download Datasheet Parametric View All

XC1900A-30P Overview

3300 MHz - 3800 MHz RF/MICROWAVE DIRECTIONAL COUPLER, 0.2 dB INSERTION LOSS-MAX

XC1900A-30P Parametric

Parameter NameAttribute value
Maximum operating temperature85 Cel
Minimum operating temperature-55 Cel
Maximum input power80 W
Maximum operating frequency3800 MHz
Minimum operating frequency3300 MHz
Processing package description0.400 X 0.200 INCH, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
Maximum voltage standing wave ratio1.2
structureCOMPONENT
terminal coatingTIN
Impedance characteristics50 ohm
Maximum insertion loss0.2000 dB
Microwave RF TypeDIRECTIONAL COUPLER

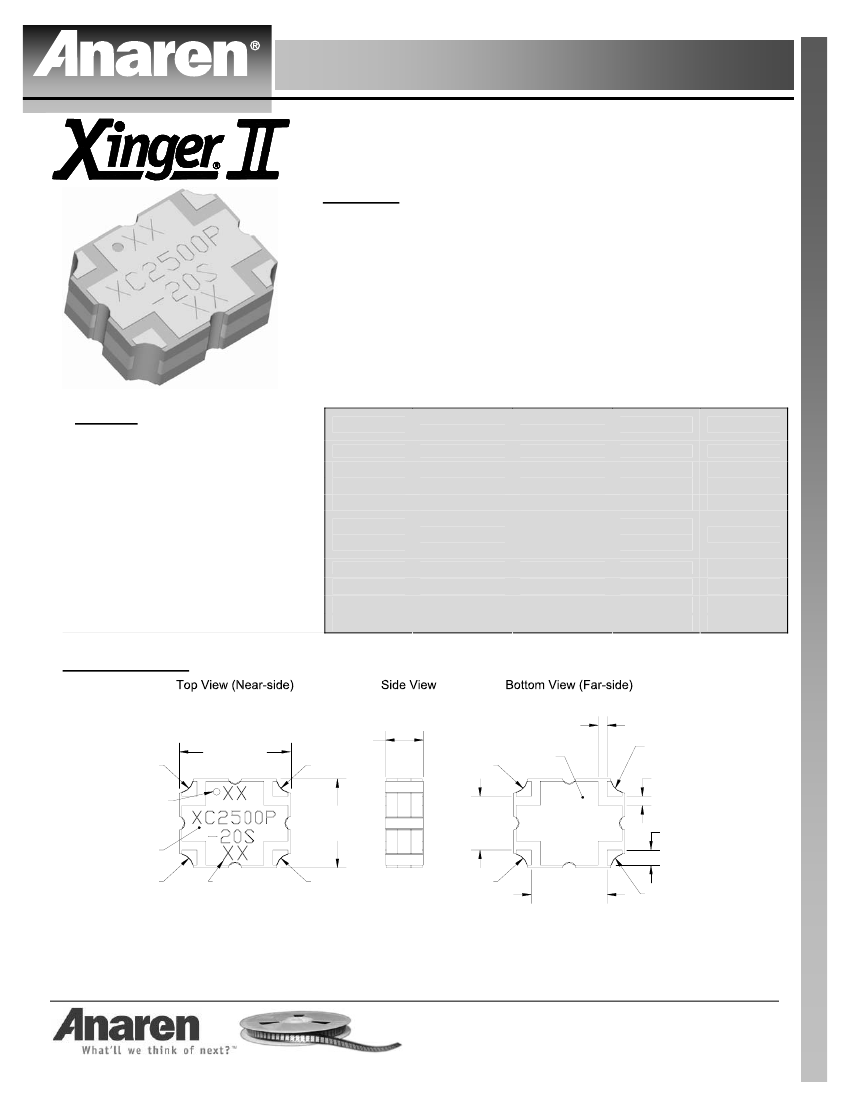

Model XC2500P-20S
Rev A
20dB Directional Coupler
t
Description
The XC2500P-20S is a low profile, high performance 20dB directional
coupler in a new easy to use, manufacturing friendly surface mount
package. It is designed for AMPS band applications. The XC2500P-20S is
designed particularly for power and frequency detection, as well as for
VSWR monitoring, where tightly controlled coupling and low insertion loss
is required. It can be used in high power applications up to 50 Watts.
Parts have been subjected to rigorous qualification testing and they are
manufactured using materials with coefficients of thermal expansion (CTE)
compatible with common substrates such as FR4, G-10, RF-35, RO4003
and polyimide. Produced with 6 of 6 RoHS compliant tin immersion finish.
Features:
2300-2700 MHz
AMPS
High Power
Very Low Loss
Tight Coupling
High Directivity
Production Friendly
Tape and Reel
Lead-Free

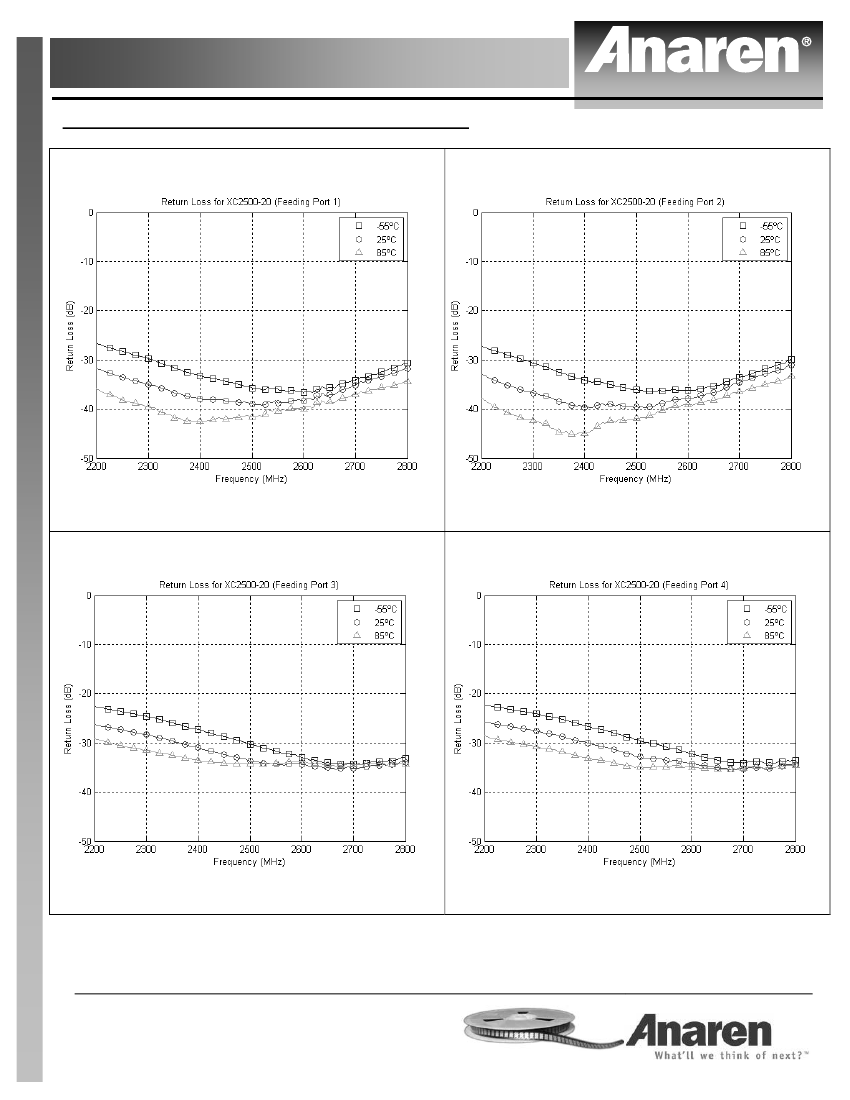

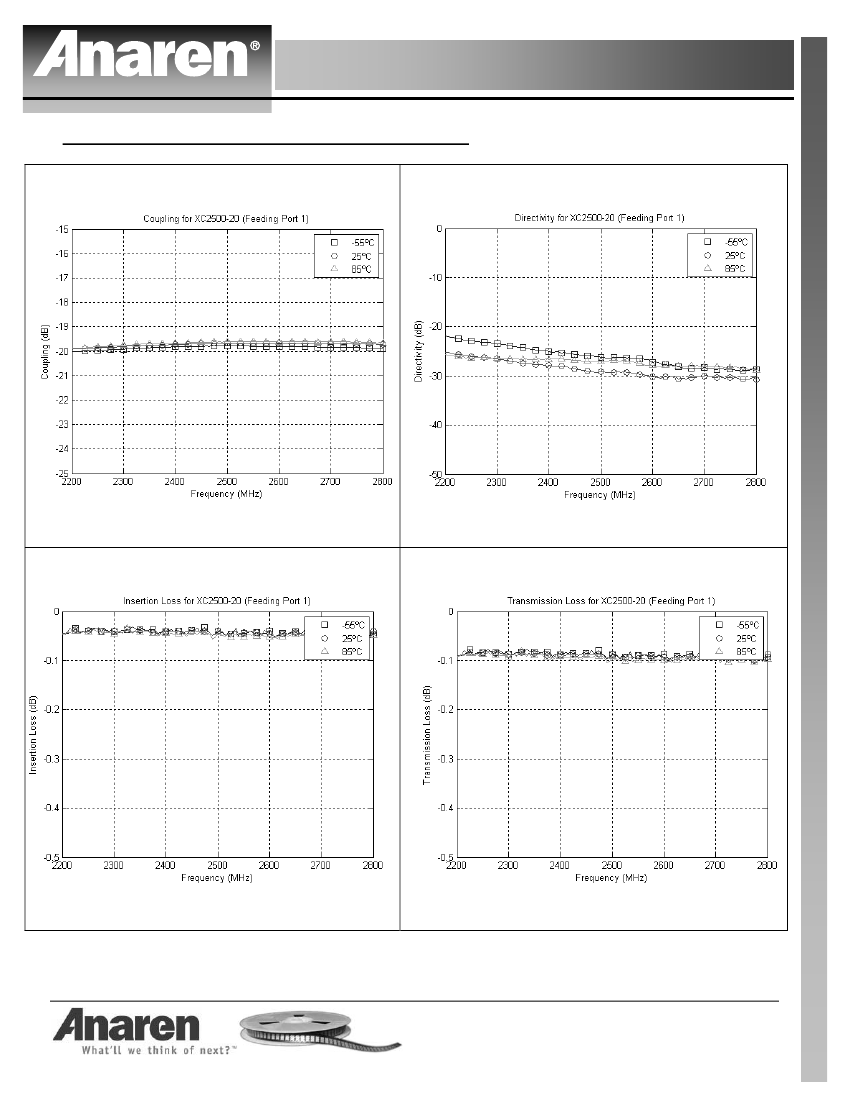

Electrical Specifications
**
Mean
Frequency
Coupling
MHz
dB
Insertion
Loss
dB Max
VSWR
Max : 1
Directivity
dB Min
2300-2700
20±1.0
0.20
1.20
20
Frequency
Sensitivity
dB Max

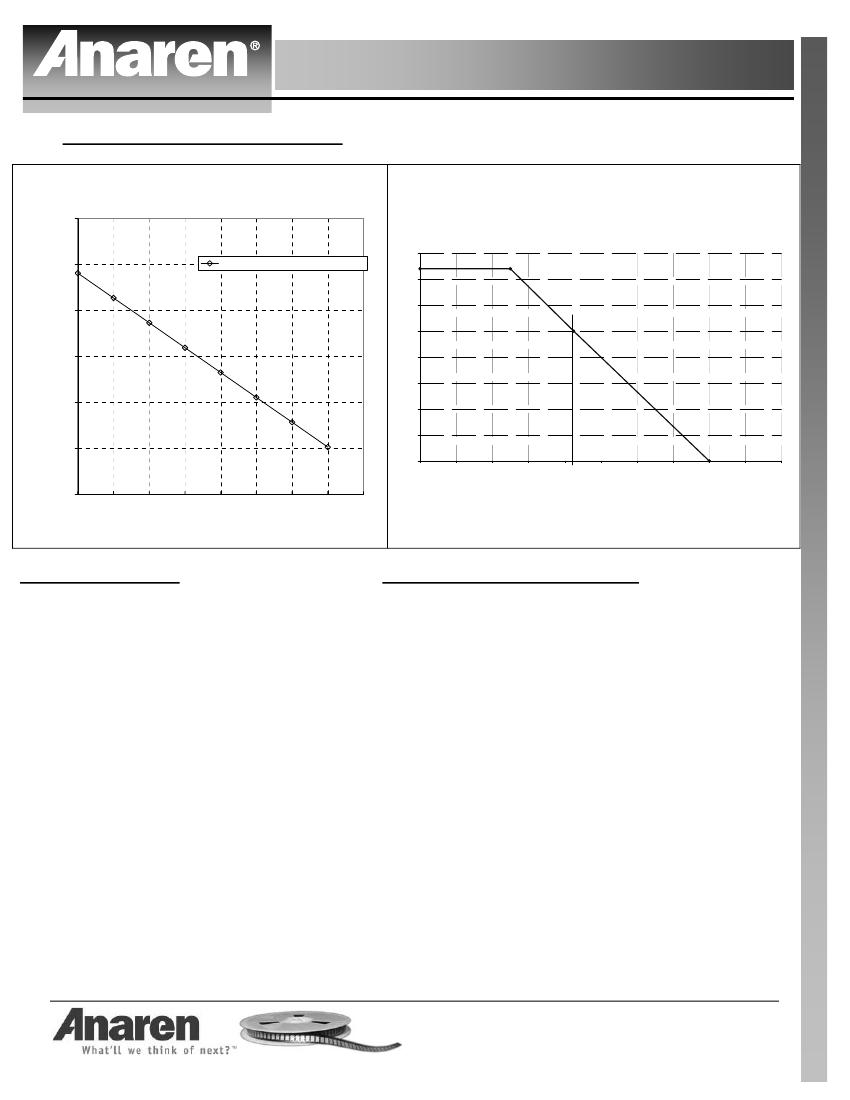

Power
Avg. CW Watts
ΘJC
ºC/Watt
Operating
Temp.
ºC
±0.30
50
53
-55 to +85
**Specification based on performance of unit properly installed on Anaren Test Board 54147-0001. Refer to
Specifications subject to change without notice. Refer to parameter definitions for details.

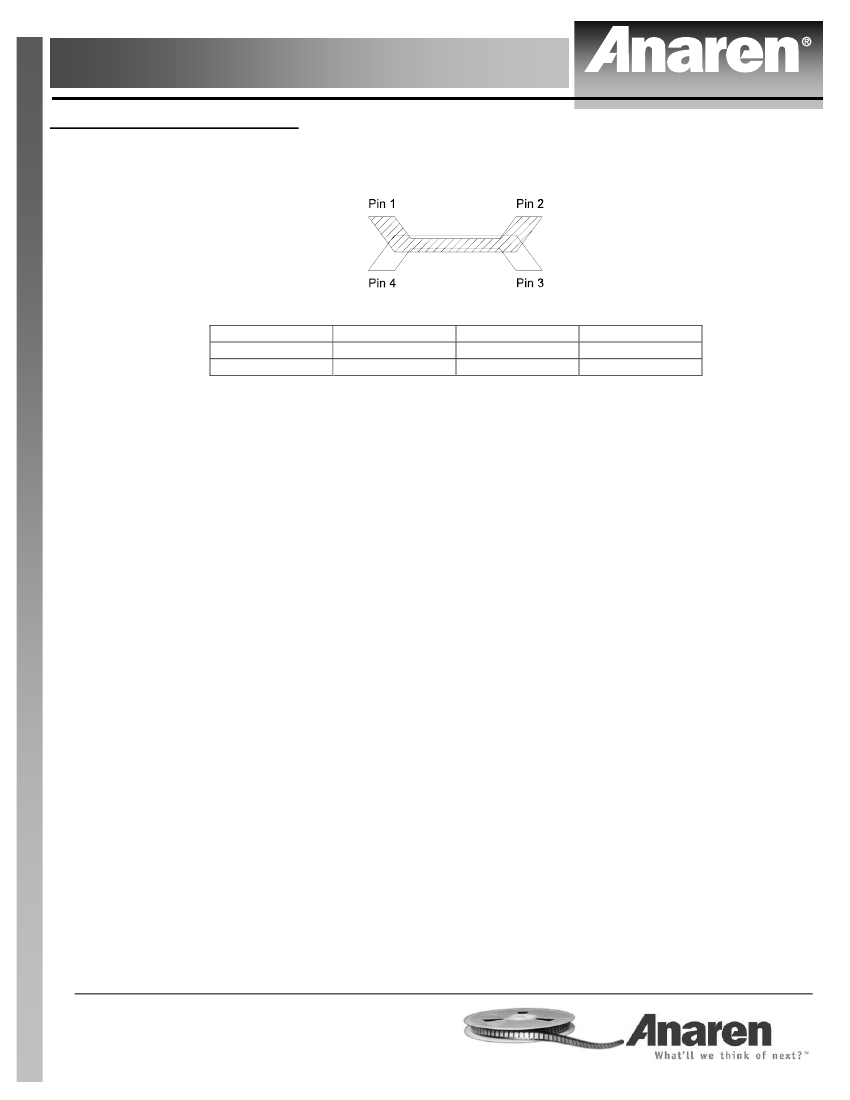

Mechanical Outline
Pin 1
Orientation
Marker Denotes
Pin Location
GND
Pin 4
.250
±.010
[6.35
±0.25
]
.085
±.017
[2.16
±0.43
]
Pin 2
Pin 2
4X .020
±.004
[0.51
±0.10
]
GND
Pin 1
4X .020
±.004
[0.51
±0.10
]
4X .034
±.004
SQ
[0.86
±0.10
]
.200
±.010
[5.08
±0.25
]
.120
±.004
[3.05
±0.10
]
Denotes
Array Number
Pin 3
Pin 3
.170
±.004
[4.32
±0.10
]
Pin 4
Dimensions are in Inches [Millimeters]
XC2500P-20S Mechanical Outline
Tolerance are Non-Cumulative
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
