6PHR100: DescriptionBridge Rectifier Diode, 1 Phase, 6A, 1000V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size40KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

6PHR100 Overview

Bridge Rectifier Diode, 1 Phase, 6A, 1000V V(RRM), Silicon

6PHR100 Parametric

Parameter Name	Attribute value
package instruction	R-PSFM-W4
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	R-PSFM-W4
Maximum non-repetitive peak forward current	240 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.2 µs
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

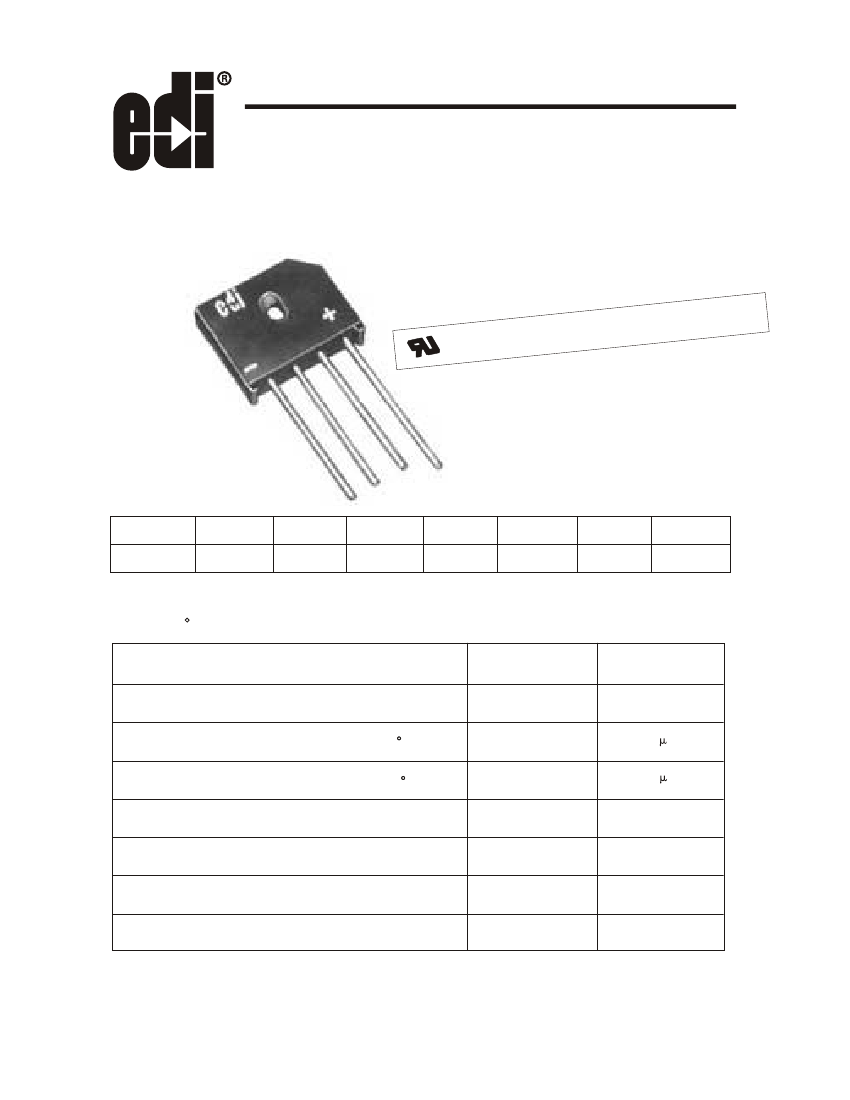

6PHR

FAST RECOVERY

SINGLE-PHASE FULL WAVE BRIDGE

6 AMPERES

FOR P.C. BOARD AND HEAT SINK MOUNTING

200 NANOSECOND FAST RECOVERY

nent

r the compo

nition unde

g

dicates reco

s, inc.

This mark in derwriters Laboratorie

Un

program of

PRV/Leg

Type No.

50V

6PHR05

100V

6PHR10

200V

6PHR20

400V

6PHR40

600V

6PHR60

800V

6PHR80

1000V

6PHR100

ELECTRICAL CHARACTERISTICS PER LEG

(at T

A

=25 C Unl es s Oth erw ise Spe ci fie d)

Average Output Current, Io @ 65 C Tc (Fig.1)

Max.Forward Voltage Drop,

V

F

=1.2V @ I

F

=

Max.DC Reverse Current @ PRV and 25

C

, I

R

Max.DC Reverse Current @ PRV and 100

C

,I

R

Max.Peak Surge Current, l

FSM

(8.3ms) (Fig.2)

Max. Reverse Recovery Time, Trr (Fig.3)

Ambient Operating Temperature Range,T

A

Storage Temperature Range,T

STG

O

6

2.5

10

300

240

200

-55 to+150

Amp

A

Amp

Nanosec

o

C

o

C

EDI reserves the right to change these specifications at any time without notice.

6PHR100 Related Products

	6PHR100	6PHR20	6PHR40
Description	Bridge Rectifier Diode, 1 Phase, 6A, 1000V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 6A, 200V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 6A, 400V V(RRM), Silicon
package instruction	R-PSFM-W4	R-PSFM-W4	R-PSFM-W4
Reach Compliance Code	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V
JESD-30 code	R-PSFM-W4	R-PSFM-W4	R-PSFM-W4
Maximum non-repetitive peak forward current	240 A	240 A	240 A
Number of components	4	4	4
Phase	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C
Maximum output current	6 A	6 A	6 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	200 V	400 V
Maximum reverse recovery time	0.2 µs	0.2 µs	0.2 µs
surface mount	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1
Maker	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
