3361
AND
3362
Suffix Code 'LH' Pinning
2-WIRE, CHOPPER-STABILIZED,
HALL-EFFECT SWITCHES
The A3361x and A3362x Hall-effect switches are extremely
temperature-stable and stress-resistant sensors. Superior performance
over temperature is made possible through dynamic offset cancellation,
which reduces the residual offset voltage normally caused by device
overmolding, temperature dependencies, and thermal stress. The two
devices differ only in output polarity; the A3361x output current goes
low in the presence of a south pole of sufficient strength; the A3362x
output current goes high.

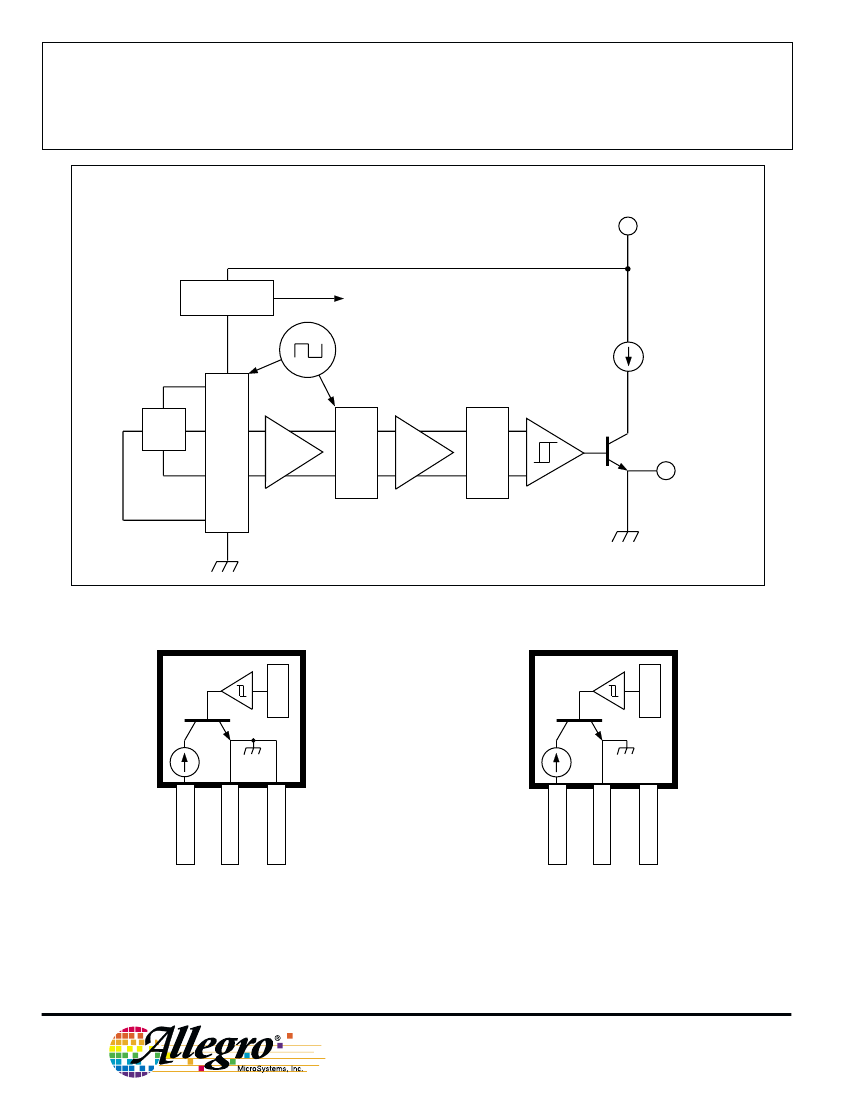

Each device includes on a single silicon chip a voltage regulator,
Hall-voltage generator, small-signal amplifier, chopper stabilization,
Schmitt trigger, and a constant-current open-collector output. An
on-board regulator permits operation with supply voltages of 3.5 to 24
volts. Noise radiation is limited by control of the output current slew
rate.
Three package styles provide a magnetically optimized package for
most applications. Suffix ‘xLH’ is a miniature low-profile surface-
mount package, ‘xLT’ is a miniature SOT-89/TO-243AA transistor
package for surface-mount applications; while suffix ‘xUA’ is a three-
lead ultra-mini-SIP for through-hole mounting.
Data Sheet
27621.50
3
NC
1
2
X
GROUND
NO (INTERNAL)
CONNECTION
Dwg. PH-003-5
Pinning is shown viewed from branded side.
PRELIMINARY INFORMATION
(subject to change without notice)
August 28, 2000
SUPPLY
FEATURES
ABSOLUTE MAXIMUM RATINGS
at T
A
=+25
°
C
Supply Voltage, V
CC
........................
26.5 V
Reverse Battery Voltage, V
RCC
..........
-16 V
Magnetic Flux Density, B ...........
Unlimited
Package Power Dissipation, P
D
.
See Graph
Junction Temperature, T
J
...............
+170
°
C
Operating Temperature Range,
T
A
...............................
-40
°
C to +85
°
C
Storage Temperature Range,
T
S
..............................
-65
°
C to +170
°
C
Always order by complete part number: the prefix 'A' + the basic four-digit
part number + a suffix to indicate operating temperature range (E) +
a two-letter suffix to indicate package style, e.g.,
A3361ELH .
I
Internal Current Regulator for 2-Wire Operation
I
Resistant to Physical Stress
I
Superior Temperature Stability
I
Operation From Unregulated Supply
I
Solid-State Reliability
I
Small Size
