MKH5641-1-0-1100: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Plug; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKH5641-1-0-1100 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Plug

MKH5641-1-0-1100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: RFB7808V0.6-0.5, POLARIZED
body width	0.236 inch
subject depth	0.669 inch
body length	1.177 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	MKH5630
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

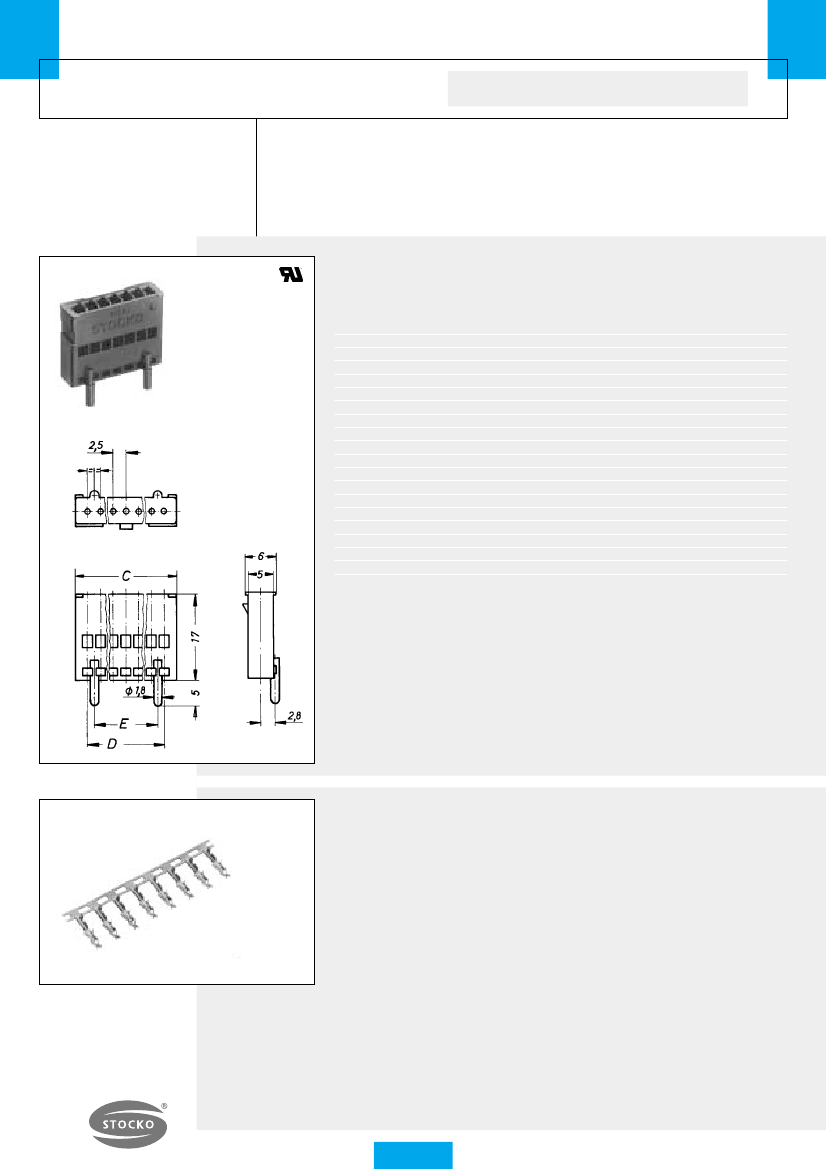

Serie / Series

edergehäuse

F edergehäuse mit Crimpanschluß

Housings with crimp connection

MKH 5630

Serie MKH 5630 mit Codierbeinen, für Einzelleiter

Series MKH 5630 with polarizing pegs, for discrete wire

Polzahl

Positions

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Artikel-Nummer

Part number

MKH

5633 - 1 - 0 - 300

5634 - 1 - 0 - 400

5635 - 1 - 0 - 500

5636 - 1 - 0 - 600

5637 - 1 - 0 - 700

5638 - 1 - 0 - 800

5639 - 1 - 0 - 900

5640 - 1 - 0 - 1000

5641 - 1 - 0 - 1100

5642 - 1 - 0 - 1200

5643 - 1 - 0 - 1300

5644 - 1 - 0 - 1400

5645 - 1 - 0 - 1500

5646 - 1 - 0 - 1600

5647 - 1 - 0 - 1700

5648 - 1 - 0 - 1800

5649 - 1 - 0 - 1900

5650 - 1 - 0 - 2000

Abmessungen C

Dimensions C

9,9

12,4

14,9

17,4

19,9

22,4

24,9

27,4

29,9

32,4

34,9

37,4

39,9

42,4

44,9

47,4

49,9

52,4

Abmessungen D

Dimensions D

5,0

7,5

10,0

12,5

15,0

17,5

20,0

22,5

25,0

27,5

30,0

32,5

35,0

37,5

40,0

42,5

45,0

47,5

Abmessungen E

Dimensions E

2,5

5,0

7,5

10,0

12,5

15,0

17,5

20,0

22,5

25,0

27,5

30,0

32,5

35,0

37,5

40,0

42,5

45,0

Serie mit einem Codierbein auf Anfrage.

Series with only one polarizing peg on request.

Crimpfeder

RFB 7808 V 0,6 - 0,5 für Leiterquerschnitt 0,07 - 0,5 mm

2

mit Isolationsdurchmesser max. 1,9 mm.

Crimp contact

RFB 7808 V 0.6 - 0.5 for 0.07 - 0.5 mm

2

wire size,

max. insulation diameter 1.9 mm.
