REVISIONS
H
STANDARD PROFILE SHELL
LOW PROFILE SHELL
REV
DESCRIPTION, ECN, EAR NO.
DATE
APP'D
A
PRODUCT DRAWING (EAR 14115)
AUG27/12
K.L.
1
1
THREADED
MOUNTING
HOLES

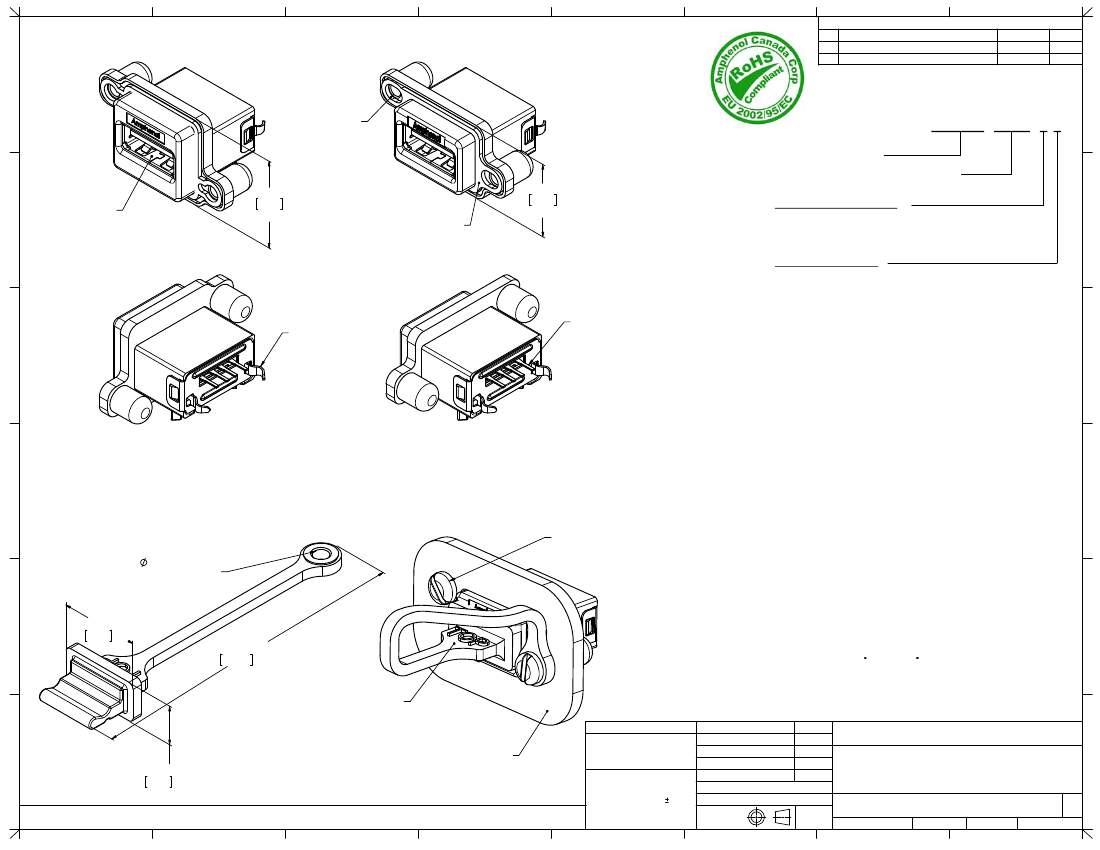

ORDERING CODE: M U S B R - A 5 1 1 - X X
SERIES, RUGGED USB
15.00
.591
REF
USB SERIES 'A' RECEPTACLE, SINGLE
PORT, VERTICAL PCB TAIL
SHELL & THREAD OPTION
3 = STD. PROFILE, #4-40 UNC THREAD
4 = LOW PROFILE, #4-40 UNC THREAD
M = STD. PROFILE, M3 X 0.5 THREAD
R = LOW PROFILE, M3 X 0.5 THREAD
DUST COVER OPTION
0 = NO DUST COVER SUPPLIED
1 = WITH GREY DUST COVER SUPPLIED
5 = WITH BLACK DUST COVER SUPPLIED
VERTICAL
PCB TAILS
SPECIAL CONNECTORS
MANY UNIQUE FEATURES ARE READILY AVAILABLE
TO SUIT CUSTOMER REQUIREMENTS.
CONSULT WITH AMPHENOL CANADA FOR DETAILS.
2
2
USB SERIES 'A'
RECEPTACLE
18.00
.709
REF
CONDUCTIVE
PANEL GASKET
BOARDLOCK
GROUND TABS
3
3
NOTES:
1.
MATERIAL:
•
ALL MATERIALS ARE RoHS COMPLIANT PER EU DIRECTIVE 2002/95/EC
AND AMENDMENTS.
•
OUTER SHELL - DIECAST ZINC ALLOY, NICKEL PLATED
•
CONTACTS - PHOSPHOR BRONZE, PLATED WITH 0.76µm (30µ") GOLD
OVER 1.27µm (50µ") NICKEL ON THE MATING AREA WITH MATTE TIN
PLATING ON THE TAILS.
•
USB HOUSING - ENGINEERING THERMOPLASTIC, HIGH TEMPERATURE
RESISTANT, FLAMMABILITY RATING UL94V-0, BLACK.
•
USB SHIELD & BACK COVER - STAINLESS STEEL, PASSIVATED.
•
PANEL GASKET - CONDUCTIVE SILICONE RUBBER, BLACK
•
DUST COVER - SILICONE RUBBER WITH NICKEL PLATED BRASS
BUSHING. SEE ORDERING CODE FOR DUST COVER COLOUR OPTIONS.
ENVIRONMENTAL PERFORMANCE PER IEC 60529 CODE IP67 FOR SEAL
BETWEEN MATING AREA AND PCB SIDE OF CONNECTOR. GASKET
PROVIDES SEAL TO INSIDE FACE OF ENCLOSURE PANEL. AVAILABLE
DUST COVER PROVIDES ADDED PROTECTION.
CURRENT RATING: 1.5 AMPERES.
CONTACT RESISTANCE: 30 MILLIOHMS MAXIMUM.
OPERATING TEMPERATURE: -40 C TO +150 C.
DUST COVERS MAY BE ORDERED SEPARATELY. SPECIFY
•
PART NUMBER MUSB-2A111-014BP FOR THE GREY COVER
•
PART NUMBER MUSB-2A111-024BP FOR THE BLACK COVER
A.ESPIE
AUG22/12
5
4
4
DUST COVER APPLICATION VIEW
DUST COVER OPTION
SEE ORDERING CODE
MOUNTING SCREWS
(NOT SUPPLIED)
3.05 [.120]
MOUNTING HOLE
2.
5
16.00 REF
.630
65.00 REF
2.559
3.
4.
5.
6.
COVER HANDLE
WITH MARK "TOP"
PRIMARY UNITS
UNLESS SPECIFIED OTHERWISE DRAWN
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
Amphenol Canada Corp.
www.amphenolcanada.com
6
8.00 REF
.315
ENCLOSURE
PANEL
SECONDARY
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
K.LAMBIE
AUG27/12
ENG. REL. NO.
ECN E14115
MUSBR SERIES RUGGED USB CONNECTOR,
SERIES 'A' RECEPTACLE, SINGLE PORT,
VERTICAL PCB TAIL, THREAD, SHELL &
DUST COVER OPTIONS, RoHS COMPLIANT
DWG.
NO.
REV
6
0.15
REF.
THIRD
ANGLE
PROJECTION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR
ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-MUSBR-A511-XX
03554
DWG SIZE:
X
SCALE:
A
SHEET
3:1
H
1
OF
3
E
F
G
A
B
C
D
E
F
G
REVISIONS
REV
DESCRIPTION, ECN, EAR NO.
H
DATE
APP'D
5.50 [.217] DEEP THREADED HOLES
SEE ORDERING CODE OPTIONS
9.00
.354
24.00
.945
4.00
.157
2.00
.079
2.80±0.30
.110±.012
A
PRODUCT DRAWING (EAR 14115)
AUG27/12
K.L.
1
1
6.00
.236
18.00±0.25
.709±.010
14.00
.551
1.15
.045
2.71
.107
22.03
.867
REF
2
2
CONTACT
POSITION #1
20.00±0.25
.787±.010
30.00±0.25
1.181±.010
16.00
.630
4.50
.177
PCB
STANDOFF
2 PLACES
3
3.25±0.08
.128±.003
2 HOLES
16.55
.652
R1.38
.054
TYP
3
13.99±0.25
.551±.010
8.00±0.40
.315±.016
14.55
.573
9.00
.354
4
0.58 [.023] X 0.25 [.010]
PCB TAIL
4.04±0.25
.159±.010
4.50
.177
24.00
.945
4
RECOMMENDED PANEL CUTOUT
OUTSIDE VIEW OF PANEL
7.00
.276
5
0.92±0.10
.036±.004
4 HOLES
2.00
.079
2.30±0.05
.091±.002
2 HOLES
LOCATE HOLES
0.13 [.005] DIA
POSITION DIMENSIONS
ARE BASIC

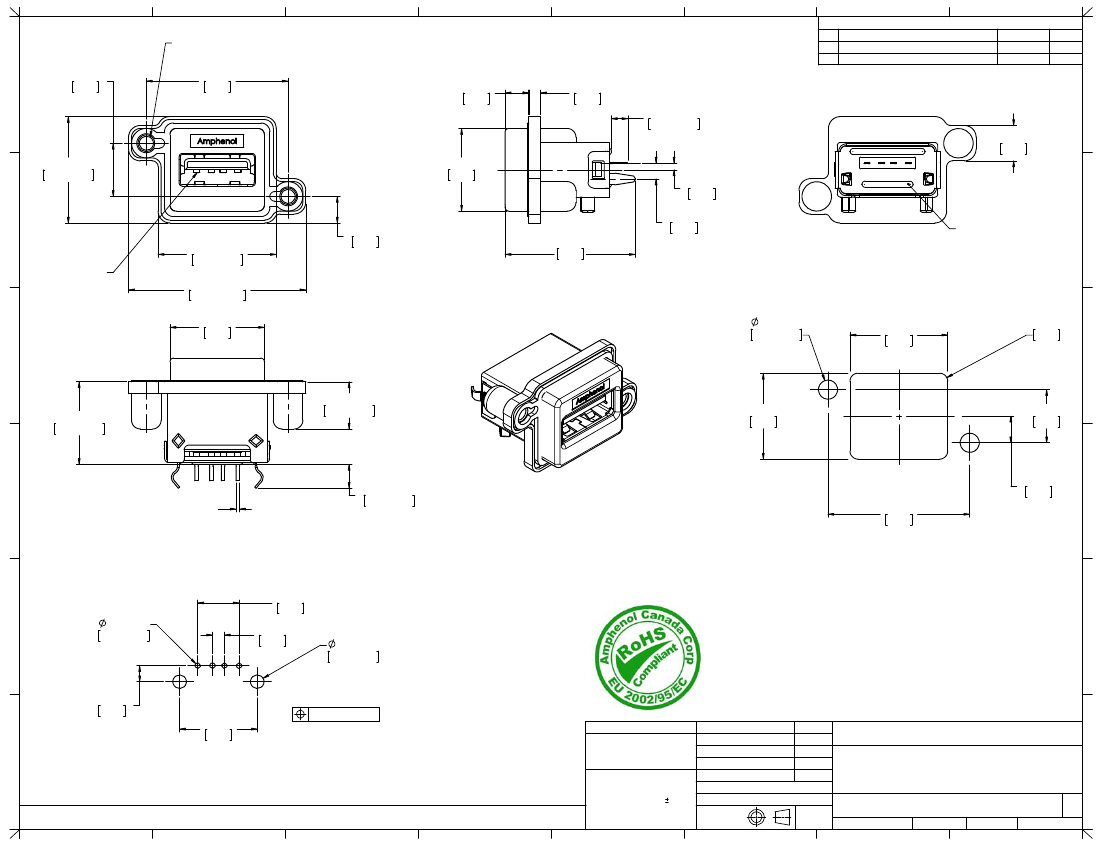

STANDARD PROFILE
SHELL SHOWN
5
1
2 3
4
2.71
.107
13.14
.517
6
AMPHENOL CANADA PART NUMBERS: MUSBR-A511-3X
MUSBR-A511-MX
UNLESS SPECIFIED OTHERWISE DRAWN
PRIMARY UNITS
SECONDARY
A.ESPIE
AUG22/12
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
Amphenol Canada Corp.
www.amphenolcanada.com
RECOMMENDED PCB LAYOUT
COMPONENT SIDE OF BOARD
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
K.LAMBIE
AUG27/12
ENG. REL. NO.
ECN E14115
MUSBR SERIES RUGGED USB CONNECTOR,
SERIES 'A' RECEPTACLE, SINGLE PORT,
VERTICAL PCB TAIL, THREAD, SHELL &
DUST COVER OPTIONS, RoHS COMPLIANT
DWG.
NO.
REV
6
0.15
REF.
THIRD
ANGLE
PROJECTION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR
ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-MUSBR-A511-XX
03554
DWG SIZE:
X
SCALE:
A
SHEET
3:1
H
2
OF
3
E
F
G
A
B
C
D
E
F
G
REVISIONS
H
5.50 [.217] DEEP THREADED HOLES
SEE ORDERING CODE OPTIONS
6.35
.250
24.00
.945
4.00
.157
2.00
.079
REV
DESCRIPTION, ECN, EAR NO.
DATE
APP'D
A
PRODUCT DRAWING (EAR 14115)
AUG27/12
K.L.
1
1
2.80±0.30
.110±.012
6.00
.236
15.00±0.25
.591±.010
5.65
.222
2
11.00
.433
1.15
.045
2.71
.107
PCB
STANDOFF
2 PLACES
2
CONTACT
POSITION #1
20.00±0.25
.787±.010
30.00±0.25
1.181±.010
22.03
.867
REF
16.00
.630
3
3.25
.128
2 HOLES
8.00±0.40
.315±.016
11.55
.455
R1.38
.054
TYP
6.35
.250
3
13.99±0.25
.551±.010
4
0.58 [.023] X 0.25 [.010]
PCB TAIL
4.04±0.25
.159±.010
16.55
.652
24.00
.945
7.00
.276
1.85
.073
4
RECOMMENDED PANEL CUTOUT
OUTSIDE VIEW OF PANEL
5
5
0.92±0.10
.036±.004
4 HOLES
2.00
.079
2.30±0.05
.091±.002
2 HOLES

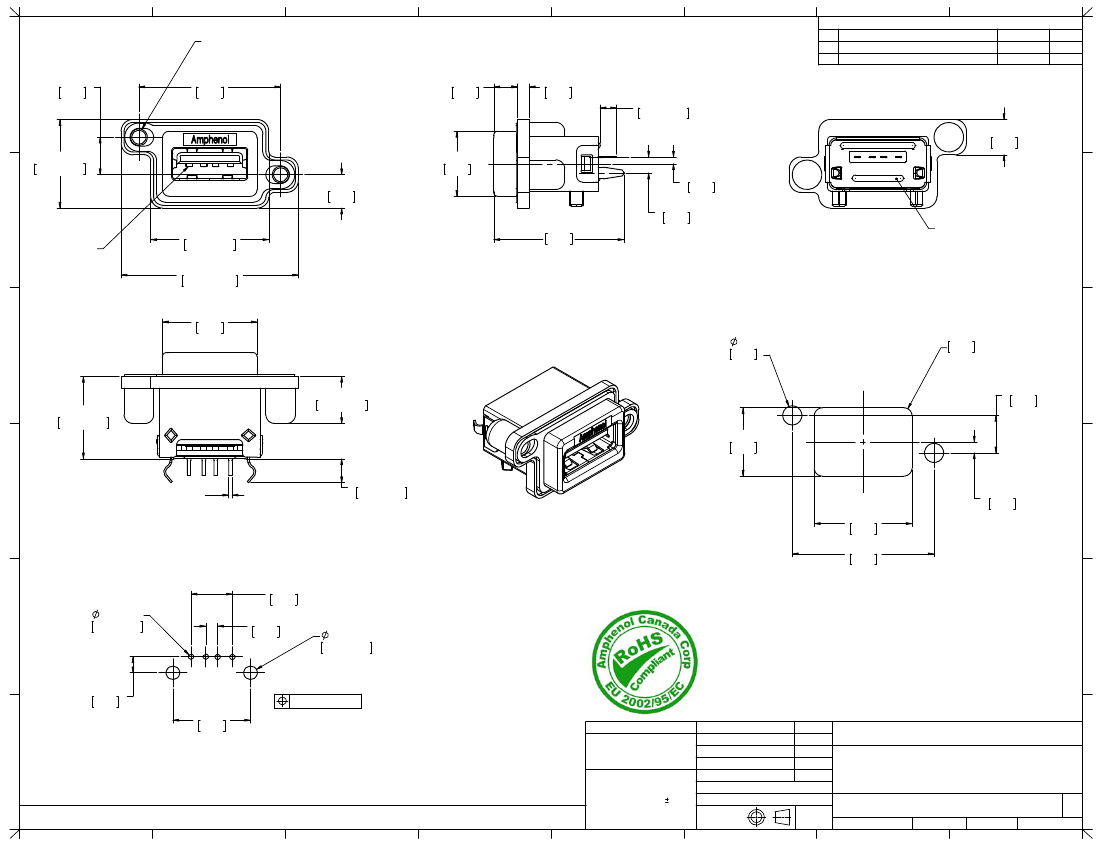

LOW PROFILE SHELL SHOWN
AMPHENOL CANADA PART NUMBERS: MUSBR-A511-4X
MUSBR-A511-RX
UNLESS SPECIFIED OTHERWISE DRAWN
PRIMARY UNITS
1
2 3
4
2.71
.107
13.14
.517
LOCATE HOLES
0.13 [.005] DIA
POSITION DIMENSIONS
ARE BASIC
A.ESPIE
AUG22/12
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
Amphenol Canada Corp.
www.amphenolcanada.com
6
RECOMMENDED PCB LAYOUT
COMPONENT SIDE OF BOARD
SECONDARY
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
K.LAMBIE
AUG27/12
ENG. REL. NO.
ECN E14115
MUSBR SERIES RUGGED USB CONNECTOR,
SERIES 'A' RECEPTACLE, SINGLE PORT,
VERTICAL PCB TAIL, THREAD, SHELL &
DUST COVER OPTIONS, RoHS COMPLIANT
DWG.
NO.
REV
6
0.15
REF.
THIRD
ANGLE
PROJECTION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR
ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-MUSBR-A511-XX
03554
DWG SIZE:
X
SCALE:
A
SHEET
3:1
H
3
OF
3
E
F
G
