TC5332201AP: DescriptionIC 4M X 8 MASK PROM, 120 ns, PDIP42, 0.600 INCH, PLASTIC, DIP-42, Programmable ROM; Categorystorage storage; File Size127KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

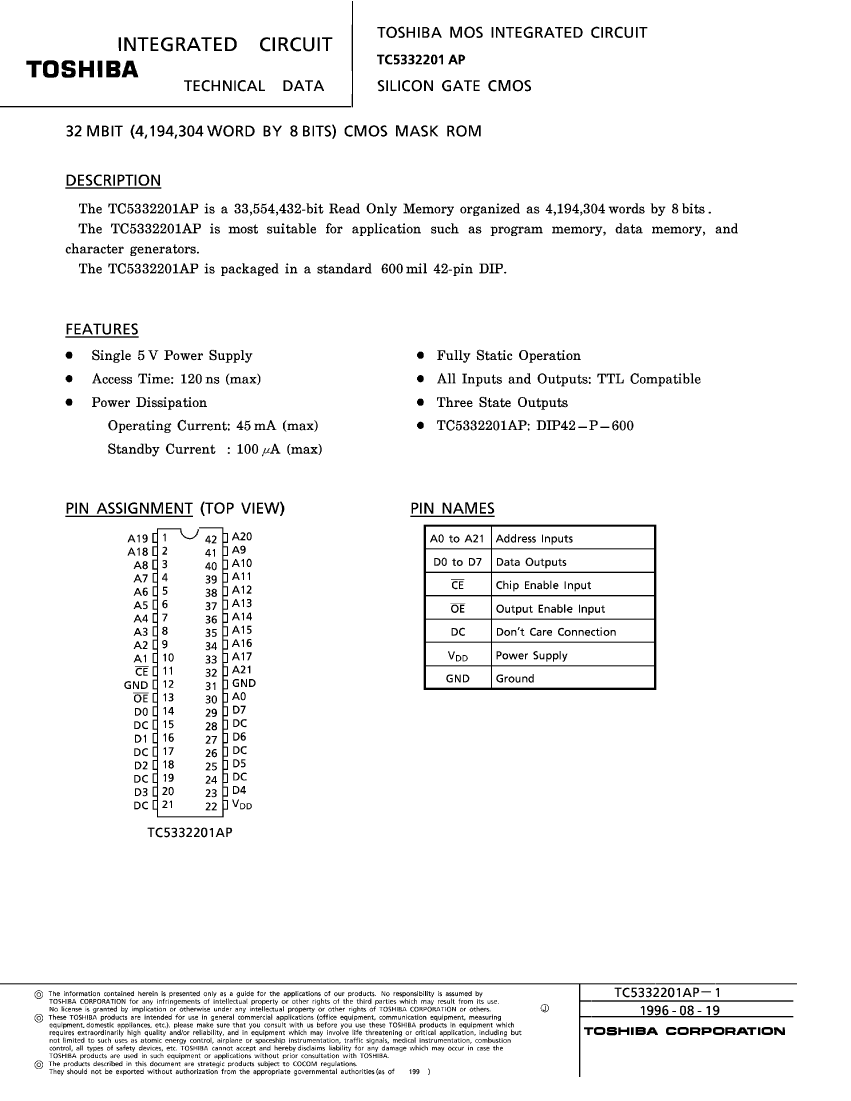

TC5332201AP Overview

IC 4M X 8 MASK PROM, 120 ns, PDIP42, 0.600 INCH, PLASTIC, DIP-42, Programmable ROM

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	0.600 INCH, PLASTIC, DIP-42
Contacts	42
Reach Compliance Code	unknown

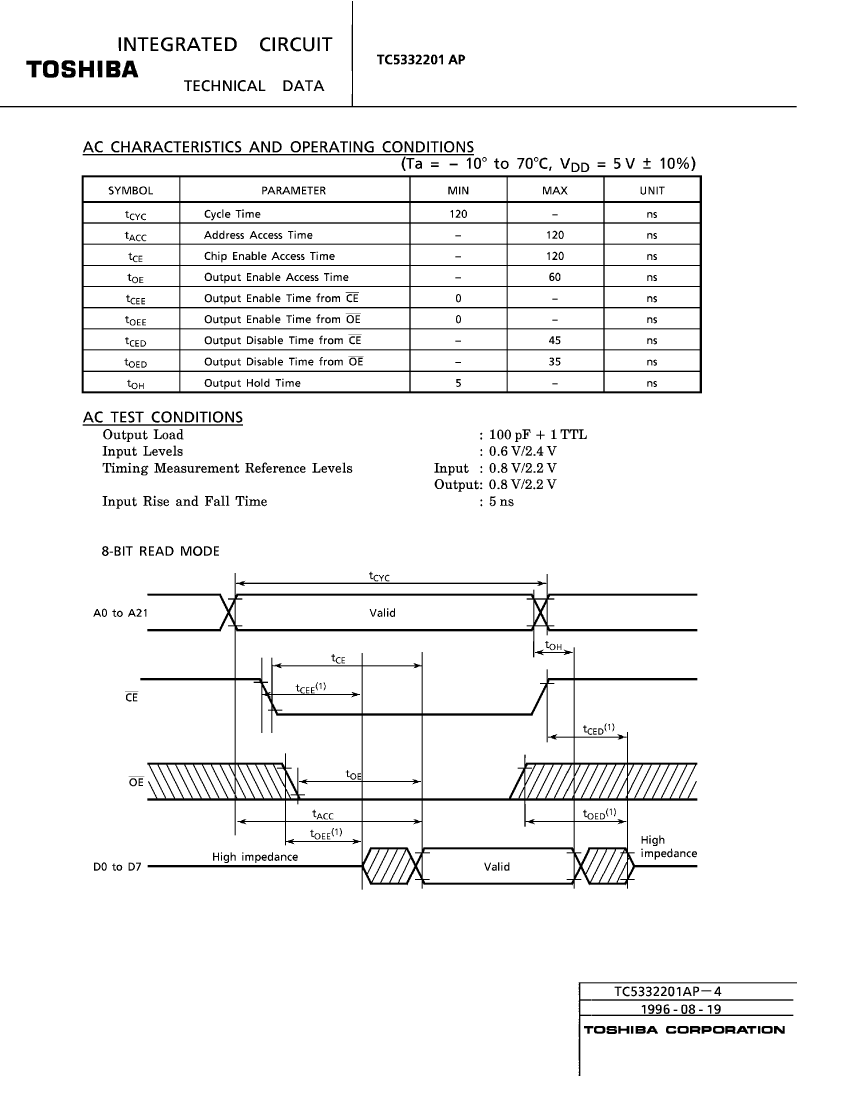

Maximum access time	120 ns
Other features	TTL COMPATIBLE I/O
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
length	53.2 mm
memory density	33554432 bit

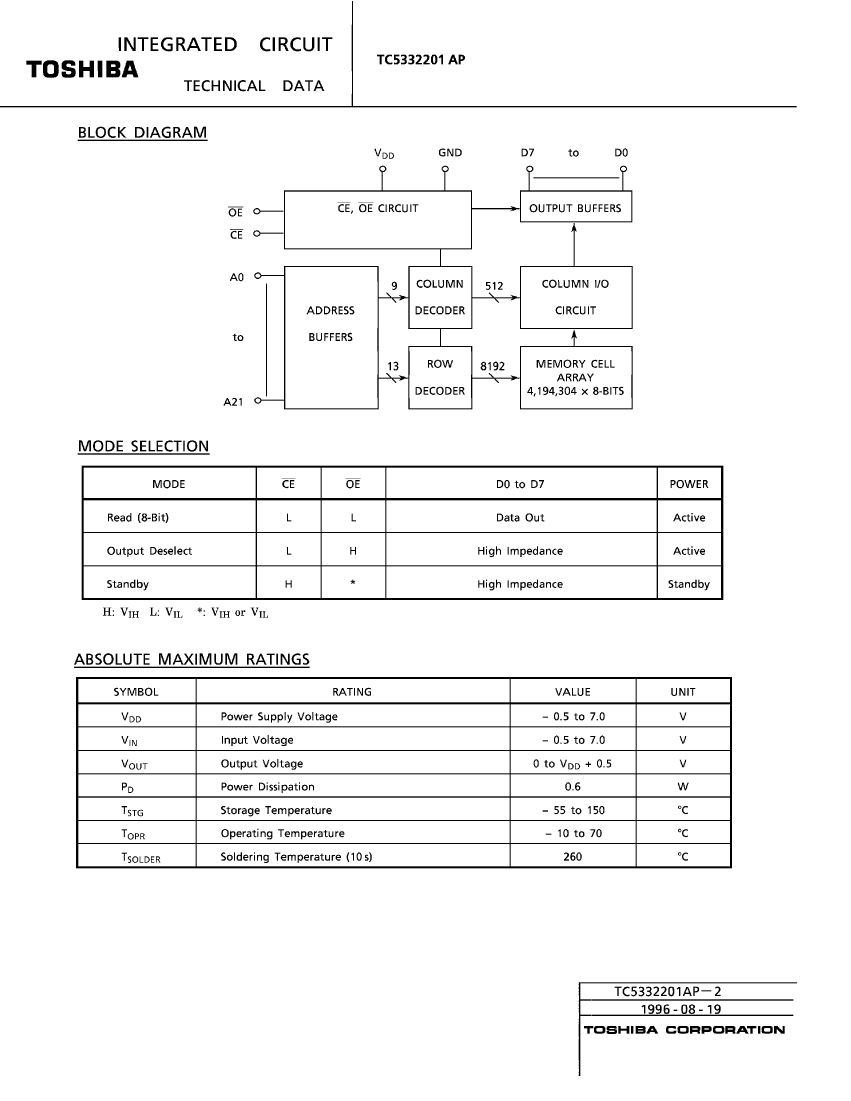

Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	42
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
organize	4MX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	4.8 mm

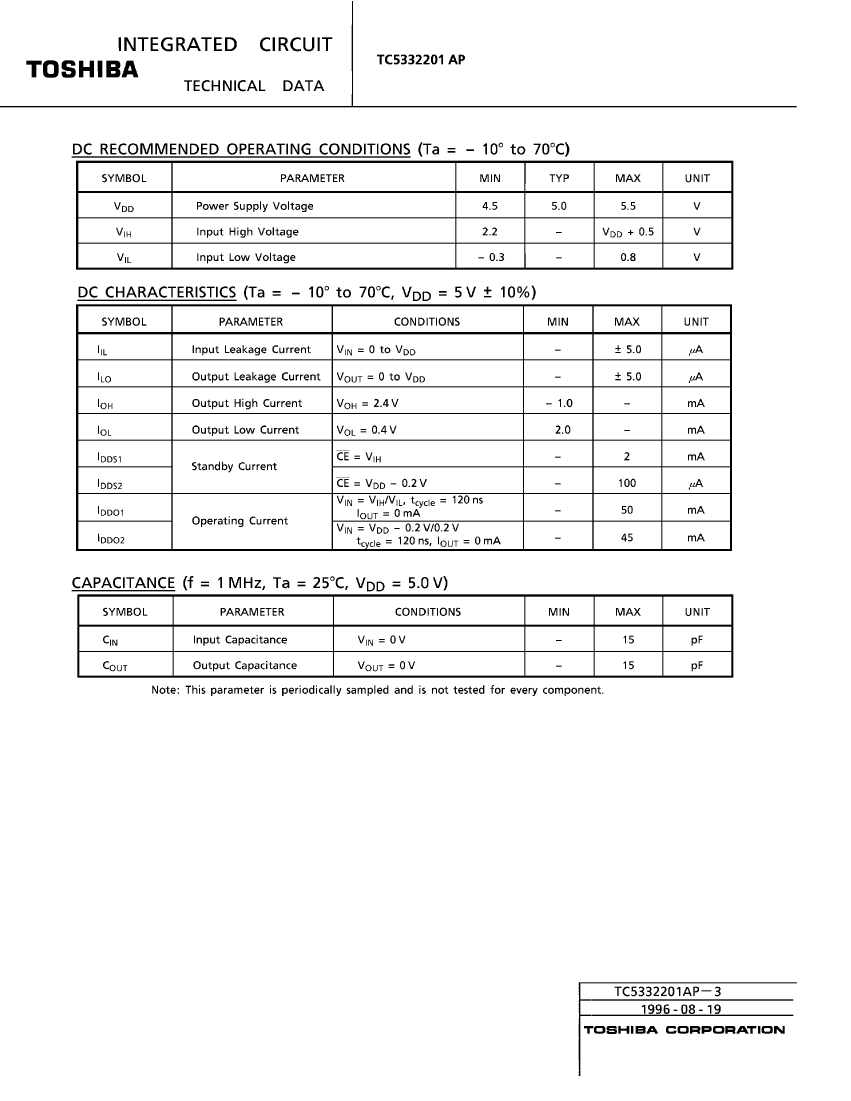

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1
