89756-003 datasheet, PDF - EEWORLD Datasheet

89756-003: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Jack; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

89756-003 Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Jack

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	LOW PROFILE
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	89756
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYAMIDE66
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

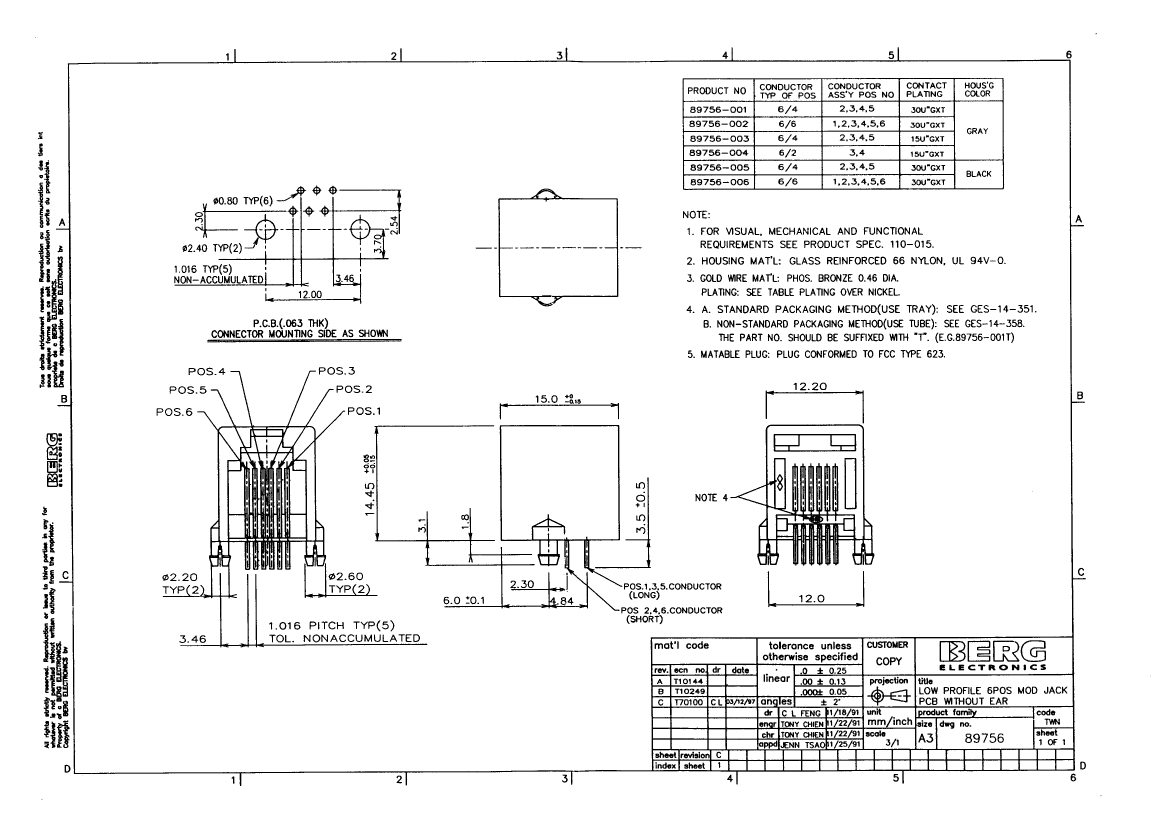

PDM: Rev:C

STATUS:

Released

Printed: Oct 26, 2005

	89756-003	89756-004	89756-005	89756-001
Description	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 2 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Jack
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Body/casing type	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	89756	89756	89756	89756
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	2	4	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	-
