LP2954-02BT datasheet, PDF - EEWORLD Datasheet

LP2954-02BT: DescriptionFixed Positive LDO Regulator, 5V, 0.8V Dropout, BIPolar, PSFM3, TO-220, 3 PIN; CategoryPower/power management The power supply circuit; File Size212KB，6 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

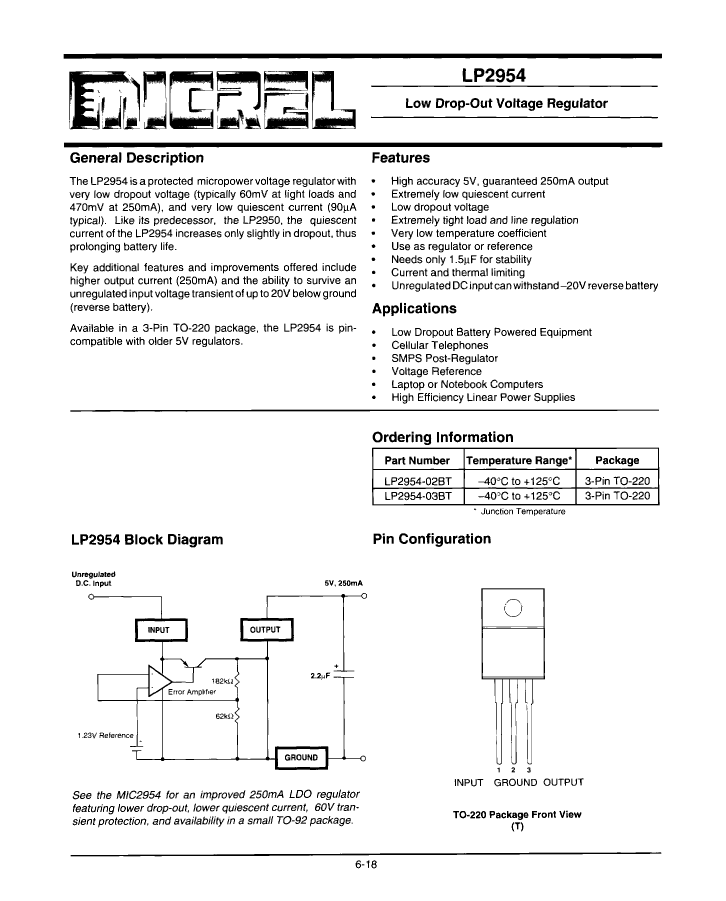

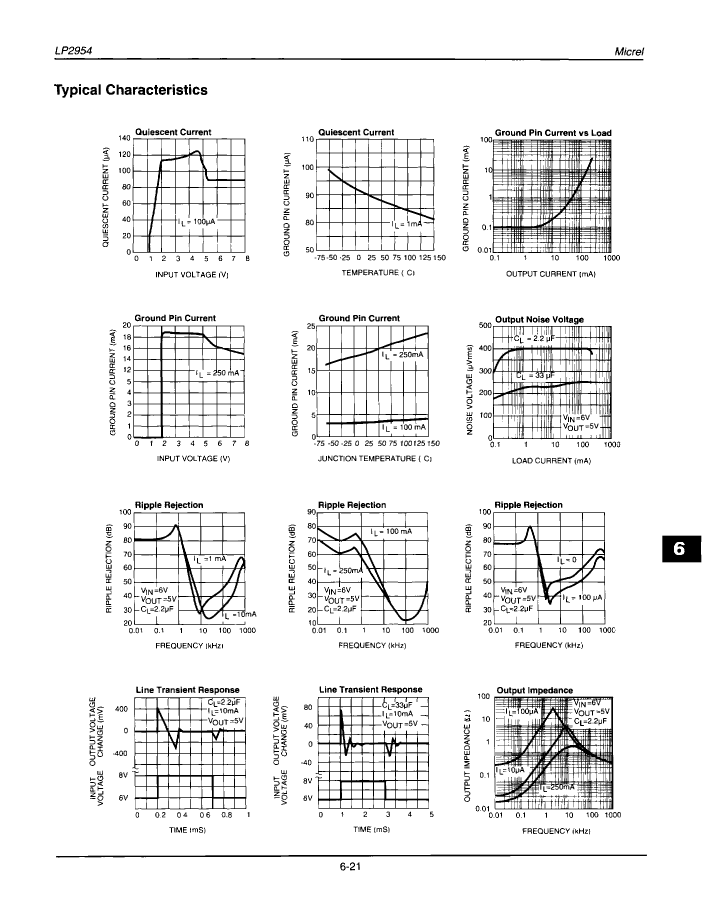

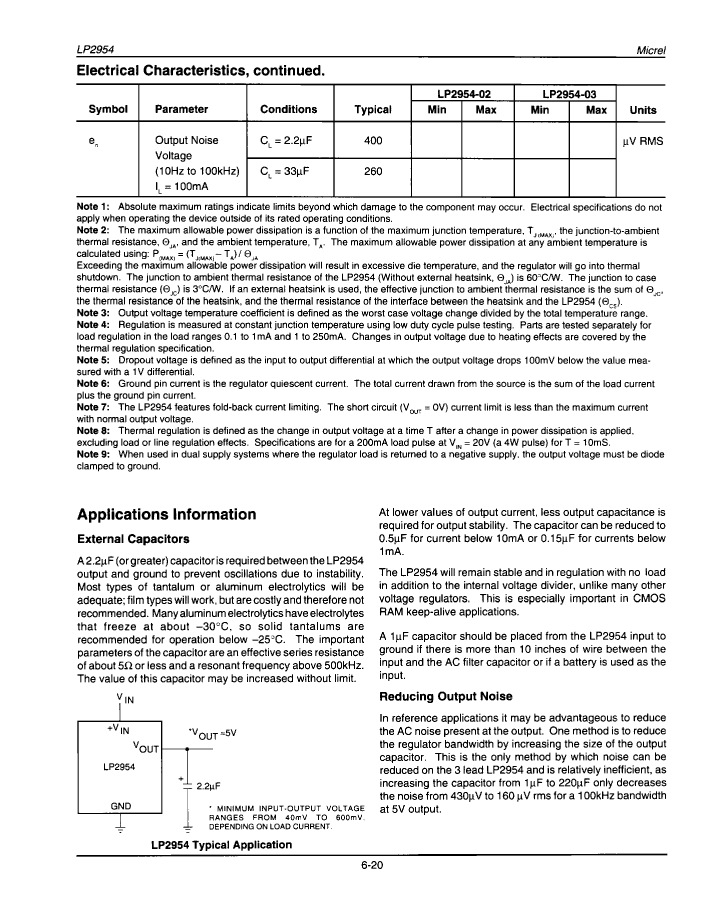

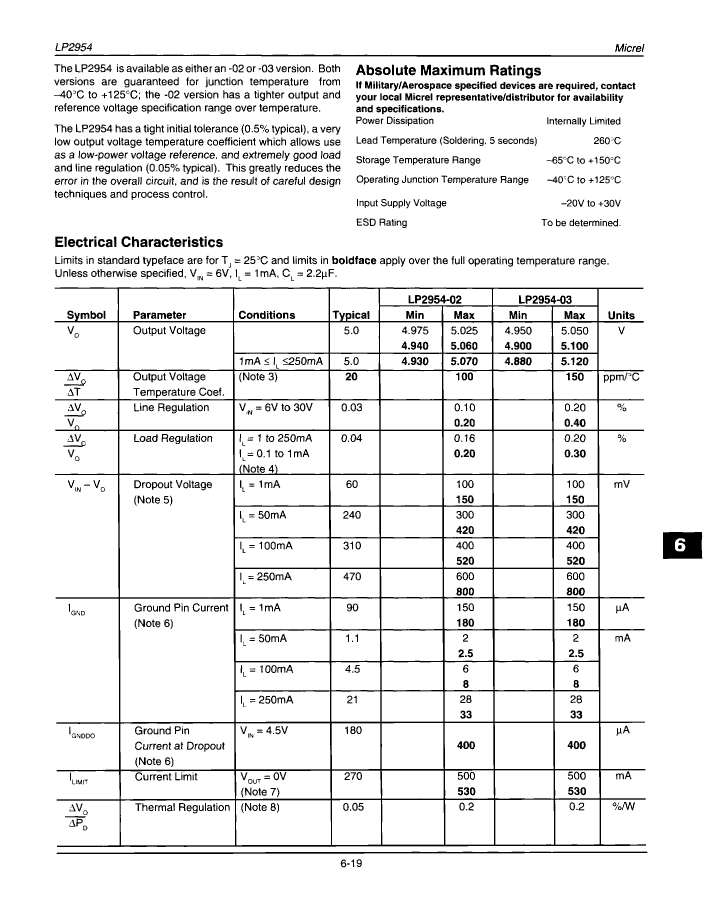

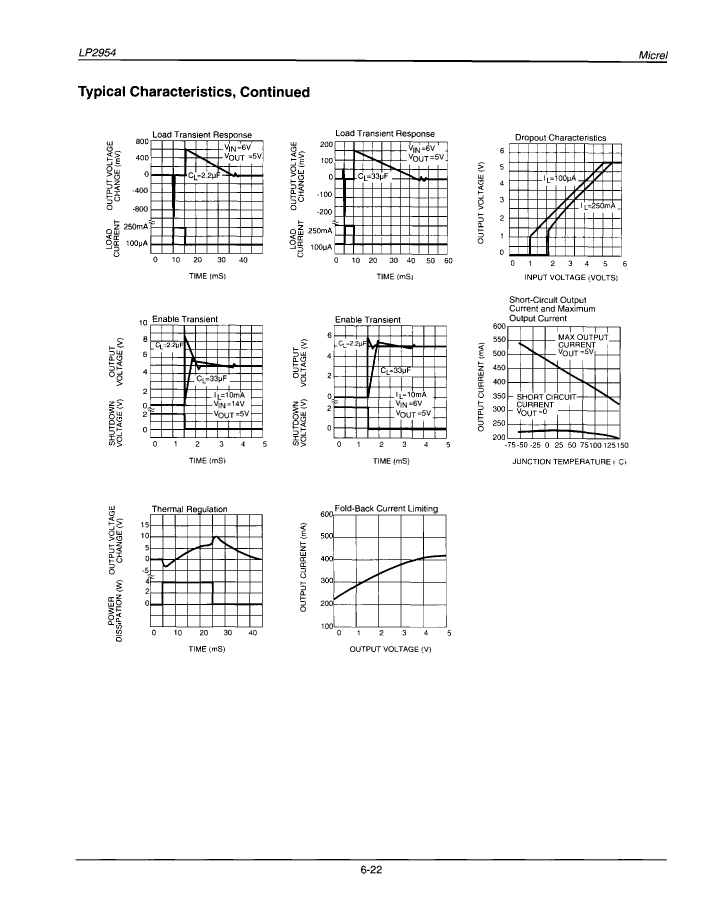

LP2954-02BT Overview

Fixed Positive LDO Regulator, 5V, 0.8V Dropout, BIPolar, PSFM3, TO-220, 3 PIN

Parameter Name	Attribute value
Parts packaging code	SFM
package instruction	,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum drop-back voltage 1	0.8 V
Maximum input voltage	30 V
Minimum input voltage	6 V
JESD-30 code	R-PSFM-T3
Number of functions	1
Number of terminals	3
Maximum output current 1	0.25 A
Maximum output voltage 1	5.06 V
Minimum output voltage 1	4.94 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

	LP2954-02BT	LP2954-03BT
Description	Fixed Positive LDO Regulator, 5V, 0.8V Dropout, BIPolar, PSFM3, TO-220, 3 PIN	Fixed Positive LDO Regulator, 5V, 0.8V Dropout, BIPolar, PSFM3, TO-220, 3 PIN
Parts packaging code	SFM	SFM
Contacts	3	3
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
Maximum drop-back voltage 1	0.8 V	0.8 V
Maximum input voltage	30 V	30 V
Minimum input voltage	6 V	6 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of functions	1	1
Number of terminals	3	3
Maximum output current 1	0.25 A	0.25 A
Maximum output voltage 1	5.06 V	5.1 V
Minimum output voltage 1	4.94 V	4.9 V
Nominal output voltage 1	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
