LT1575CS8-3.5#TRPBF datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> LT1575CS8-3.5#TRPBF

LT1575CS8-3.5#TRPBF: DescriptionIC VREG 3.5 V FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, SO-8, Fixed Positive Single Output LDO Regulator; CategoryPower/power management The power supply circuit; File Size723KB，15 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

LT1575CS8-3.5#TRPBF Overview

IC VREG 3.5 V FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, SO-8, Fixed Positive Single Output LDO Regulator

LT1575CS8-3.5#TRPBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum input voltage	20 V
Minimum input voltage	10 V
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Working temperatureTJ-Max	100 °C
Working temperature TJ-Min
Maximum output current 1	0.0015 A
Maximum output voltage 1	3.535 V
Minimum output voltage 1	3.465 V
Nominal output voltage 1	3.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	250
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.75 mm
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Base Number Matches	1

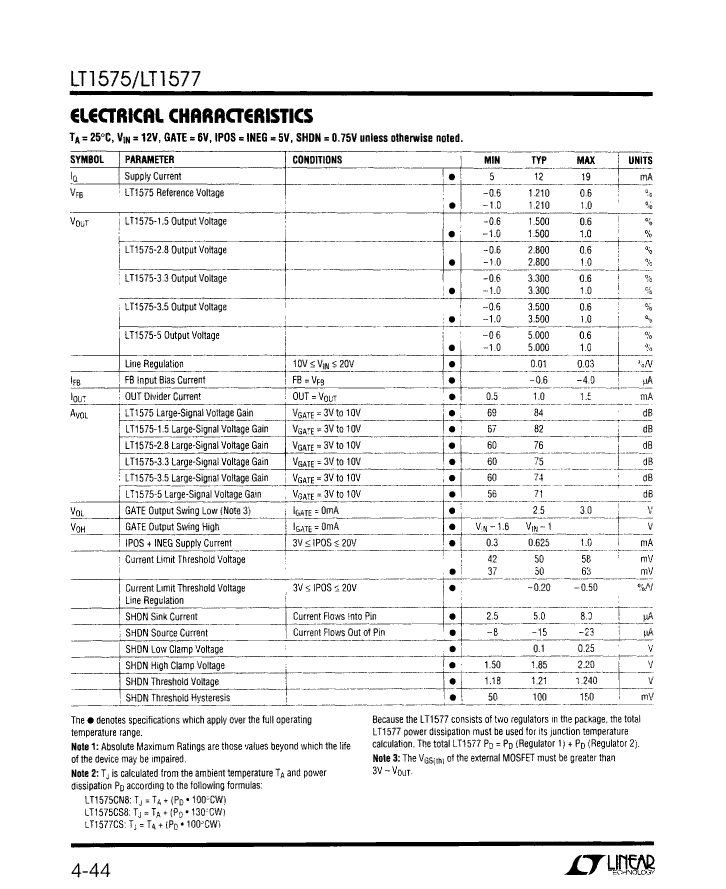

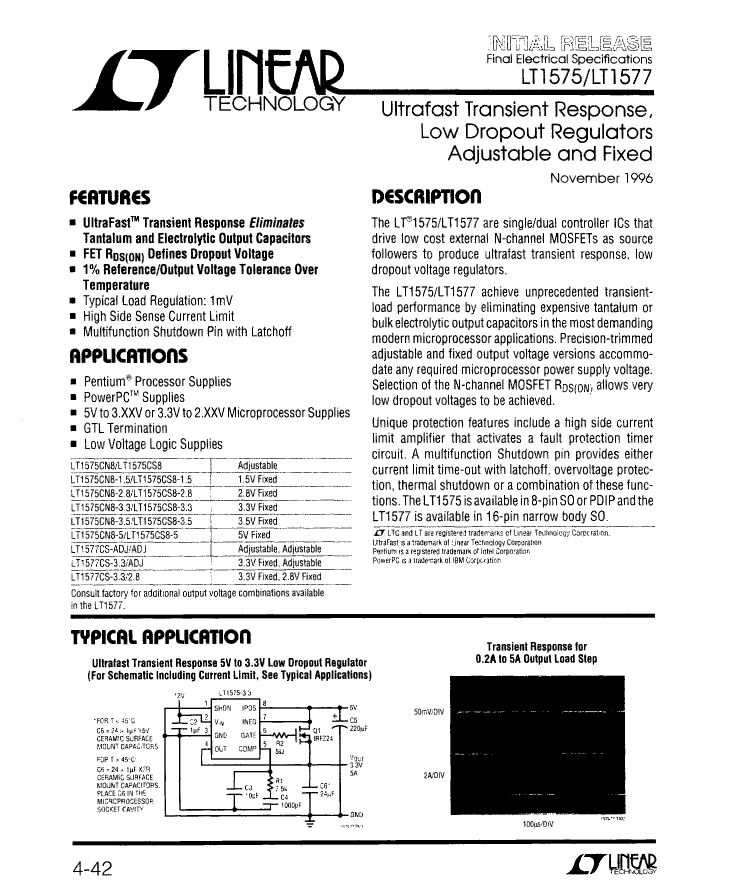

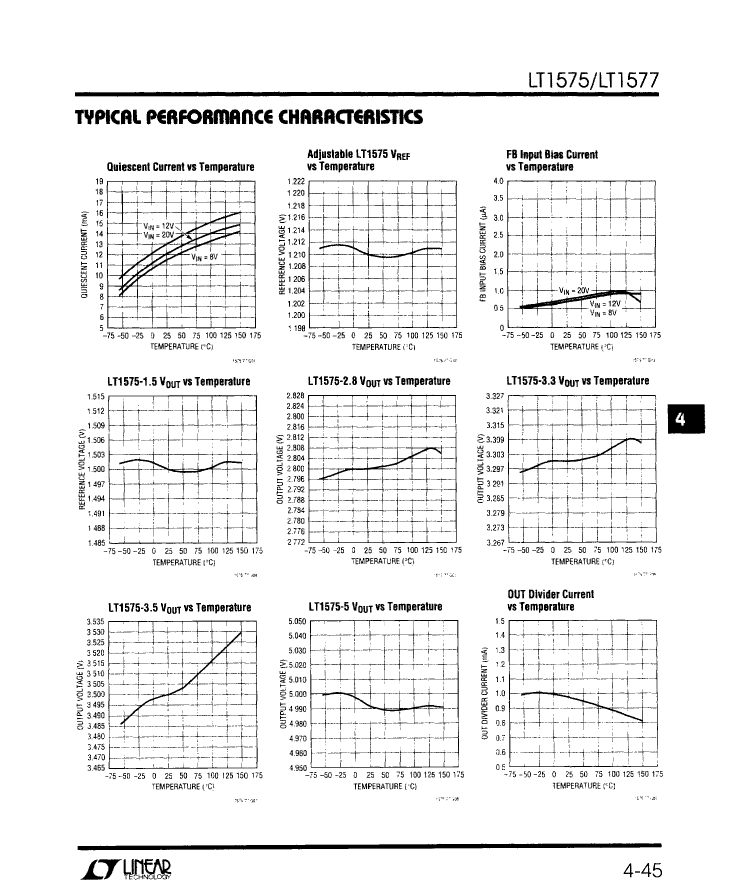

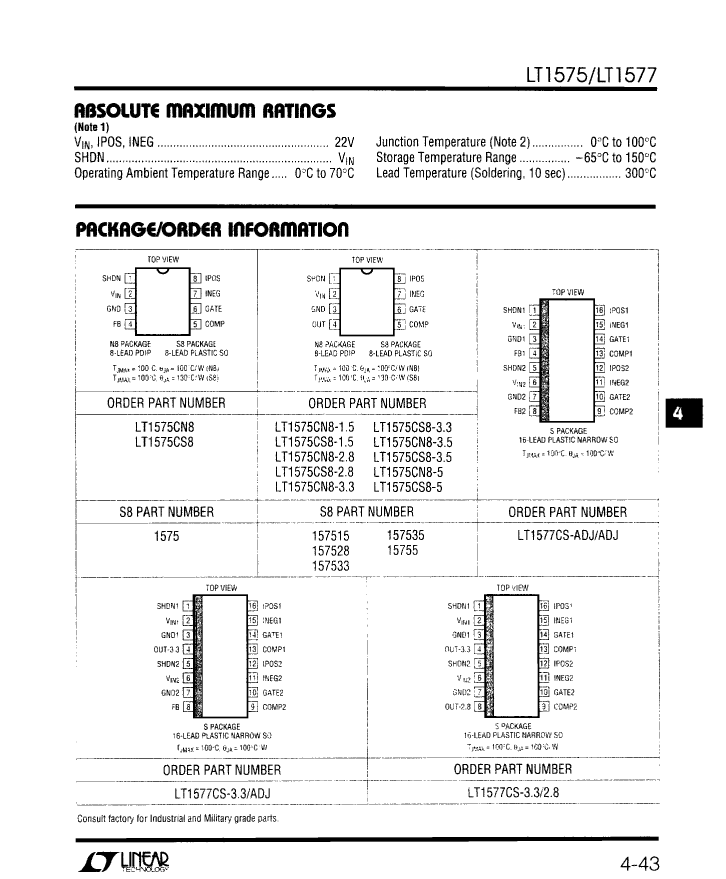

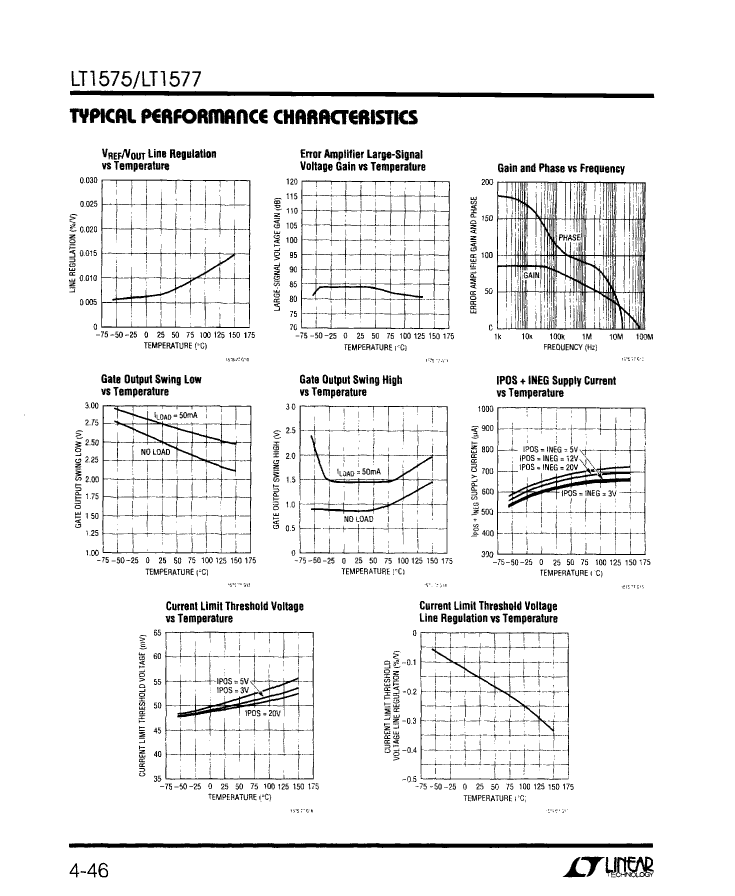

Preview

Download Datasheet

View All

LT1575CS8-3.5#TRPBF Related Products

	LT1575CS8-3.5#TRPBF	LT1575CS8-2.8#TRPBF	LT1575CS8-5#TRPBF	LT1575CS8-1.5#TRPBF	LT1575CS8-3.3#TRPBF
Description	IC VREG 3.5 V FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, SO-8, Fixed Positive Single Output LDO Regulator	IC VREG 2.8 V FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, SO-8, Fixed Positive Single Output LDO Regulator	IC VREG 5 V FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, SO-8, Fixed Positive Single Output LDO Regulator	IC VREG 1.5 V FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, SO-8, Fixed Positive Single Output LDO Regulator	IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, SO-8, Fixed Positive Single Output LDO Regulator
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	SOP,	SOP,
Contacts	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum input voltage	20 V	20 V	20 V	20 V	20 V
Minimum input voltage	10 V	10 V	10 V	10 V	10 V
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e3	e3	e3	e3	e3
length	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm
Humidity sensitivity level	1	1	1	1	1
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
Working temperatureTJ-Max	100 °C	100 °C	100 °C	100 °C	100 °C
Maximum output current 1	0.0015 A	0.0015 A	0.0015 A	0.0015 A	0.0015 A
Maximum output voltage 1	3.535 V	2.828 V	5.05 V	1.515 V	3.333 V
Minimum output voltage 1	3.465 V	2.772 V	4.95 V	1.485 V	3.267 V
Nominal output voltage 1	3.5 V	2.8 V	5 V	1.5 V	3.3 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	250	250	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
surface mount	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	30	30	30
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
Maker	-	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
