TJ71U22UH15%

Description
General Fixed Inductor, 1 ELEMENT, 20.74 uH, GENERAL PURPOSE INDUCTOR
CategoryPassive components    inductor
File Size476KB,7 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

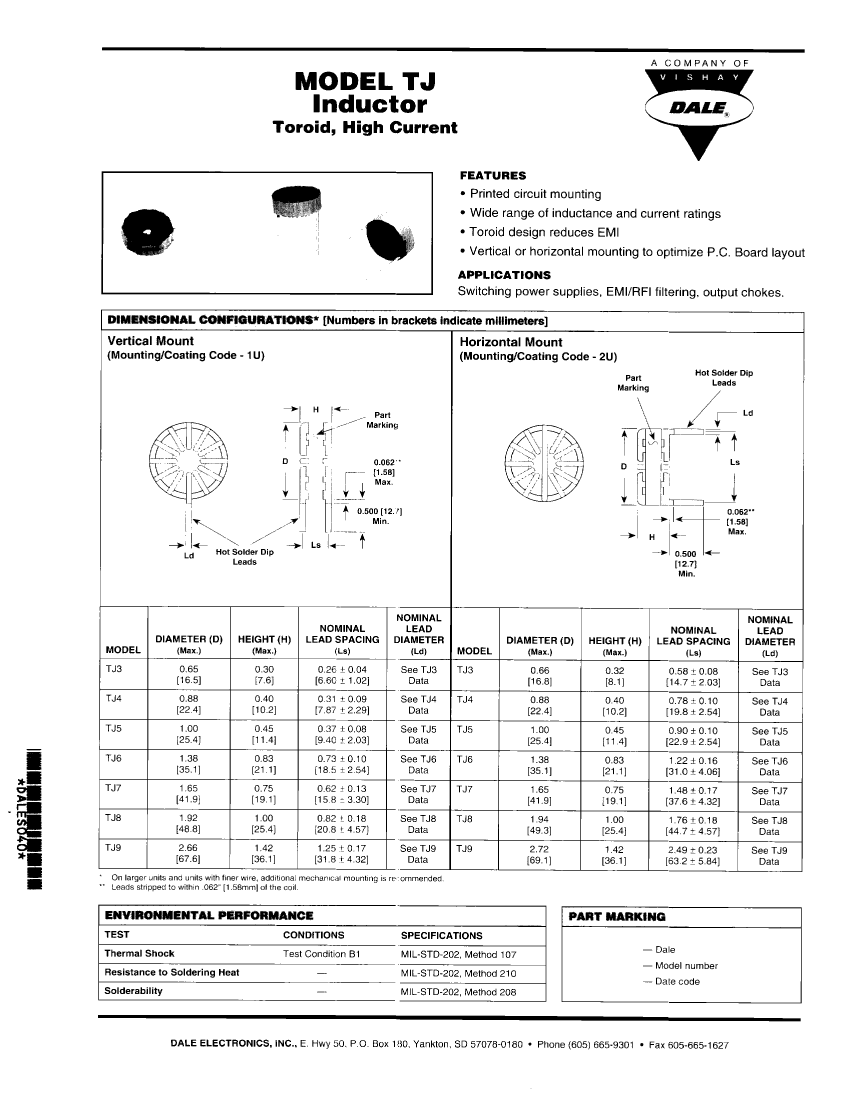

TJ71U22UH15% Overview

General Fixed Inductor, 1 ELEMENT, 20.74 uH, GENERAL PURPOSE INDUCTOR

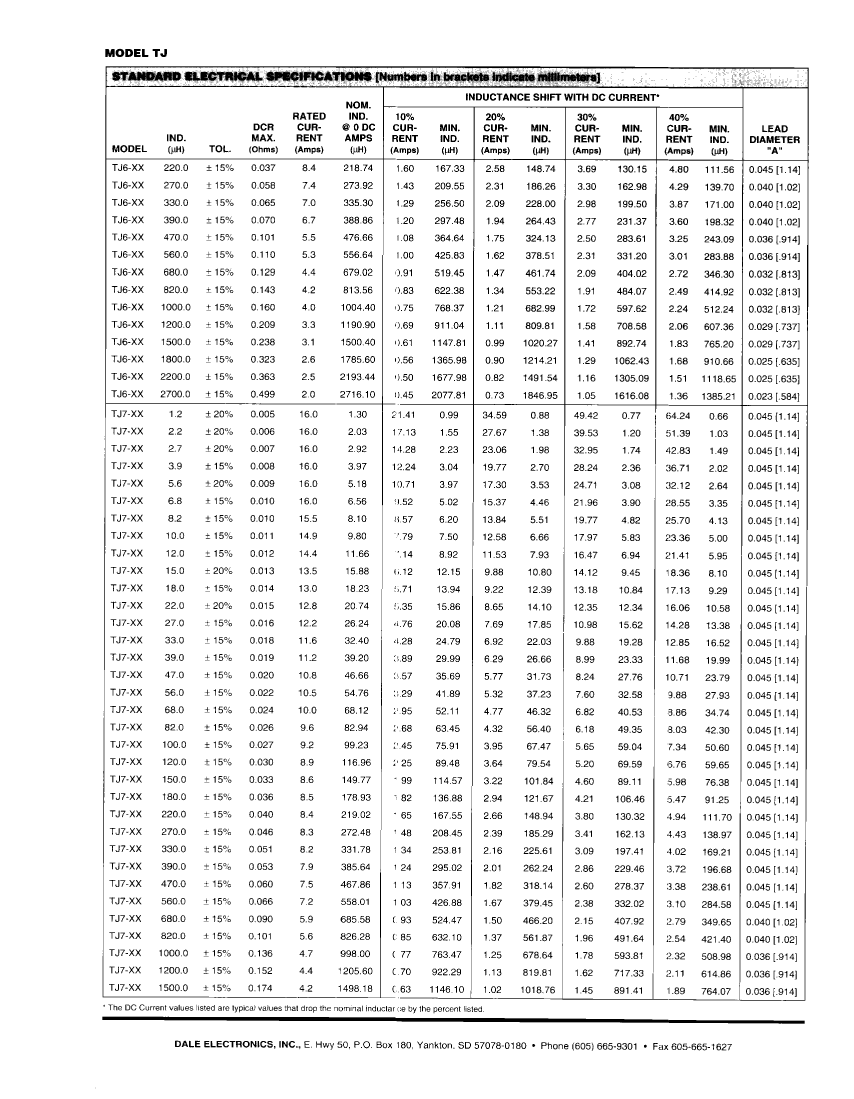

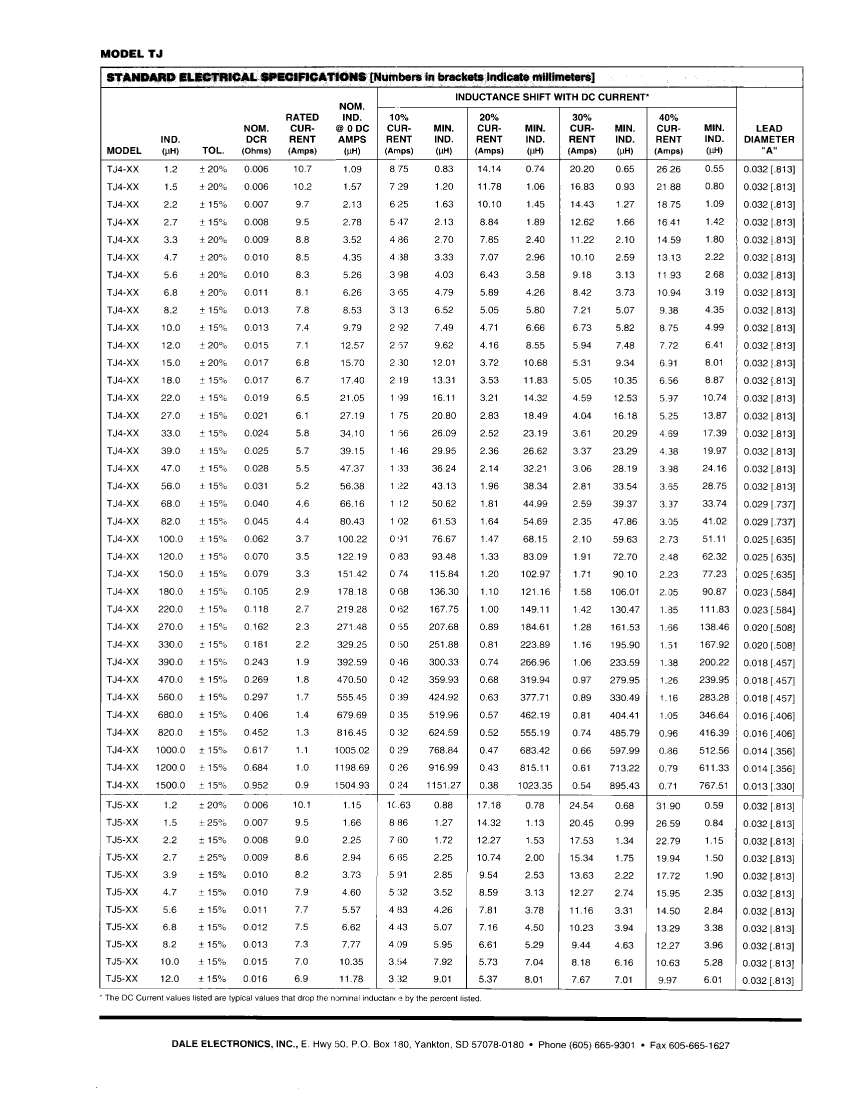

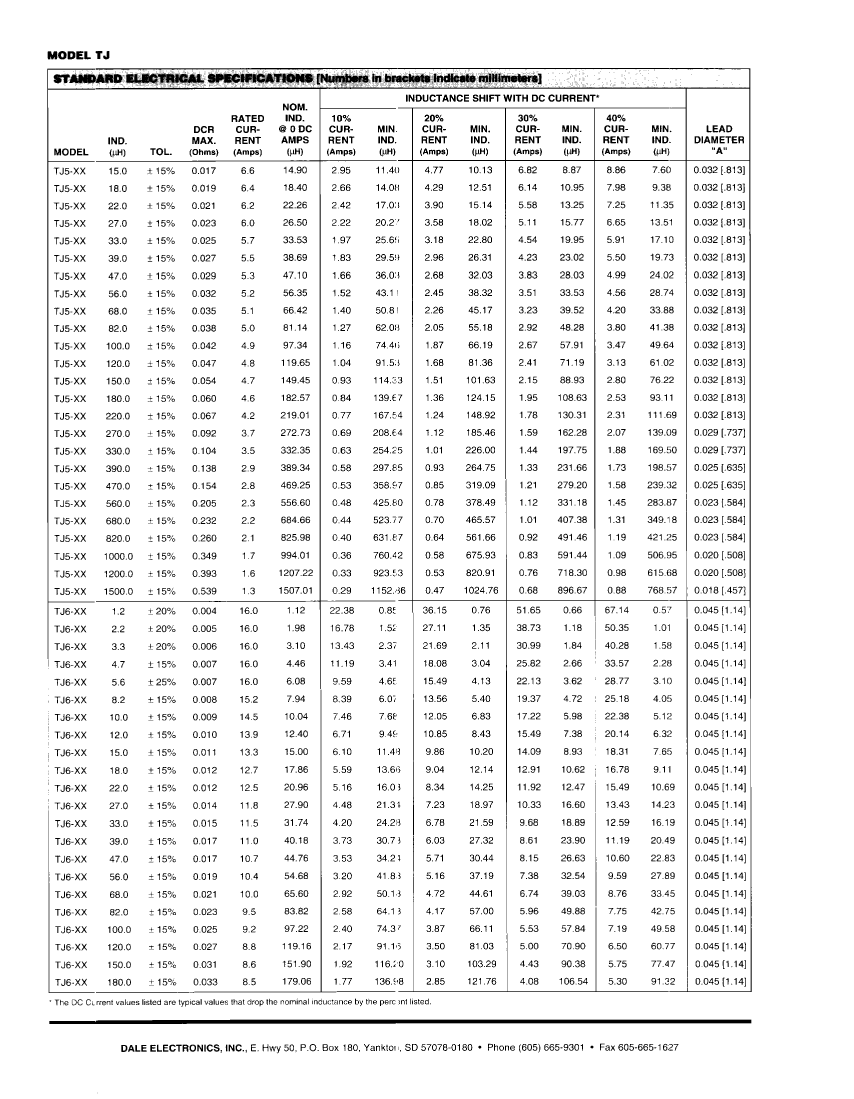

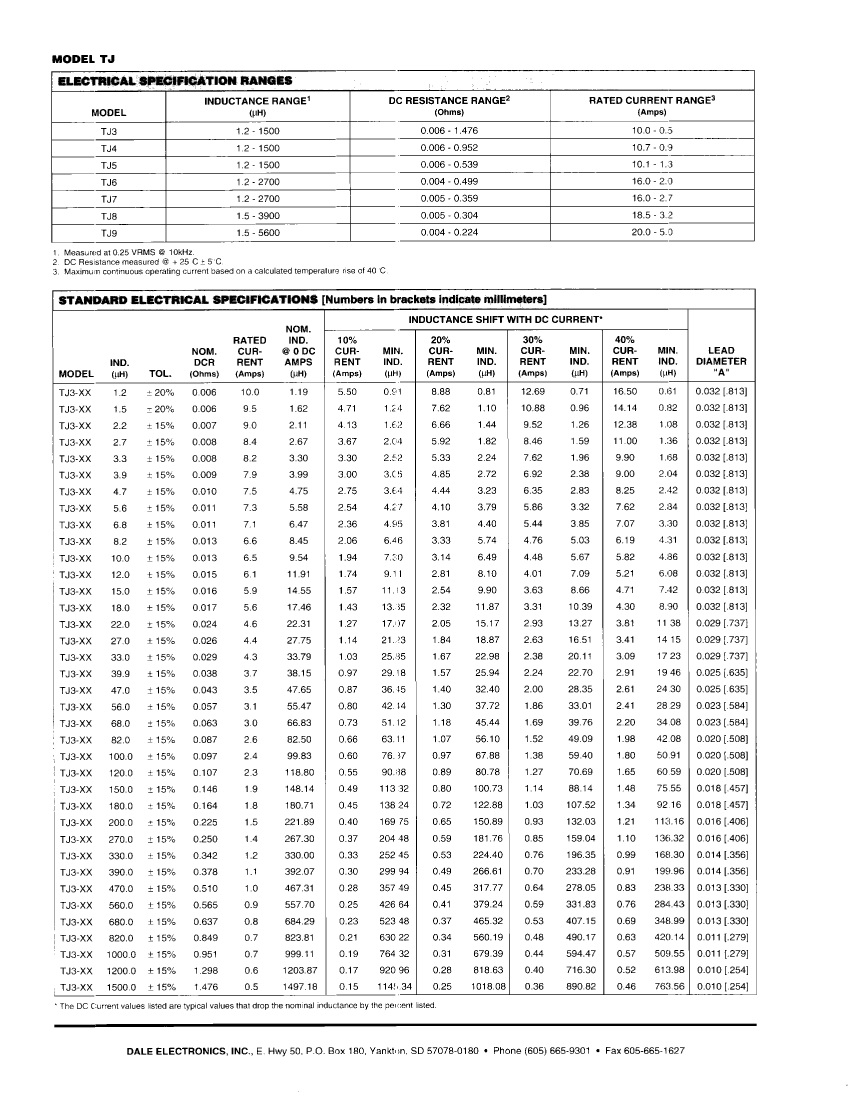

TJ71U22UH15% Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
DC Resistance0.015 Ω
Nominal inductance(L)20.74 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee2
Number of functions1
Number of terminals2
Maximum rated current12.8 A
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal surfaceTIN COPPER
Terminal locationRADIAL
Terminal shapePRINTED WIRING PIN
Test frequency0.01 MHz
Tolerance15%
Base Number Matches1

TJ71U22UH15% Related Products

TJ71U22UH15% TJ72U15UH15% TJ72U22UH15%
Description General Fixed Inductor, 1 ELEMENT, 20.74 uH, GENERAL PURPOSE INDUCTOR General Fixed Inductor, 1 ELEMENT, 15.88 uH, GENERAL PURPOSE INDUCTOR General Fixed Inductor, 1 ELEMENT, 20.74 uH, GENERAL PURPOSE INDUCTOR
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
DC Resistance 0.015 Ω 0.013 Ω 0.015 Ω
Nominal inductance(L) 20.74 µH 15.88 µH 20.74 µH
Inductor Applications HIGH CURRENT INDUCTOR HIGH CURRENT INDUCTOR HIGH CURRENT INDUCTOR
Inductor type GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR
JESD-609 code e2 e2 e2
Number of functions 1 1 1
Number of terminals 2 2 2
Maximum rated current 12.8 A 13.5 A 12.8 A
Shape/Size Description CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE
shield NO NO NO
surface mount NO NO NO
Terminal surface TIN COPPER TIN COPPER TIN COPPER
Terminal location RADIAL RADIAL RADIAL
Terminal shape PRINTED WIRING PIN PRINTED WIRING PIN PRINTED WIRING PIN
Test frequency 0.01 MHz 0.01 MHz 0.01 MHz
Tolerance 15% 15% 15%
Maker - Vishay Vishay
