LM309DA: DescriptionIC VREG 5 V FIXED POSITIVE REGULATOR, MBFM2, TO-3, 2 PIN, Fixed Positive Single Output Standard Regulator; CategoryPower/power management The power supply circuit; File Size105KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

LM309DA Overview

IC VREG 5 V FIXED POSITIVE REGULATOR, MBFM2, TO-3, 2 PIN, Fixed Positive Single Output Standard Regulator

LM309DA Parametric

Parameter Name	Attribute value
Parts packaging code	TO-204AA
package instruction	,
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	25 V
Minimum input voltage	7 V
JESD-30 code	E-MBFM-P2
Number of functions	1
Number of terminals	2
Maximum output current 1	1 A
Maximum output voltage 1	5.25 V
Minimum output voltage 1	4.75 V
Nominal output voltage 1	5 V
Package body material	METAL
Package shape	ELLIPTICAL
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	PIN/PEG
Terminal location	BOTTOM
Base Number Matches	1

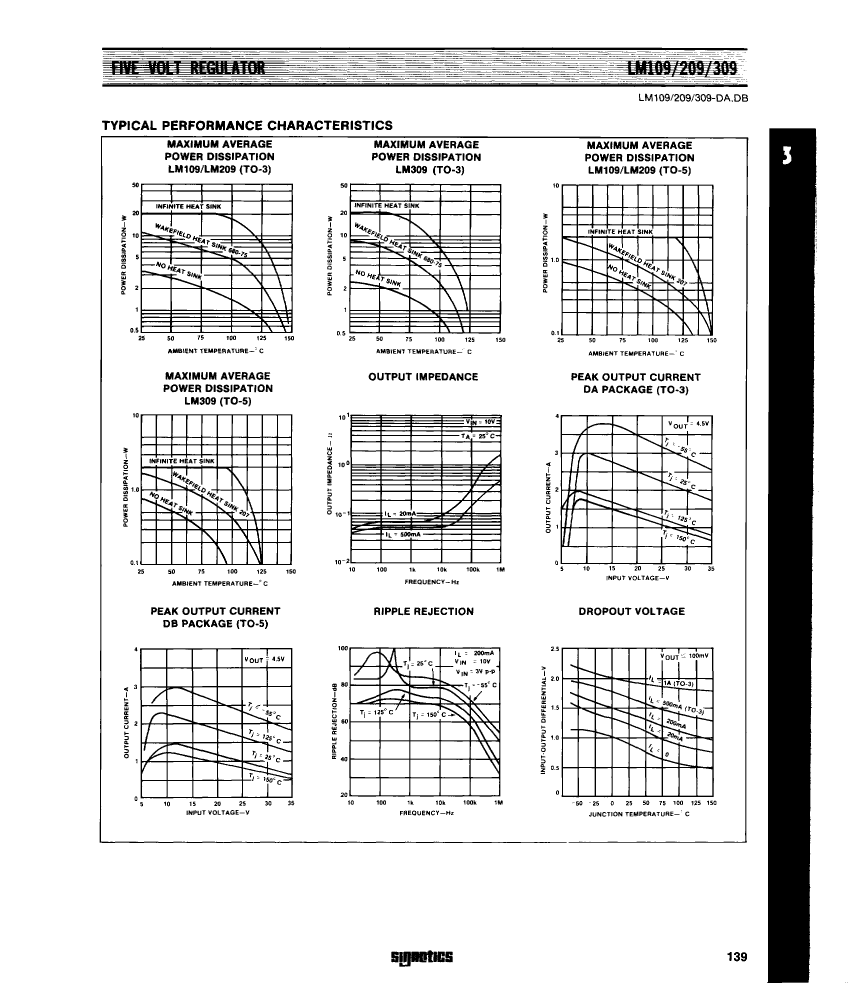

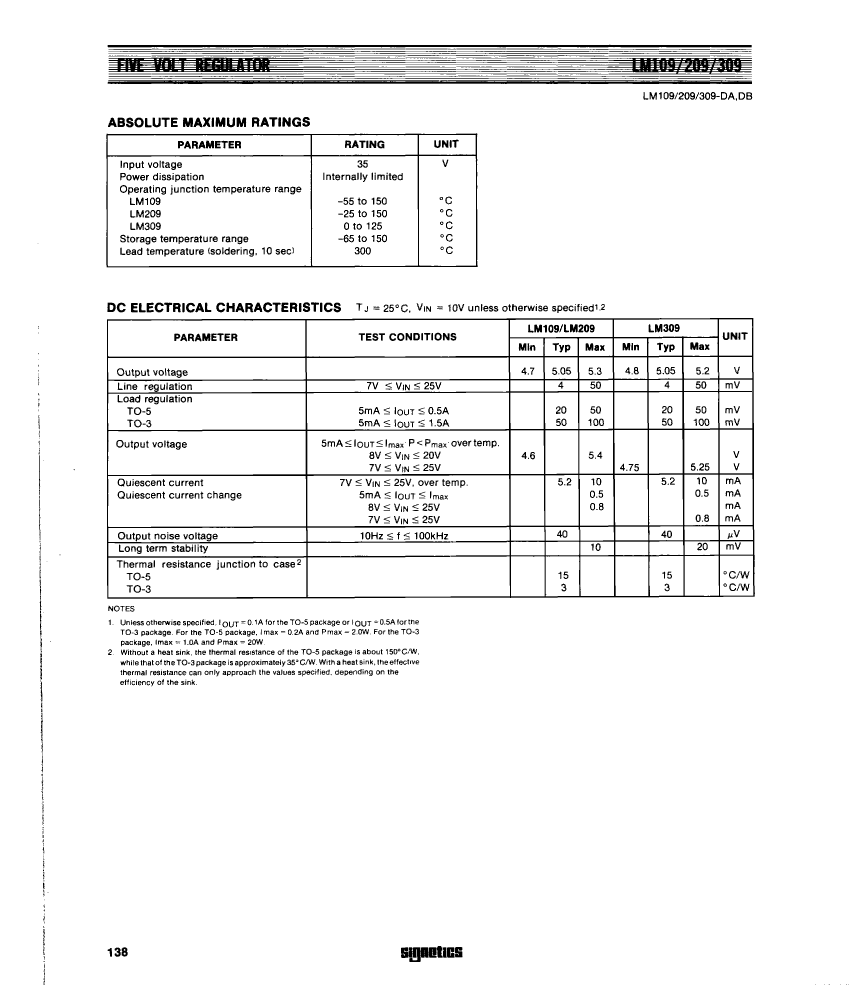

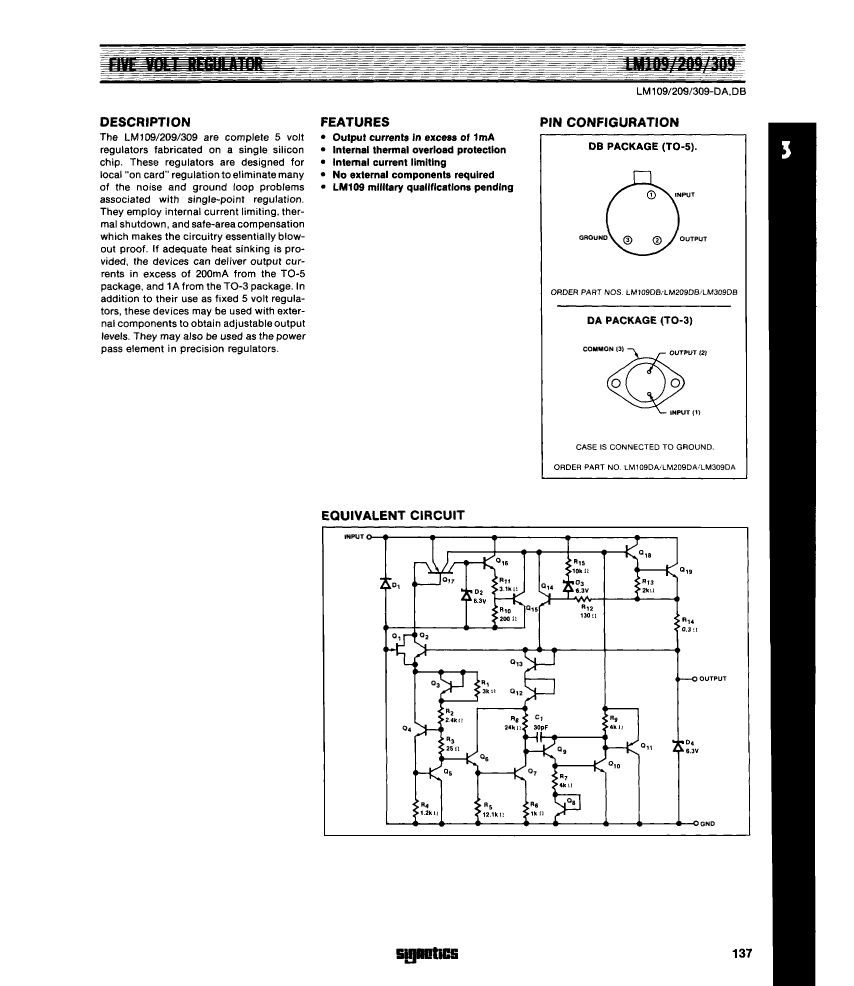

Preview

Download Datasheet

View All

LM309DA Related Products

	LM309DA	LM209DB	LM109DB	LM109DA	LM309DB
Description	IC VREG 5 V FIXED POSITIVE REGULATOR, MBFM2, TO-3, 2 PIN, Fixed Positive Single Output Standard Regulator	IC VREG 5 V FIXED POSITIVE REGULATOR, MBCY3, TO-5, 3 PIN, Fixed Positive Single Output Standard Regulator	IC VREG 5 V FIXED POSITIVE REGULATOR, MBCY3, TO-5, 3 PIN, Fixed Positive Single Output Standard Regulator	IC VREG 5 V FIXED POSITIVE REGULATOR, MBFM2, TO-3, 2 PIN, Fixed Positive Single Output Standard Regulator	IC VREG 5 V FIXED POSITIVE REGULATOR, MBCY3, TO-5, 3 PIN, Fixed Positive Single Output Standard Regulator
Parts packaging code	TO-204AA	TO-5	TO-5	TO-204AA	TO-5
Contacts	2	3	3	2	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	E-MBFM-P2	O-MBCY-W3	O-MBCY-W3	E-MBFM-P2	O-MBCY-W3
Number of functions	1	1	1	1	1
Number of terminals	2	3	3	2	3
Maximum output current 1	1 A	1 A	1 A	1 A	1 A
Nominal output voltage 1	5 V	5 V	5 V	5 V	5 V
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ELLIPTICAL	ROUND	ROUND	ELLIPTICAL	ROUND
Package form	FLANGE MOUNT	CYLINDRICAL	CYLINDRICAL	FLANGE MOUNT	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	PIN/PEG	WIRE	WIRE	PIN/PEG	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum input voltage	25 V	-	25 V	25 V	25 V
Minimum input voltage	7 V	-	7 V	7 V	7 V
Maximum output voltage 1	5.25 V	-	5.4 V	5.4 V	5.25 V
Minimum output voltage 1	4.75 V	-	4.6 V	4.6 V	4.75 V
Maker	-	NXP	NXP	NXP	NXP
