LM78L05BU: DescriptionFixed Positive Standard Regulator, 5VPSFM3, TO-220, 3 PIN; CategoryPower/power management The power supply circuit; File Size158KB，5 Pages; ManufacturerCalogic; Websitehttp://www.calogic.net/

Download Datasheet Parametric Compare View All

LM78L05BU Overview

Fixed Positive Standard Regulator, 5VPSFM3, TO-220, 3 PIN

LM78L05BU Parametric

Parameter Name	Attribute value
Parts packaging code	SFM
package instruction	,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-PSFM-T3
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	0.1 A
Maximum output voltage 1	5.2 V
Minimum output voltage 1	4.8 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

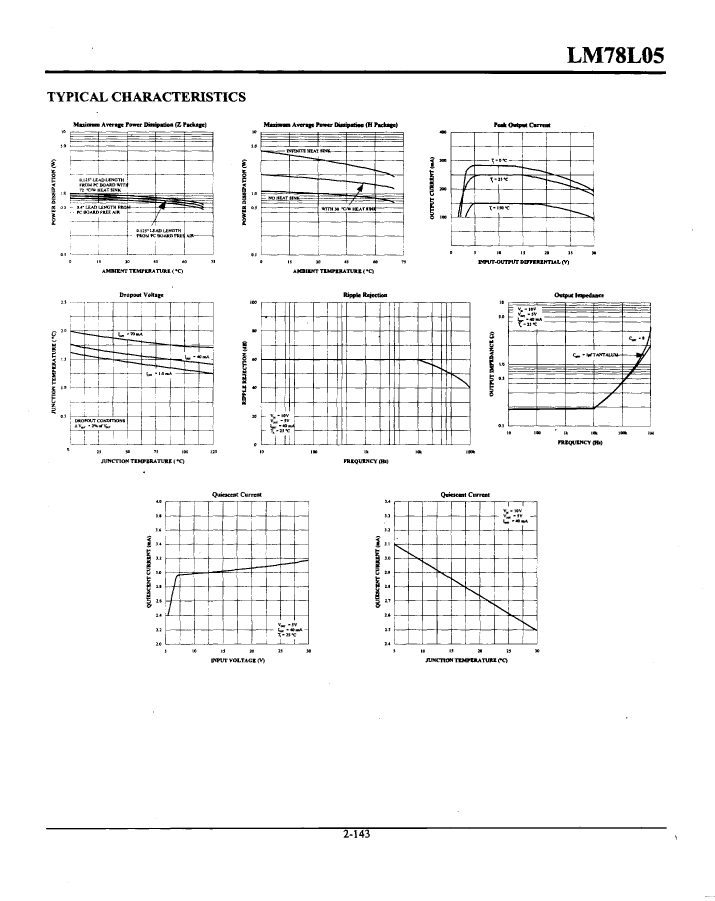

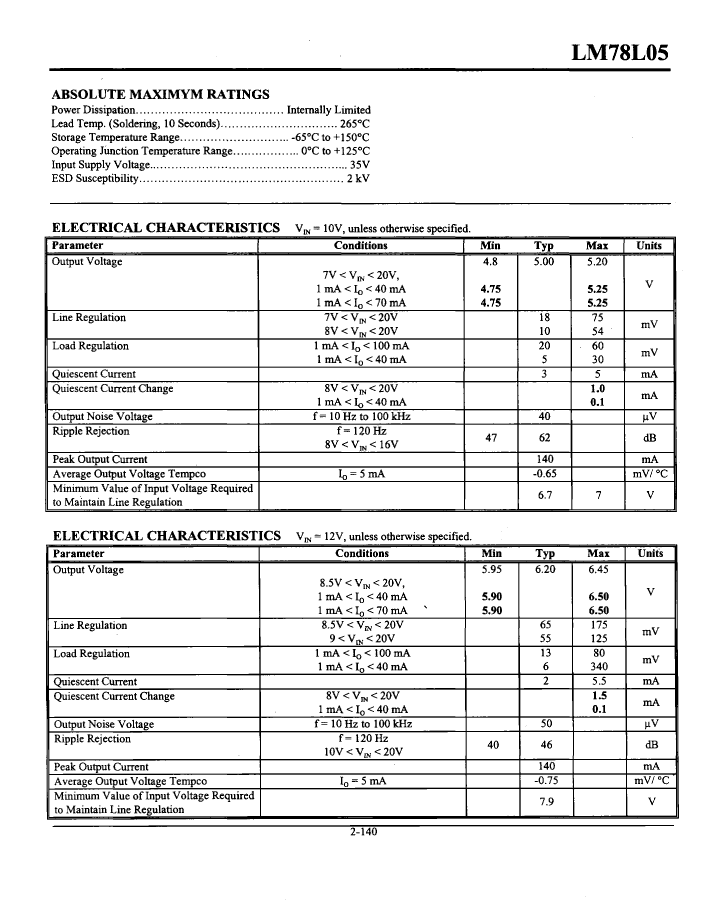

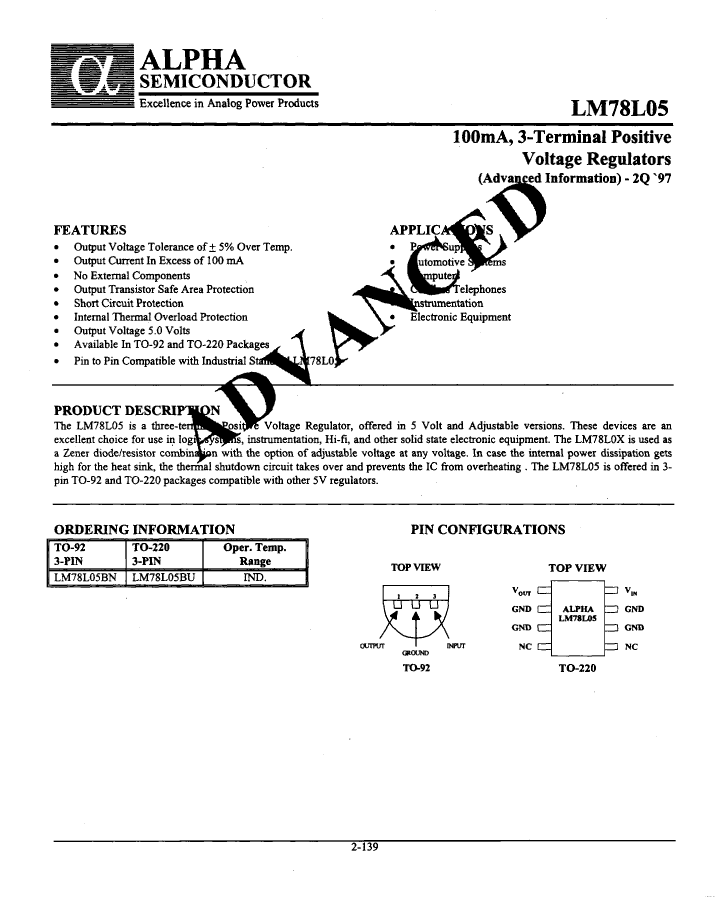

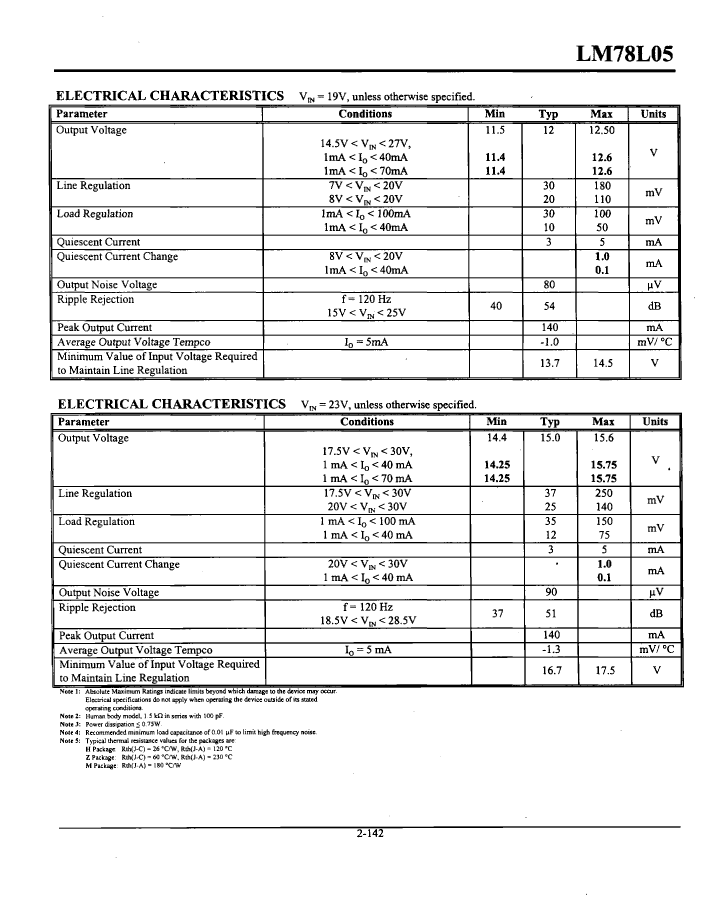

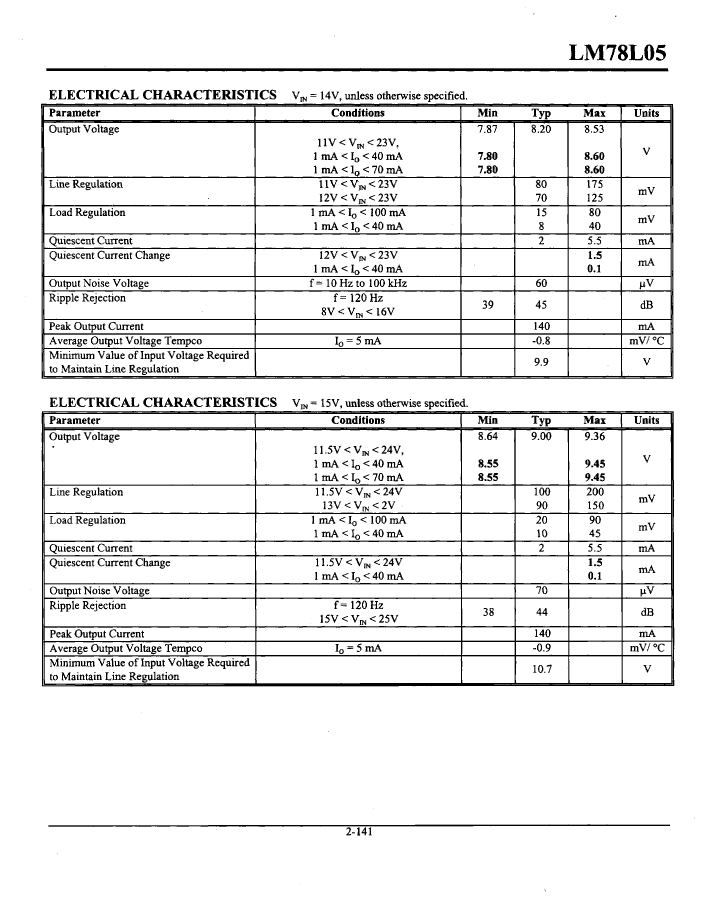

Preview

Download Datasheet

View All

LM78L05BU Related Products

	LM78L05BU	LM78L05BNOPTION4	LM78L05BNOPTION3	LM78L05BNOPTION2	LM78L05BNOPTION1
Description	Fixed Positive Standard Regulator, 5VPSFM3, TO-220, 3 PIN	Fixed Positive Standard Regulator, 5VPBCY3, TO-92, 3 PIN	Fixed Positive Standard Regulator, 5VPBCY3, TO-92, 3 PIN	Fixed Positive Standard Regulator, 5VPBCY3, TO-92, 3 PIN	Fixed Positive Standard Regulator, 5VPBCY3, TO-92, 3 PIN
Parts packaging code	SFM	TO-92	TO-92	TO-92	TO-92
Contacts	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PSFM-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of functions	1	1	1	1	1
Number of terminals	3	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum output voltage 1	5.2 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum output voltage 1	4.8 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal output voltage 1	5 V	5 V	5 V	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum input voltage	-	20 V	20 V	20 V	20 V
Minimum input voltage	-	8 V	8 V	8 V	8 V
Maker	-	-	Calogic	Calogic	Calogic
