DS-105-26-S-K-N datasheet, PDF

Datasheet> All Categories > The connector> The connector> DS-105-26-S-K-N

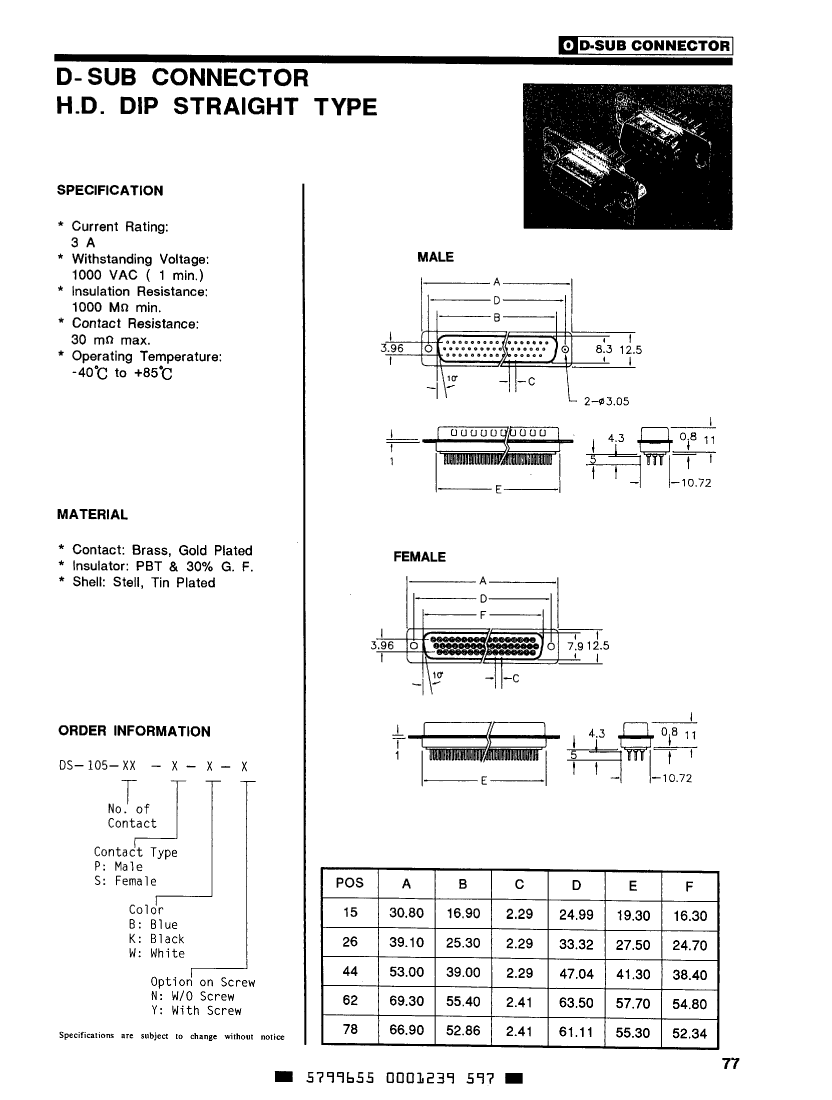

DS-105-26-S-K-N: DescriptionD Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/

Download Datasheet Parametric Compare View All

DS-105-26-S-K-N Overview

D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Plug

DS-105-26-S-K-N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	WITHOUT SCREW
body width	0.492 inch
body length	1.539 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DS-105
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.169 inch
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

DS-105-26-S-K-N Related Products

	DS-105-26-S-K-N	DS-105-26-P-W-Y	DS-105-26-P-K-N	DS-105-26-P-K-Y	DS-105-26-P-W-N	DS-105-26-P-B-Y	DS-105-26-P-B-N	DS-105-26-S-W-N	DS-105-26-S-K-Y	DS-105-26-S-B-Y
Description	D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Plug	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Plug	D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Plug	D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITHOUT SCREW	WITH SCREW	WITHOUT SCREW	WITH SCREW	WITHOUT SCREW	WITH SCREW	WITHOUT SCREW	WITHOUT SCREW	WITH SCREW	WITH SCREW
body width	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch
body length	1.539 inch	1.539 inch	1.539 inch	1.539 inch	1.539 inch	1.539 inch	1.539 inch	1.539 inch	1.539 inch	1.539 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU	AU	AU
Contact point gender	FEMALE	MALE	MALE	MALE	MALE	MALE	MALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	WHITE	BLACK	BLACK	WHITE	BLUE	BLUE	WHITE	BLACK	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DS-105	DS-105	DS-105	DS-105	DS-105	DS-105	DS-105	DS-105	DS-105	DS-105
Plug contact pitch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch
Match contact row spacing	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	3	3	3	3	3	3	3	3	3	3
Number of rows loaded	3	3	3	3	3	3	3	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	26	26	26	26	26	26	26	26	26	26
Base Number Matches	1	1	1	1	1	1	1	1	1	1
