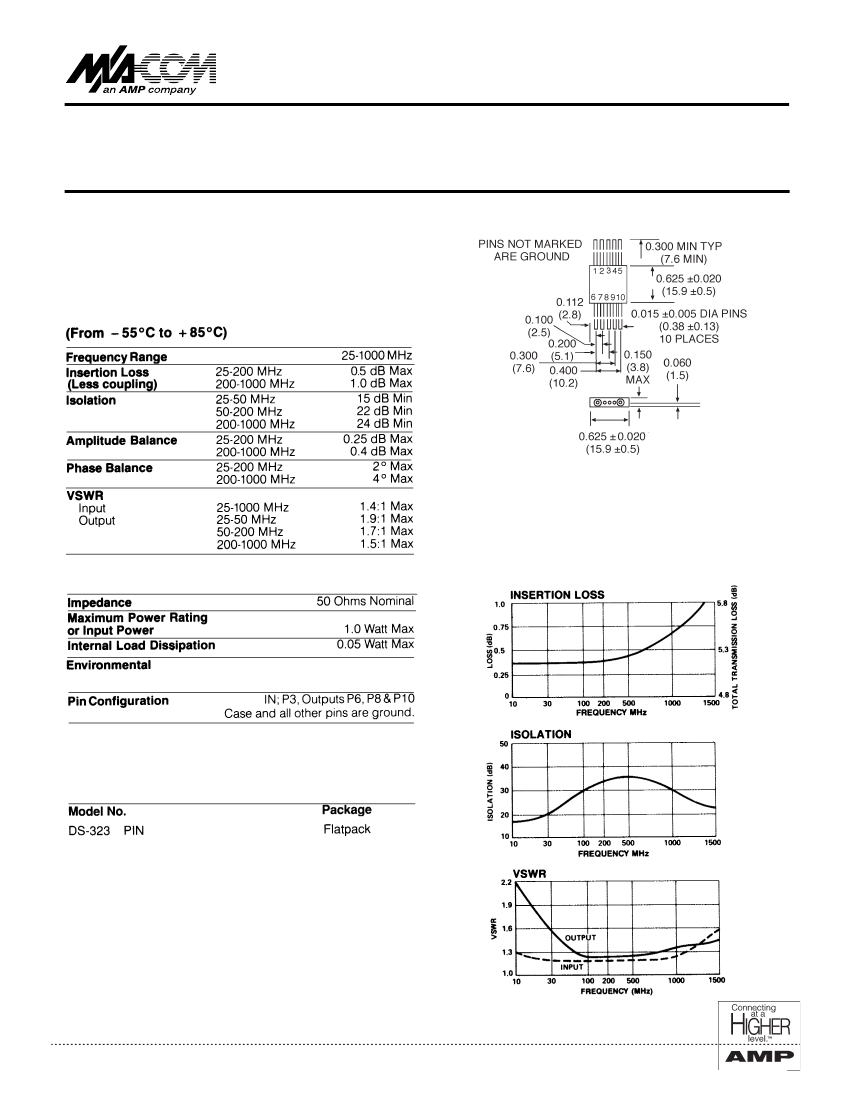

Flatpack Three-Way Power Divider

25 - 1000 MHz

Features

q

DS-323

V2.00

FP-3

0.4 dB Typical Midband Insertion Loss

35 dB Typical Midband Isolation

1.2:1 Typical Input VSWR

Guaranteed Speciﬁcations*

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .xxx = ±0.010 (.xx = ±0.25)

.xx = ±0.02 (.x = ±0.5)

WEIGHT (APPROX.): 0.12 OUNCES 3.4 GRAMS

Typical Performance

Operating Characteristics

MIL-STD-202 screening available.

* All speciﬁcations apply with 50 ohm source and load impedance.

This product contains elements protected by United States Patent

Number 3,428,920.

Ordering Information

M/A-COM Division of AMP Incorporated

s

North America: Tel. (800) 366-2266, Fax (800) 618-8883

s

Asia/Paciﬁc: Tel. +85 2 2111 8088, Fax +85 2 2111 8087

s

Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020

www.macom.com

AMP and Connecting at a Higher Level are trademarks.

Speciﬁcations subject to change without notice.

6-33

DS-323 Related Products

	DS-323	DS-323PIN
Description	25MHz - 1000MHz RF/MICROWAVE SPLITTER, 1dB INSERTION LOSS	DS-323PIN
Reach Compliance Code	unknown	unknown
