BT138F500E datasheet, PDF - EEWORLD Datasheet

BT138F500E: DescriptionTRIAC, 500V V(DRM), 12A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size613KB，12 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric View All

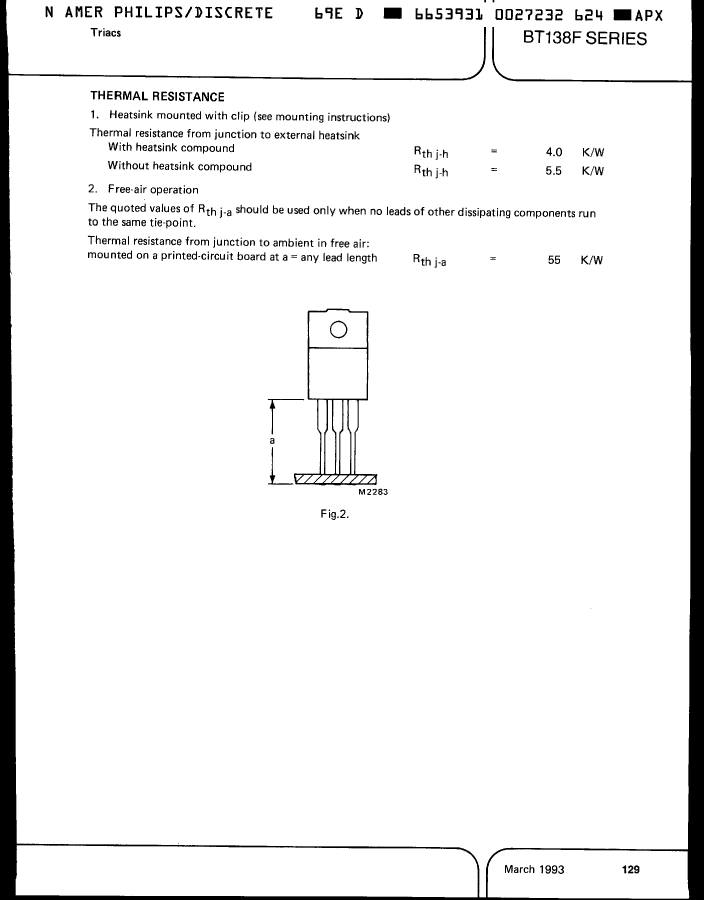

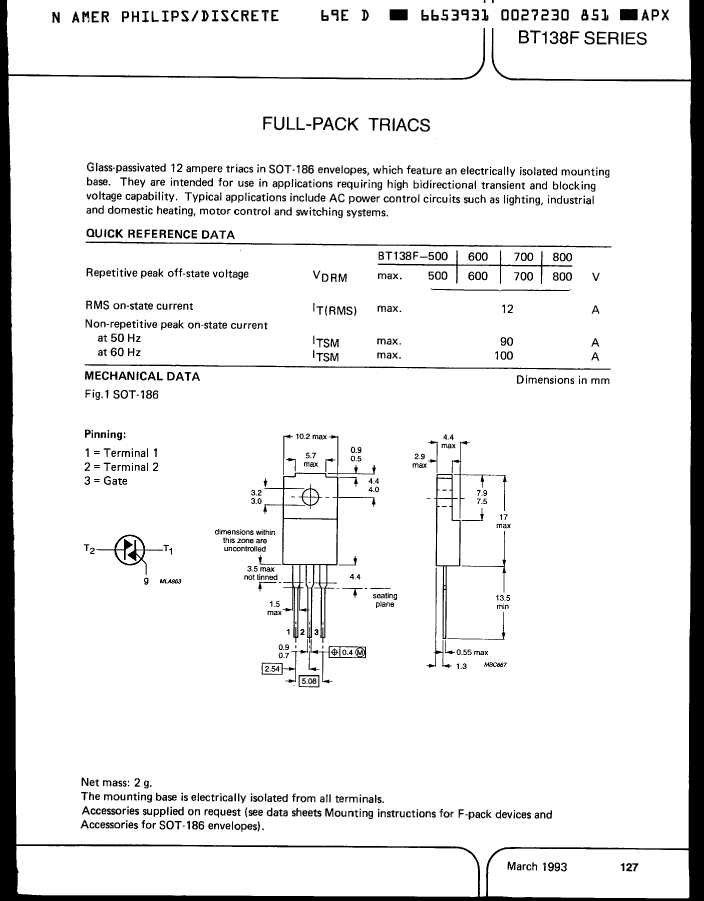

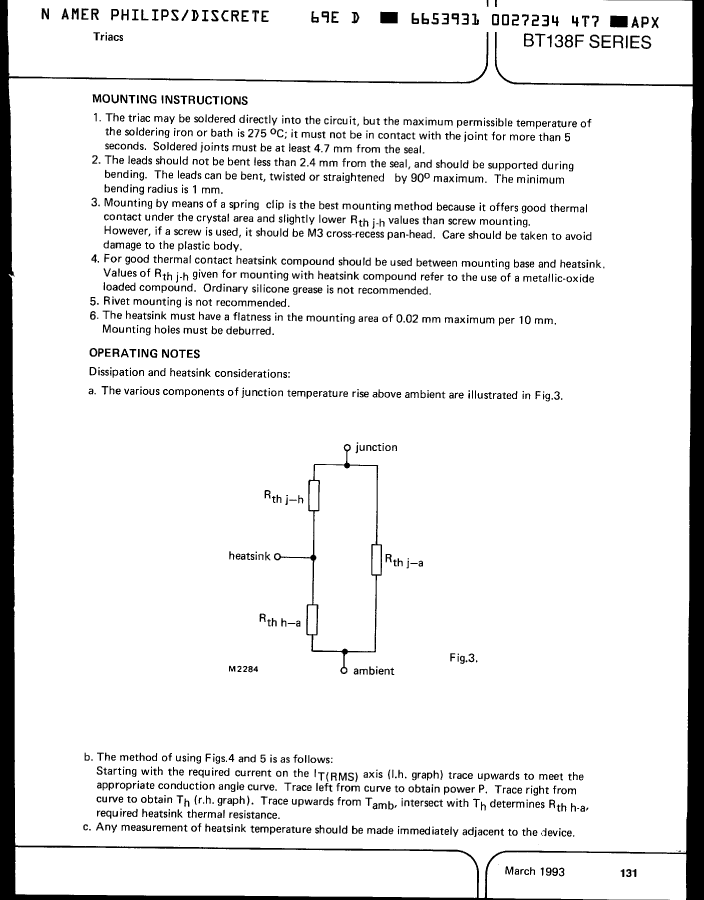

BT138F500E Overview

TRIAC, 500V V(DRM), 12A I(T)RMS

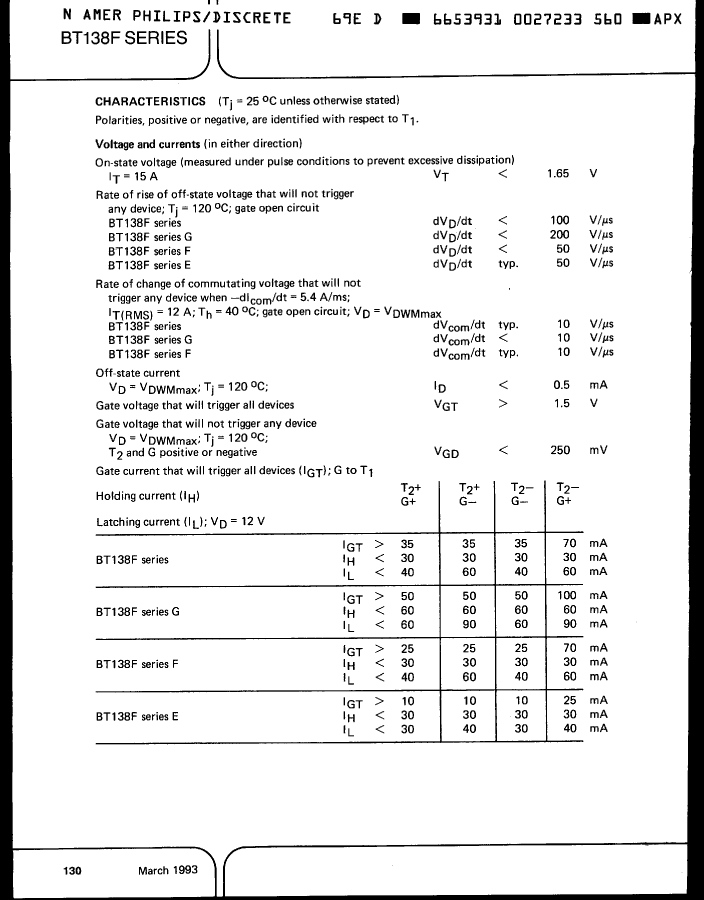

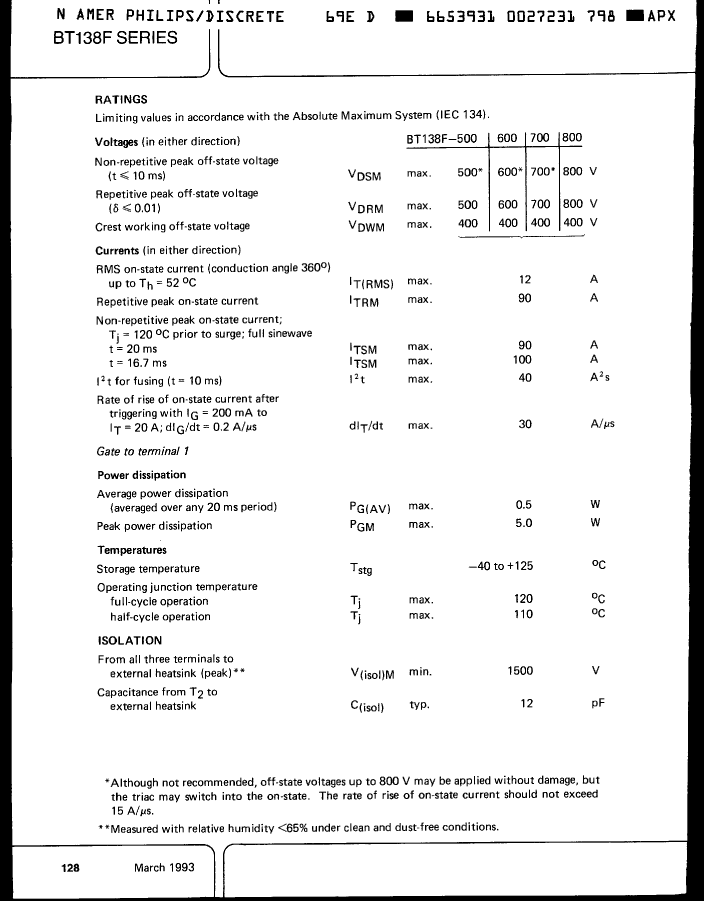

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	30 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.6 V
Maximum operating temperature	120 °C
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	500 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC
Base Number Matches	1
